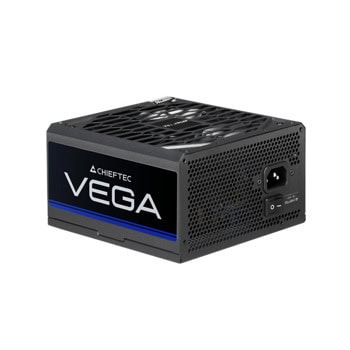

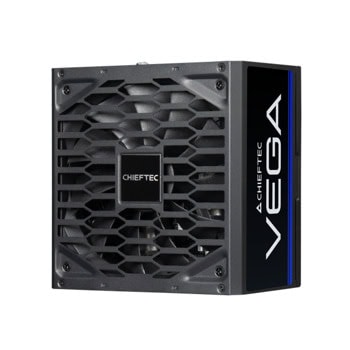

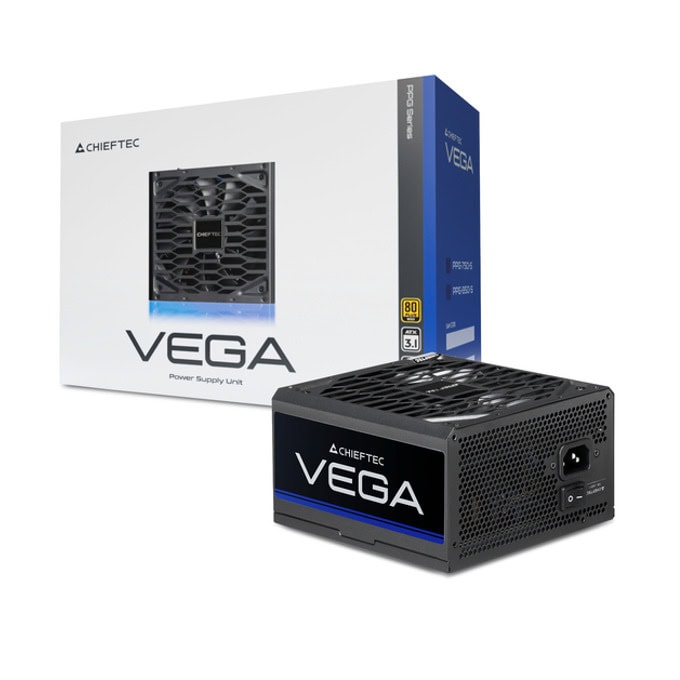

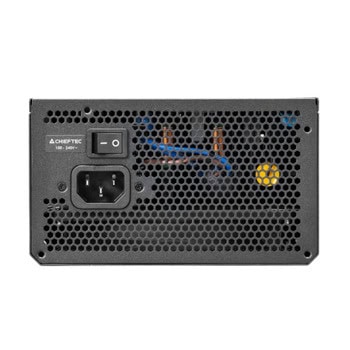

Name: Захранване Chieftec Vega, 850W, Active PFC, 80 Plus Gold, 135mm вентилатор
Brand: Chieftec
SKU: PWRPCCHIEFTECPPG850S
Price: 93.25 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

The CHIEFTEC VEGA Series power supply is built to Intel’s ATX 12V 3.1 standard and supports PCIe GEN5 with 80PLUS Gold certified efficiency. It prioritizes a competitive price-to-performance ratio up to 850W while maintaining the trusted Chieftec quality.

The Vega Series features LLC Half-Bridge converter with DC-to-DC technology to provide enhanced power efficiency and stability. The equipped extra-long native black cables make it suitable for mainstream gamers to build their system, even in larger PC cases.

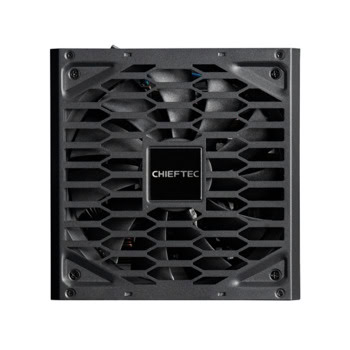

Additionally, its 135mm fluid dynamic bearing (FDB) silent fan optimizes the balance between cooling performance and noise levels. The Vega Series is your trusted reliable choice for all computing needs incorporating all necessary modern protection and safety features.

Specifications

AC Input	100-240V~ / 12-6A
Frequency	50 - 60Hz
+5V	20A
+3,3V	20A
+5V & +3,3V combined	100W
+12V1	70.8A
+12V2	-
+12V1, +12V2 combined	850W
P.F.	>0.9
-12V	0.3A / 3.6W
+5VSB	3.0A / 15W
Maximum Power	850W

20+4 PIN ATX	1 (600mm)
8 PIN EPS (8/4+4)	1/1 (650/150mm)
8 PIN PCIe (6+2)	4 (2 x 600/150mm)
16 PIN PCIe GEN5	1 (600mm)
SATA	6 (2 x 400/150/150mm)
MOLEX	3 (400/150/150mm)

ATX12V Version	ATX 12V 3.1
Efficiency	80Plus Gold
Dimension (DxWxH)	150 mm x 150 mm x 85 mm
PFC	Active PFC (0.9)
Fan	135mm FDB fan
Security	AFC (Automatic Fan Speed Control) OPP (Overload Protection) OTP (Over Temperature Protection) OVP (Overvoltage Protection) SCP (Short-Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) OCP (Over-Current Protection)
