Name: Захранване Chieftec CTG-550C, 550W, Active PFC, 120mm вентилатор, полу-модулно
Brand: Chieftec
SKU: PWRPCCHIEFTECCTG550C
Availability: OutOfStock
Rating: 5.00 (1 reviews)

Описание Характеристики Ревюта / Въпроси Документация

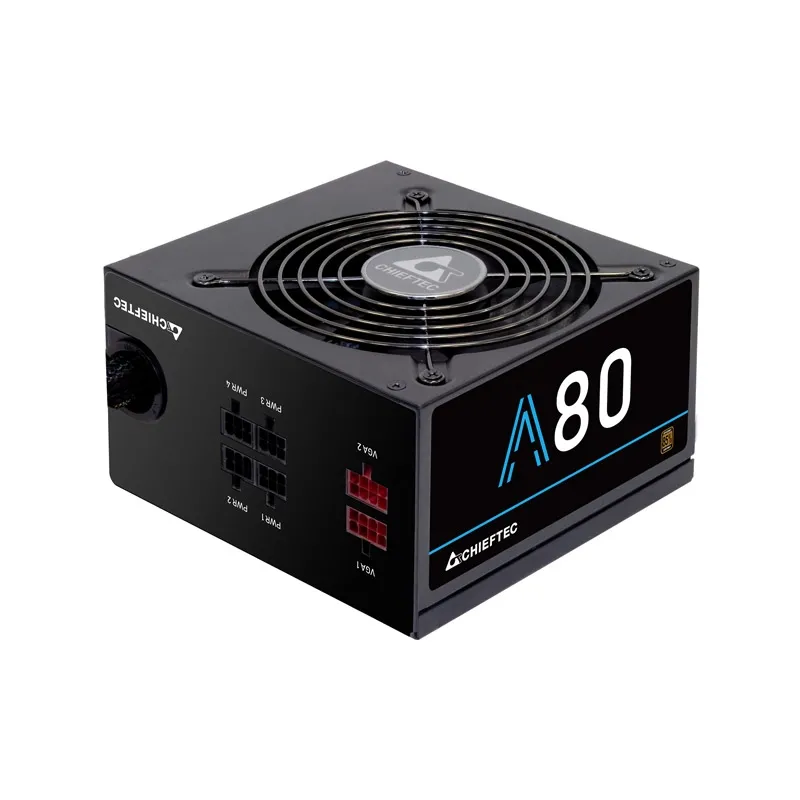

Chieftec CTG-550C

This popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.

Weight (without/with package)	2.08kg / 2.48kg
AC Input	230V / 6A
Frequency	50 Hz
+5V	22A
+3,3V	22A
+5V & +3,3V combined	120W
+12V1	22A
+12V2	22A
+12V1, +12V2 combined	495W
P.F.	>0,9
-12V	0,3A / 3,6W
+5VSB	2,5A / 12,5W
Maximum Power	550W

20+4 PIN ATX	1
8 PIN EPS(4+4)	1
8 PIN PCIe (6+2)	2
SATA	6
MOLEX/FLOPPY	4/2

20+4 PIN ATX	450
8 PIN EPS(4+4)	550
8 PIN PCIe (6+2)	2x550
SATA	2x 450/150/150
MOLEX/FLOPPY	2x 450/150/150

ATX12V Version	ATX 12V 2.3
Efficiency	>85%
Dimension (DxWxH)	140 mm x 150 mm x 86 mm
PFC	Active PFC (0,9)
Fan	120mm silent fan
Security	AFC (Automatic Fan speed Control) OPP (Over Power Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection)
