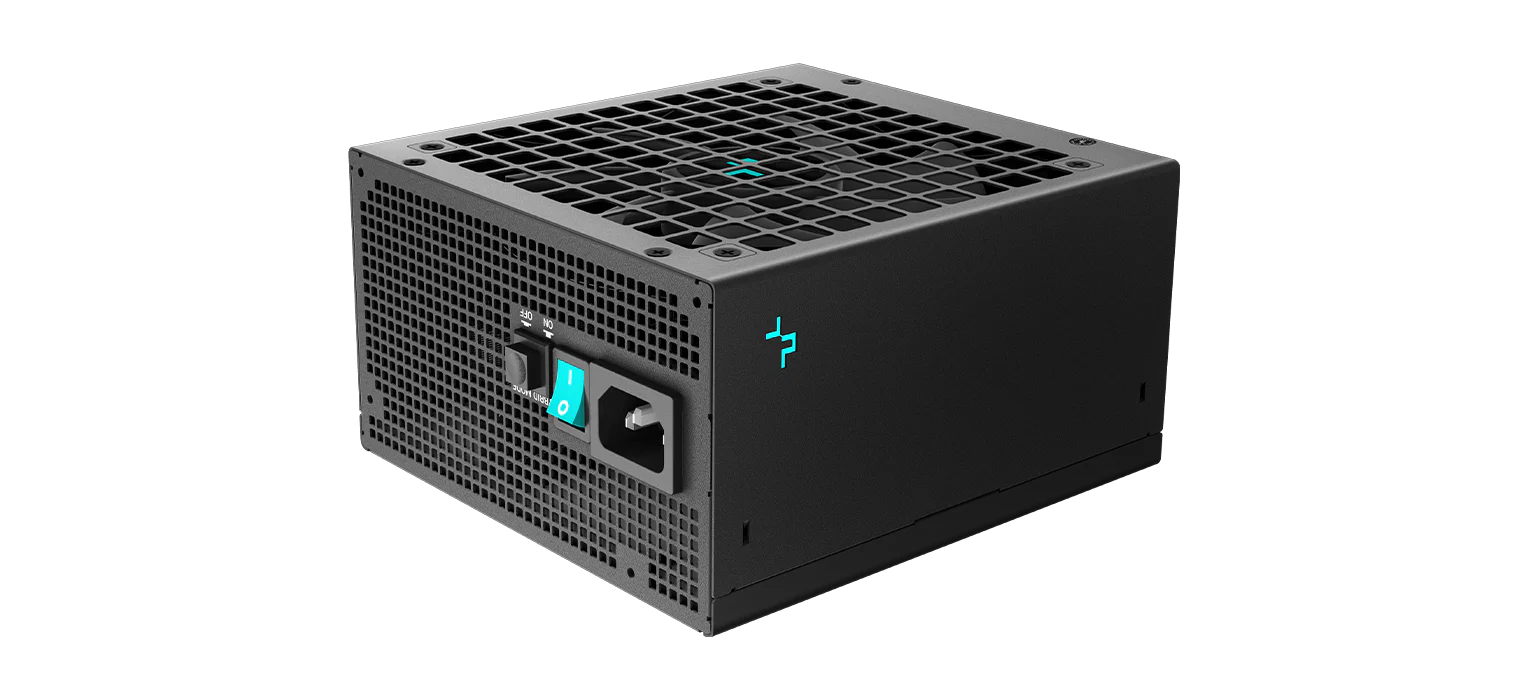

DeepCool PX1200G
The DeepCool PX1200G is a newly designed power supply that meets the latest ATX 3.0 standard. With a dedicated 12VHPWR, 2 EPS, and 3 PCI-e ports, the PX1200G provides stable power for a wide range of components.
Past, Present, and Future
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1200G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
THE GLORY OF GOLD ATX3.0 COMPLIANCE PRODUCT

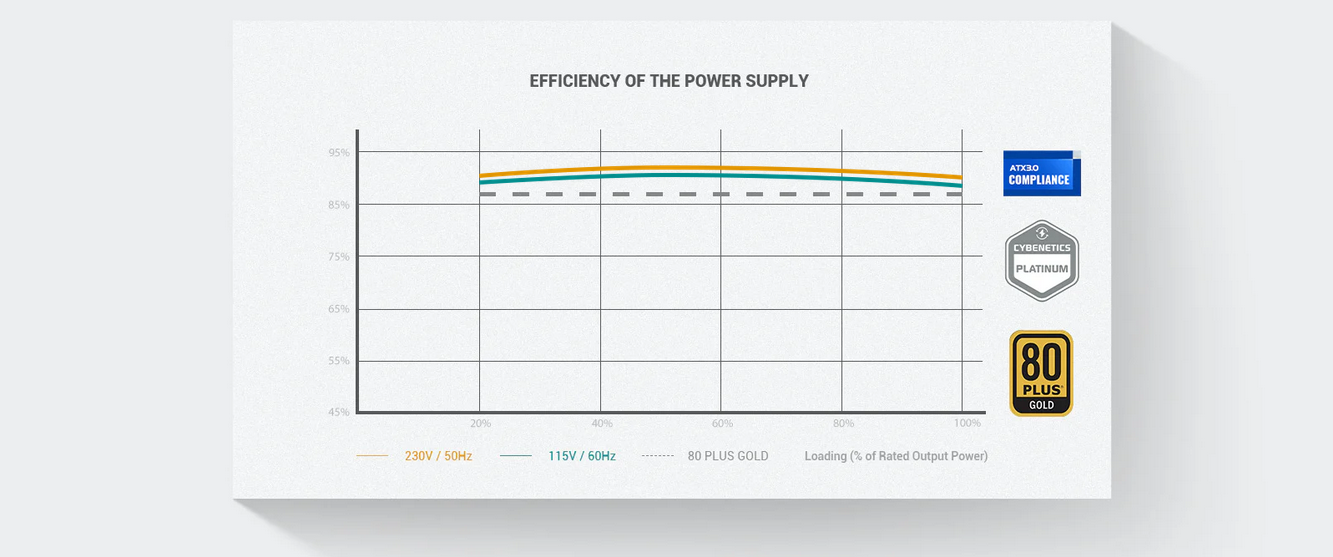

80 PLUS GOLD and CYBENETICS PLATINUM certified to ensure high efficiency under typical load conditions.
Please visit the Intel official website to learn more about the ATX 3.0 standard and compliance product.
Premium Quality

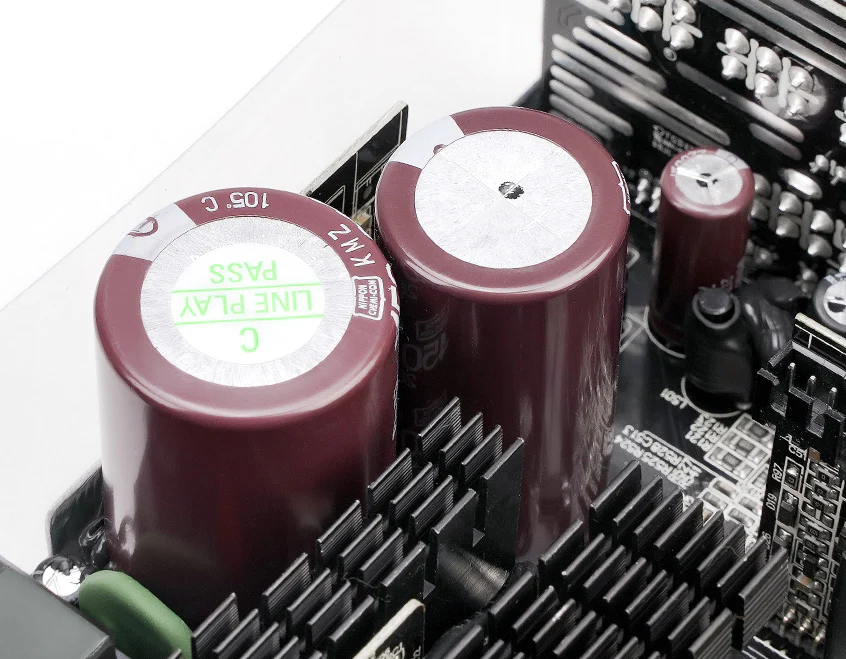

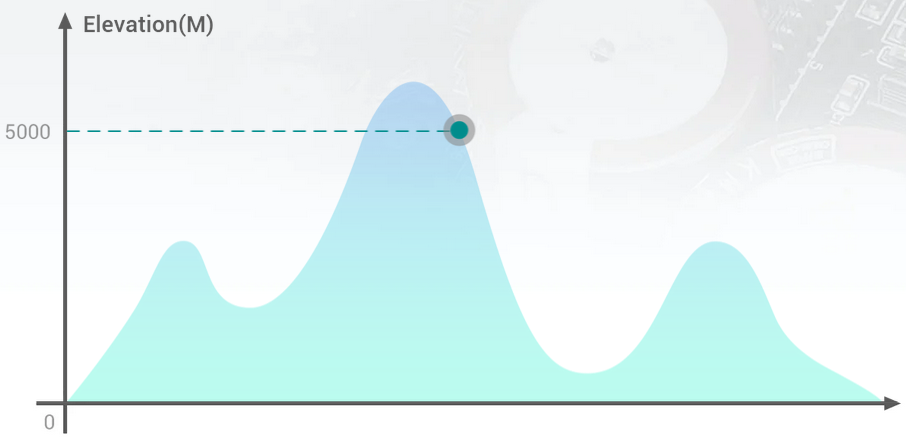

Solid and reliable power is provided through the use of full Japanese 105C capacitors. Due to the high quality of the PSU build, the PX1200G will operate at altitudes up to 5000 meters above sea level.
Reliable Stability
Through the use of a dual main capacitor topology,
the PX1200G can keep the hold-up time to ≥ 16ms under full load.
Technical Spec:
| Type | ATX12V V3.0 |
| Product Dimensions | 150×160×86mm (W x L x H) |
| Efficiency certification | 80Plus GOLD |
| Fan Size | 135mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japan Electrolytic Capacitors |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC; |
| Erp Regulation | ErP 2014 |
| MTBF | 100,000 Hours |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри DeepCool
Виж всички Захранвания Настолни компютри в категорията
Декларация за съответствие_DeepCool PXxxxG Series.pdf| Изходна мощност: | 1200 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
