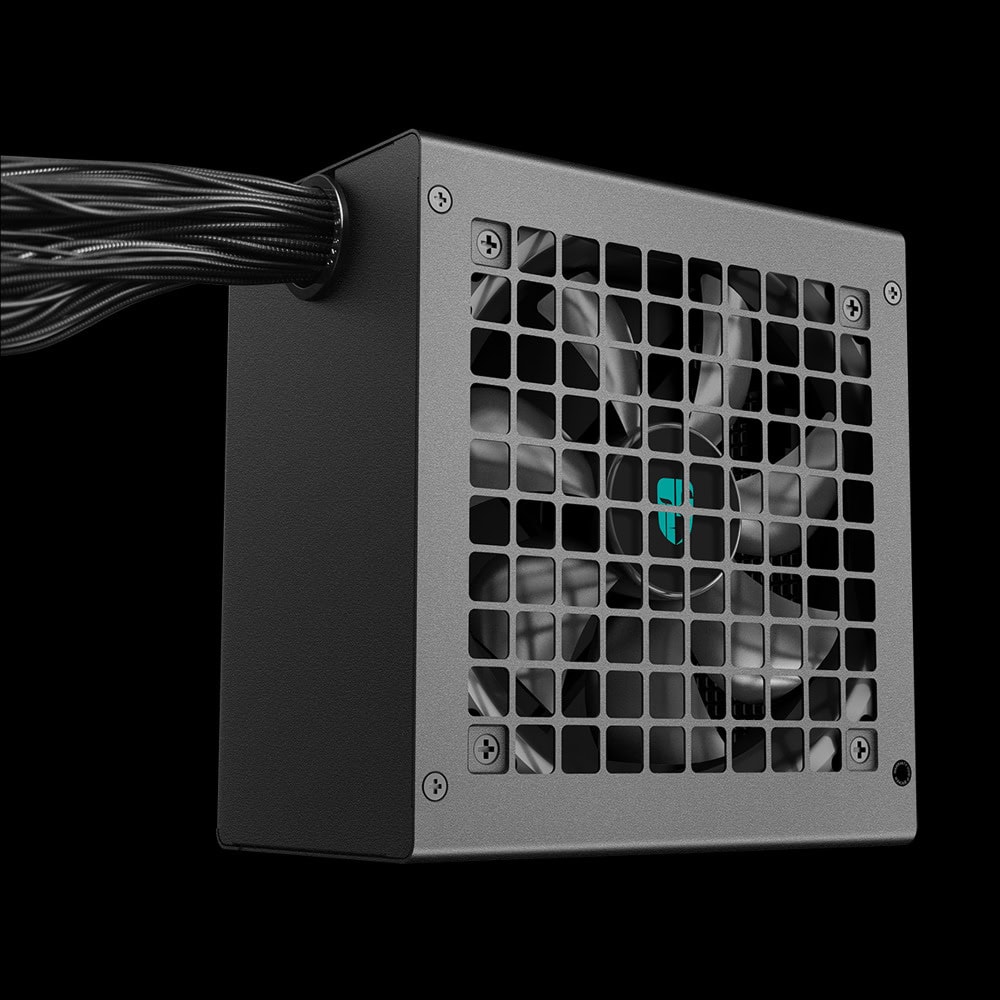

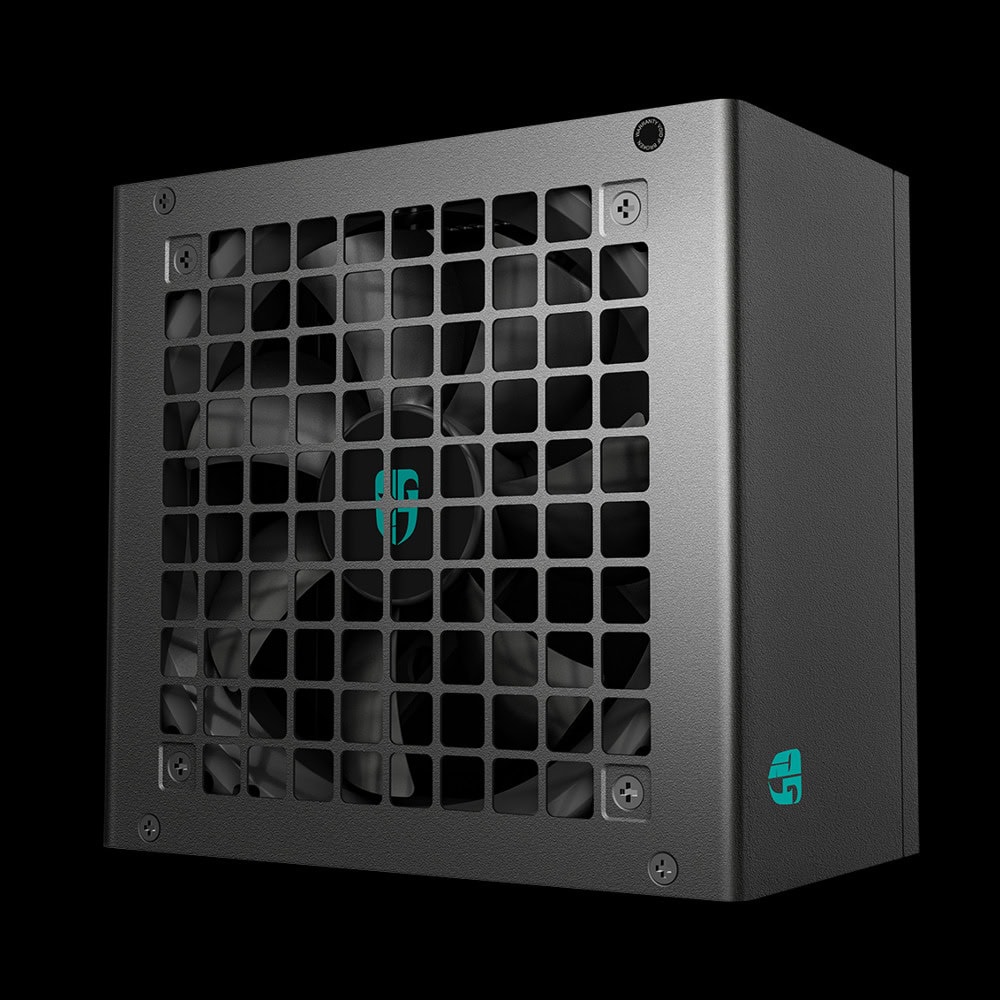

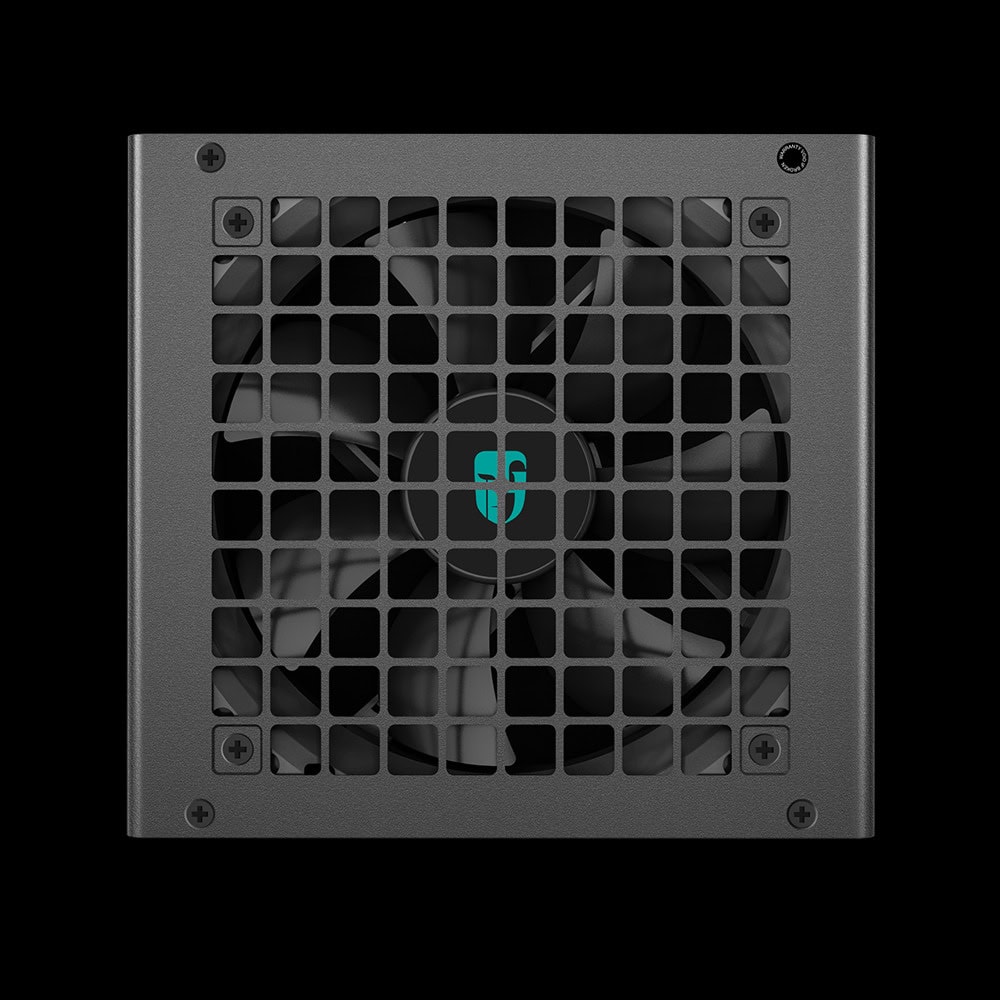

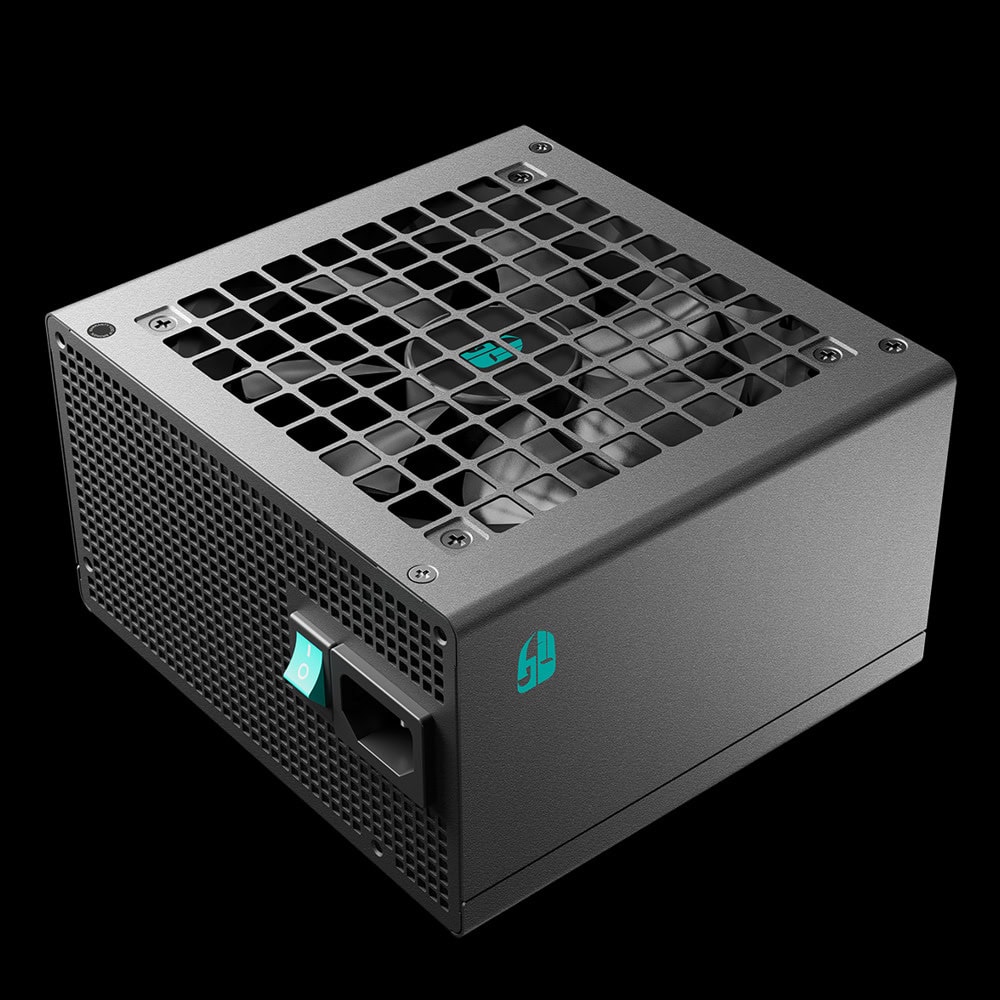

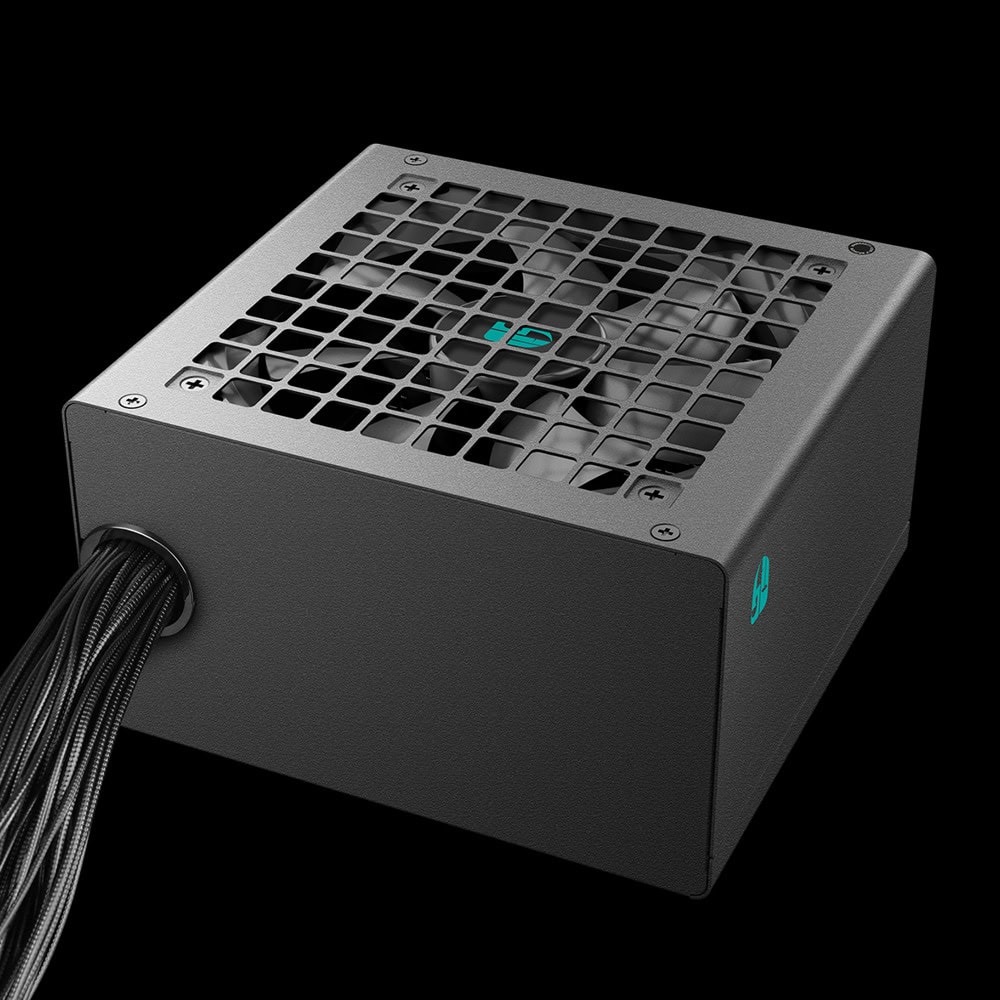

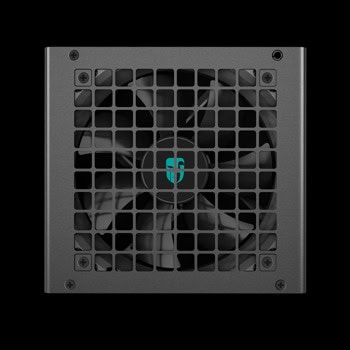

Захранване DeepCool Gamer Storm PF650X, 650W, Active PFC, 80 Plus Bronze, 120mm вентилатор

DeepCool Gamer Storm PF650X

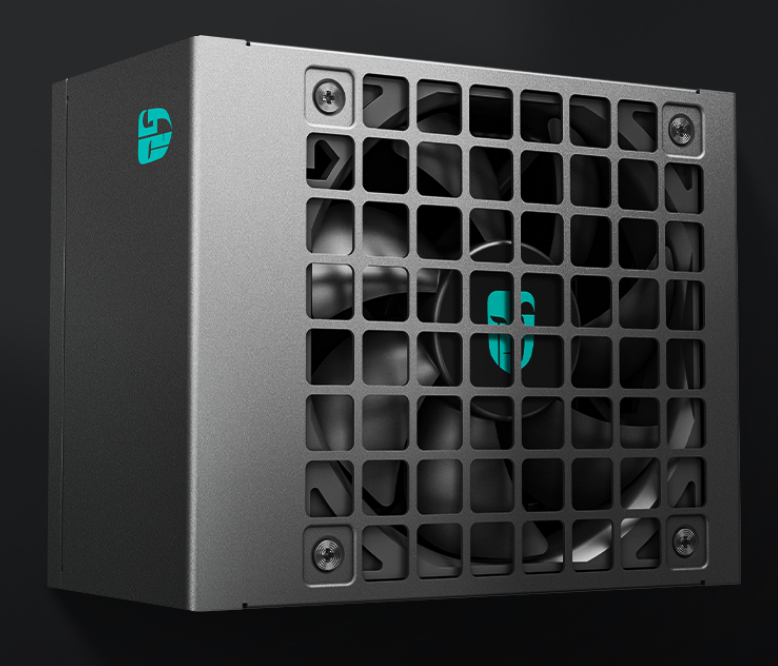

SMALL BUT MIGHTY

The GAMER STORM PS-G is designed for small form factor PCs, fully compliant with the latest Intel ATX 3.1 and PCIe 5.1 standards, and delivers Gold-level power efficiency.

NATIVE ATX3.1 CERTIFIED

The PS-G Series are officially certified for ATX 3.1 compliance by Cybenetics and PPLP. It can supply up to 200% of the total system power and 300% of the rated power on the 12V-2x6 connector for 0.1 ms, following the requirements established by the Intel ATX 3.1 standard.

TRUST-WORTHY STABILITY

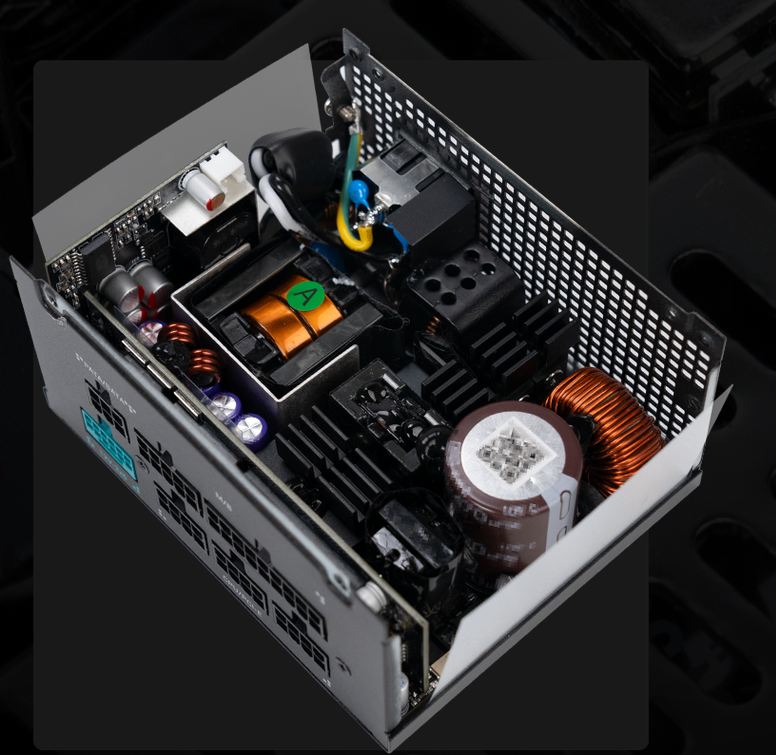

Utilizing full premium Japanese electrolytic capacitors, active PFC, a half-bridge LLC, and DC-to-DC topology, the PS-G maintains a hold-up time ≥ 16 ms under 80% load.

THE GOLD STANDARD

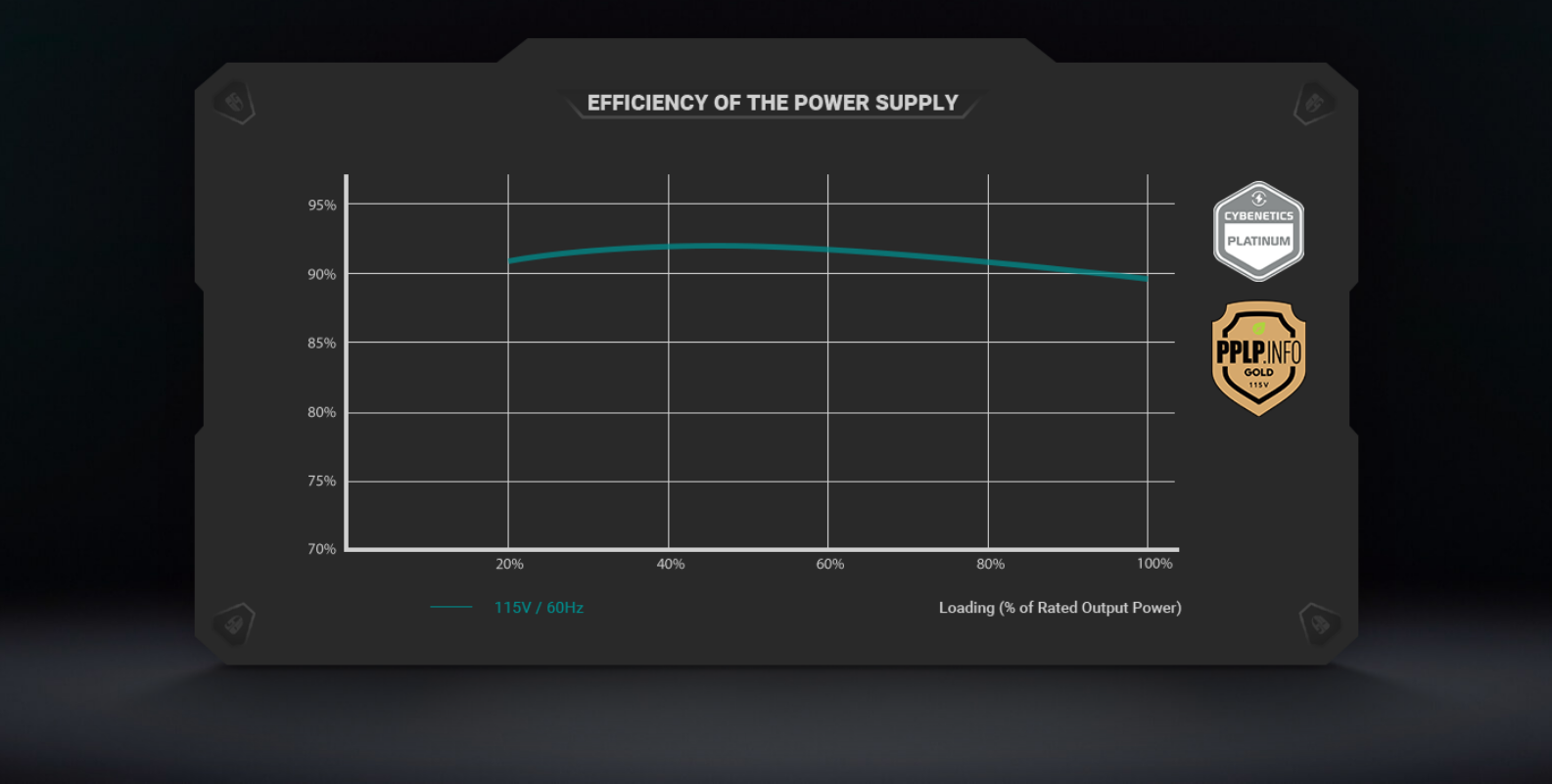

Certified Gold by Cybenetics and PPLP, it achieves a high power efficiency of 90% at typical 50% load conditions.

PERFECTION CABLE

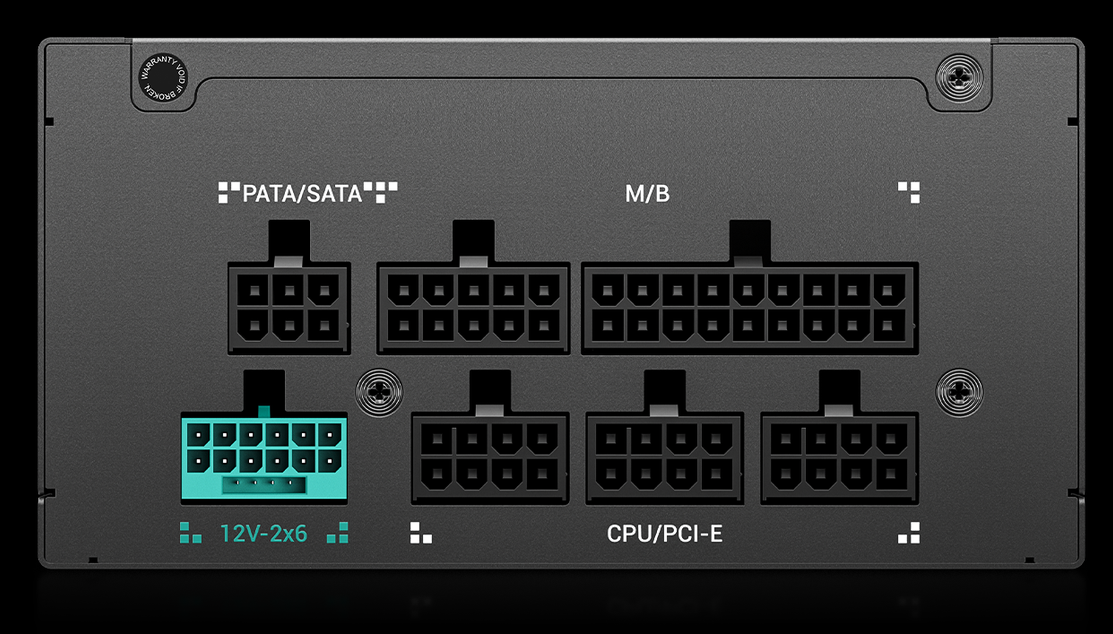

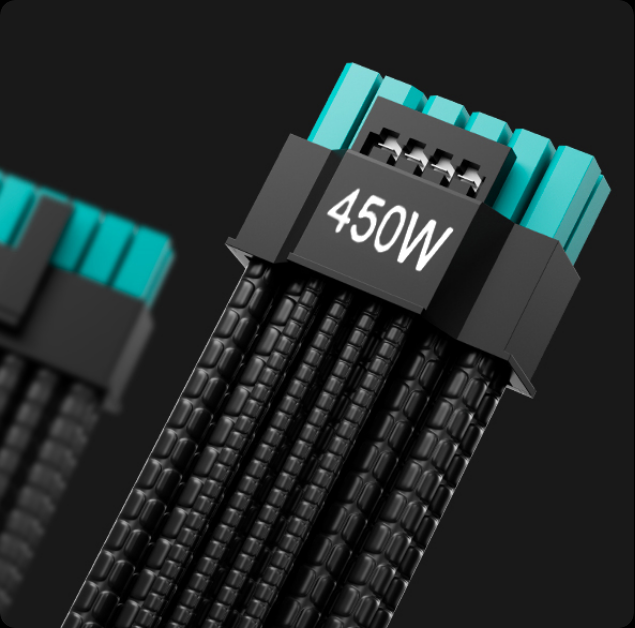

The PS-G features high-quality UL-certified copper-core conductors and custom-molded sleeved cables, providing excellent cable management while adhering to strict safety standards. And the dual-color 12V-2×6 sockets help users confirm proper installation.

DYNAMIC FDB FAN

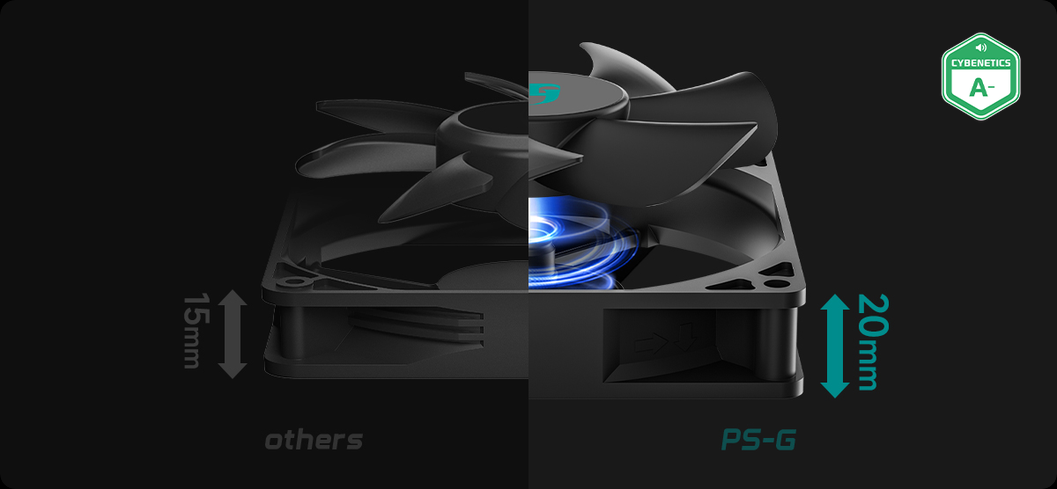

The 92×20mm customized thick Fluid Dynamic Bearing fan, combined with an aerodynamic design optimized through PCB layout and airflow resistance analysis, ensures outstanding operational stability and significantly lowers noise levels.

EXCEPTIONAL QUALITY

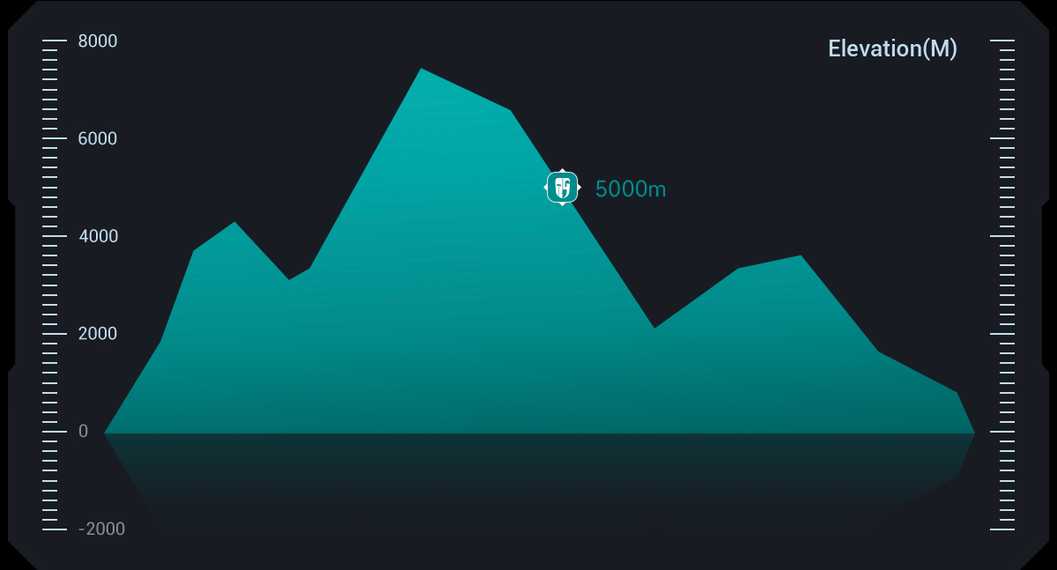

Fully complying with global safety standards and surpassing competitors, it meets the criteria for high-temperature and high-altitude environments, including conditions of 40℃ and 5000 meters above sea level.

Total Power Output: 650 W.

Form Factor: ATX12V V2.52.

Dimensions (W × L × H): 150 × 140 × 86 mm.

Efficiency Certifications: 80 PLUS 230V EU Bronze, Cybenetics 230V Bronze, PPLP 230V Bronze.

Efficiency: ≥88% at 50% load.

Cooling Fan: 120 mm.

Fan Bearing: Longlife HYB.

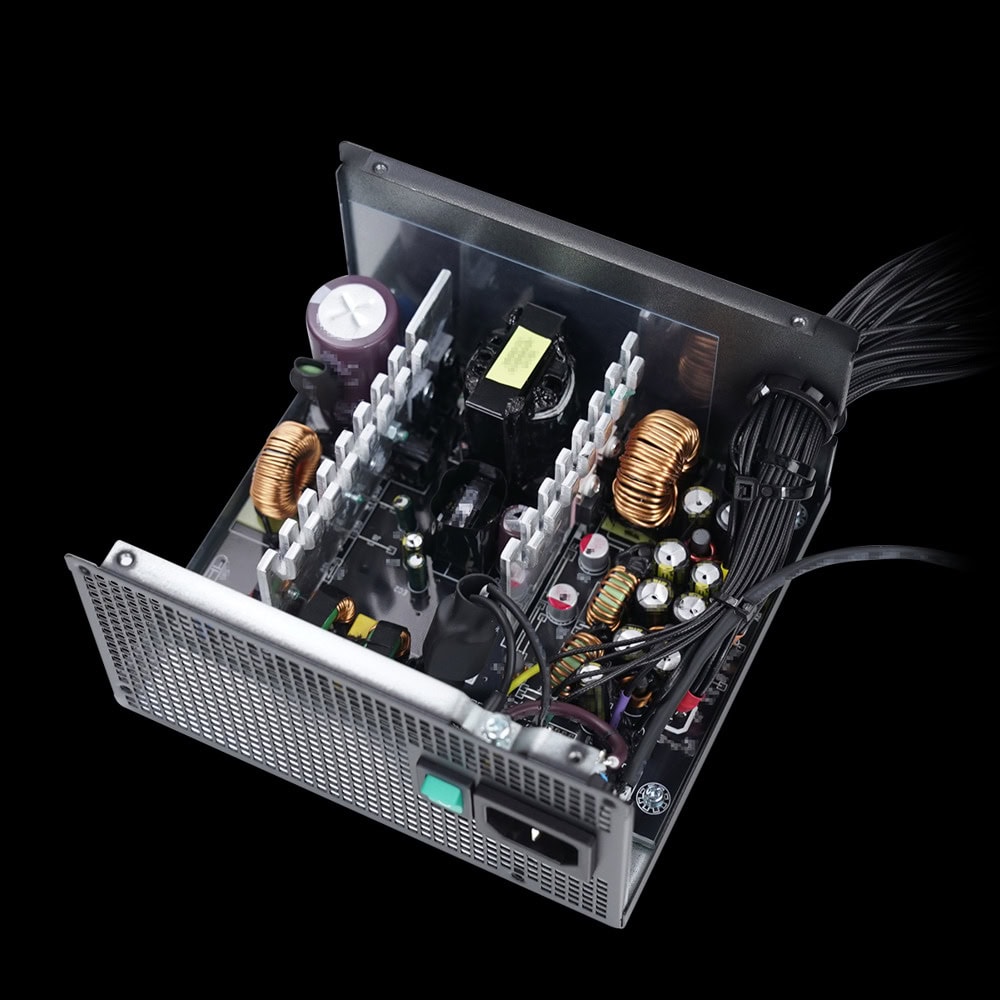

Topology: Active PFC + DC-to-DC.

Capacitors: Taiwanese and Japanese electrolytic capacitors.

Power Good Signal: 100–150 ms.

Hold-Up Time: ≥16 ms (at 75% load).

Protection Features: OPP, OVP, OCP, SCP, OTP, UVP, SIP, and NLO.

Operating Temperature: 0°C to 40°C.

Regulatory Certifications: CE, TÜV-RH, CCC, RCM, KC, and EAC.

Environmental Compliance: ErP 2014, WEEE, China RoHS, Triman, and EAC.

MTBF (Mean Time Between Failures): 40,000 hours.
