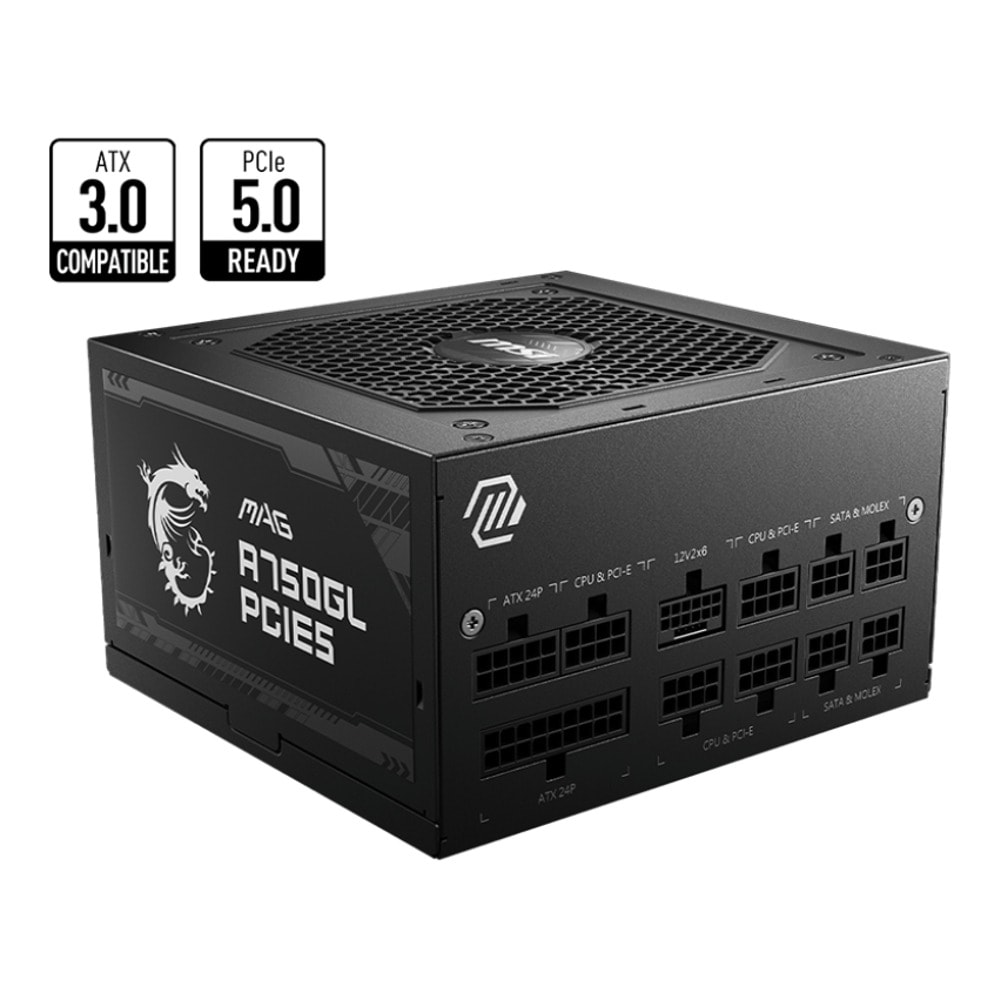

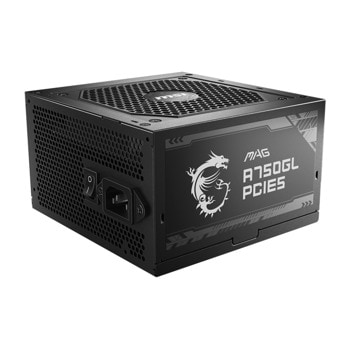

MAG A750GL PCIE5

ATX 3.0 compatible, native PCIe 5.0 connector
Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
Full modular design,Flat cables
80 Plus Gold certified for high efficiency
Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP

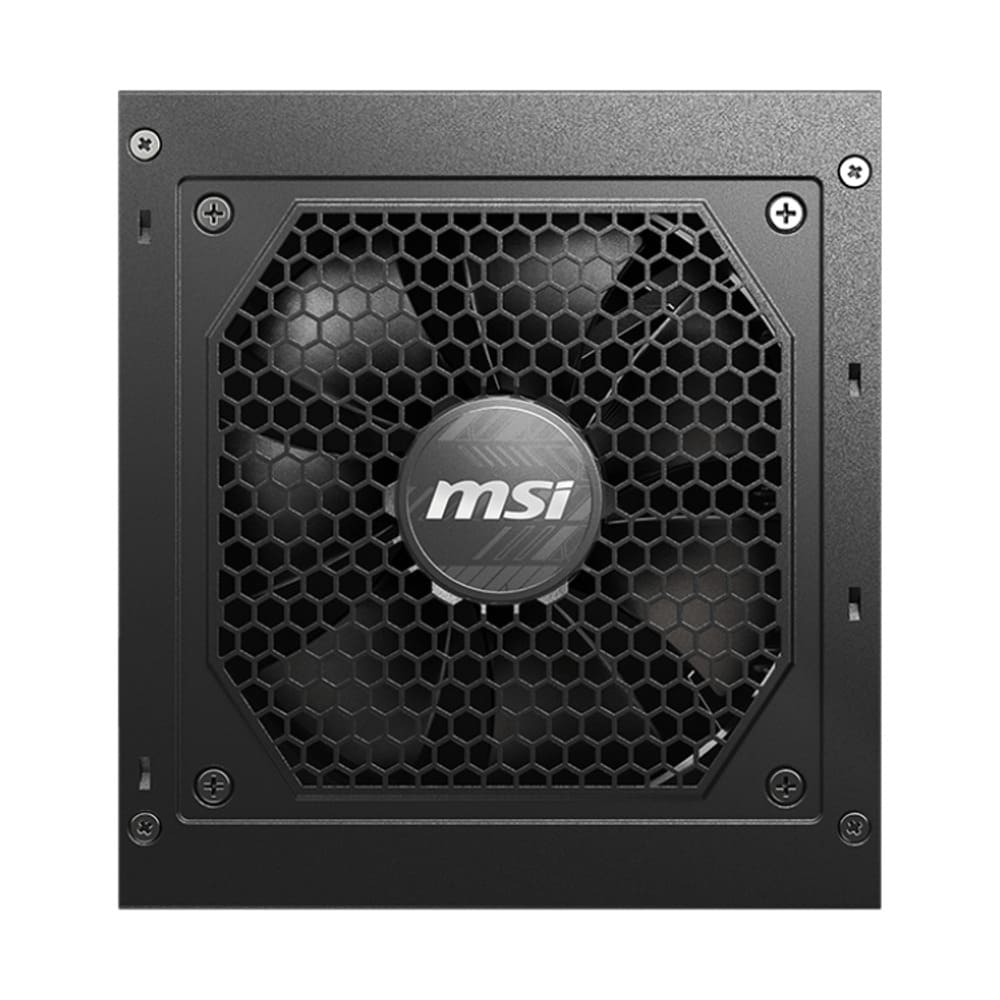

120mm Fluid Dynamic Bearing Fan
LLC Full Bridge Topology with DC-DC module design

Захранване MSI Mag A750GL PCIE5 (bulk), 750W, Active PFC, 80 Plus Gold, 120mm вентилатор - характеристика 1

80 PLUS GOLD CERTIFIED

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

ATX 3.0 compatible

It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.

Захранване MSI Mag A750GL PCIE5 (bulk), 750W, Active PFC, 80 Plus Gold, 120mm вентилатор - характеристика 2

Efficiency Rating	80 PLUS Gold (up to 90%)
Modular	Yes (full modular)
Fan size	120 mm
Fan Bearing	Fluid Dynamic Bearing
Dimensions (DxWxH)	140 x 150 x 86 mm
PFC Type	Active PFC
Input Voltage Range	100~240 VAC
Power Watt	750W
Power Excursion	1500W (*up to 200% of the PSU's rated power for 100μs)
Input Frequency Range	47-63Hz
Protection	OCP / OVP / OPP / OTP / SCP / UVP

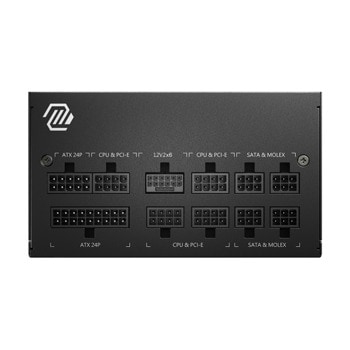

ATX (24 pin)	1
EPS (4+4 pin)	2
PCI-E 5.0 (16 pin)	1 (450W)
PCI-E (6+2 pin)	3
SATA (15 pin)	8
MOLEX (4 pin)	4
FDD (4 pin)	1
