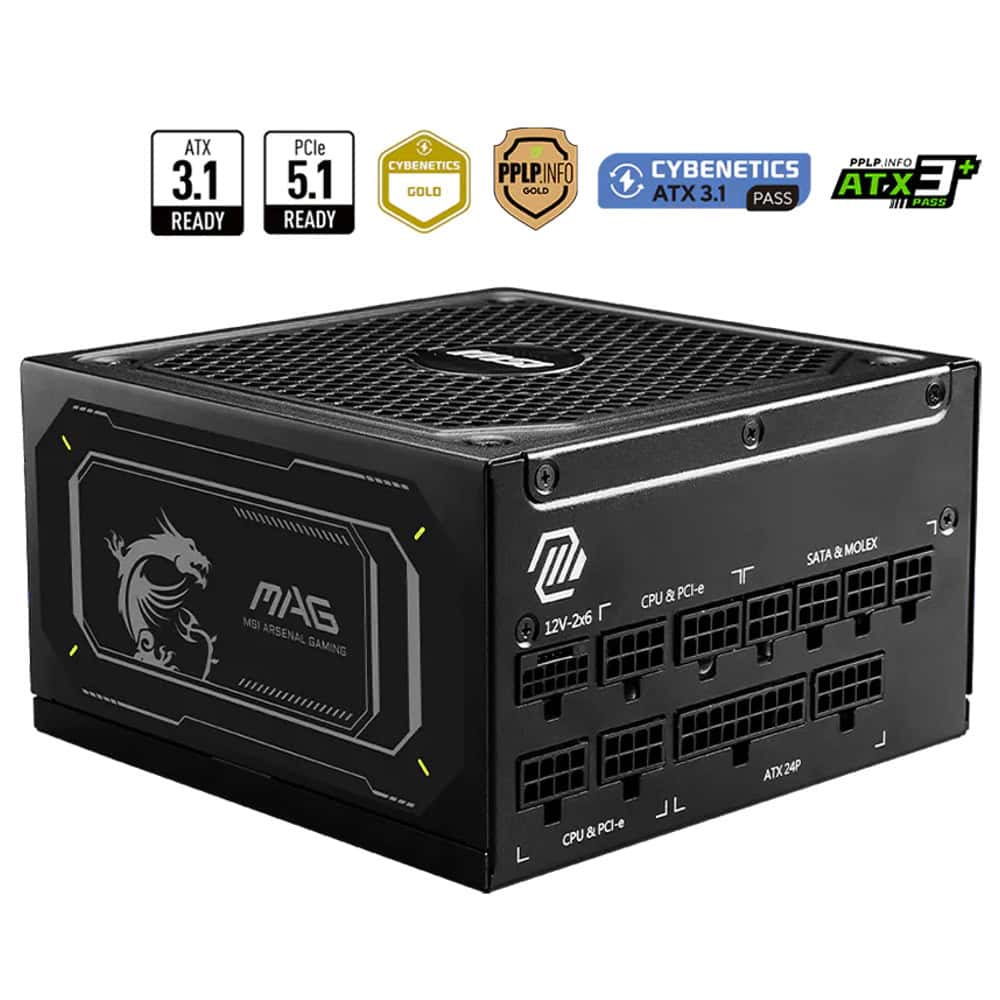

Захранване MSI MAG A1000GL PCIE5 II, 1000W, Active PFC, 80 Plus Gold, 135mm вентилатор

MSI MAG A1000GL PCIE5 II

• ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
• Supports NVIDIA® GeForce RTX™ 40 / 50 series graphics cards
• Fully modular design, flat cables
• 80 PLUS Gold certified for high efficiency
• Active PFC design
• Protection with OVP / OCP / OPP / OTP / SCP / UVP
• 135 mm fluid dynamic bearing fan
• LLC half bridge topology with DC-to-DC module design

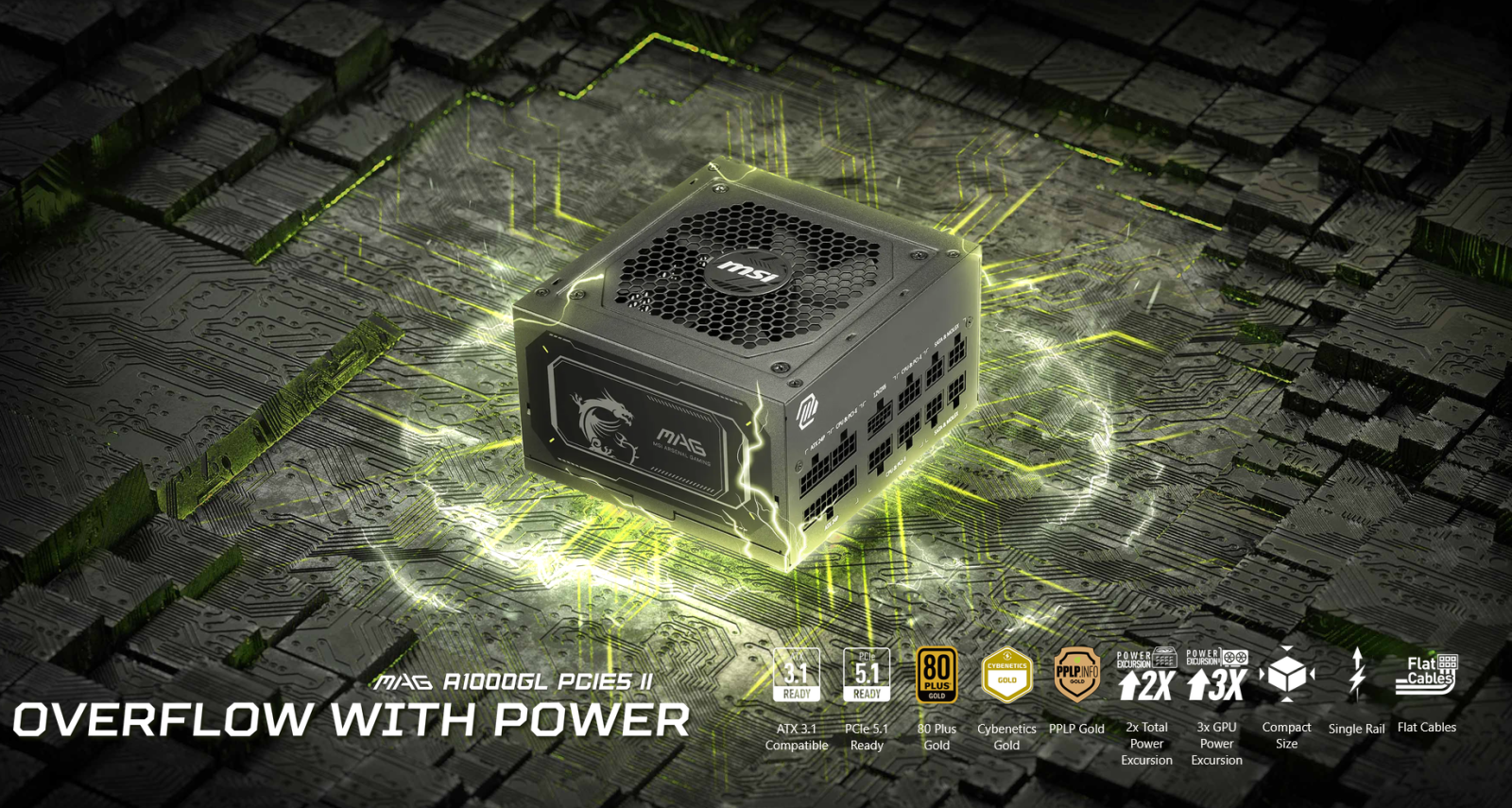

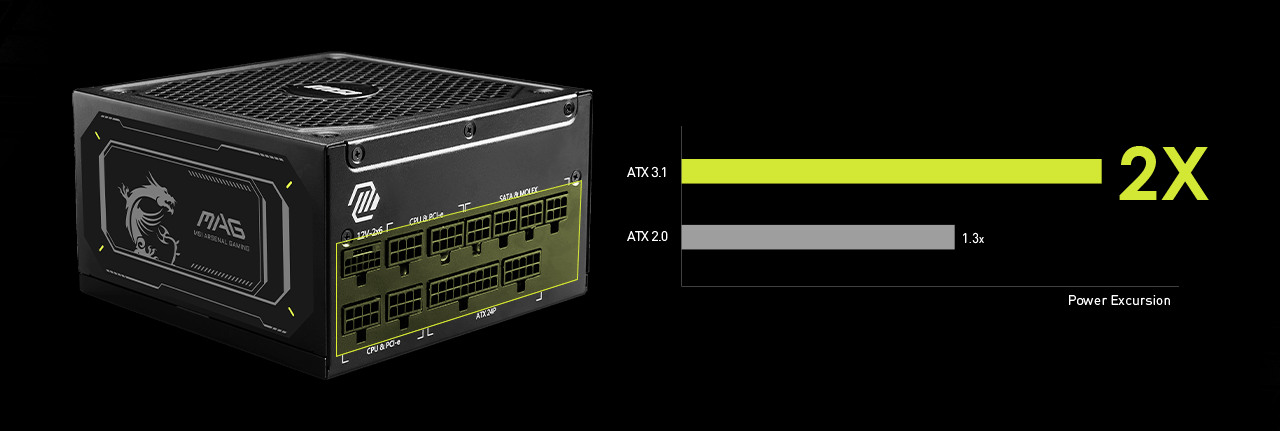

ATX 3.1 Ready

The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.

ENERGY EFFICIENCY CERTIFICATION

The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.

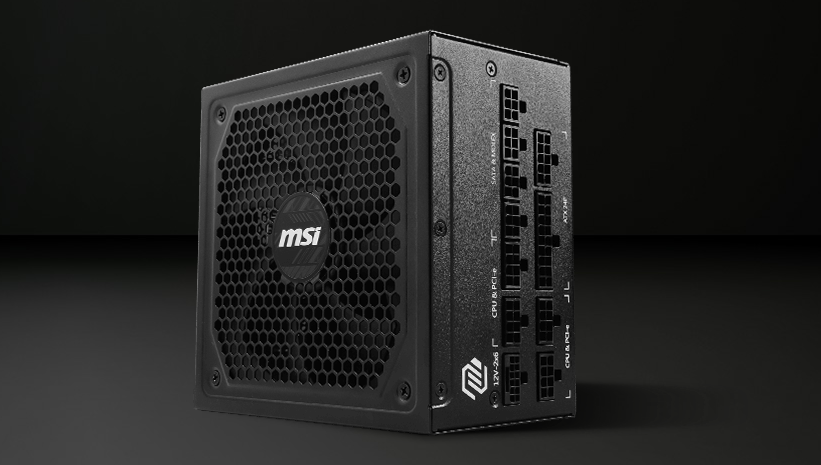

ONLY WHAT YOU NEED

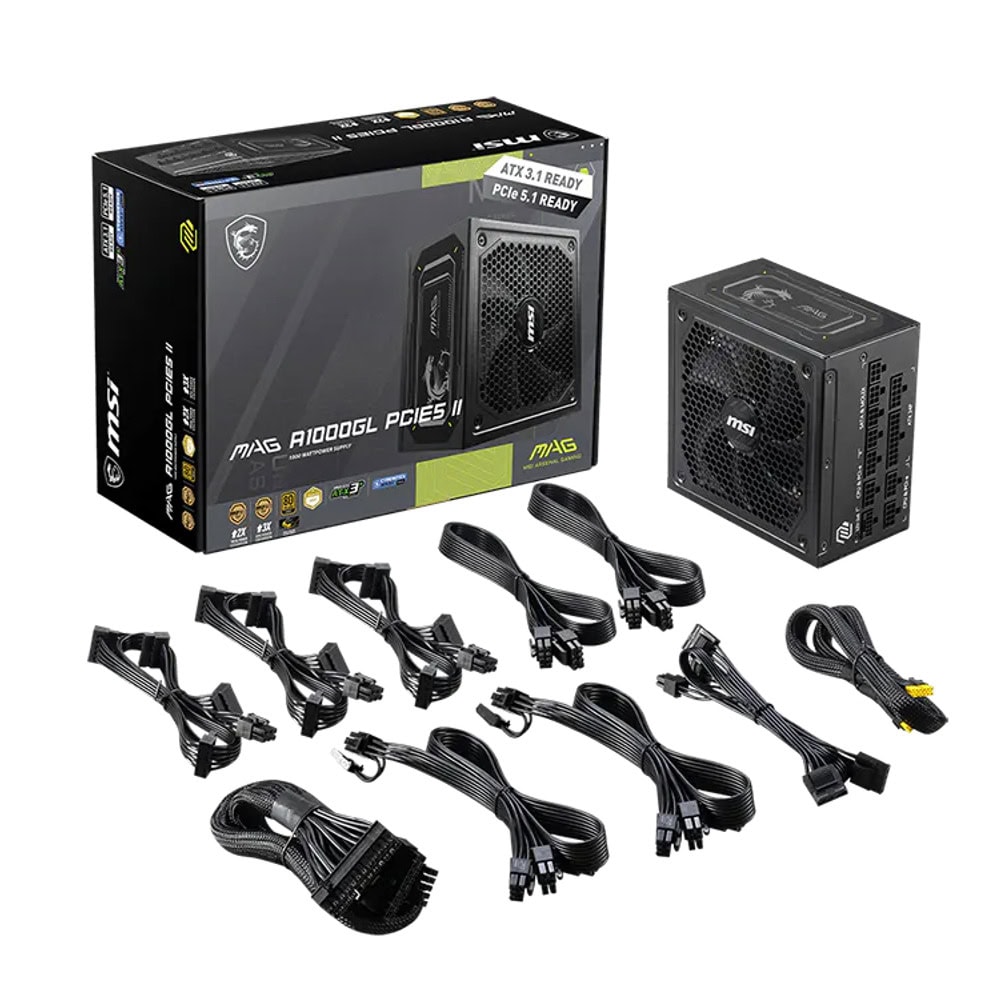

The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.

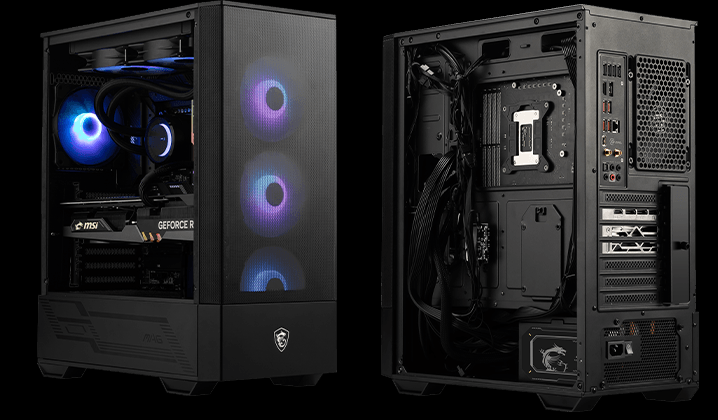

ALL THE MORE ORGANIZED

Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

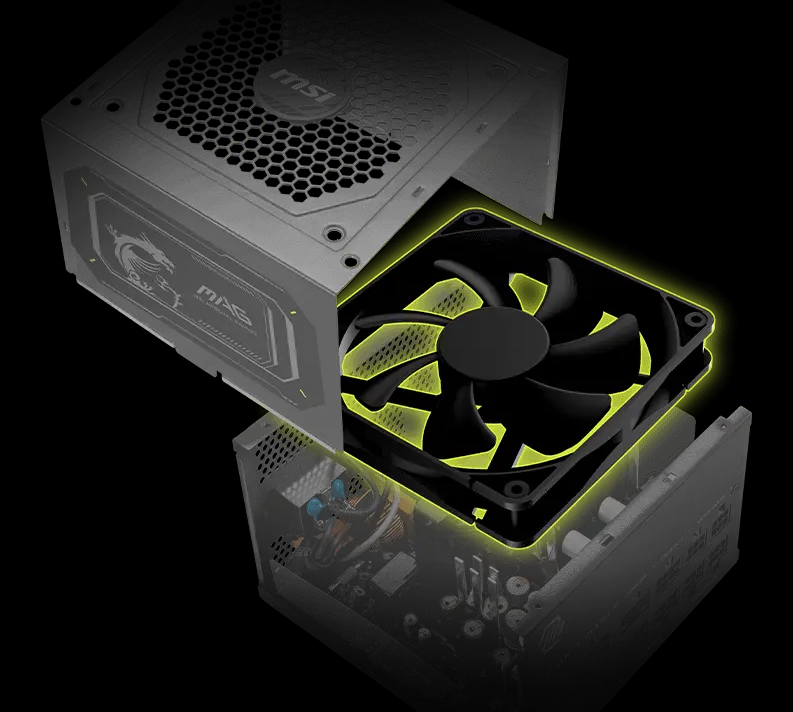

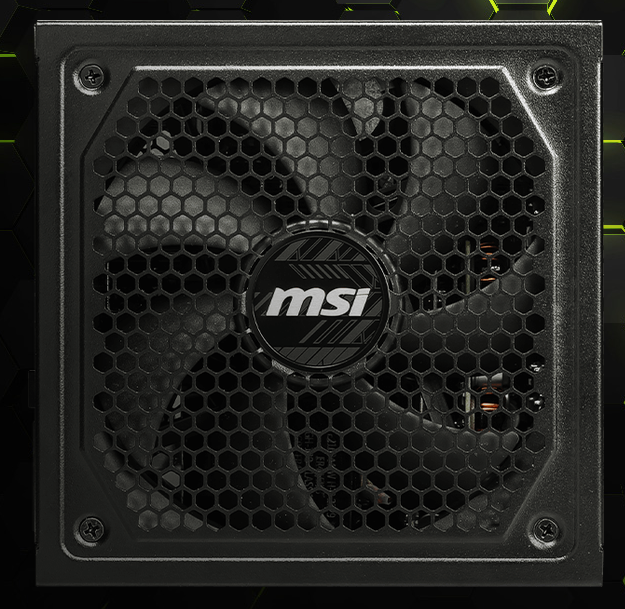

FLUID DYNAMIC BEARING

The power supply’s fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.

Half bridge LLC + SR + DC/DC

A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.

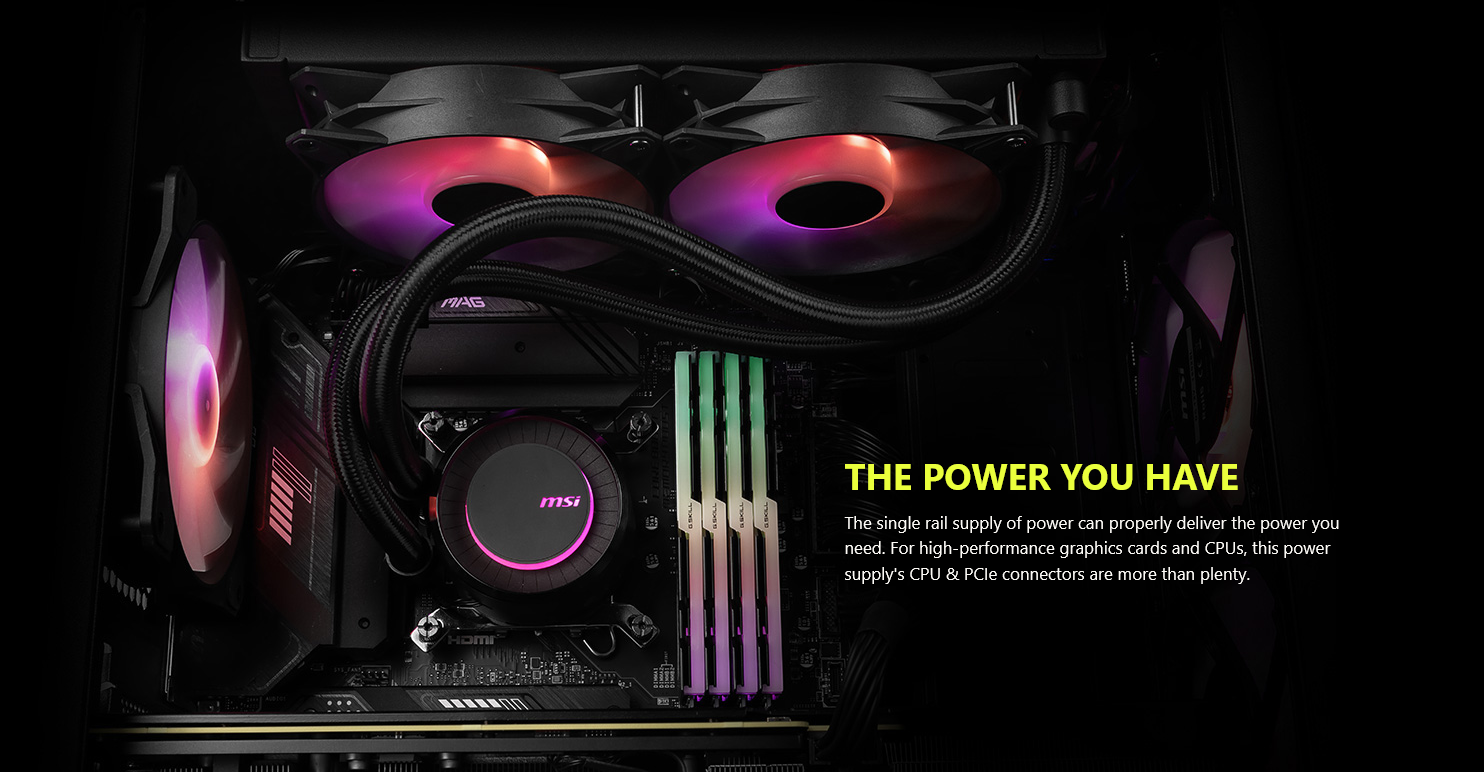

THE POWER YOU HAVE

The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty.

Specifications:

Efficiency Rating: 80 PLUS Gold (up to 90%)

Modular: Yes, fully modular

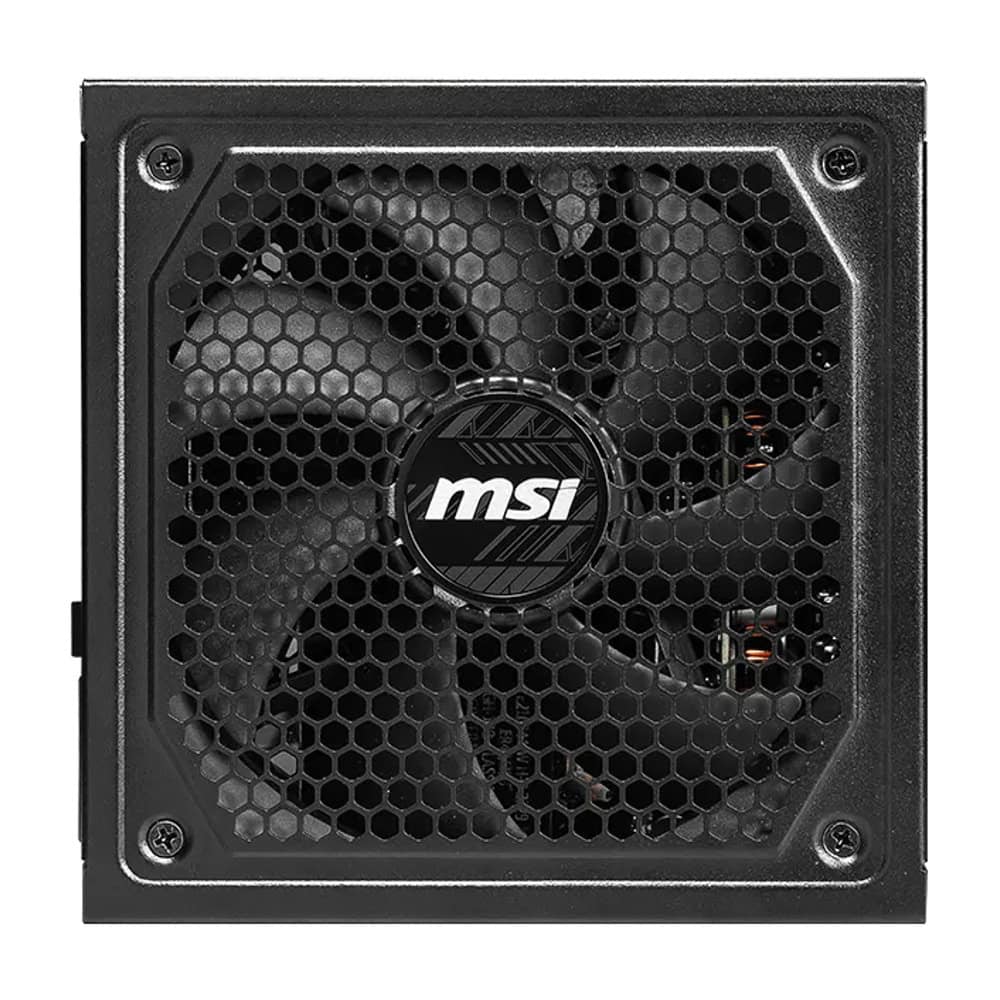

Fan Size: 135 mm

Fan Bearing: Fluid Dynamic Bearing (FDB)

Dimensions (D × W × H): 150 × 150 × 86 mm

PFC Type: Active PFC

Power Output: 1000 W

Input Voltage Range: 100–240 V~

Input Frequency Range: 50–60 Hz

Power Excursion: Up to 2000 W (up to 200% of rated PSU power for 100 μs)

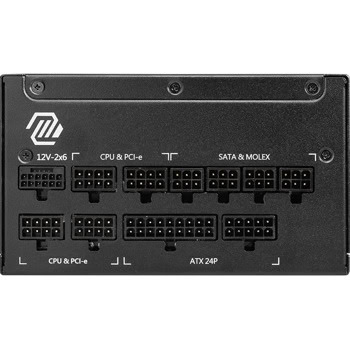

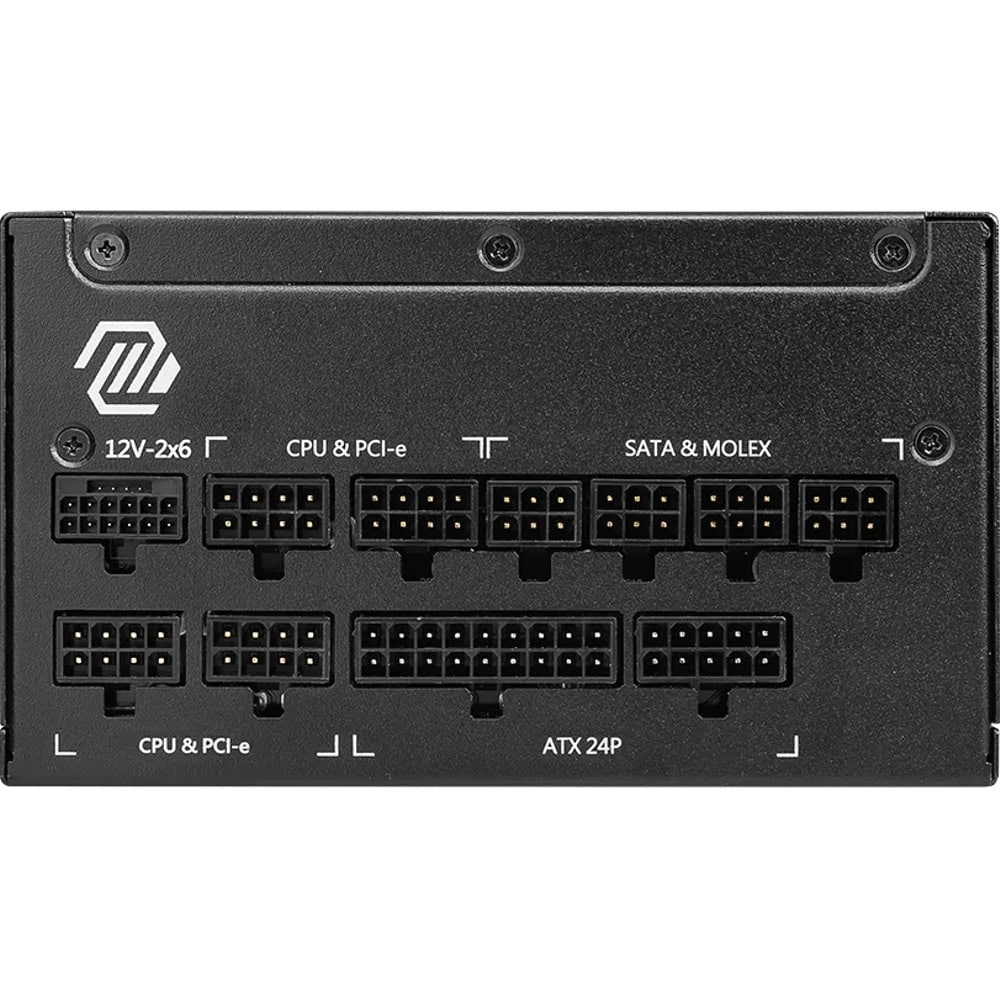

Connectors:

ATX (24-pin): 1

EPS (4+4-pin): 2

PCI-E 5.1 (16-pin): 1 (600 W)

PCI-E (6+2-pin): 4

SATA (15-pin): 12

Peripheral (4-pin): 4

FDD (4-pin): 1

Protection:

OCP: Over Current Protection

OVP: Over Voltage Protection

OPP: Over Power Protection

OTP: Over Temperature Protection

SCP: Short Circuit Protection

UVP: Under Voltage Protection
