Name: Суич Ubiquiti US48-500W, 48Port, 1000Mbps, PoE+, 2x SFP - 0.00 лв. (≈ 0.00 EUR)
Brand: Ubiquiti
SKU: NTLHUBIQUITIUS48500W
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси Документация

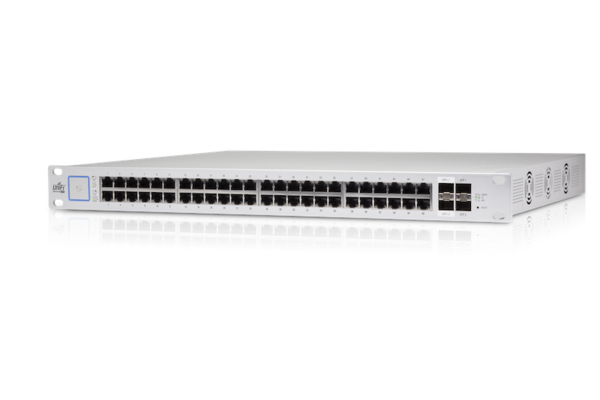

Ubiquiti UniFi US-48-500W Switch

As part of the Ubiquiti UniFi line of products, the US-48-500W UniFi Switch is a fully managed 48 port PoE+ Gigabit switch that delivers robust performance, intelligent switching for growing networks. The US-48-500W delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Ubiquiti UniFi Switch 48 500W - US-48-500W Features

Total Non-Blocking Throughput - 70 Gbps
SFP+ Ports - 2
SFP Ports - 2
Switching capacity: 140 Gbps
Forwarding rate: 104.16 Mpps
Maximum power consumption: 500W
Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Rackmountable
Product Model Number: US-48-500W

Switching Performance

The UniFi Switch US-48-500W offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility

By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

Fiber Connectivity

Selected Unifi switch models include either SFP or SFP+ ports for Uplink connectivity up to 10Gbps

US-48-500W
Dimensions	485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
Weight	6.1 kg (13.5 lb)
Networking Interfaces	((48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface	(1) RJ45 Serial Port Out-of-Band, Ethernet In-Band
Total Non-Blocking Throughput	70 Gbps
Switching Capacity	140 Gbps
Forwarding Rate	104.16 Mpps
MAC Address Table	16384
Maximum Aggregations	6
Monitoring Sessions	1
Maximum VLANs	255
Power Method	100-240VAC/50-60 Hz, Universal Input
Power Supply	AC/DC, Internal, 500W DC
Max. Power Consumption Including PoE Output Excluding PoE Output	500W 64W
LEDs Per Port RJ45 Data Ports SFP Data Ports	PoE, Speed/Link/Activity Speed/Link/Activity
Sound Level* Fan Level 0 Fan Level 1 Fan Level 2 Fan Level 3	10.7 dBr 16.2 dBr 19.3 dBr 23.6 dBr
ESD/EMP Protection	Air: ± 24 kV, Contact: ± 24 kV
Shock and Vibration	ETSI300-019-1.4 Standard
Operating Temperature	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing
Certifications	CE, FCC, IC
PoE+ Per Port
PoE Interfaces	PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE	34.2W
Voltage Range 802.3at Mode	50–57V
Max. Passive PoE Wattage per Port	17W
24V Passive PoE Voltage Range	20-27V
