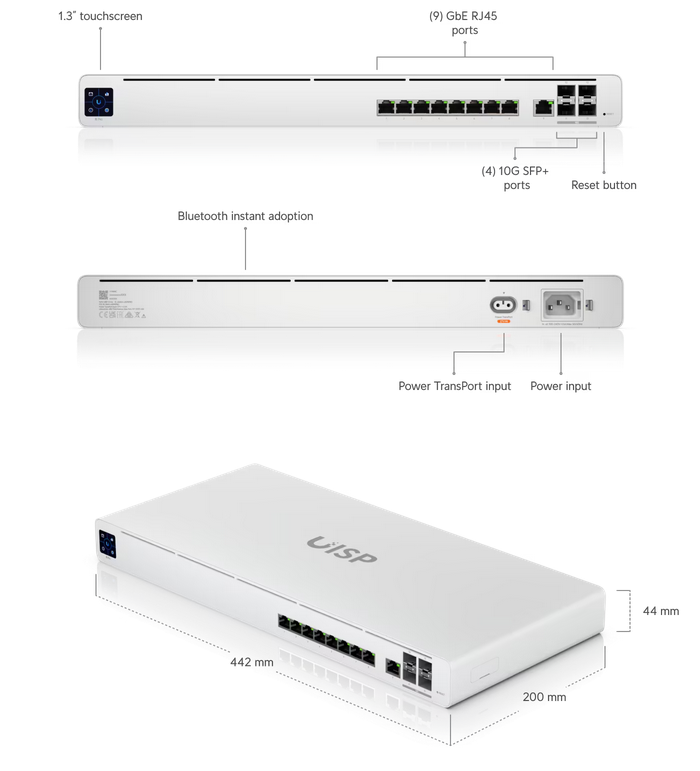

Ubiquiti UISP-R-Pro
- (9) GbE RJ45 ports
- (4) 10G SFP+ ports
- Integrated Layer 2 switch*
- Up to 9,500 Mbps NAT throughput**
- Traffic shaping functionality and automated customer suspension
- Firewall and OSPF routing
- Additional Power TransPort input for DC redundancy
Mechanical
Dimensions 442.4 x 200 x 43.7 mm (17.4 x 7.9 x 1.7")
Weight 3.3 kg (7.2 lb)
Enclosure materials SGCC steel, polycarbonate/ABS
Hardware
Processor Quad-core ARM® Cortex®-A57 at 1.7 GHz
Memory 4 GB DDR4
Onboard 16 GB eMMC
Networking interface (8) GbE RJ45 LAN ports
(1) GbE RJ45 WAN port
(4) 1/10G SFP+ ports
Management interface Ethernet, Bluetooth
Power method (1) Universal AC input, 100—240V AC, 1.5A Max, 50/60 Hz
(1) Power TransPort DC input 27V DC, 2.2A
Power supply AC/DC, Internal, 60W
Supported voltage range 100—240V AC
Max. power consumption 50W
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
LCM display (1) 1.3" touchscreen
Ambient operating temperature -10 to 50° C (14 to 122° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
LEDs
RJ45 data ports Speed/link/activity
SFP+ data ports Speed/link/activity
Software
Management application UISP: Version 1.4.5 and later
12 месеца за юридически, 24 месеца за физически лица
Виж още Суич Ubiquiti
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 13 |
---|---|
Максимална скорост: | 1 Mbps |
Стандарт: | Не е указано |
Управляем: | Не е указано |
