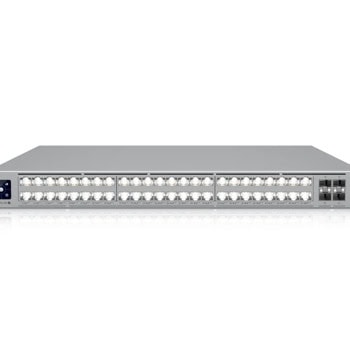

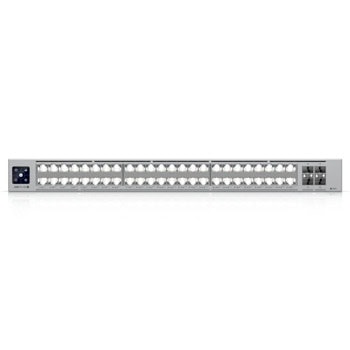

Ubiquiti Pro XG 48 PoE
| Category | Specification |
|---|---|
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Form Factor | Rack mount (1U) |
| Weight | Without mounting brackets: 8.7 kg (15.4 lb)With mounting brackets: 8.8 kg (15.7 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

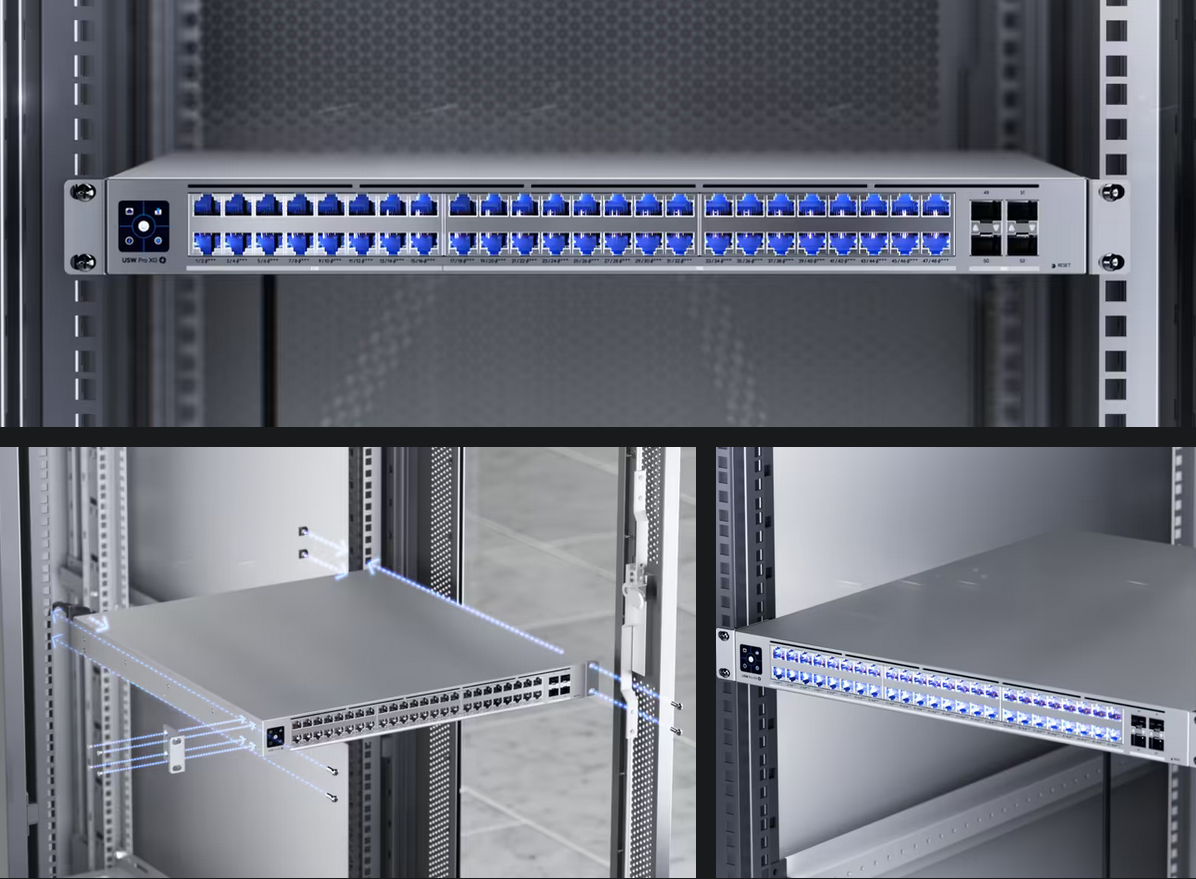

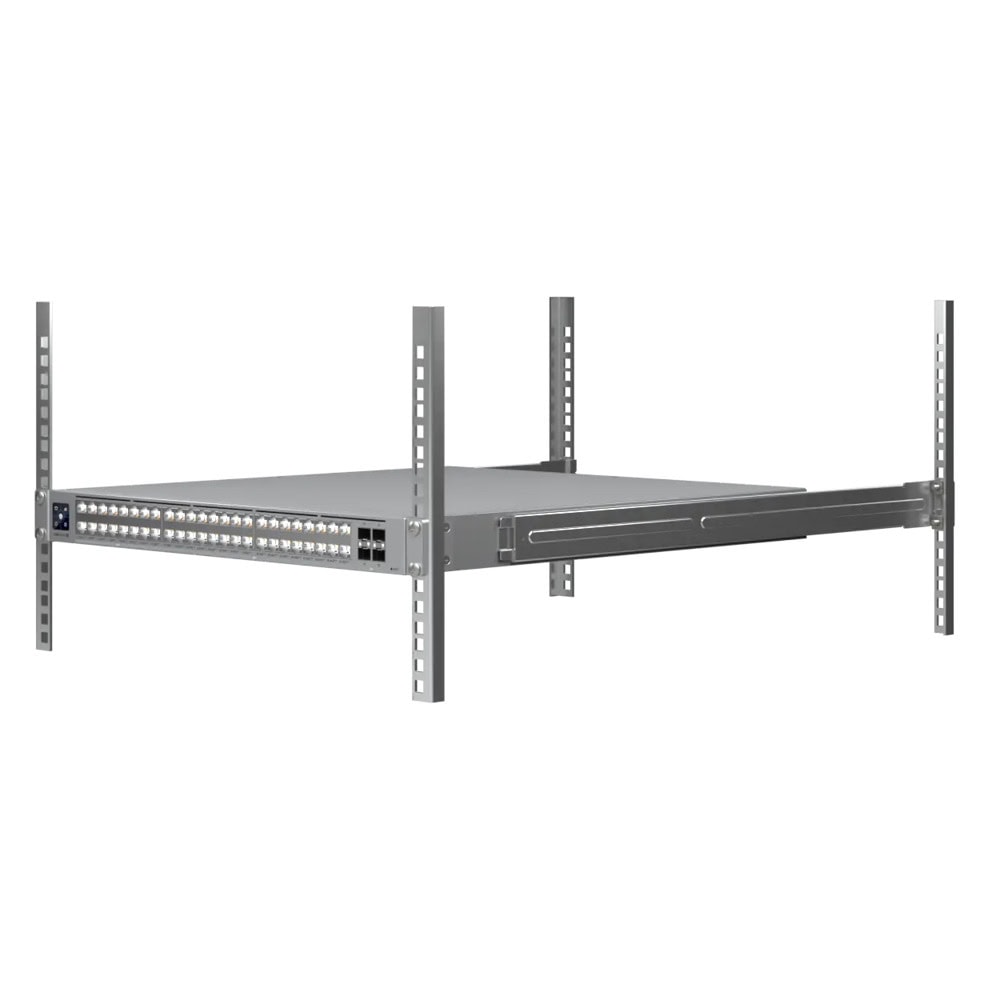

| Supported Rack Depth | 482.6 mm (19") four-post racks (Depth: 600 to 1,066 mm / 23.6–42”) |

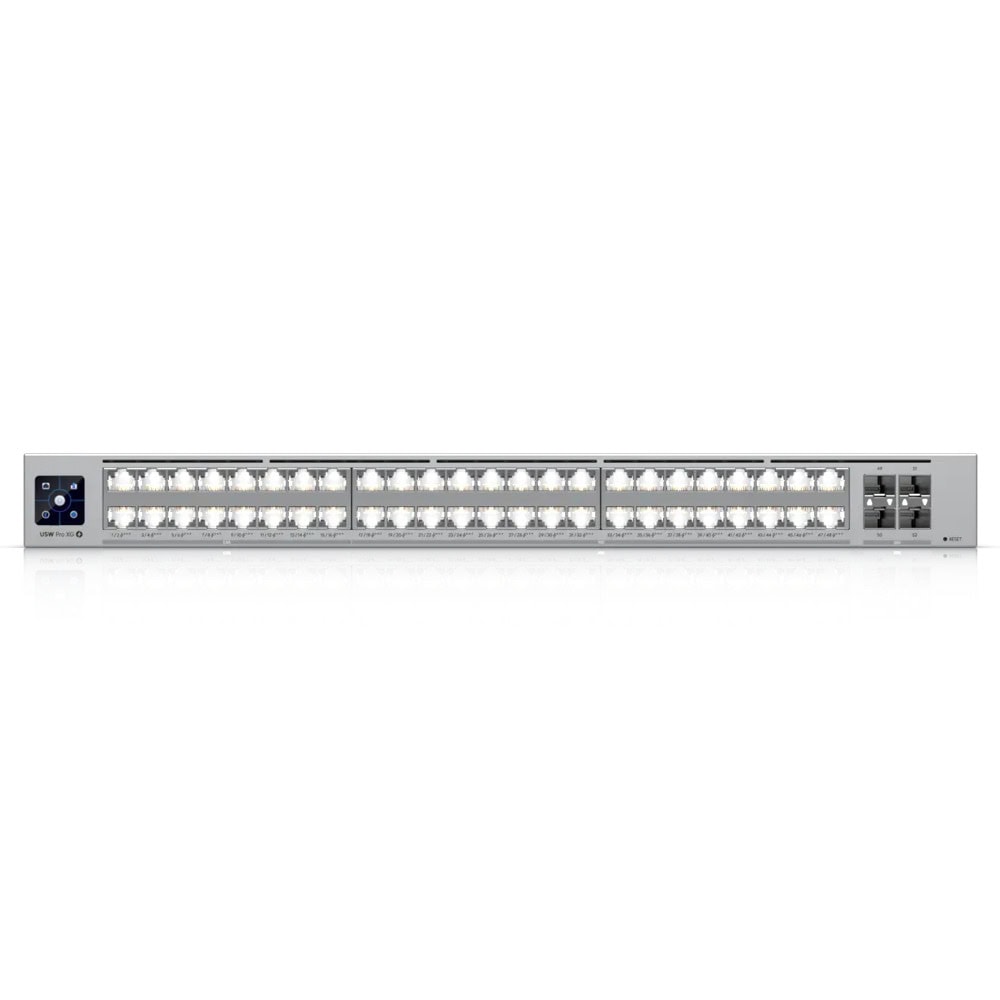

| Port Layout | 2.5 GbE RJ45: 16 (All PoE+++) 10 GbE RJ45: 32 (All PoE+++) 25G SFP28: 4 |
| Port Speed Support | 2.5G/1G/100M/10M (RJ45)10G/5G/2.5G/1G/100M/10M (RJ45)25G/10G/1G (SFP28) |
| PoE Ports | 48 (All PoE+++) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200–240V AC: 1080W100–120V AC: 972W |
| Max. PoE Wattage per Port | PoE: 15.4WPoE+: 30WPoE++: 60WPoE+++: 90W |
| Max. Power Consumption | 200W (Excluding PoE)200–240V AC: 1,280W100–120V AC: 1,172W (Including PoE) |
| Power Method | Universal input, 100–240V AC, 50/60 HzUSP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 1,350W |
| Supported Voltage Range | 100–240V AC |
| Redundancy | DC Power Backup |
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Layer 3 Support | ✓ |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | ARP Entries: 128,000IPv4 Routes: 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists | IPv4: 256MAC: 256 |
| DHCP Server | ✓ (Local Networks) |
| DHCP Relay | ✓ |
| Inter-VLAN Routing | ✓ |
| Static Routing | ✓ (Local Networks) |
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles | ✓ (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
| Advanced IGMP Configuration | ✓ (Querier, Fast Leave, Router Port) |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
| Etherlighting™ Support | Ethernet: ✓SFP28: ✓ |
| LCM Display | 1.3" touchscreen |
| ESD/EMP Protection | Air: ±30kVContact: ±20kV |
| Ambient Operating Temperature | -5 to 40°C (23 to 104°F) |
| Ambient Operating Humidity | 10% to 90% non-condensing |
| LEDs | RPS: ✓ |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Application Requirements | UniFi Network Version 9.1.120 and later |
Виж още Суич Ubiquiti
Виж всички Суич в категорията
Технически характеристики
| Брой портове: | 52 |
|---|---|
| Максимална скорост: | 10 Gbit/s |
| Стандарт: | Не е указано |
| Управляем: | Да |
