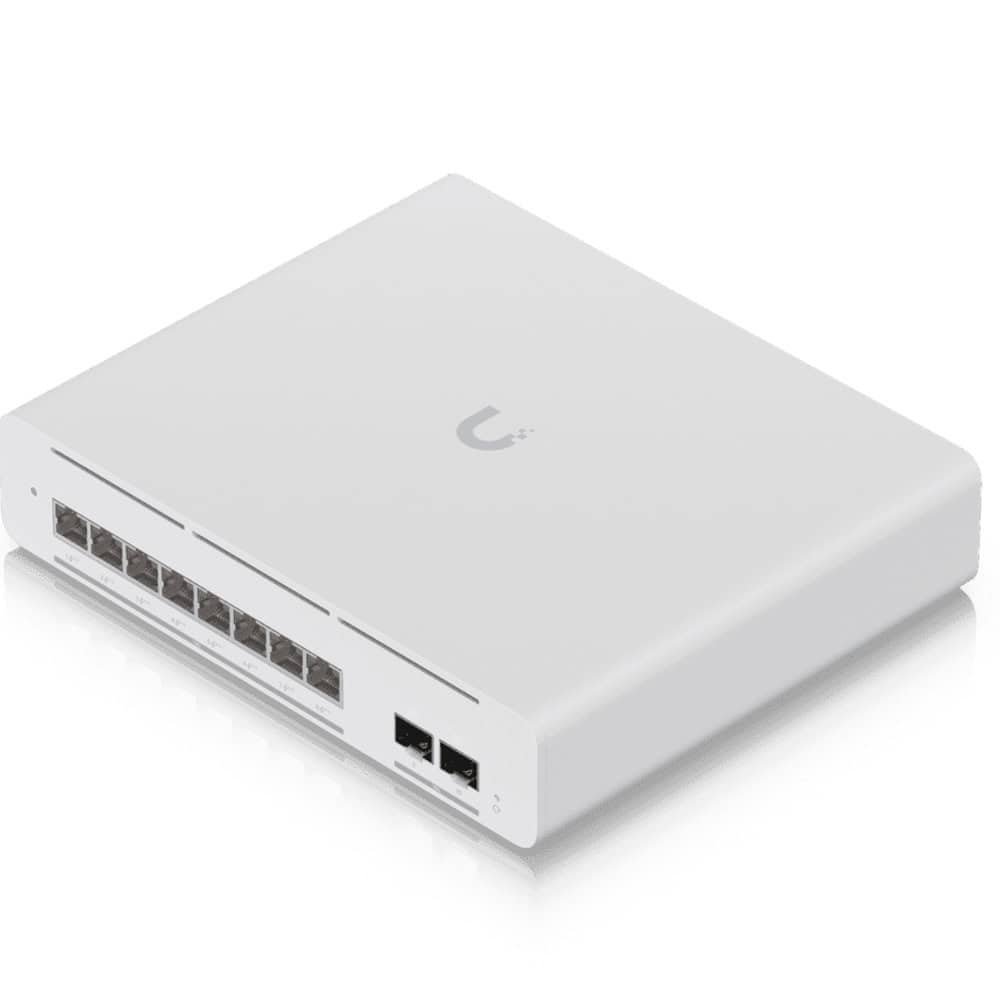

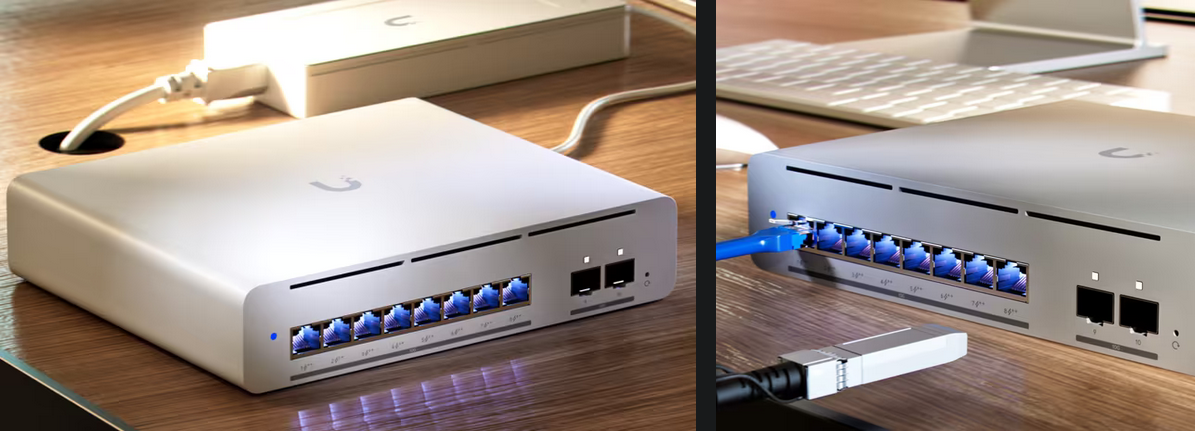

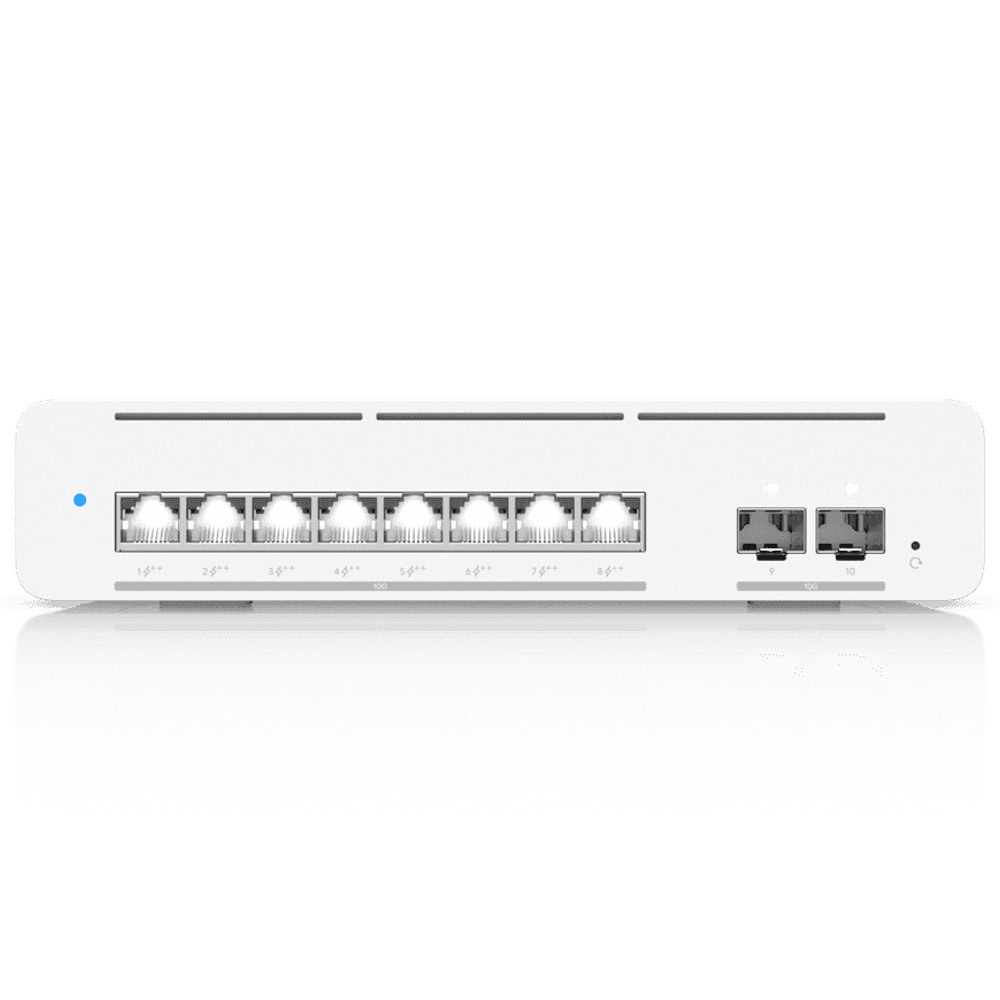

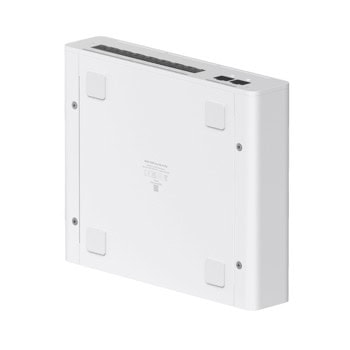

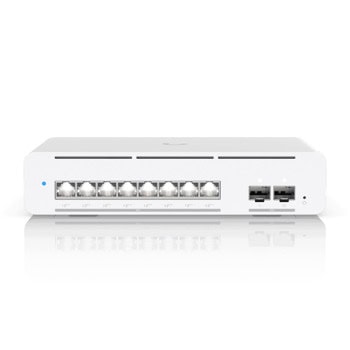

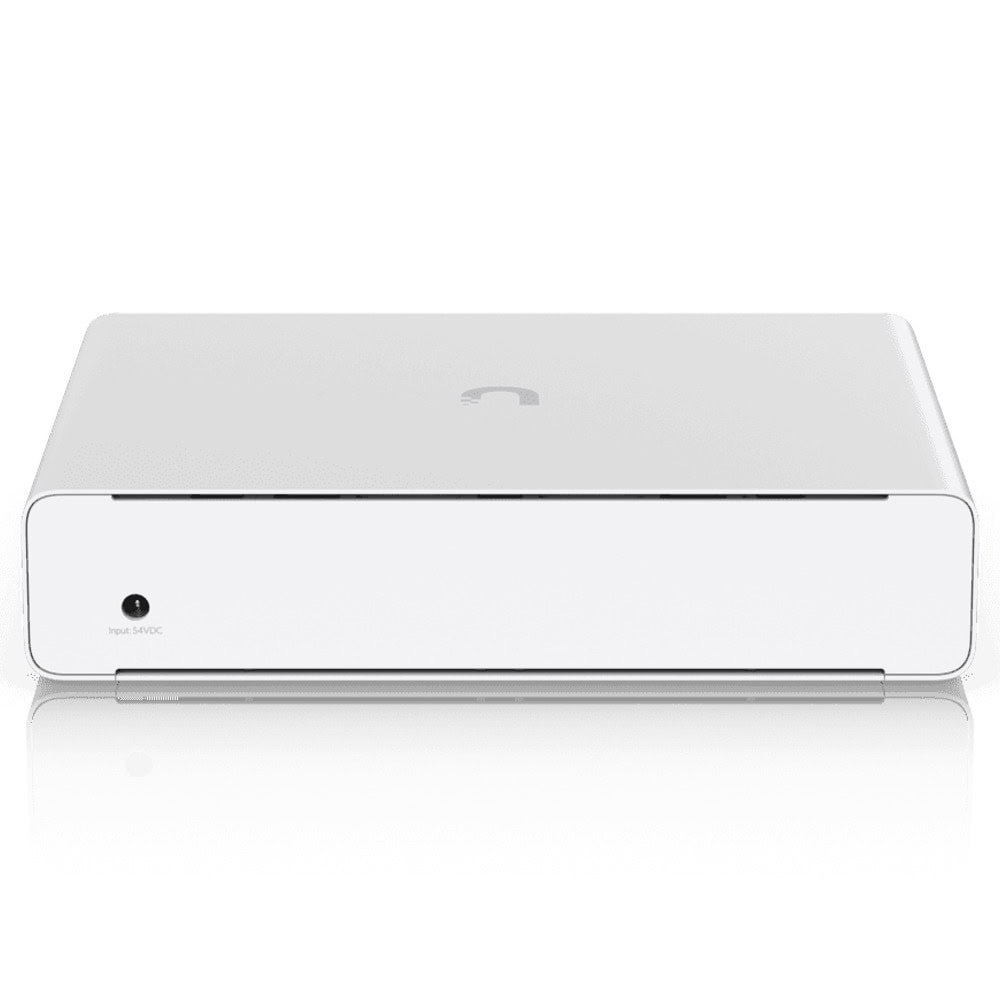

Ubiquiti USW-PRO-XG-8-POE
Compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.

| Category | Specification |
|---|---|
| Dimensions | 210.4 × 173.8 × 43.7 mm (8.28 × 6.84 × 1.7 in) |
| Weight | 1.6 kg (3.5 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Polycarbonate |
| Form Factor | Compact desktop, wall-mount |
| Port Layout | 8 × 10 GbE RJ45 (All PoE++, 10G/5G/2.5G/1G/100M) 2 × 10G SFP+ (10G/1G) |
| PoE Ports | 8 × PoE++ |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 155W |
| Max. PoE Wattage per Port (PSE) | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Max. Power Consumption | 61W (Excluding PoE) 210W (Including PoE) |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | DC input |
| Power Supply | External AC/DC, 210W |
| Supported Voltage Range | 50—57V DC |
| Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps |
| Forwarding Rate | 149 Mpps |
| Packet Buffer Size | 2 MB |
| MAC Address Table Size | 32,000 |
| L3 Table Size | ARP Entries: 12,000 IPv4 Routes: 12,000 |
| Supported VLANs | 1,000 |
| Layer 3 Features | ✓ |
| Access Lists | IPv4: 128 MAC: 128 |
| Management | Ethernet |
| Etherlighting™ | Ethernet: ✓ SFP+: ✓ |
| LEDs | System: ✓ |
| Protocols & Features | DHCP Server (Local Networks): ✓ DHCP Relay: ✓ Inter-VLAN Routing: ✓ Static Routing: ✓ LACP Port Aggregation: ✓ STP & RSTP: ✓ QoS (DSCP): ✓ Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron): ✓ Advanced IGMP (Querier, Fast Leave, Router Port): ✓ IGMP Snooping: ✓ |
| Security Features | 802.1X Control: ✓ MAC-Based ACLs & Device Isolation: ✓ DHCP Snooping & Guarding: ✓ IP-Based ACLs & Network Isolation: ✓ MAC Address Blocking: ✓ MAC-Based Port Restriction: ✓ |
| Traffic Control | Egress Rate Limit: ✓ Flow Control: ✓ Storm Control: ✓ Multicast & Broadcast Rate Limiting: ✓ |
| Port Features | Port Isolation: ✓ Port Mirroring: ✓ Jumbo Frames: ✓ |
| Voice & Media | LLDP-MED: ✓ Voice VLAN: ✓ |
| Other Protections | Loop Protection: ✓ |
| Environmental | Operating Temp: -5 to 45°C (23 to 113°F) Humidity: 10–90% noncondensing |
| ESD Protection | Air: ±30 kV Contact: ±30 kV |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
| Application Requirements | UniFi Network Version 9.0.114 and later |
Виж още Суич Ubiquiti
Виж всички продукти Суич в категорията
Технически характеристики
| Брой портове: | 10 |
|---|---|
| Максимална скорост: | 10 Gbit/s |
| Стандарт: | Не е указано |
| Управляем: | Да |
