Суич Ruijie RG-ES218GC-P, 1000 Mbps, 18 порта, 16x PoE+, 16x 10/100/1000BASE-T, 2x 1000BASE-X SFP

Ruijie RG-ES218GC-P

Highlight Features

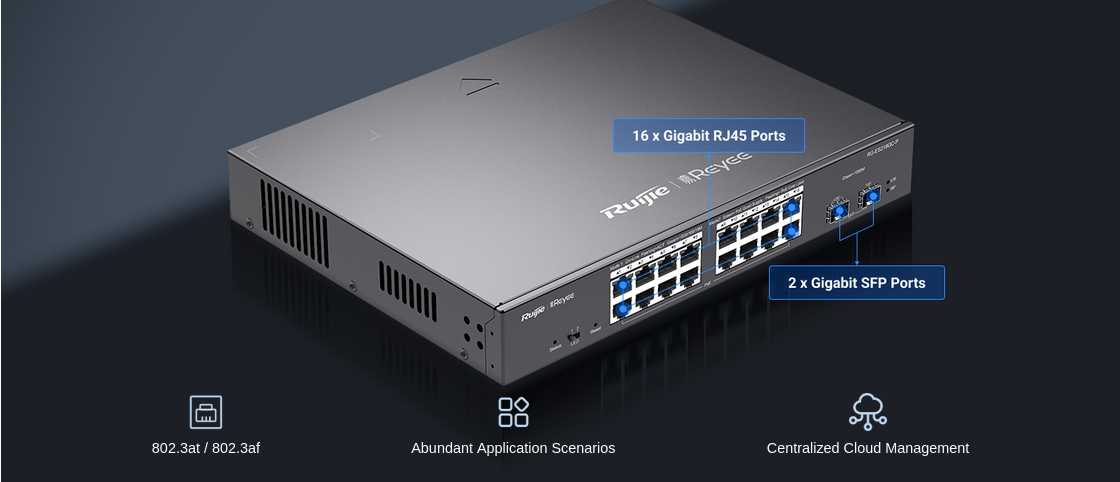

• 18-Port gigabit cloud managed switch with 16 PoE+ ports
• Cost-Effective Smart Cloud Managed Switches
• IP Camera Recognition, Unique Value for CCTV Network
• Automatic Loop Prevention Ensures Service Continuity
• Lifetime management on Ruijie Cloud at anytime anywhere

Specifications:

Basic

10/100/1000Base-T ports

16

1000Base-X SFP ports

2

PoE/PoE+ ports

16

Max. PoE budget

240W

Layer Type

Layer 2

Switching capacity

36 Gbps

Forwarding rate

26.78 Mpps

Packet Buffer

4.1 Mbit

MAC address table

8000

Maximum VLAN Support

16

Dimensions (W x D x H)

300 mm x 230 mm x 43.6 mm

MTBF

> 200,000

Software Features

10/100/1000M Auto/Full/Half Duplex Negotiation

Yes

Flow Control

Yes

Storm Suppression

Yes

Management IP

10.44.77.200

VLAN Range

1 - 4094

Port-based VLAN

Yes

STP / RSTP

No

QoS

No

ACL

No

DHCP Client

Yes

DHCP Snooping

Yes

Telnet

1 session

SSH

No

DNS Client

Yes

SNMP v1/v2/v3

No

Many-to-one Port Mirroring

Yes

Downlink Loop Protection

Yes

Loop Disabled Port

Yes

Disconnection Duration

2s

Flow Control

Yes

Cable Testing

Yes

Web-based Management

Yes

HTTP

Yes

Cloud Management

Yes

Hardware Features

Reset Button

Rear

Cable Hot-swappable

Yes

Power Supply Slot

Single, fixed power supply

Power Consumption

≤ 280W

Power Supplies

100 - 240V AC, 6A

EEE

No

Fan

Built-in, lower than 25 °C stop running

Fan Adaptive Speed Adjustment

No

Acoustic Noise

< 45dB

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Port Surge

4 kV

Operating Altitude (meters)

-500 to 5000

Certificate

CE, RoHS
