Суич Ruijie RG-ES106D-P V2, 100 Mbps, 6 порта, 4x PoE+, 6x 10/100BASE-TX

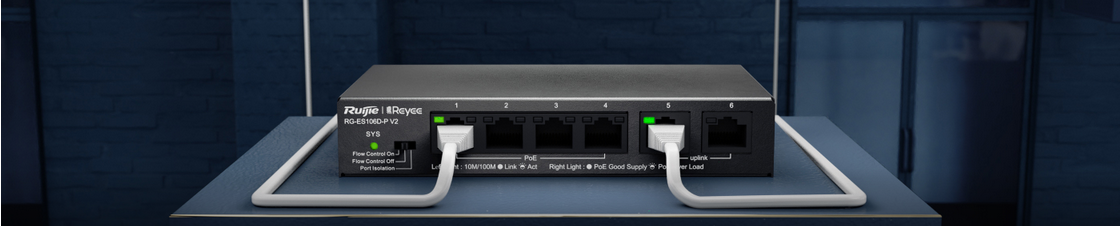

Ruijie RG-ES106D-P V2

Highlight Features

• 6-Port 10/100Mbps desktop unmanaged PoE switch
• Unmanaged switch, which is visible on Ruijie Cloud APP
• Large buffer for smooth data transmission
• High network reliability
• High-quality design
• Adaptation to various scenarios

Specifications:

Downlink Ports

4 x 10/100BASE-TX

Uplink Ports

2 x 10/100BASE-TX

PoE/PoE+ ports

4

Max. PoE budget

54W

Layer Type

Unmanaged

Switching capacity

1.2 Gbps

Forwarding rate

0.89 Mpps

MAC address table

2000

Dimensions (W x D x H)

140 mm × 67 mm × 26 mm

Software Features

Auto/Full/Half Duplex Negotiation

Yes

Auto MDI/MDIX

Yes

Switching model

Store-and-forward

Cloud Management

Cloud monitoring

Hardware Features

Reset Button

No

Flow Control

Yes

Port Isolation

Yes

Power Consumption

<60.6W

Power Supplies

54V 1.11A

Surge Protection

4kV

Fan

Fanless

Operating Temperature

0°C to 45°C (32°F to 109°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F)

Operating Humidity

10% RH to 90% RH

Storage Humidity

5% RH to 95% RH

MTBF

> 200,000

Certificate

CE, RoHS
