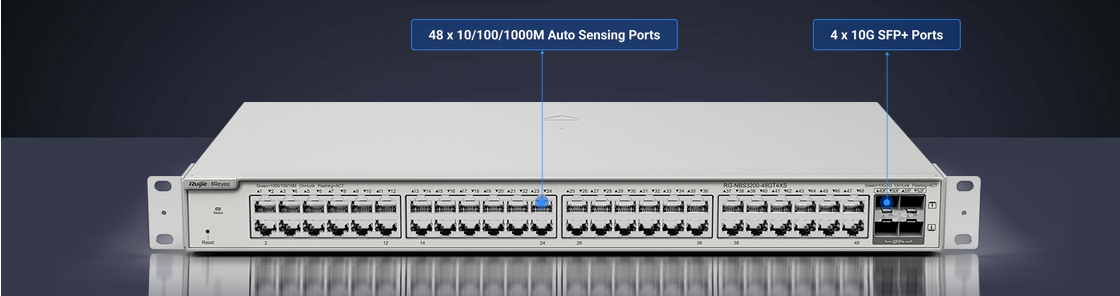

Суич Ruijie RG-NBS3200-48GT4XS, 1000 Mbps, 52 порта, 48x 10/100/1000BASE-T, 4x SFP+

Ruijie RG-NBS3200-48GT4XS

Highlight Features

• 48-Port gigabit Layer 2 managed non-PoE switch, 4 SFP+ uplink
• Enterprise-class Quality Ensures High Performance
• IP Camera Recognition, Unique Value for CCTV Network
• Multiple Security Policies Protect Your Network
• Lifetime management on Ruijie Cloud at anytime anywhere

Specifications:

10/100/1000Base-T ports

48

SFP ports

No

SFP+ ports

4

PoE/PoE+ ports

No

Layer Type

Layer 2

Switching capacity

176 Gbps

Forwarding rate

130.95 Mpps

Packet Buffer

16 Mbit

MAC address table

16,000

Maximum VLAN Support

4094

Dimensions (W x D x H)

440 mmx 357.6 mm x 43.6 mm

MTBF

> 200,000

Layer 2 Features

Jumbo Frame

9216

Flow Control

Yes

STP (IEEE 802.1d)

Yes

RSTP (IEEE 802.1w)

Yes

MSTP (IEEE 802.1s)

No

Port Fast

Yes

BPDU Guard

Yes

Errdisable Recovery

Yes

Max. Aggregation Group

16

Max. Member per Group

8

Unknow Unicast Storm Suppression

Yes

Multicast / Broadcast Storm Suppression

Yes

Many-to-One Mirroring

Yes

VLAN Range

1-4094

Port-based VLAN

Yes

MAC-based VLAN

Yes

IP-based VLAN

Yes

Voice VLAN

Yes

RLDPLLDP / LLDP-MED

Yes

Cable Testing

Yes

IGMP Snooping v1/v2/v3

Yes

Software Features

Ping

Yes

Traceroute

Yes

ACL Entries

1900

IP Standard ACL

Yes

MAC-based Extended ACL

Yes

IP-based Extended ACL

Yes

Port-based Rate Limit (Ingress/Egress)

Yes

SNMP v1/v2c/v3

No

Web Management

Yes

Management IP

10.44.77.200

HTTP/HTTPS

Yes

Cloud Management

Yes

SON (Self-Organizing Network) with IP

Yes

Camera Recognition

Yes

Loop Prevention

Yes

Loop Notification

Yes

PoE Usage Alarm

No

Protection Port

Yes

IP Source Guard

Yes

Anti-ARP Spoofing

Yes

DHCP Snooping

Yes

DHCP Client

Yes

Physical Features

Reset Button

Front

Cable Hot-swappable

Yes

Power Supply Slot

Single, fixed power supply

Power Supplies

100 - 240V AC, 2A

Power Consumption

≤ 46W

EEE

Yes

Fan

1

Airflow

Left/Right-to-Rear

Fan Adaptive Speed Adjustment

Yes

Acoustic Noise

< 45dB

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-40°C to 70°C (-40°F to 158°F

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Port Surge

6 kV

Operating Altitude (meters)

-500 to 5000

Certificate

CE, RoHS
