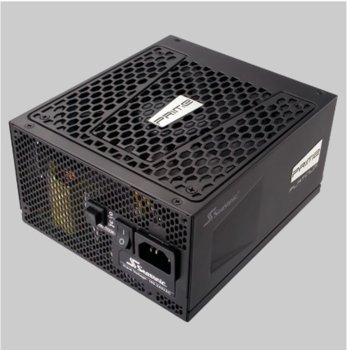

Seasonic SSR-1200PD
Model name: SSR-1200PD Active PFC F3
80 PLUS®: Platinum
Form Factor: Intel ATX 12 V
Dimensions: 170mm (L) x 150mm (W) x 86mm (H) +/-1 mm
Fan Information:
Fan Size: 135 mm
Fan Control: Premium Hybrid Fan Control
Fan Bearing: Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information:
Modularity: Fully Modular
Cable type: Flat black cables
Electrical Features:
Operating Temperature: 0 - 50 °C
Hold-up Time: 16 ms
MTBF @ 25 °C, excl. fan: 150,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental:
Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Connector: Number of Connectors: Cable Lengths:
Main Power (20/24 pins) 1 1 x 610 mm
CPU (4/8 pins) 2 2 x 650 mm
PCIe (6/8 Pins) 8 4 x 675 + 75 mm
SATA 12 3 x 450 + 120 + 120 + 120 mm
1 x 350 +120 mm
Peripheral 5 1 x 450 + 120 + 120 mm
1 x 350 +120 mm
Floppy 1 1 x 101 mm
AC Input:
Voltage: 100 V - 240 V
Current: 15 A - 7.5 A
Frequency: 50 Hz - 60 Hz
DC Output
Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 25 A 25 A 100 A 0.3 A 3 A
125 W 1200 W 3.6 W 15 W
Total continuous power: 1200 W
