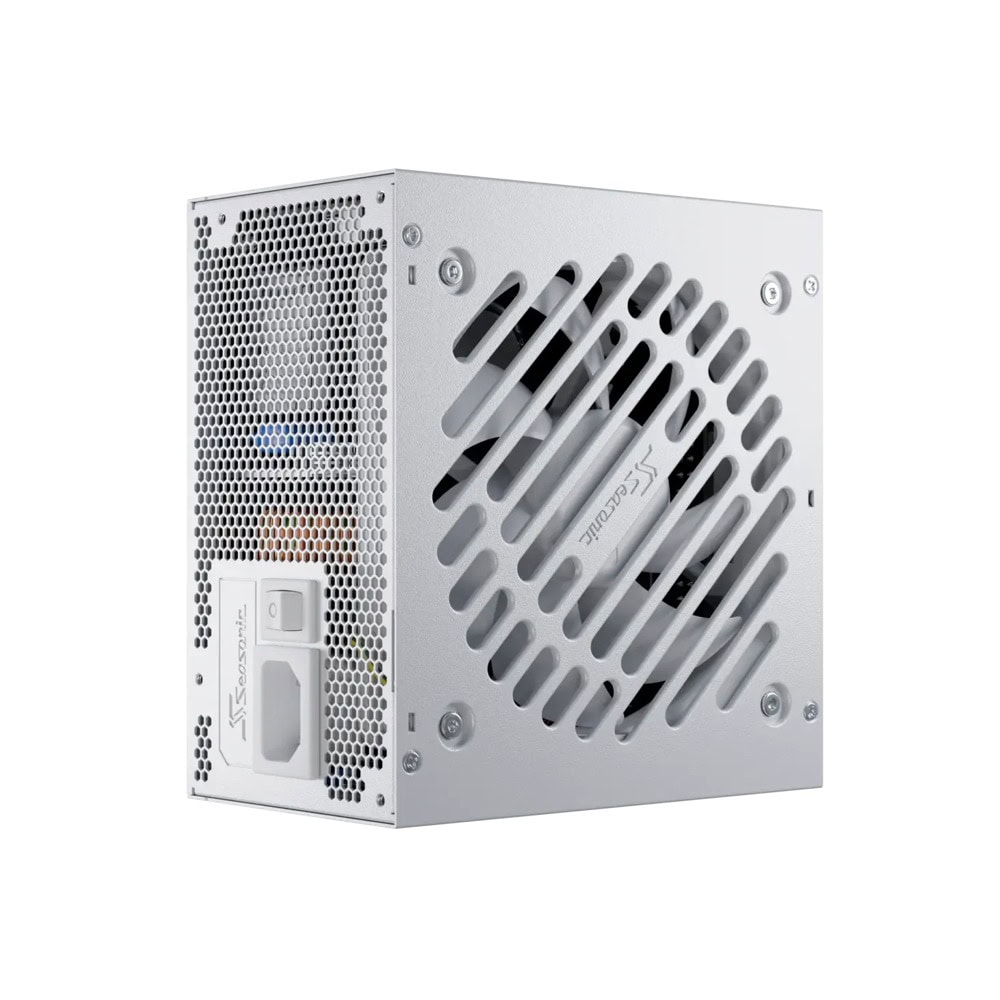

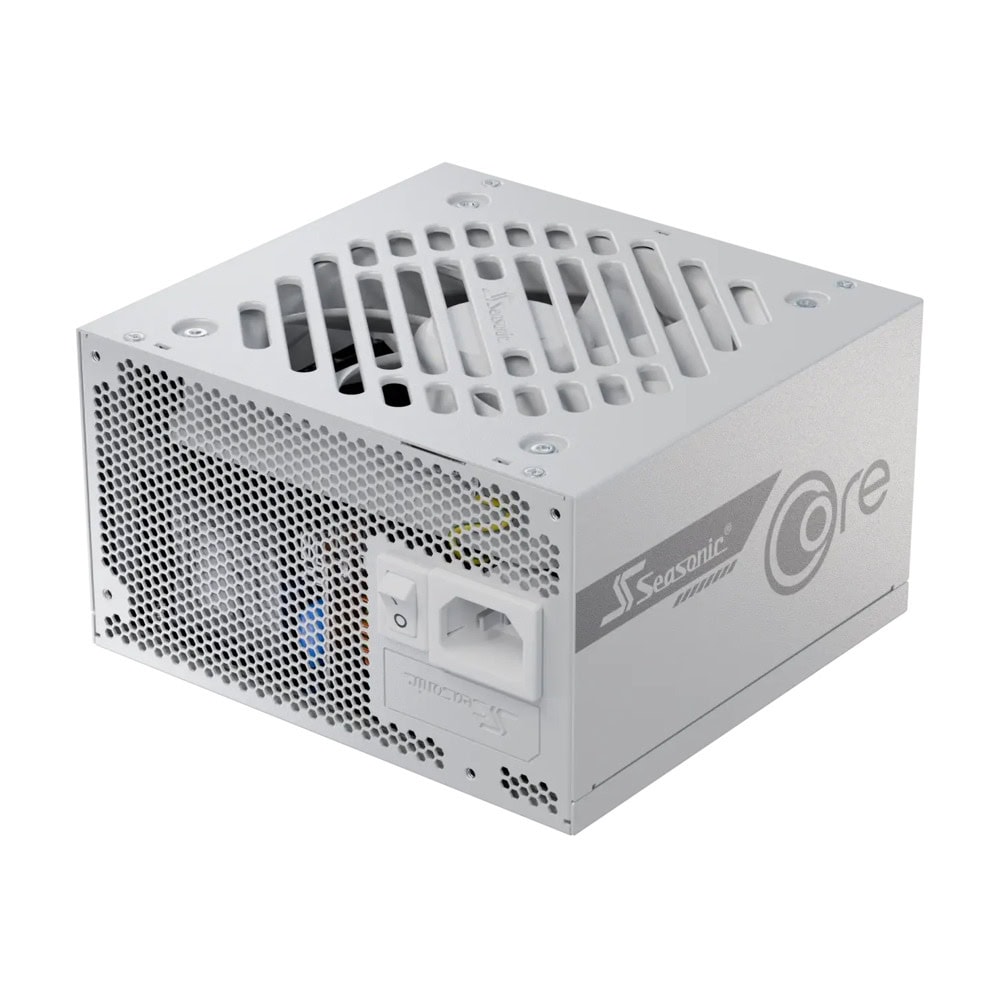

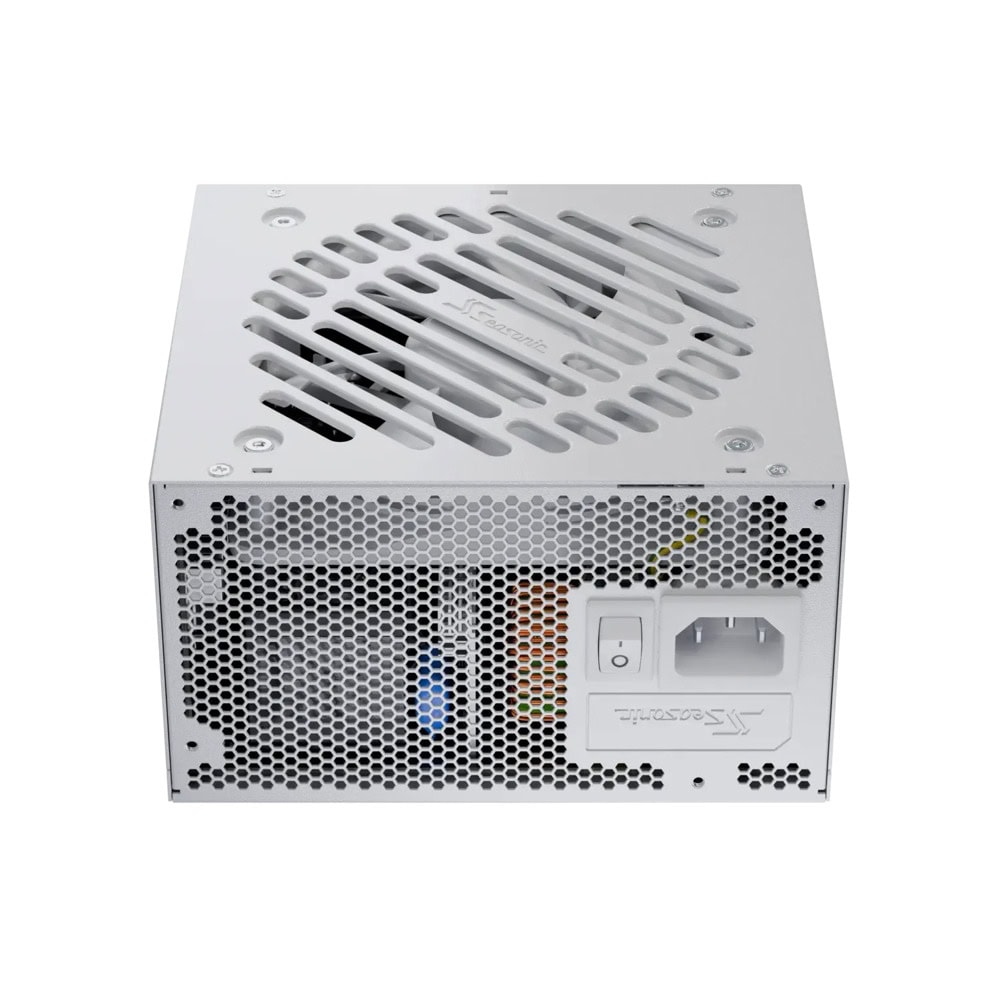

CORE GX White ATX 3
The updated Seasonic CORE GX ATX3 series complies with the latest ATX 3.1 and PCIe 5.1 standards and includes four output ranges from 1000 W to 650 W in both black and white colors. Catering to a broad spectrum of PC enthusiasts and system builders, these power supplies provide a fine balance between cost and performance. The 80 PLUS® Gold certified Seasonic’s Core GX White line is a fully modular design equipped with white cables featuring a braided pattern. These power supplies are solid performers for a large range of applications, where a 120 mm Hydro Dynamic Bearing fan is combined with Seasonic’s Smart and Silent Fan Control to ensure the optimal cooling performance at the lowest possible noise level.

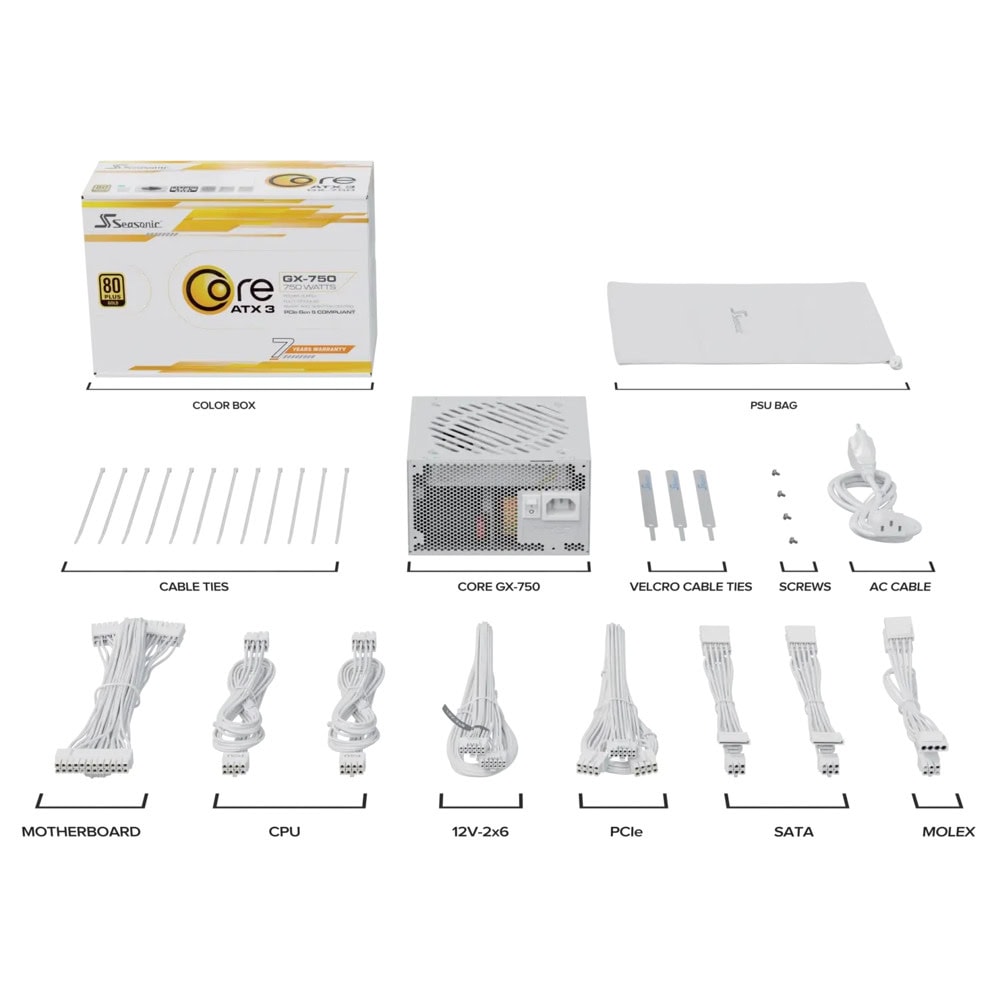

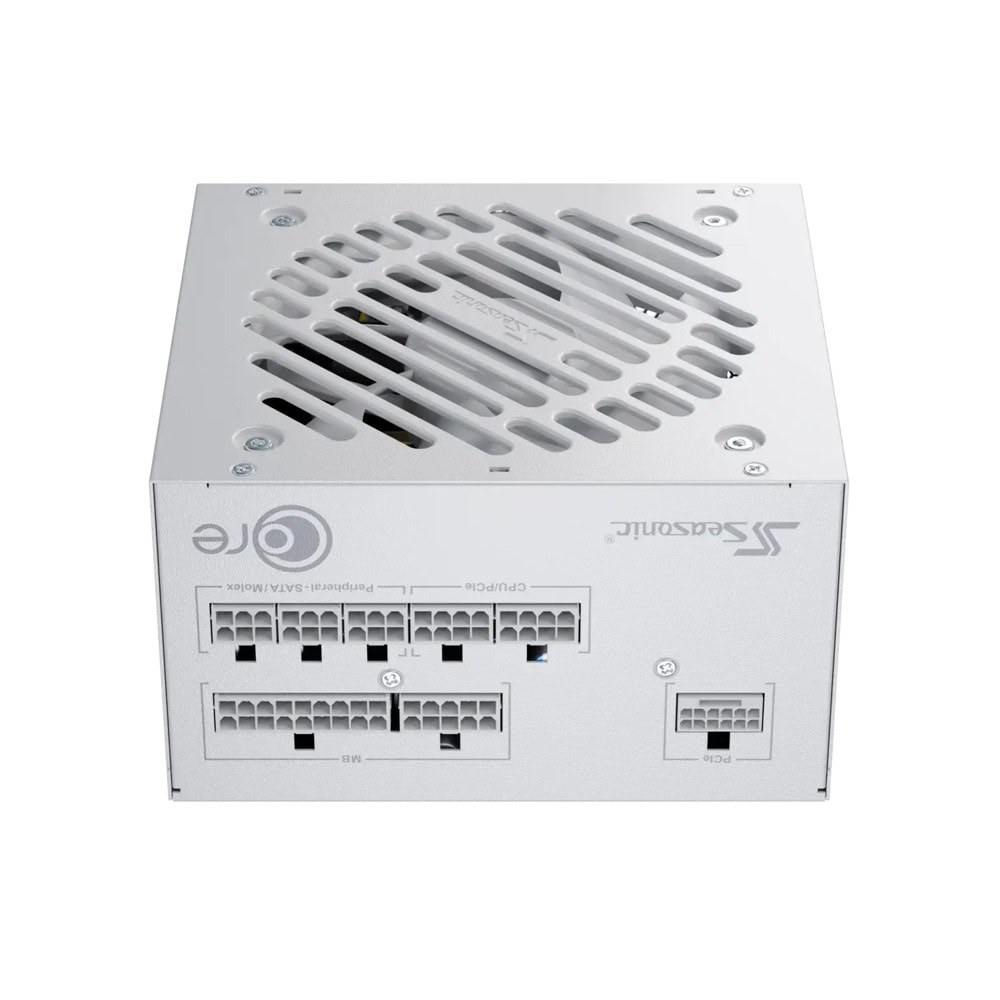

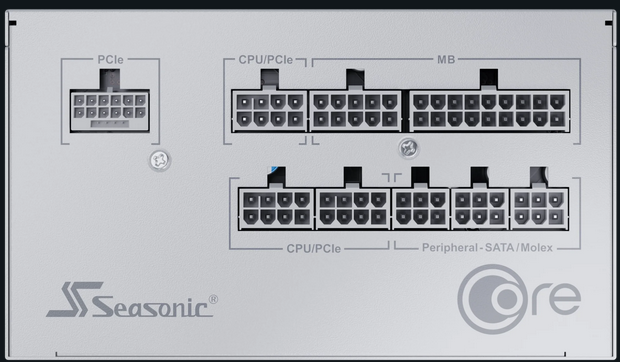

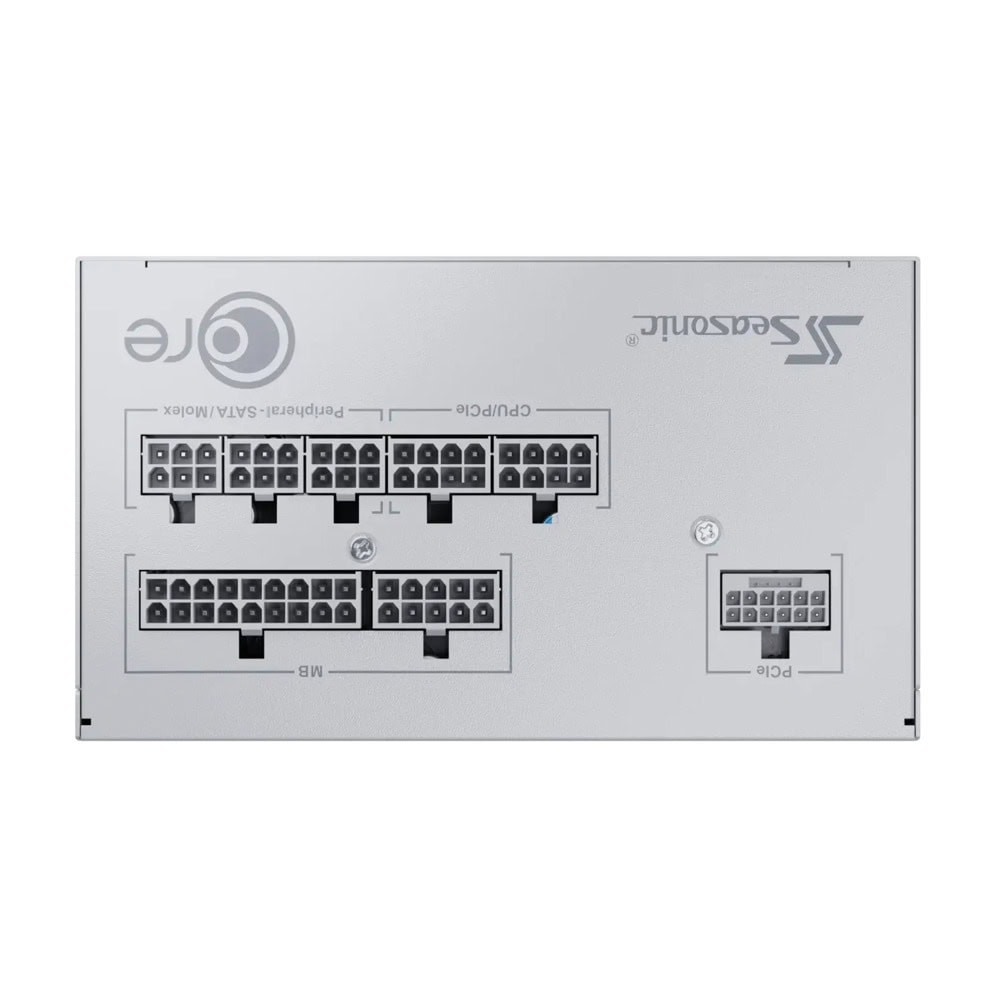

Fully Modular Cables
In Sea Sonic’s patented design feature full modularity comes hand-in-hand with the extensive use of SMD technology to increase the overall performance and reliability of this power supply. The simple and inventive layout scheme helps to attain unsurpassed quality and performance, where efficiency is further enhanced by minimized line resistance, reduced voltage drop and lower impedance. Reduced component count and better space utilization facilitate optimal air flow inside the case and promote heat dissipation, proper cooling and ultimately longer product life.
Specification | |
---|---|
80PLUS® Certification | Gold |
Cybenetics Efficiency | TBA |
Cybenetics Noise Level | TBA |
Form Factor | ATX/EPS |
Dimensions | 140 × 150 × 86 mm |

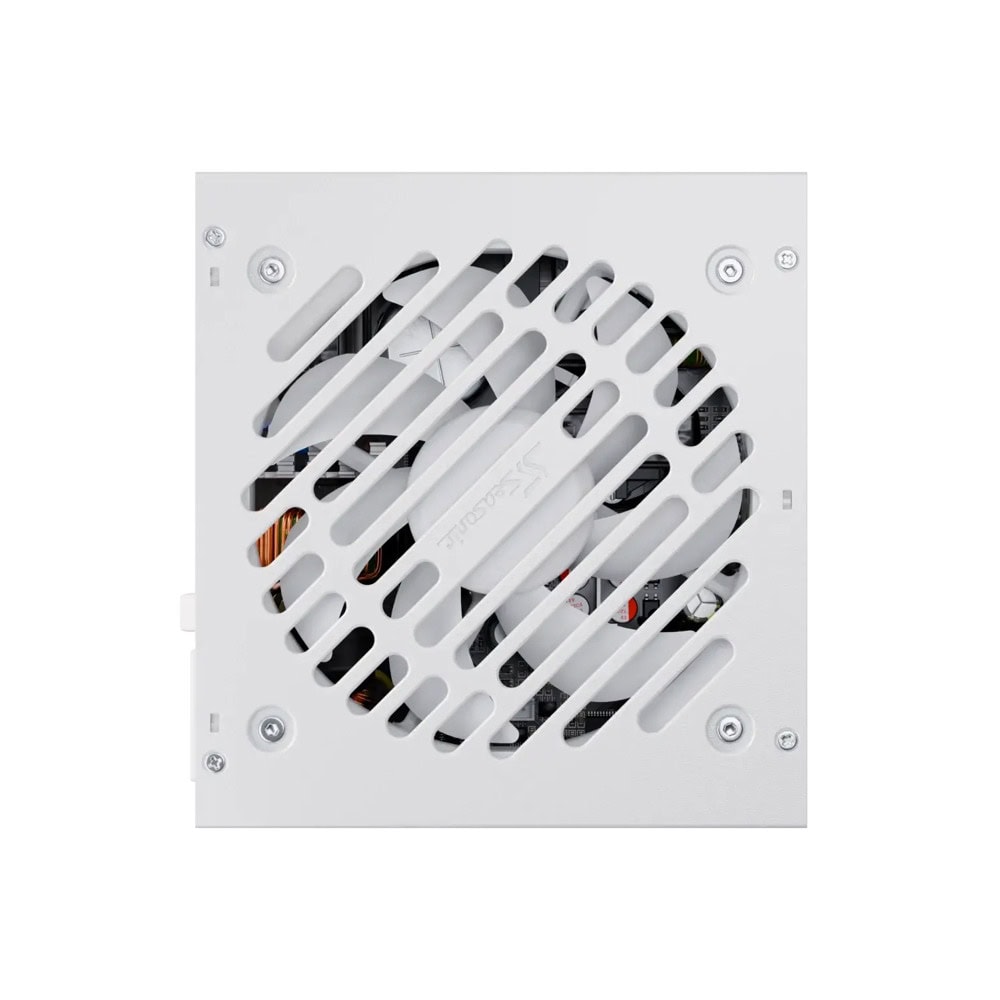

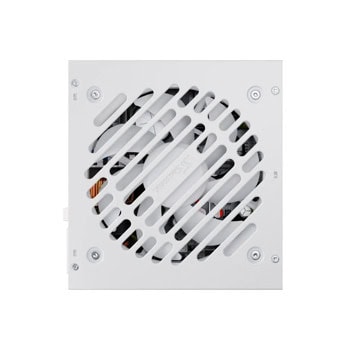

Fan Size | 120 mm |
Fan Control | Smart and Silent Fan Control |
Fan Bearing | Hydro Dynamic Bearing |
Fan Life Expectancy | 25,000 hours at 40 °C, 15% – 65% RH |
Cable Modularity | Fully Modular |
Cable Type | Individual White Cables with Braided Pattern |
Operating Temperature | 0 – 50 °C (derating from 100% to 80% from 40 °C to 50 °C linearly) |
MTBF (excl. fan) | 100,000 hours @ 25 °C |
AC Input | Full Range, 100 V – 240 V, 10 – 5 A, 50 Hz – 60 Hz |
DC Output Rails | +3.3 V, +5 V, +12 V, -12 V, +5 VSB |
Max Current (A) | 20 A, 20 A, 62 A, 0.3 A, 3 A |
Max Power (W) | 100 W (3.3V+5V), 744 W (+12V), 3.6 W (-12V), 15 W (+5VSB) |
Total Power | 750 W (Continuous) |
Protections | OCP, OPP, UVP, OTP, OVP, SCP |
Certifications | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Seasonic
Виж всички Захранвания Настолни компютри в категорията
Изходна мощност: | 750 W |
---|---|
Модулен блок: | Да |
Форм фактор: | ATX |
