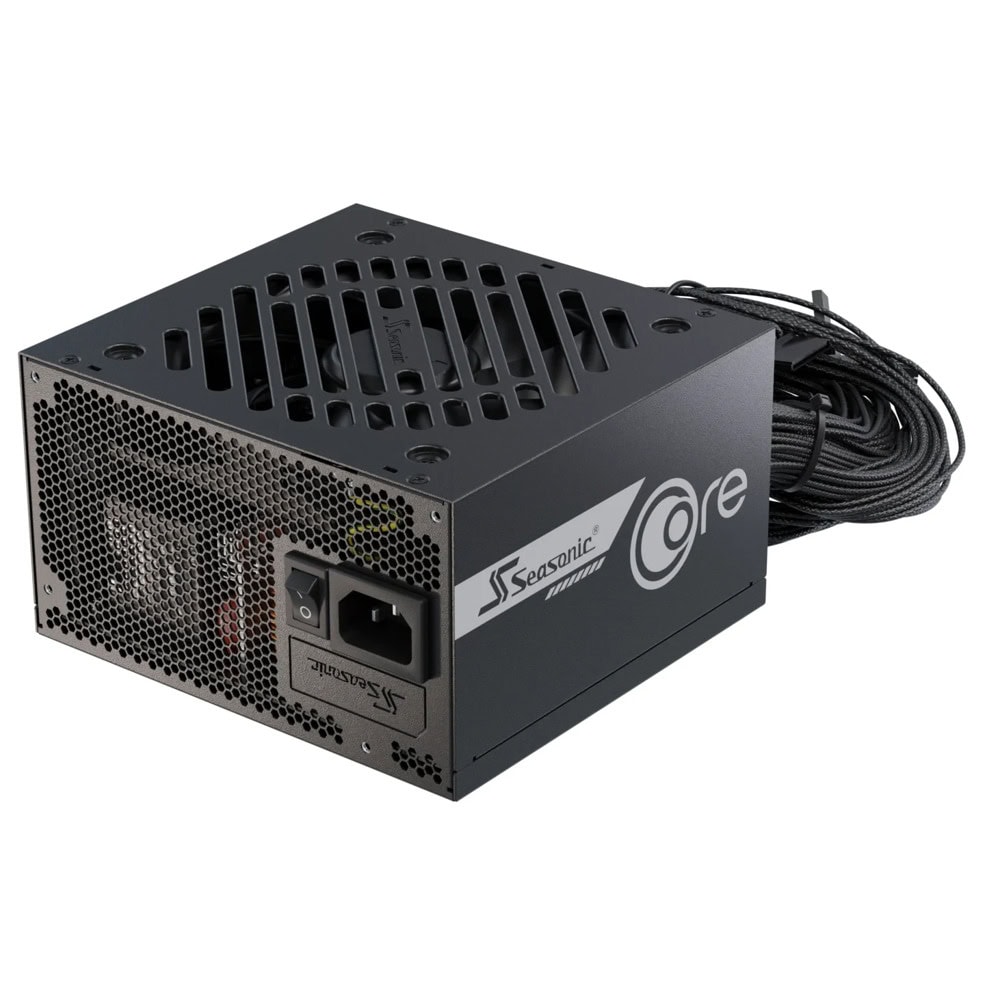

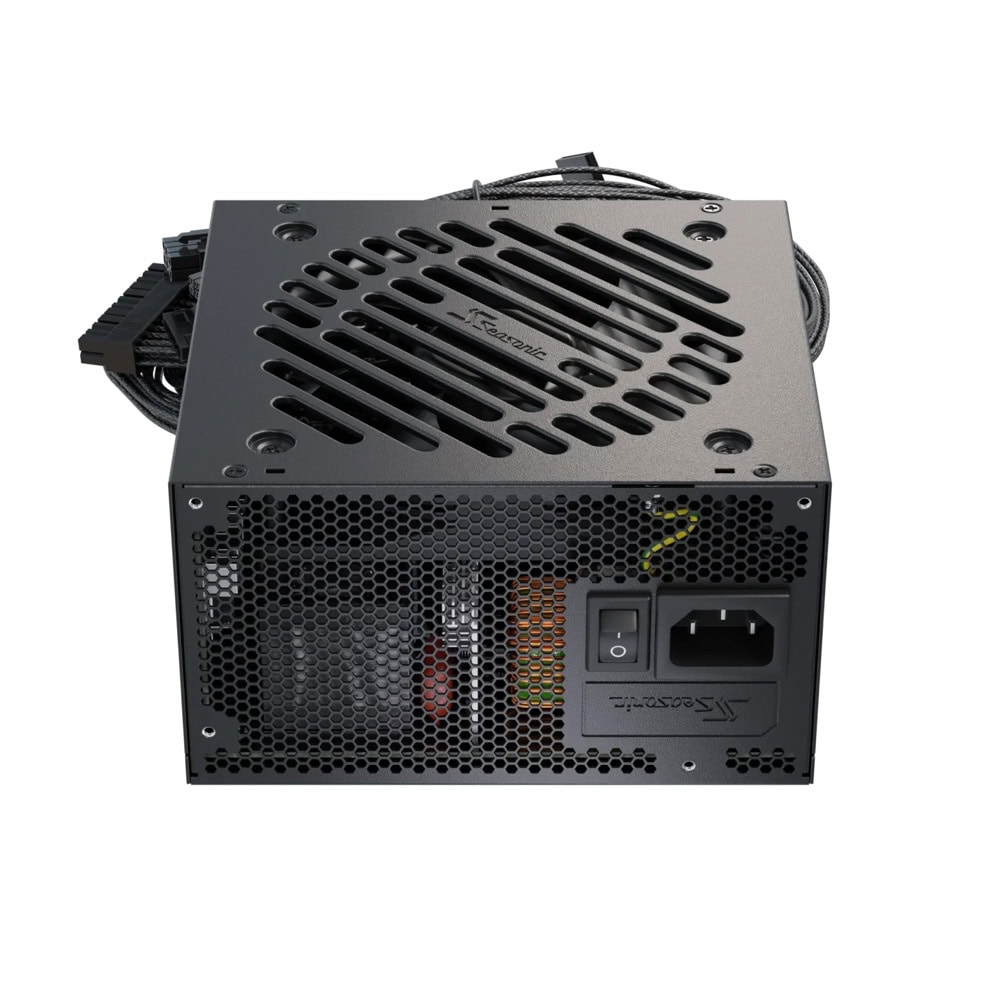

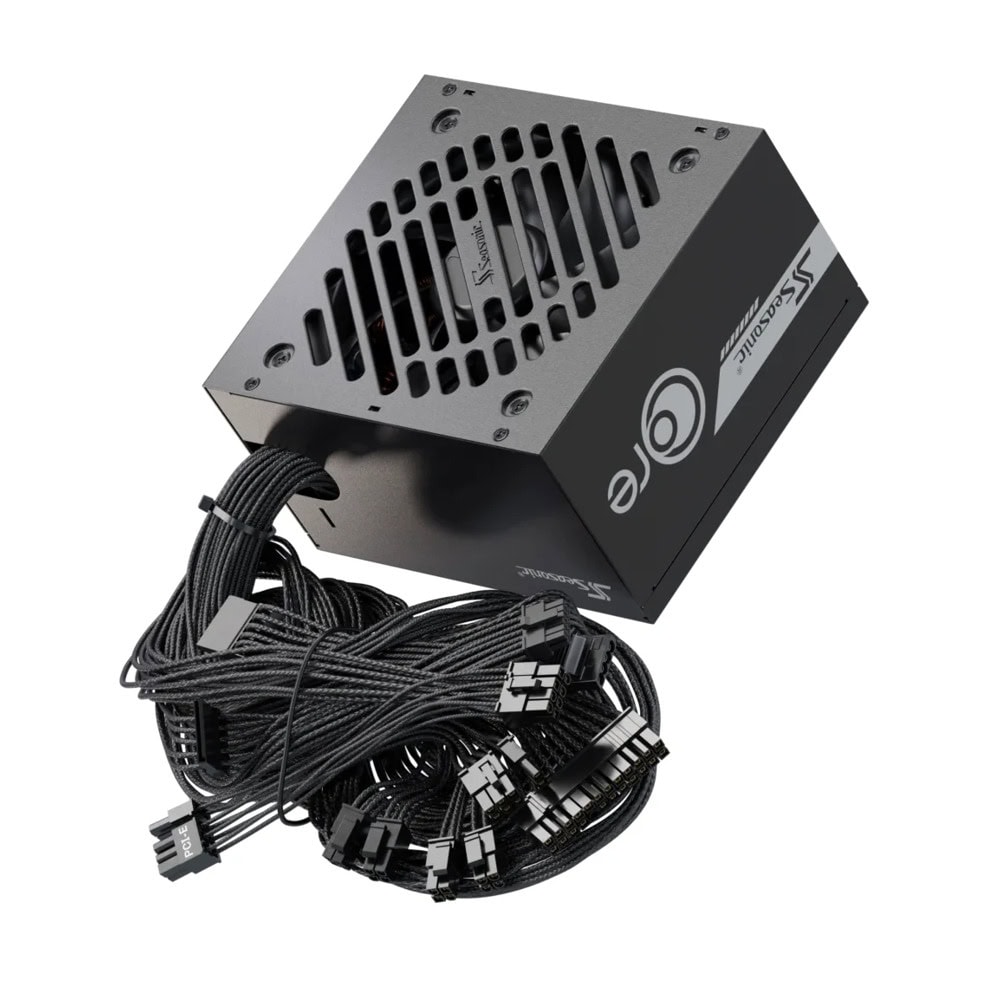

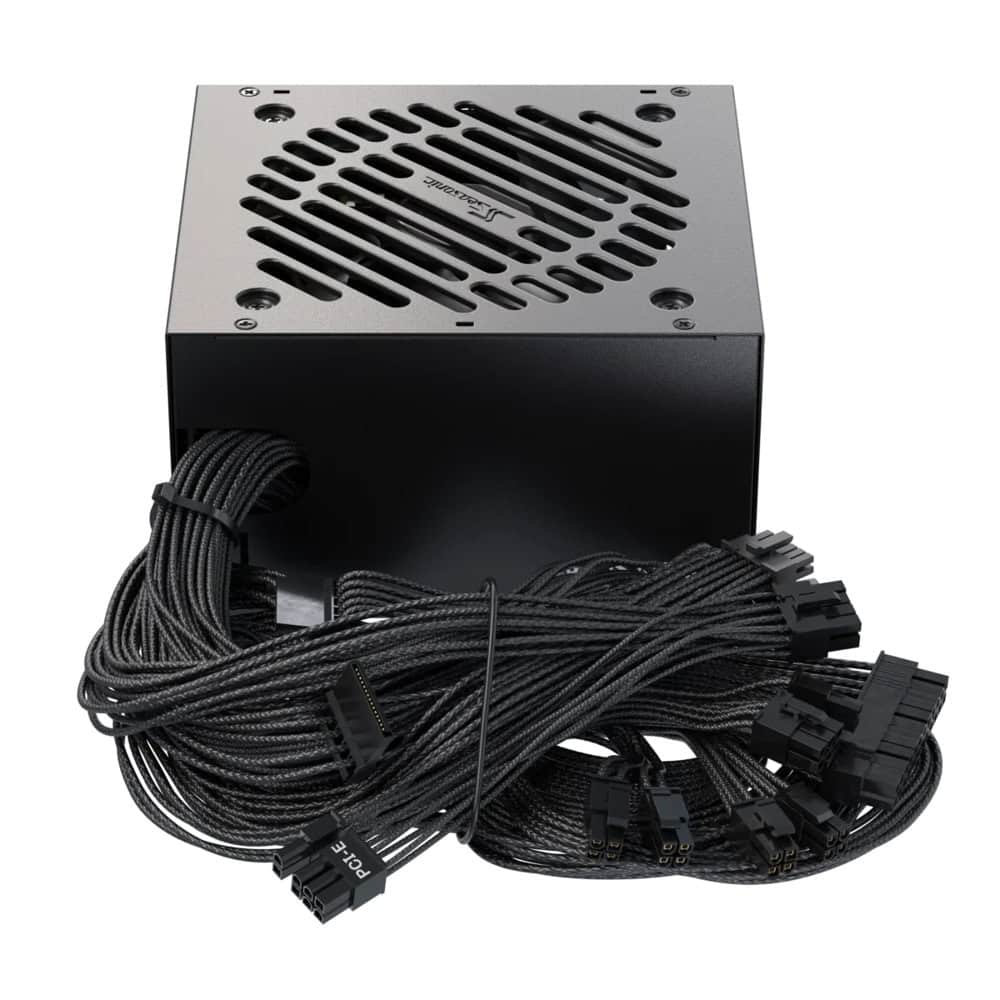

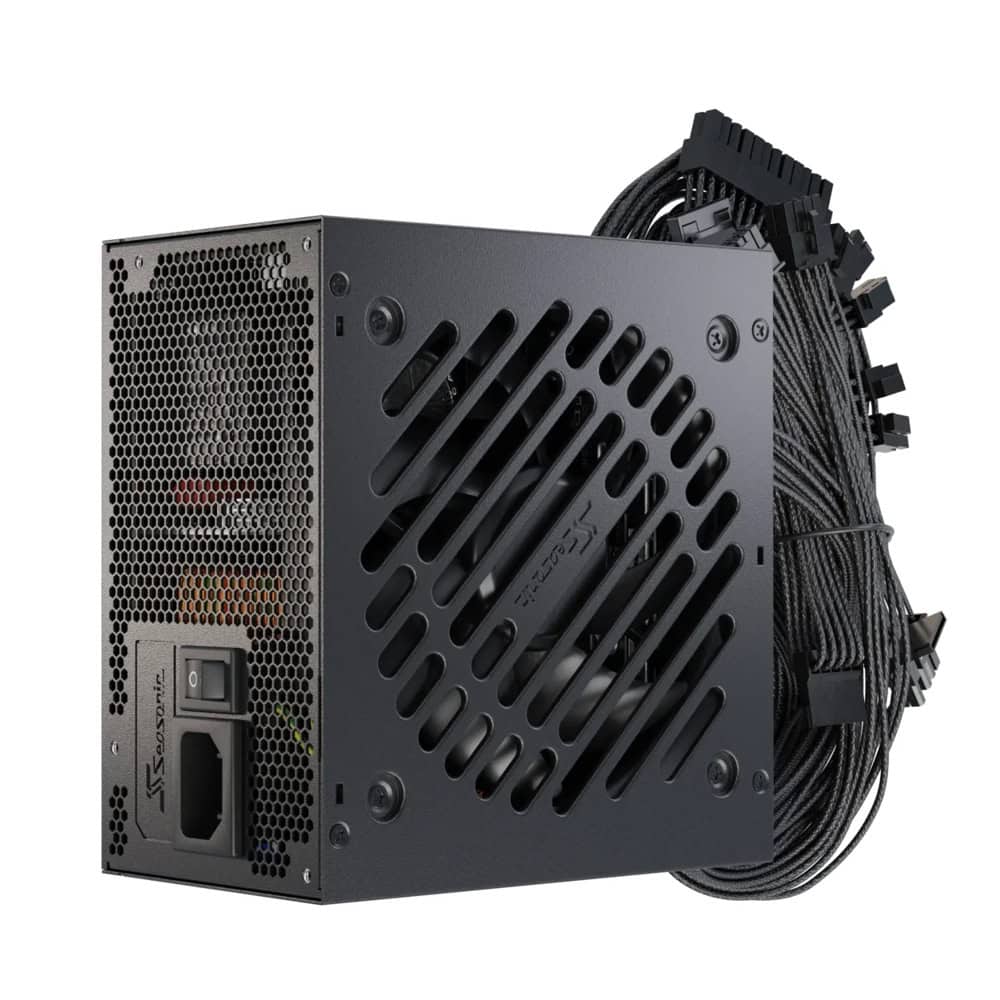

Name: Захранване Seasonic Core BC-850 ATX 3.1, 850W, Active PFC, 80 Plus Bronze, 120mm вентилатор
Brand: Seasonic
SKU: PWRPCSEASONICSRPCBC851A5A51JF
Price: 76.59 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

CORE BC – Power Made Simple

The Seasonic CORE BC Series delivers reliable performance and modern ATX 3.1 compliance at an essential value. Designed for everyday builders and gamers, it embodies Seasonic’s trusted quality in a compact 140 mm design with a durable scratch-resistant finish.

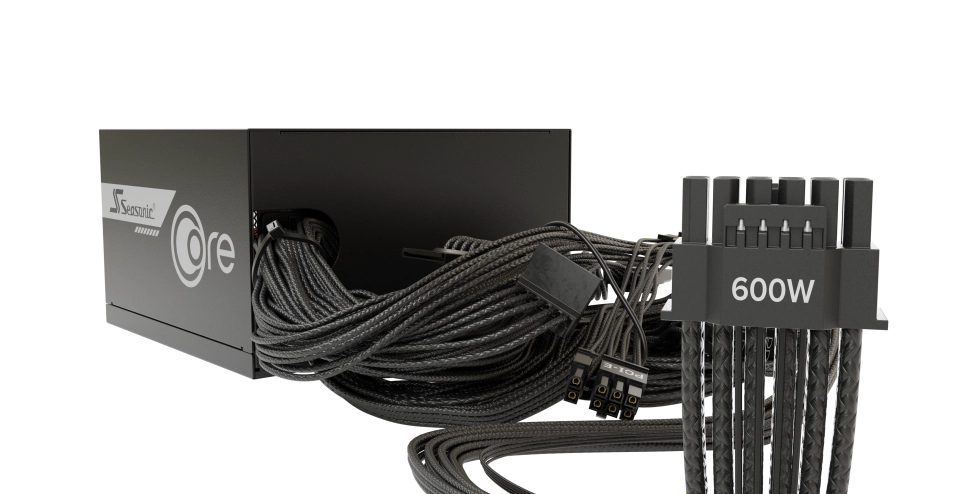

With 80 PLUS Bronze efficiency, Smart and Silent Fan Control (S2FC), and a 120 mm HDB fan, it ensures cool, quiet, and stable operation. The CORE BC-750 and CORE BC-850 include a 12V-2×6 PCIe Gen 5.1 cable, ready for the latest GPUs, while the CORE BC-650 meets all ATX 3.1 requirements with traditional connectors.

Built on decades of engineering excellence, the CORE BC Series delivers the quiet efficiency, reliability, and durability that define every Seasonic power supply.

Cables

Length of the cable	Type	Connectors	Cables
550 mm	MB (24/20 pins)	1	1
600 mm	CPU (8/4 pins)	2	1

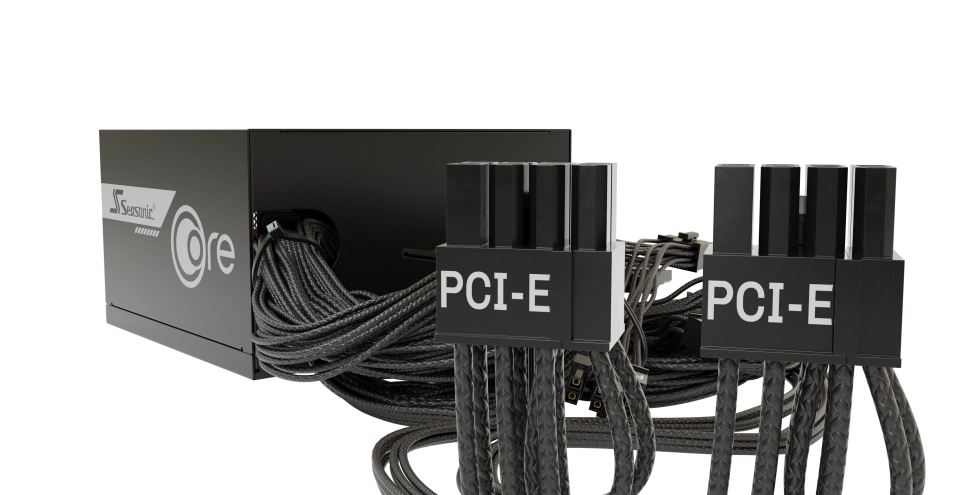

550 mm	PCIe (8/6 pins)	2	1
550 mm	PCIe (8/6 pins)	1	1
600 mm	12V-2x6	1	1
600 mm	SATA / Molex	3	1

Specifications

Technical Specifications
80PLUS		Bronze
Cybenetics Efficiency Level		TBA
Cybenetics Noise Level		TBA
Form Factor		ATX/EPS
Fan Information	Fan Size	120 mm
	Fan Control	S²FC
	Fan Bearing	Hydro Dynamic Bearing
	Life Expectancy	40,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fixed Cables
Cable Information	Cable type	Individual Black Cables with Braided Pattern
Electrical Features	Operating Temperature	0 - 40 °C
	MTBF @ 25 °C, excl. fan	100,000 hours
	AC Input	Full Range
	Protection	OCP, OPP, OTP, OVP, SCP, UVP
Safety and Environmental	Safety and EMC	CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, REACH, WEEE, ErP Lot 6

Power Output
AC Input	100 V - 240 V
	11 - 5.5 A
	50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 Vsb
	Maximum Power	20 A	20 A	70 A	0.3 A	2.5 A
		100 W		840 W	3.6 W	12.5 W
	Total continuous power	850W
