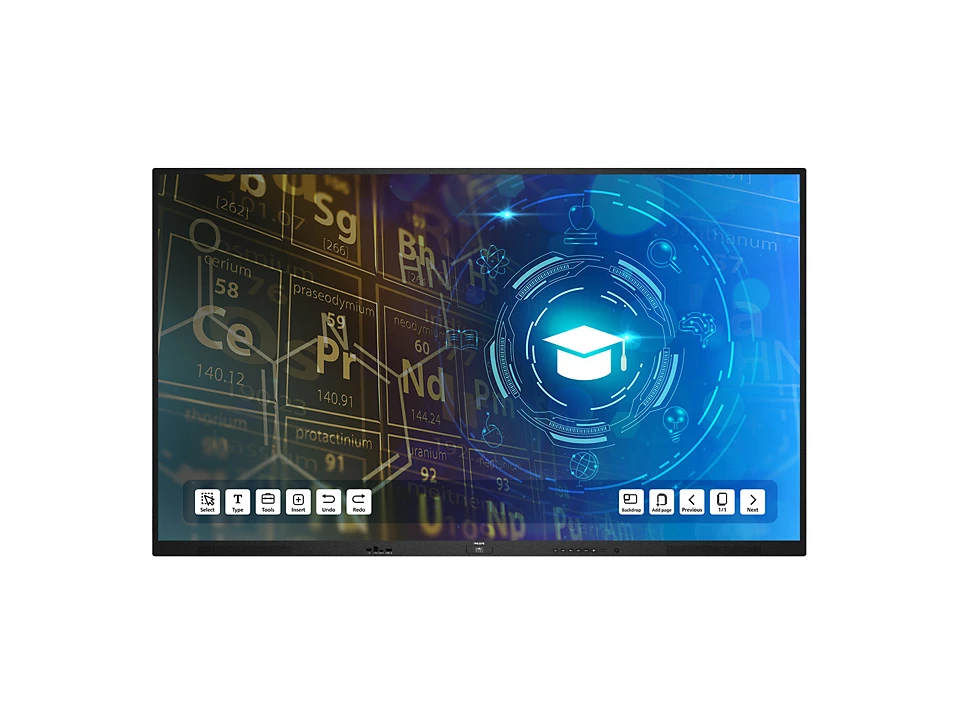

Интерактивен дисплей Philips 65BDL4152E/00, 64.5" (163.83 cm), 4K/UHD LED сензорен дисплей, HDMI, USB, USB-C, RS232, Wi-Fi, Bluetooth, LAN

Signage Solutions Collaboration Display

65BDL4152E/00

Interactive education display

This interactive display, powered by Android 13, has up to 40 touchpoints, maximising engagement and collaboration. Toughened anti-glare, anti-reflection and anti-fingerprint glass are ideal for heavy daily use in busy environments.

• 65"
• Powered by Android
• Multi-touch

OPS slot allows PC embedding without cabling

Integrate a full-power PC or Android-powered CRD module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Android SoC for seamless software and app integration

Our integrated Android 13 OS has been specially developed to bring a next level secure professional System on Chip. Save your favorite apps and software directly into the display or, choose from the large library of Android apps .

PPDS Wave-ready for remote display management and control

Your PPDS Wave-ready display enables you to manage and maintain this device remotely, wherever you are, whenever you choose. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing central content needs, and setting power schedules. Saving you time, energy and environmental impact.

Built-in ambient light sensor

Built-in ambient light sensors contribute to energy savings by automatically adjusting the screen brightness to the surrounding lighting conditions.

Anti-glare and anti-reflection toughened glass 7 MOH

Anti-glare, anti-reflection, anti-fingerprint coatings, 7 MoH hardness.

Blue light filter

Blue light filter to help protect eyes and avoid eye fatigue.

Palm rejection

Palm rejection for enhanced precision.

Multi-touch technology capable of 40 touchpoints

Create a memorable interactive experience with up to 40 touchpoints at the same time for slick, agile lessons or brainstorming sessions. Perfect for collaborative and co-creation applications, this display connects your audience with any content. Offering enhanced user friendliness with eraser functionality, palm rejection and tip size recognition.

Advanced IR touch

Advanced 0-gap IR touch with smaller, shallower bezels.

Wireless presentations

Philips ScreenShare makes it easy for teachers, students or employees to wirelessly share their screens from their own device, whatever the operating system, via the browser or their favorite apps, onto the Philips Collaboration display.

Cast directly from any device

Teachers, students or employees can cast directly from their device with AirPlay, Google Cast, and Miracast.

Whiteboard application

The embedded whiteboard application enables seamless collaboration and brainstorming directly on the display.

Near Field Communication (NFC) for security

NFC (Near Field Communication) offers secure authentication and access control, enhancing security with encrypted data transfer. Its contactless operation minimizes the risk of unauthorized access or data interception, ensuring reliable security of the displays.

Designed with Sustainability in mind

Recognised by and registered with EPEAT with a Silver Ecolabel, the displays meet the robust set of criteria laid out by the worlds premier ecolabel for electronics. The displays are also Energy Star 8.0 compliant.

Technical Specifications:

• Connectivity

  Audio output

  3.5 mm Mini Jack (x1)

  Video input

  • HDMI 2.0 (x3)
  • USB 3.0 ( x2)
  • USB 2.0 (x1)
  • USB-C (up to 65W)
  • USB-C

  Audio input

  3.5 mm mini jack (x1)

  Other connections

  • OPS
  • USB-B (x2)
  • Micro USB (x1) (OTG)

  Video output

  HDMI 2.0 (x1)

  External control

  • IR (in/out) 3.5 mm jack
  • RS232C (in/out) 2.5 mm jack
  • Gb LAN x2

  Bluetooth

  5.2 BLE

• Picture/Display

  Diagonal screen size (metric)

  163.9  cm

  Diagonal screen size (inch)

  64.5  inch

  Aspect ratio

  16:9

  Panel resolution

  3840 x 2160

  Pixel pitch

  0.372 x 0.372 mm

  Optimum resolution

  3840 x 2160 @ 60 Hz

  Brightness

  400  cd/m²

  Display colors

  1.07 Billion

  Contrast ratio (typical)

  1200:1

  Dynamic contrast ratio

  500,000:1

  Response time (typical)

  8  ms

  Viewing angle (horizontal)

  178  degree

  Viewing angle (vertical)

  178  degree

  Picture enhancement

  • 3/2 - 2/2 motion pull down
  • 3D Combfilter
  • Motion compens. deinterlacing
  • Progressive scan
  • 3D MA deinterlacing
  • Dynamic contrast enhancement

  Panel technology

  ADS

  Operating system

  Android 13

  OS UI resolution

  3840 x 2160 @ 60 Hz

• Convenience

  Placement

  Landscape (18/7)

  Screen saving functions

  Pixel Shift, Low Brightness

  Keyboard control

  Lockable

  Remote control signal

  Lockable

  Signal loop through

  • RS232
  • IR Loopthrough

  Other convenience

  • Carrying handles
  • NFC
  • Bluetooth

  Network controllable

  • RS232
  • RJ45

• Sound

  Built-in speakers

  2 x20 W

• Power

  Mains power

  100 ~ 240 VAC, 50 ~ 60 Hz

  Consumption (Typical)

  132  W

  Standby power consumption

  <0.5W

  Power Saving Features

  Smart Power

  Energy Label Class

  G. EPEAT Silver.

• Supported Display Resolution

  Computer formats

  • 800 x 600, 56, 60, 72, 75Hz
  • 848 x 480, 60Hz
  • 1024 x 768, 60, 70, 75, 85Hz
  • 1152 x 864, 75Hz
  • 1280 x 960, 60, 85Hz
  • 1280x1024, 60,67,75Hz
  • 1360 x 768, 60Hz
  • 1366 x 768, 60Hz
  • 1600 x 1200, 60Hz
  • 1920 x 1080, 60Hz
  • 1920 x 1200, 60Hz
  • 3840 x 2160, 24,25,30,60Hz

  Video formats

  • 480p, 60Hz
  • 720p, 50, 60Hz
  • 1080i, 50, 60Hz
  • 1080p, 50, 60Hz
  • 2160p, 50, 60Hz
  • 480i, 60Hz

• Dimensions

  Set Width

  1492.02  mm

  Set Height

  892.28  mm

  Set Depth

  116.15  mm

  Set Width (inch)

  58.74  inch

  Set Height (inch)

  35.13  inch

  Wall Mount

  500x400mm,M8

  Set Depth (inch)

  4.57  inch

  Bezel width

  16.7mm(T/R/L), 41.9mm(B)

• Weight

  Product with packaging (kg)

  42.8  kg

  Product with packaging (lb)

  94.36  lb

  Product without stand (kg)

  34.7  kg

  Product without stand (lb)

  76.50  lb

• Operating conditions

  Altitude

  0 ~ 3000 m

  Temperature range (operation)

  0 ~ 40  °C

  MTBF

  50,000  hour(s)

  Temperature range (storage)

  -20 ~ 60  °C

  Humidity range (operation)[RH]

  20 ~ 80% (without condensation)

  Humidity range (storage) [RH]

  5 ~ 95% (without condensation)

• Multimedia Applications

  USB Playback Video

  • H.263
  • H.264
  • H.265
  • MPEG1/2
  • MPEG4
  • VP8
  • VP9

  USB Playback Picture

  • BMP
  • JPEG
  • PNG
  • WEBP

  USB Playback Audio

  • AAC
  • HEAAC
  • MPEG

• Internal Player

  CPU

  4xA73 + 4xA53

  GPU

  Multi-Core Mali-G52

  Memory

  8GB

  Storage

  32 GB eMMc

  Wifi

  2T/2R 2.4/5/6 GHz
