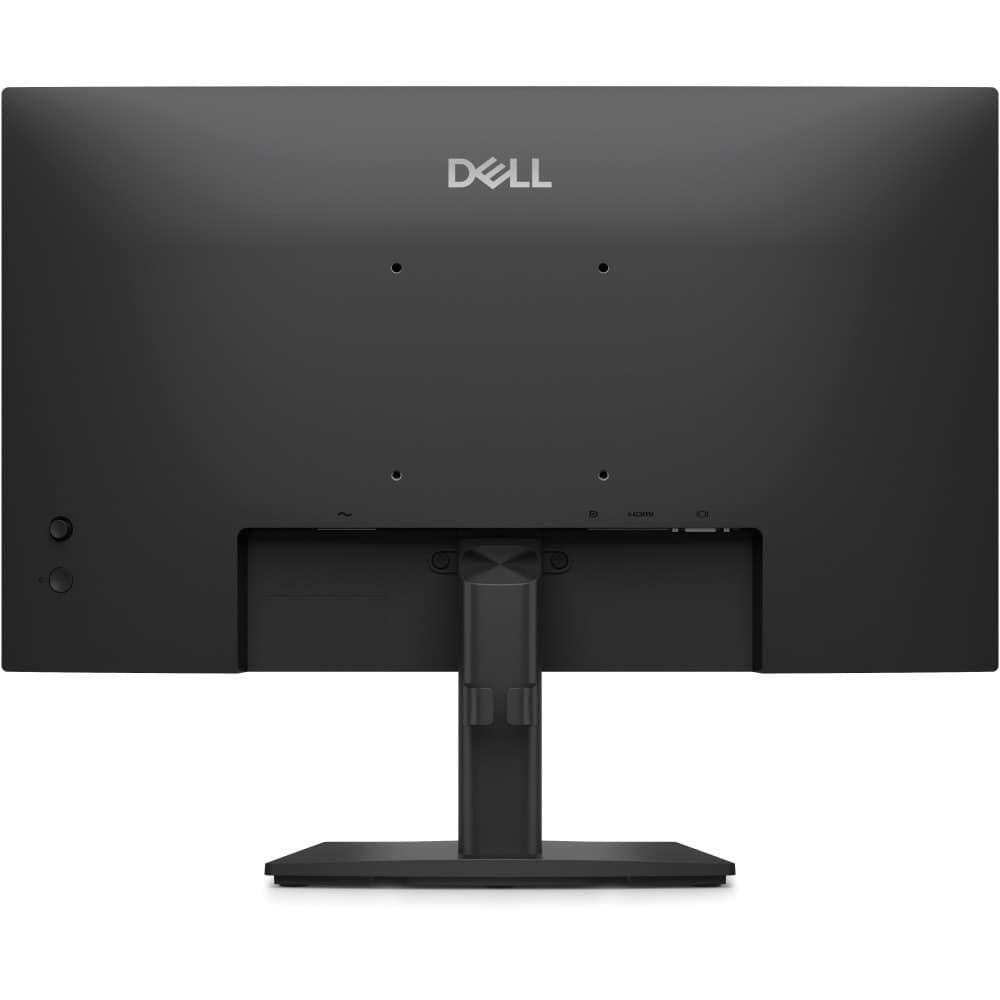

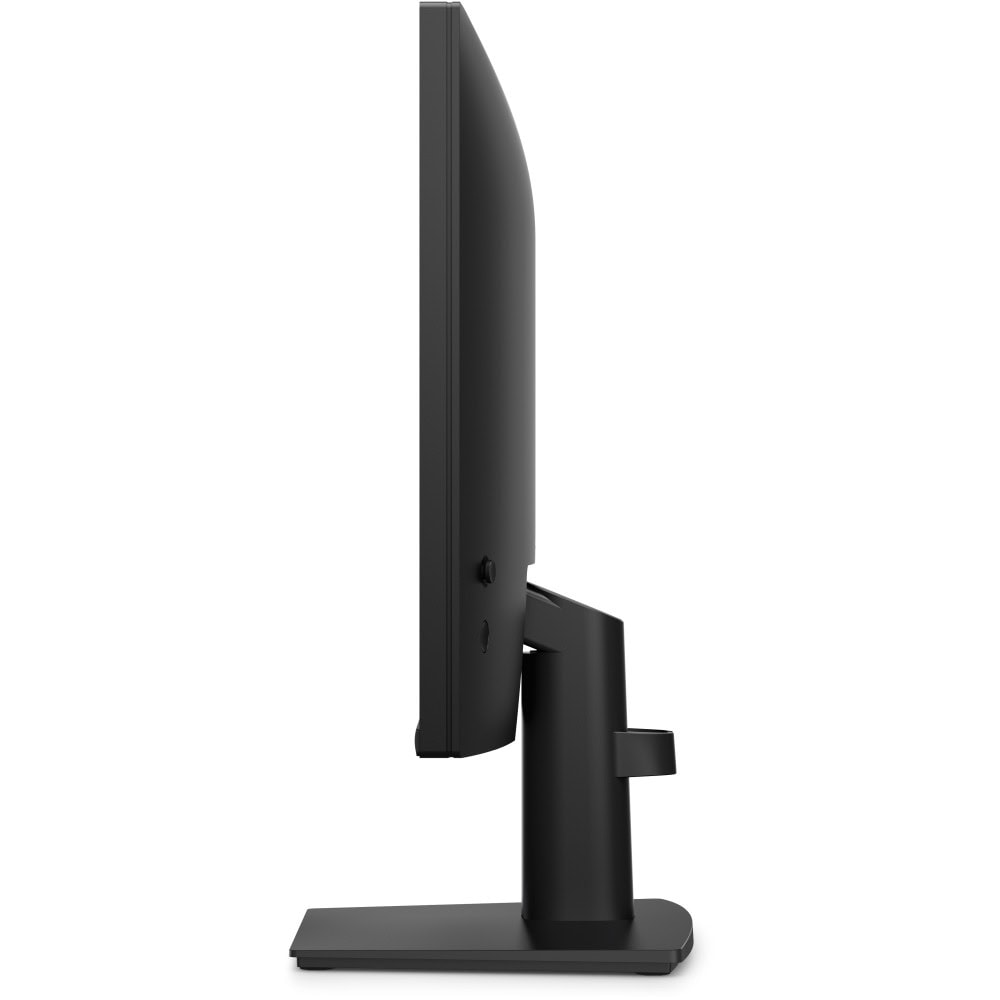

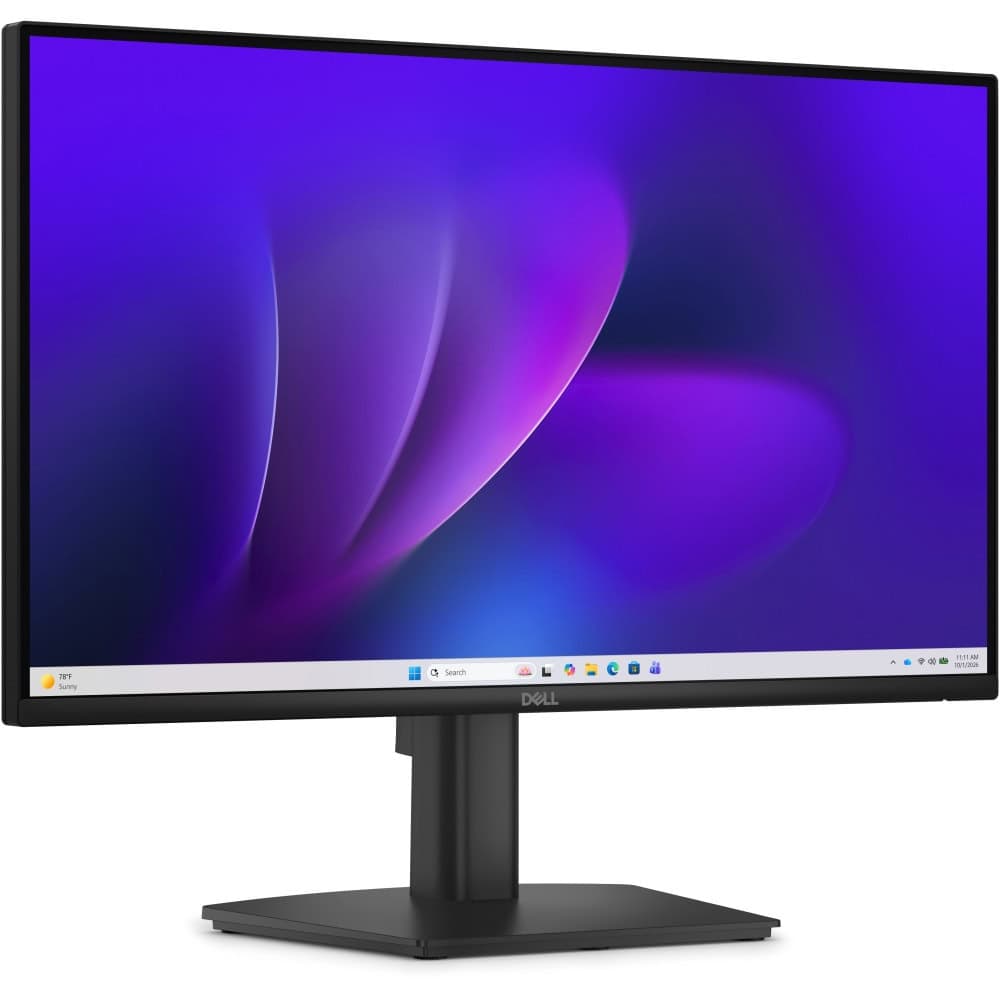

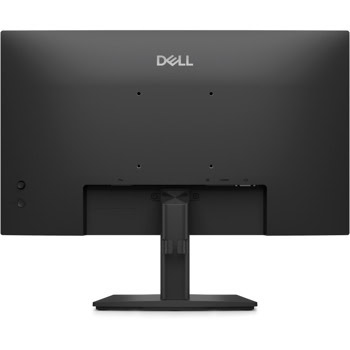

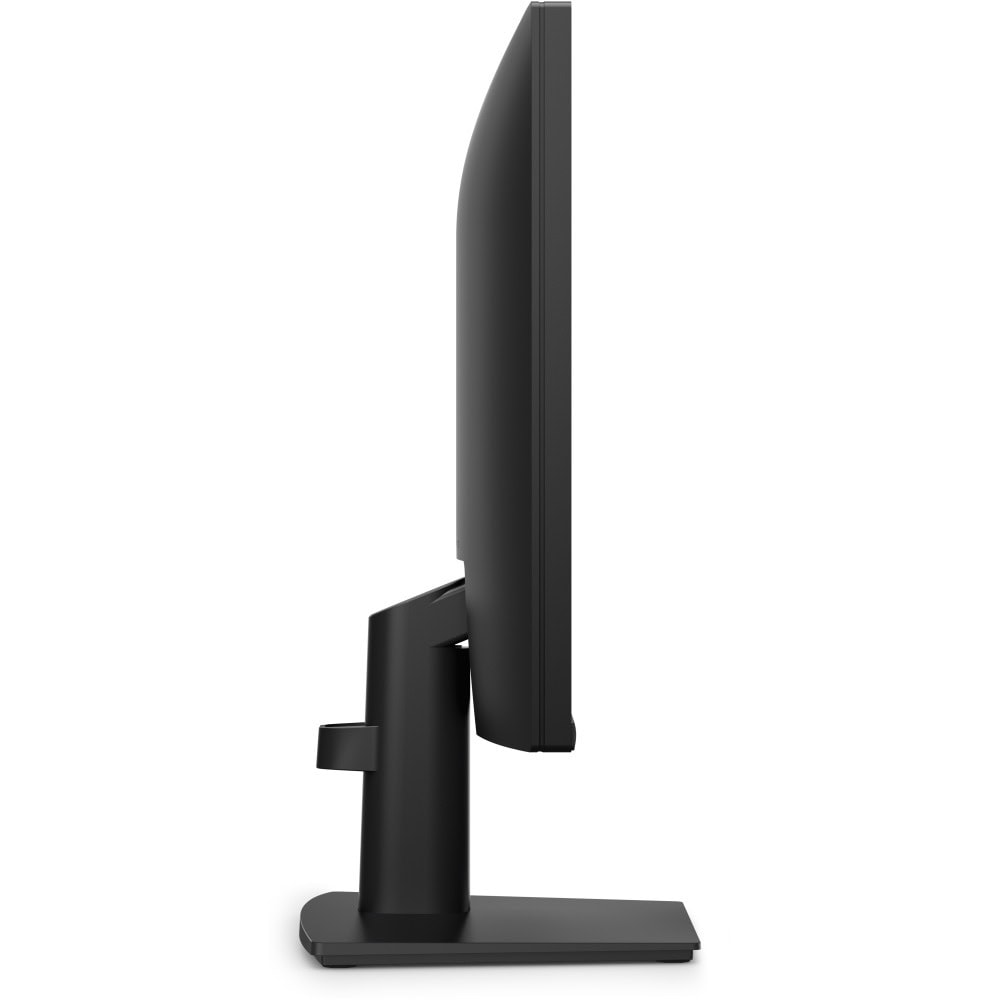

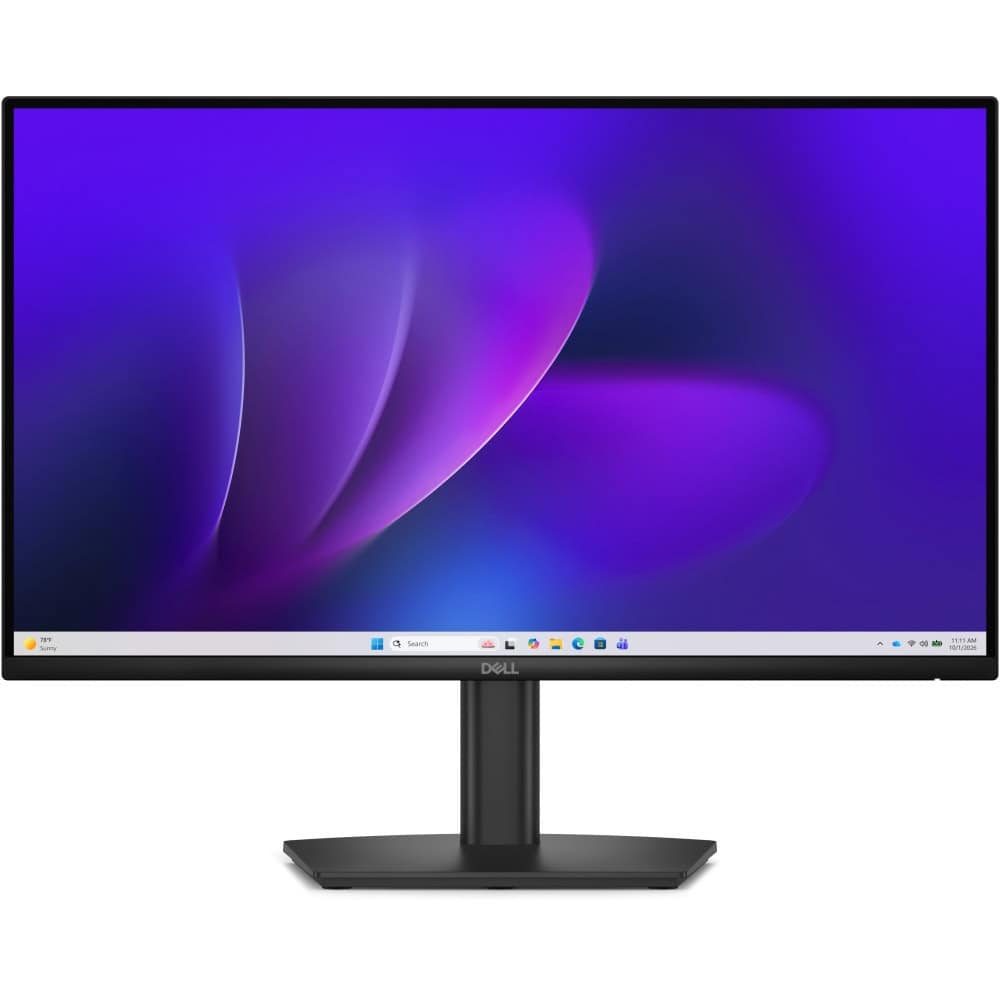

Монитор Dell E2226H, 21.5" (54.61cm) IPS панел, 100Hz, Full HD, 5ms, 1000:1, 250cd/m2, DisplayPort, HDMI, VGA

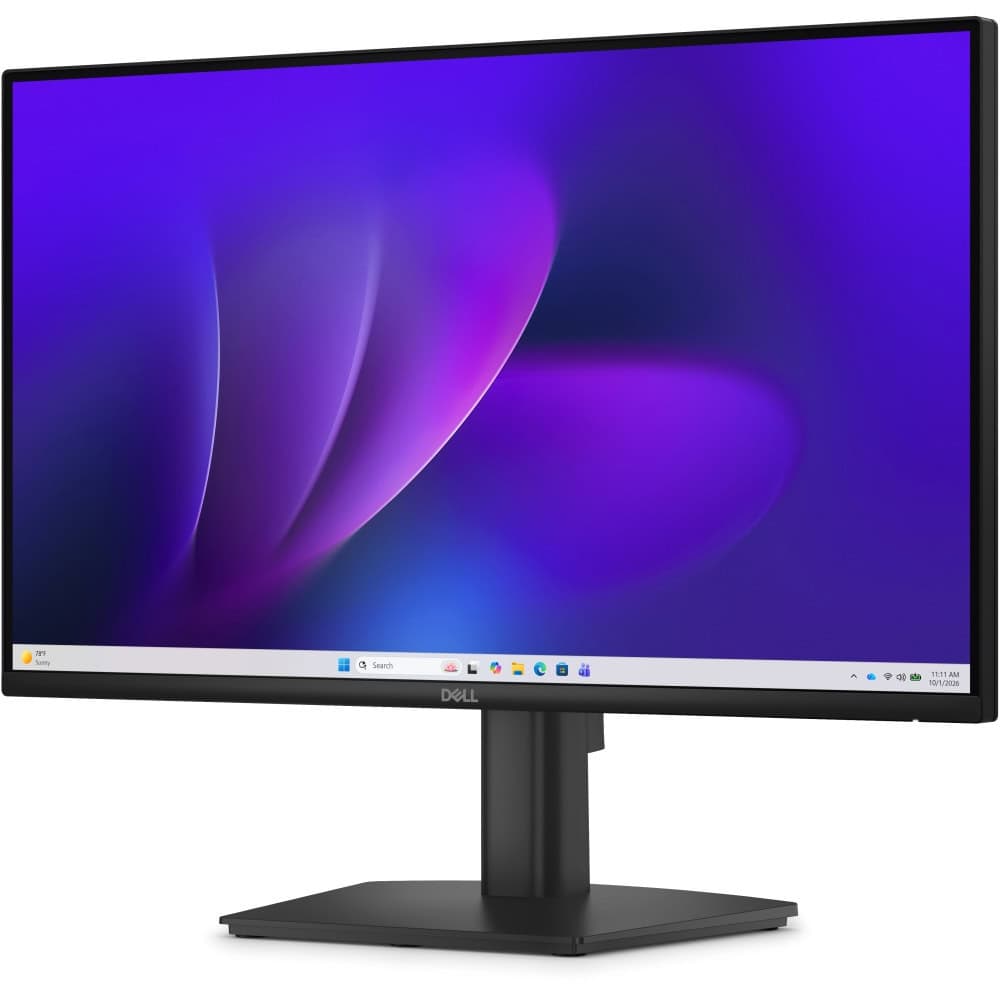

Dell E2226H

Functional, space-saving design

LCD Monitor

Technical Information

Number of Screens

1

Screen Size Class

22"

Viewable Screen Size

21.5"

Screen Mode

Full HD

Display Screen Type

Flat Panel

Panel Technology

In-plane Switching (IPS) Technology

Response Time Details

• 5 ms GTG (Fast)
• 8 ms GTG

Aspect Ratio

16:9

Pixel Pitch

0.24795 mm x 0.24795 mm

Horizontal Viewing Angle

178°

Vertical Viewing Angle

178°

Mount Type

Panel Mount

HDCP Supported

Yes

Tilt Angle

-5° to 21°

Features

• Anti-glare
• BFR Free
• Cable Lock Slot
• Eye Comfort Technology
• PVC Free
• Security Lock

Stand Adjustments

Tilt

Stand Included

Yes

Stand Type

Fixed

Pivot

No

Curved Screen

No

Glass Hardness

3H

Surface Treatment

Anti-glare

Flicker Free

Yes

Video

Maximum Resolution

1920 x 1080

Standard Refresh Rate

100 Hz

Color Supported

16.7 Million Colors

Color Depth

8-bit (6-bit + FRC)

Native Contrast Ratio

1,000:1

Brightness

300 Nit

Color Gamut

72% NTSC (CIE 1931)

Calibration Accuracy

No

Maximum Preset Resolution

1920 x 1080 at 100Hz

Pixel Per Inch (PPI)

102

Resolution Type

Standard

Interfaces/Ports

Network (RJ-45)

No

HDMI

Yes

HDMI Version

1.4

USB

No

VGA

Yes

DisplayPort

Yes

Thunderbolt

No

USB Type-C

No

Number of HDMI Inputs

1

Total Number of HDMI Ports

1

Number of DisplayPorts

1

Number of VGA Ports

1

Number of DisplayPort 1.4 (HDCP 1.4)

1

Audio Line In

No

DVI-D

No

Audio Line Out

No

DisplayPort Input

Yes

DisplayPort Output

No

Number of HDMI 1.4 (HDCP 1.4)

1

USB Type-B

No

DisplayPort HDCP Version

HDCP 1.4

HDMI HDCP Version

HDCP 1.4

RS-232 (Rear)

No

Thunderbolt Downstream (Rear)

No

USB Type-A (Front)

No

USB Type-A (Rear)

No

USB Type-C (Front)

No

USB Type-C (Power Delivery) Upstream Supported (Rear)

No

USB Type-C (Without Power Delivery) Upstream Supported (Rear)

No

Interface/Port Details

• 1 HDMI port (HDCP 1.4) (Supports up to 1920 x 1080, 100 Hz as specified in HDMI 1.4)
• 1 DisplayPort 1.4 (HDCP 1.4) port
• 1 VGA port

Built-in Devices

Webcam

No

Microphone

No

Environmental Conditions

Non-operating Temperature Range

-4°F (-20°C) to 140°F (60°C)

Non-operating Humidity Range

5% to 90% (Non-condensing)

Maximum Operating Altitude

16400 ft

Maximum Non-operating Altitude

40000 ft

Power Description

Input Voltage Range

100V AC to 240V AC

Operating Power Consumption

10.50 W

Standby Power Consumption

300 mW

Off-Mode Power Consumption

300 mW

Frequency

• 50 Hz
• 60 Hz

Maximum Power Consumption

25 W

Voltage Current

600 mA

Input Voltage Range/Current Details

100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/0.6 A

Physical Characteristics

VESA Mount Compatible

Yes

VESA Mount Standard

100 x 100

Color Family

Black

Product Color

Black

Height

11.3"

Width

19.2"

Depth

1.9"

Height with Stand

15.11"

Width with Stand

19.21"

Depth with Stand

6.73"

Bezel Width (Top)

0.24"

Bezel Width (Bottom)

0.48"

Bezel Width (Left)

0.24"

Bezel Width (Right)

0.24"

Weight (Approximate)

4.83 lb

Stand Height

6.85"

Stand Width

8.74"

Stand Depth

6.73"

Weight (with Packaging) with Stand

8.49 lb

Weight (with Packaging) without Stand

7.76 lb

Weight with Stand & Cables (Approximate)

6.08 lb

Certifications & Standards

• Product Safety, EMC, and Environmental Datasheets
• Dell Regulatory Compliance Homepage
• Dell and the Environment
• BFR/PVC reduce monitor (Circuit boards are made from BFR/PVC-free laminates)
• Meets NFPA 99 leakage curre

Platform Supported

• ThinOS
• Windows

Energy Star

Yes

TAA Compliant

No

TCO Certified

Yes

Eye Comfort Certification

Yes

Eye Comfort Rating

3 Star

Dell Display and Peripheral Manager Compatibility

Yes

Remote Asset Management

Dell Display and Peripheral Manager (DDPM)
