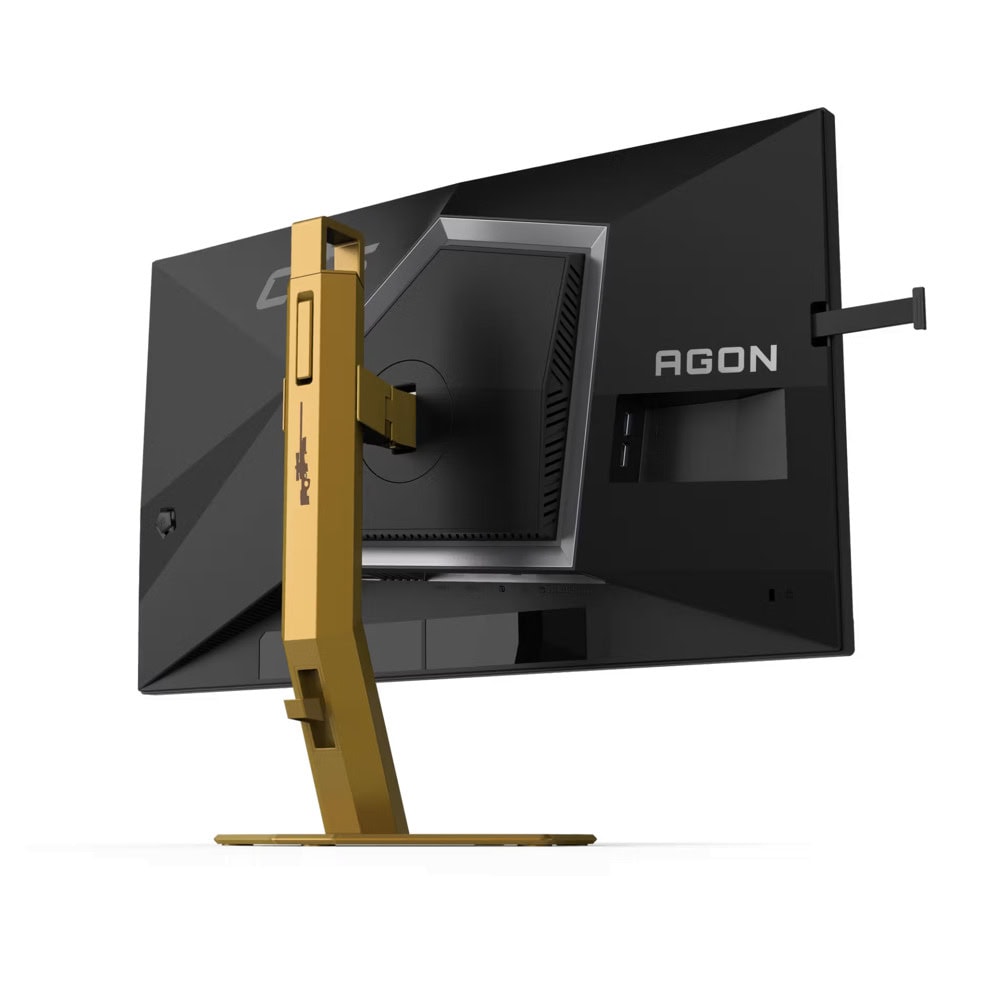

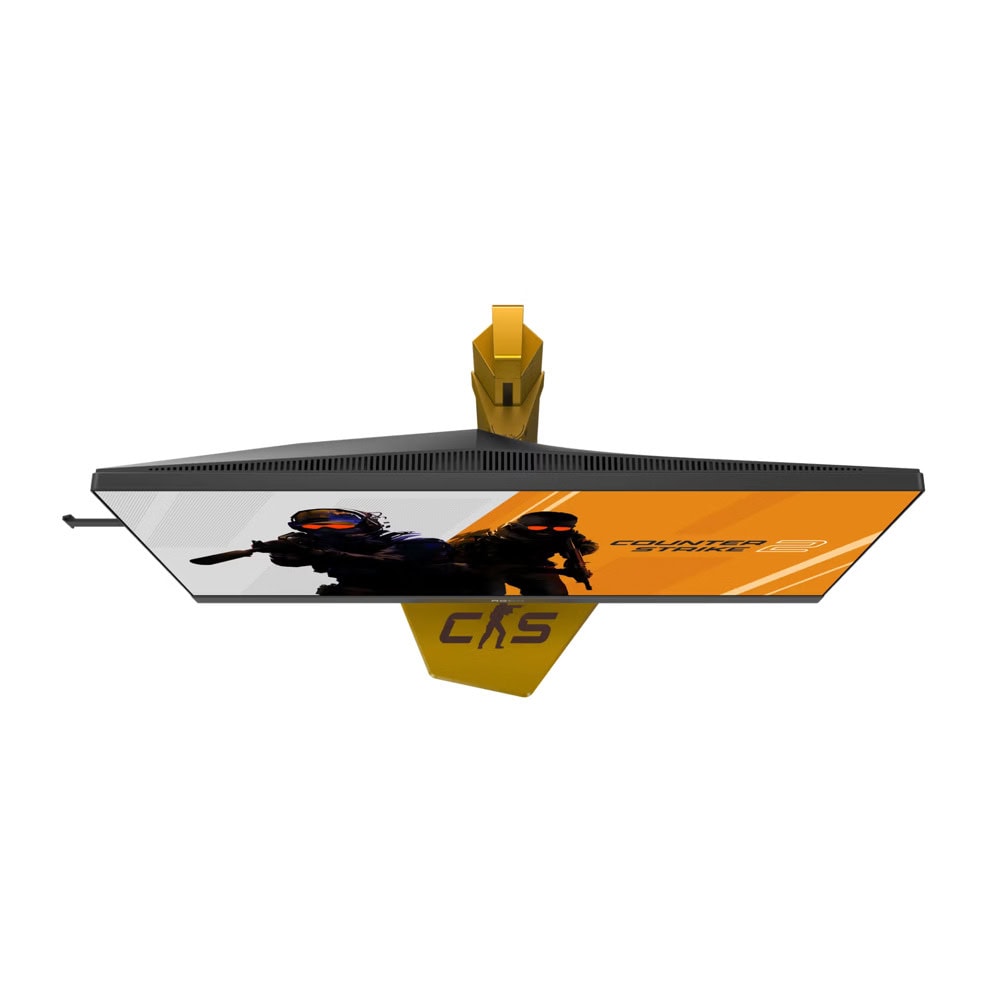

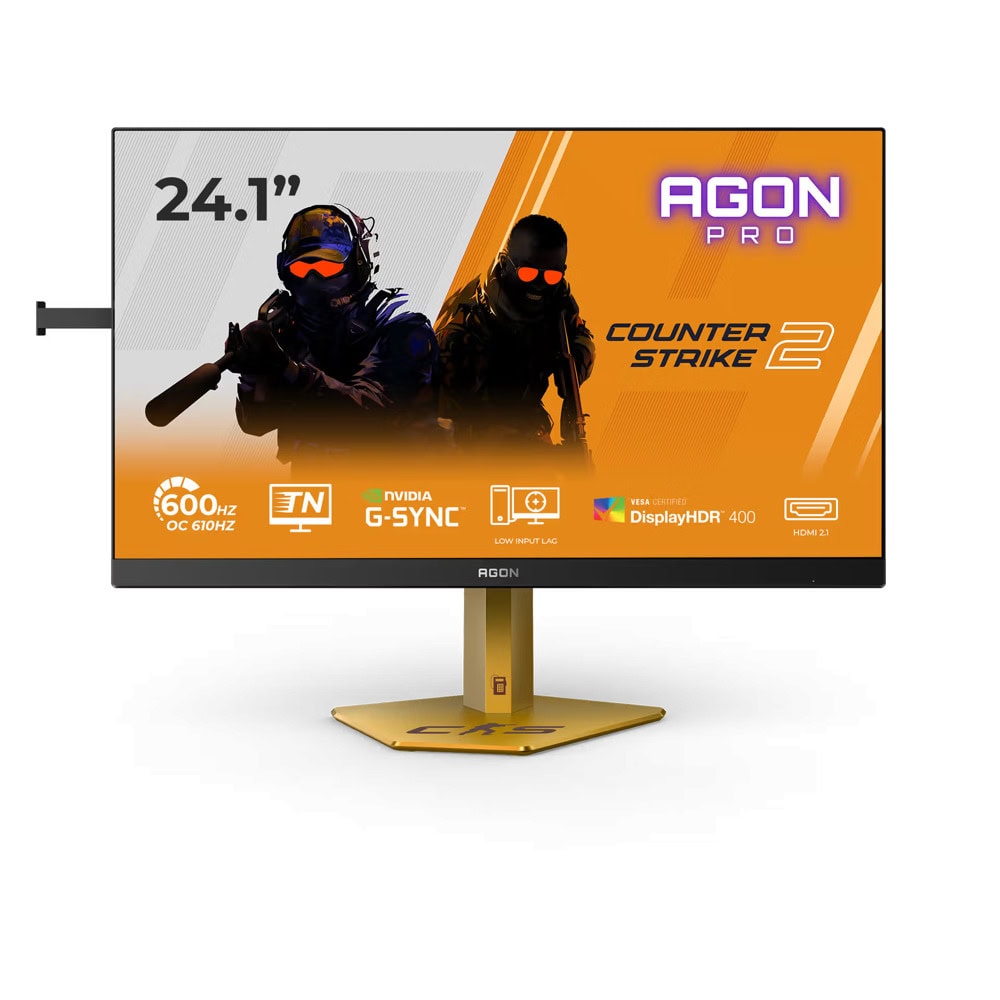

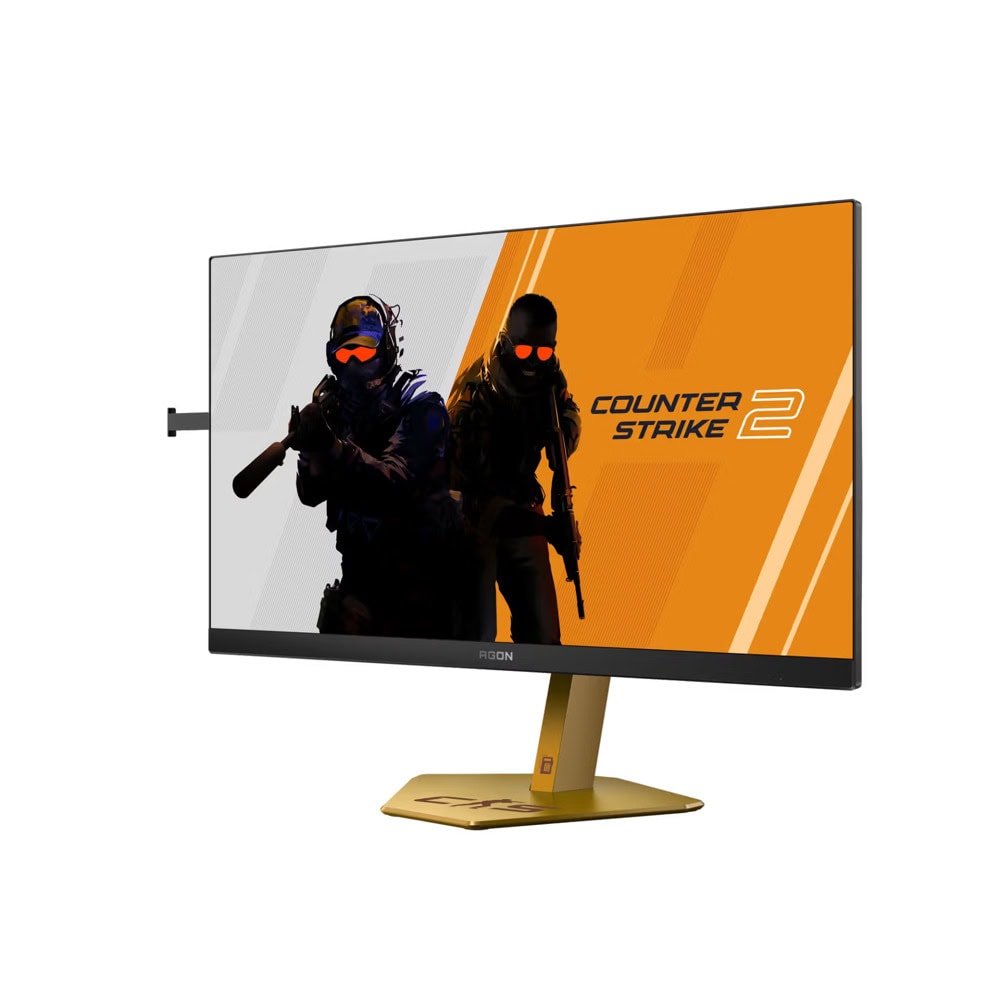

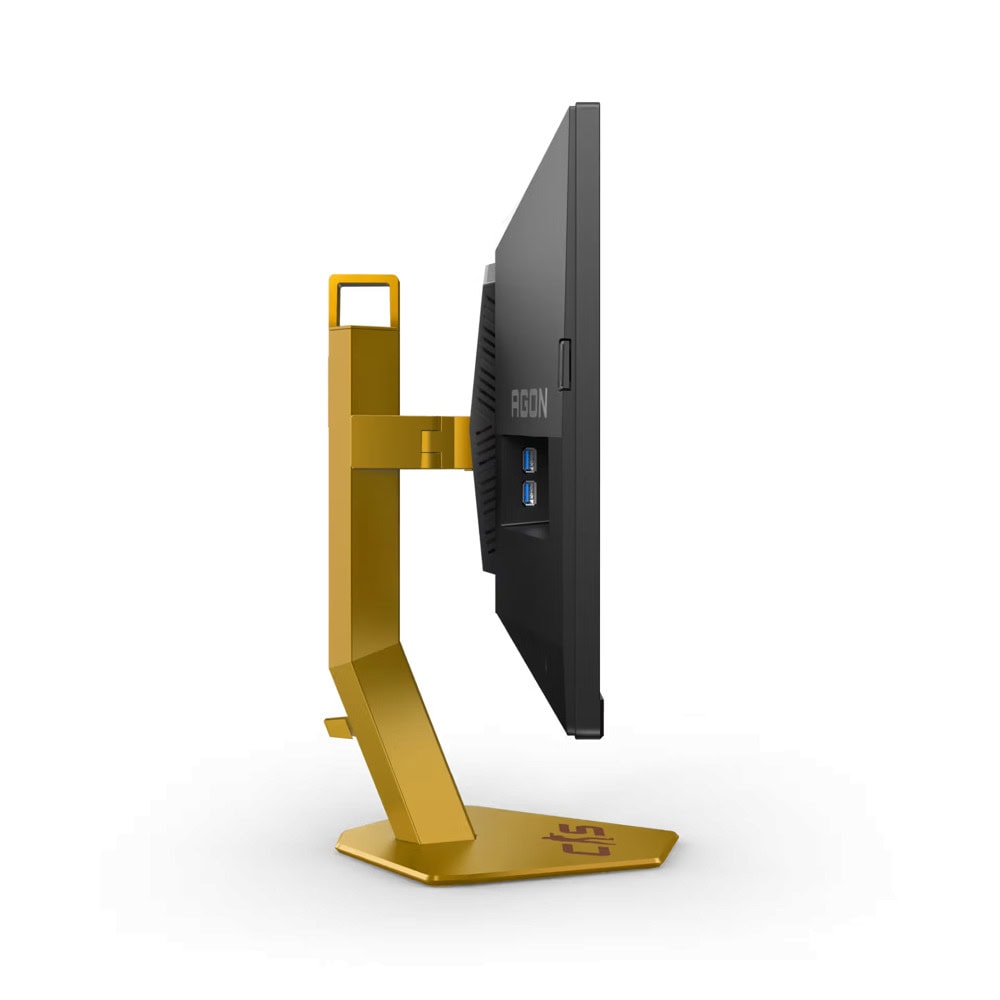

AOC CS24A

Specifications

Cabinet information

Bezel type (front)

3-sided frameless

Light FX (RGB)

Yes

Removable stand

Yes

Kensington Lock

Yes

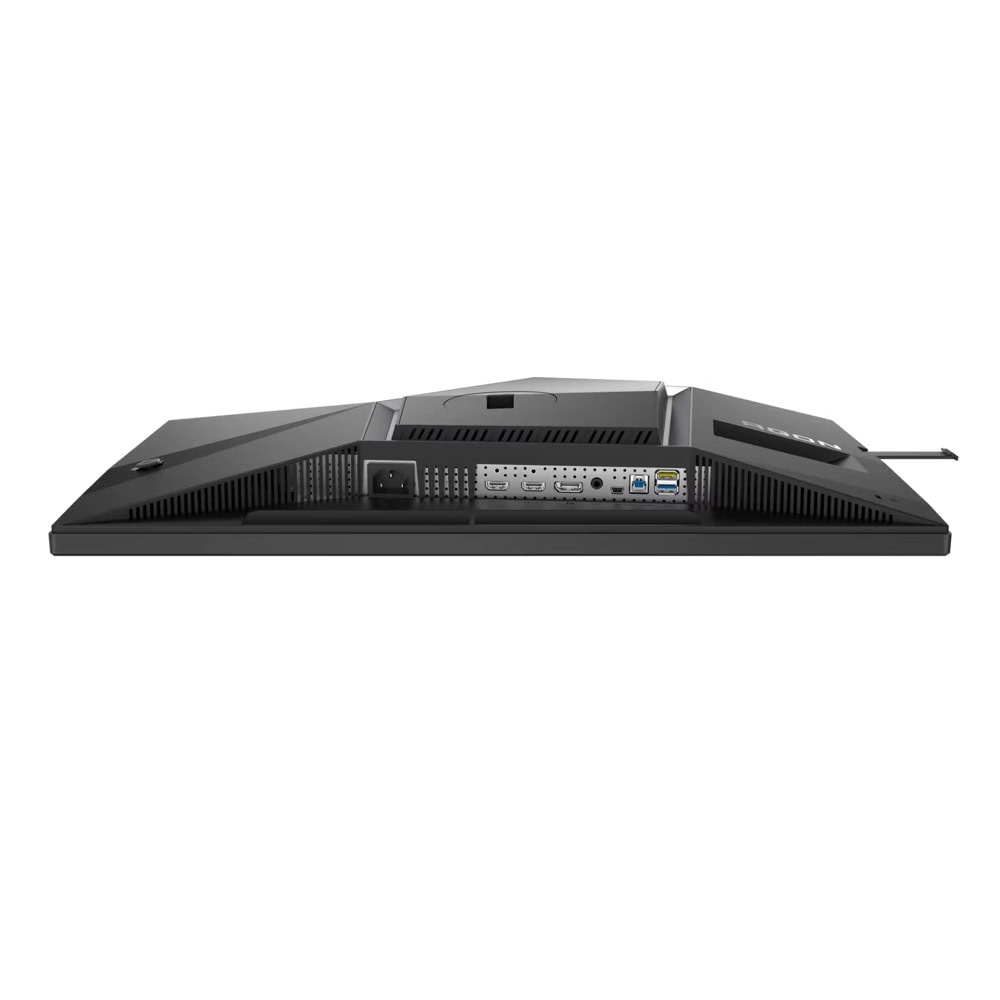

I/O define: Connectors on rear cabinet

Vertical insert

Quick release function

Yes

VESA Mount screw Spec

M4 x 10

VESA Mount Support

With VESA bracket accessory

Bezel Colour (front)

Orange

Bezel finishing (front)

Texture

Cabinet colour (backside)

Black

Cabinet finishing (backside)

Texture

Vesa wallmount

100x100

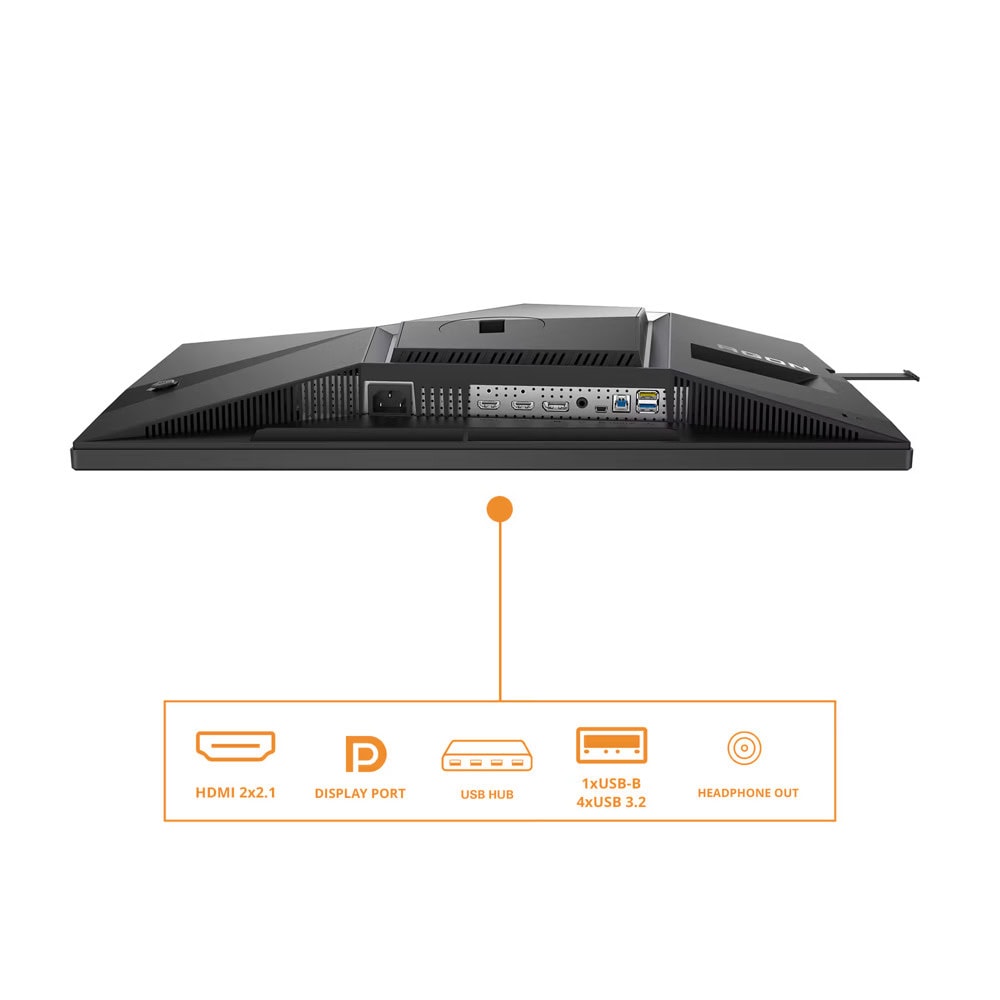

Connectivity information

Digital HDCP (HDMI version)

HDCP 2.3

USB Hub

Yes

USB fast charge port

Yes

DP HDCP version

HDCP 2.3

HDMI

HDMI 2.1 x 2

DisplayPort

DisplayPort 1.4 x 1

USB generation

USB 3.2 (Gen 1), 5 Gbit/s

USB type downstream

4 x USB-A

Audio Output

1x Audio out

USB Type upstream

1 x USB-B

Display information

Screen size (inch)

24.1

Screen size (cm)

61.21

Flat / Curved

Flat

Panel treatment

Antiglare (AG)

Pixels per Inch

91.41

Panel resolution

1920x1080

Aspect ratio

16:9

Panel type

Ultra-Fast TN eSports

Backlight type

WLED

Max Refresh rate

610Hz (OC, 600Hz native)

Response time GtG

0.5 ms

Response time MPRT

0.3 ms

Static contrast ratio

1000:1

Dynamic contrast ratio

80M:1

Viewing angle (CR10)

176/170

Display colours

16.7 Million

Brightness in nits

500 cd/m²

Panel Haze Value

25%

Resolution name

FHD

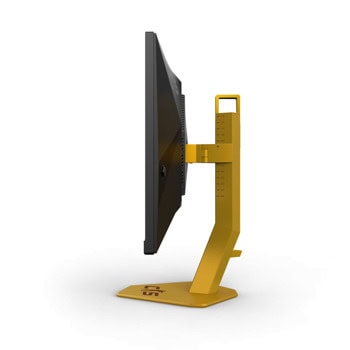

Ergonomic information

Tilt

-5°~23°

Height adjust (mm)

150mm

Swivel

28° ±2° ~28° ±2°

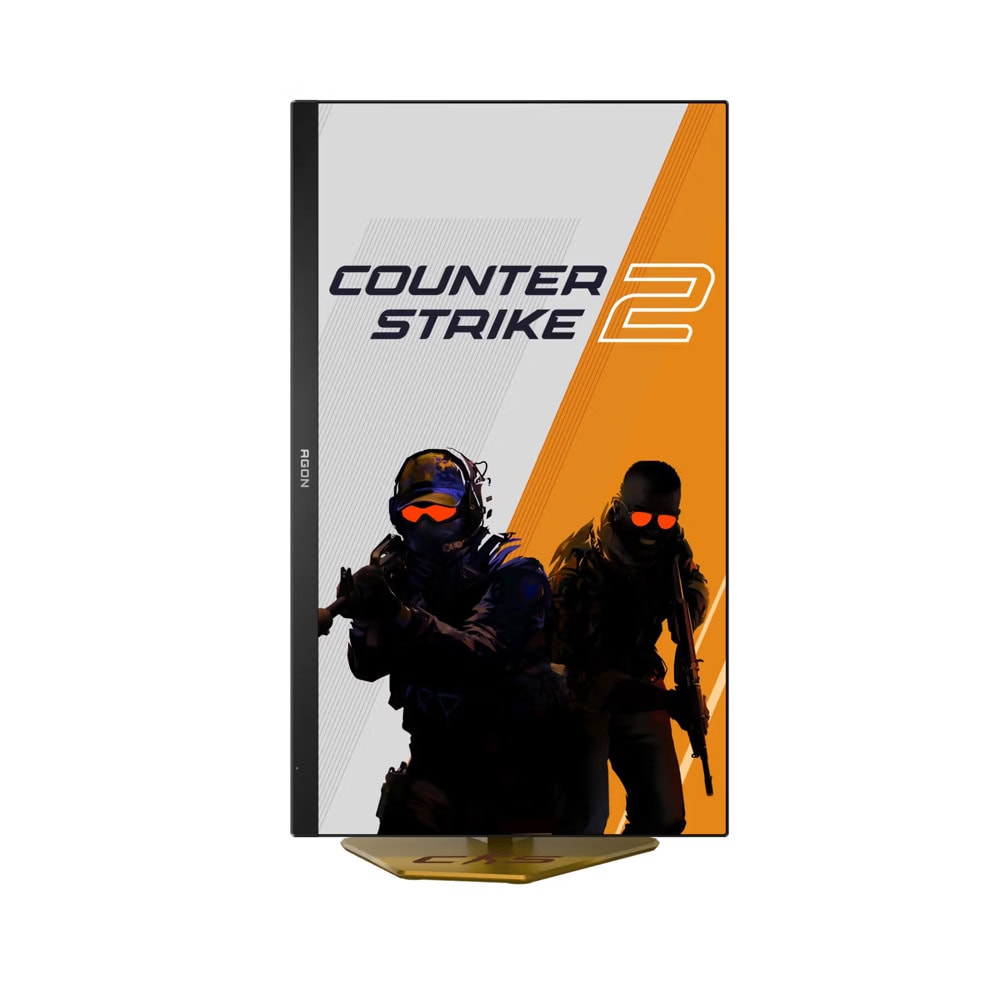

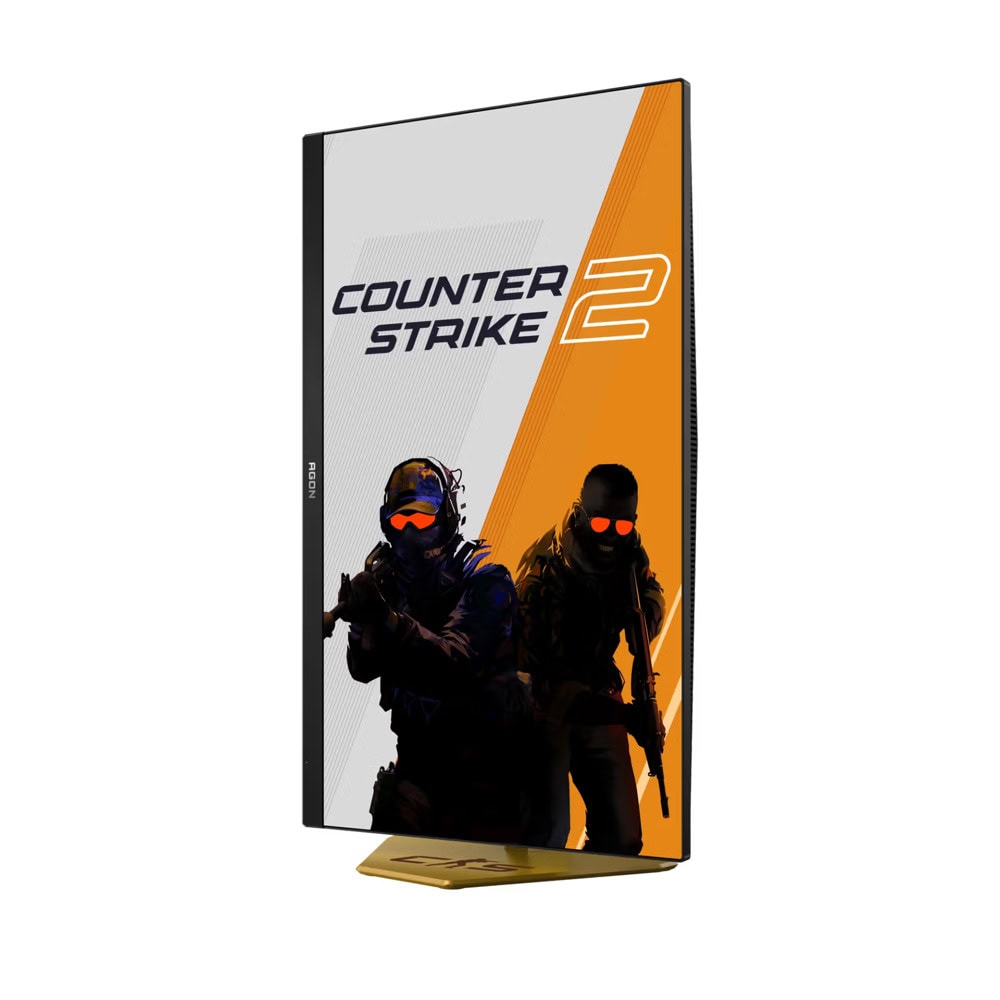

Pivot

90° ±2° ~ 90° ±2°

Firmware Update (OTA) Support

Yes

Power consumption

Power supply

Internal

Power consumption on (typical) in watts

30.0

Power consumption standby in watts

0.5

Power consumption off in watts

0.3

Energy class

Product dimensions

Product dimensions incl. base (WxHxD) mm

557 x (380.8~489.8) x 240

Product dimensions excl. base (WxHxD) mm

557 × 331.4× 73

Net weight excl. package (in kg)

5.03

Product without stand (kg)

3.75

Regulatory compliance

Yes

TUV-Bauart-Mark

Yes

ISO 9241-307

Yes

EAC

Yes

FCC

Yes

Sustainability

WEEE

Yes

REACH compliant

Yes

RoHs compliant

Yes

Video features

Sync technology (VRR)

Adaptive Sync

NVIDIA G-SYNC

NVIDIA G-SYNC Compatible

Sync range

60-610

Digital Signal Frequency Vertical

60-610Hz

Digital Signal Frequency Horizontal

30k-510kHz

HDR (High Dynamic Range)

VESA Certified DisplayHDR™ 400

Colour space (sRGB) CIE 1931 %

125.1

Colour space (DCI-P3) CIE 1976 %

93.6

Colour space (Adobe RGB) CIE 1976 %

89.4

Flicker-Free

Yes

Blue Light Technology

Low Blue Light

Multiview (PbP, PiP)

PbP, PiP

Виж още Монитори AOC
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Не
USB Type-А:	Да
VGA (D-Sub):	Не

Гама:	Gaming
Екран размер:	24.1" (61.21 cm)
Разделителна способност (max):	1920 x 1080
Аспект изображение:	16:9
Тип матрица:	TN
Честота на опресняване:	610 Hz
Време за реакция:	0.3 ms
Яркост:	500 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Извит:	Не
Преносим:	Не

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Вземи на изплащане

Какво пазаруват другите
Най-продавани продукти
Промоционални продукти

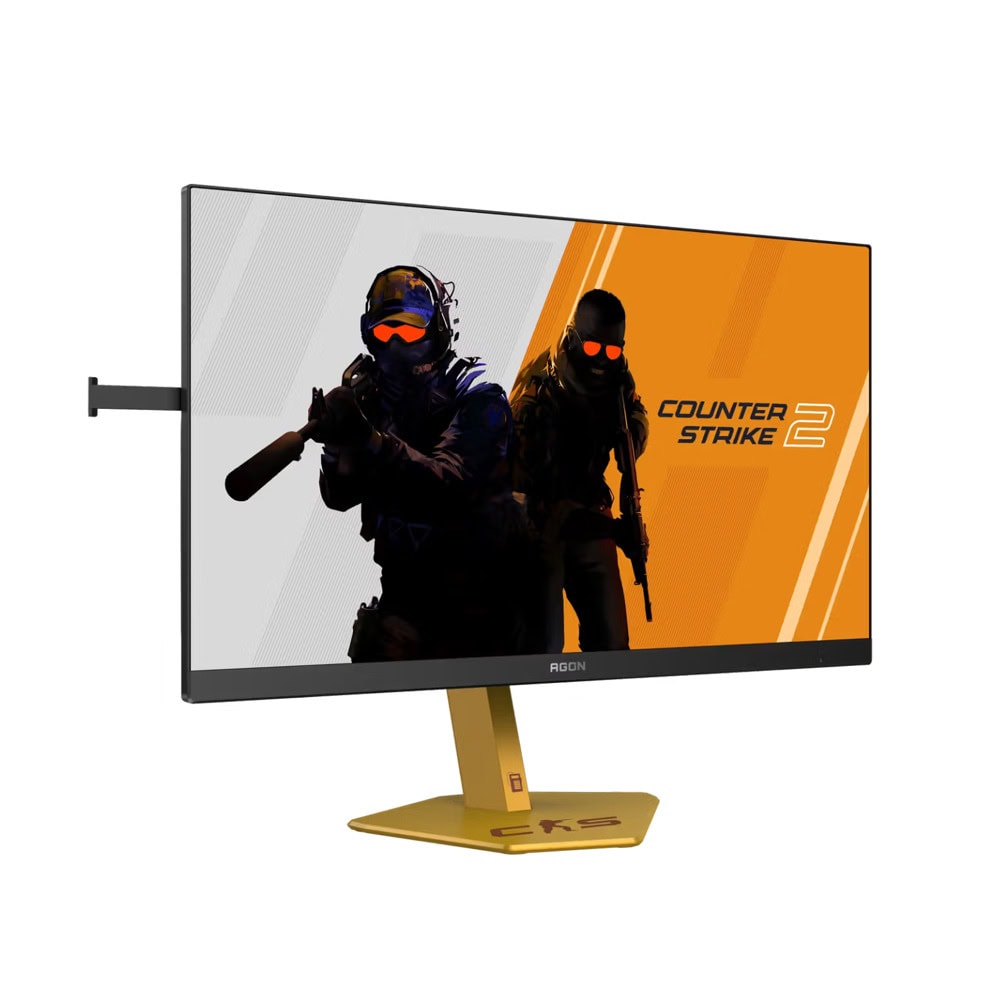

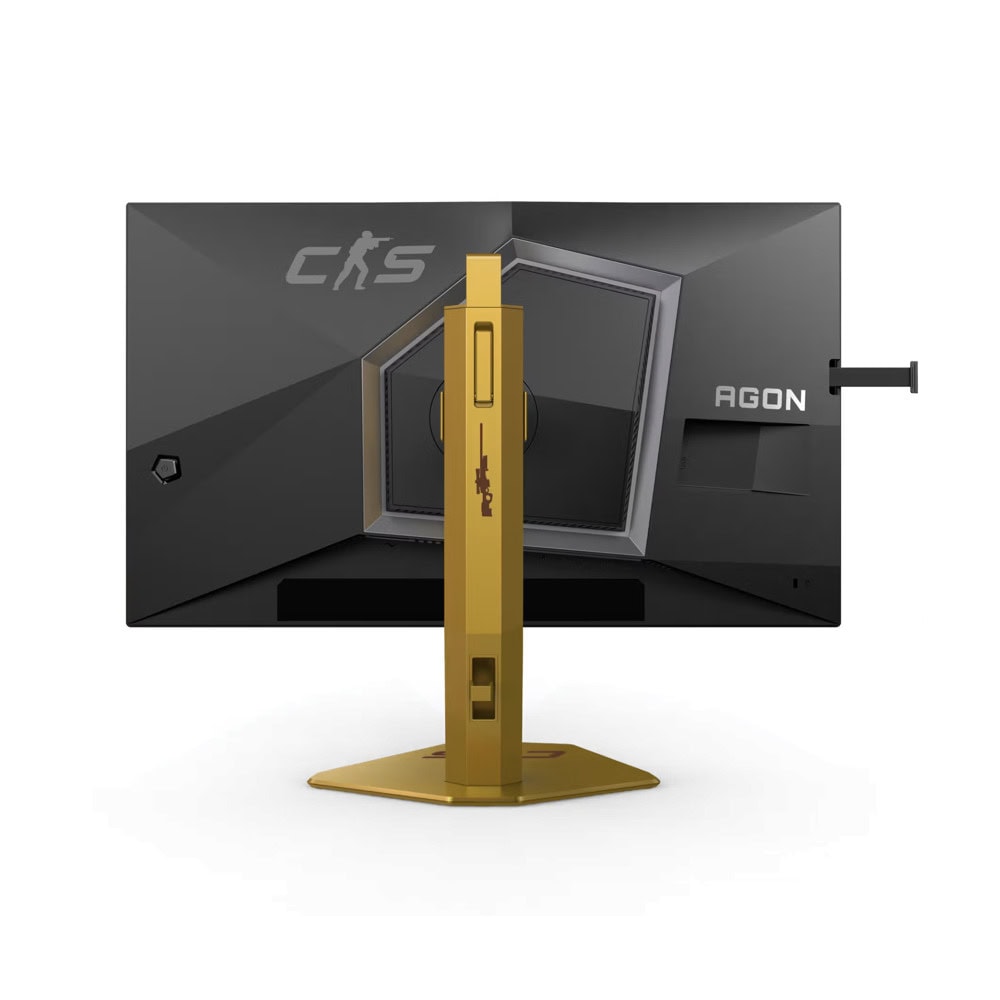

Sleek CS2-inspired black and gold design with a 24.1" Fast TN panel, 610Hz refresh rate, and 0.5ms GTG response for ultra-smooth gameplay. Features VESA DisplayHDR 400, 99% sRGB, AOC G-Menu, Dynamic Crosshair, and Motion Blur Reduction. Ergonomic stand and versatile connectivity (DisplayPort, HDMI, USB) ensure pro-level performance.

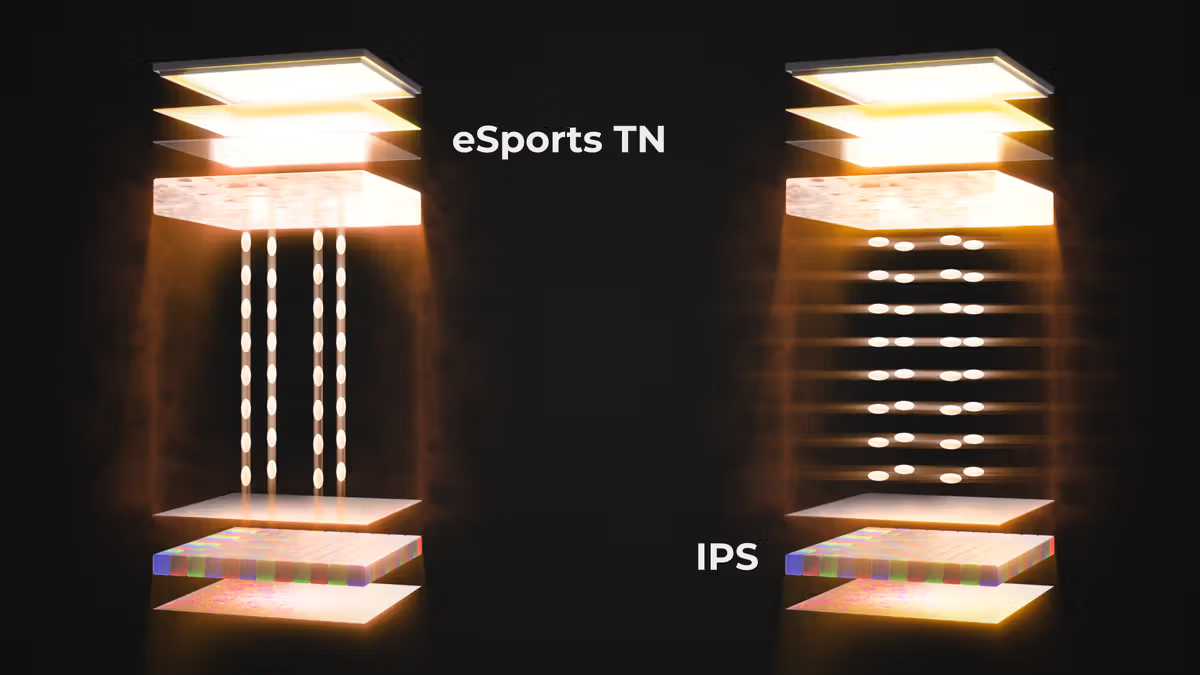

	Dominate with AOC’s Fast TN eSports panel, delivering blazing-fast 0.5 ms GTG response times and high refresh rates up to 610 Hz. Enjoy crisp, tear-free visuals and ultra-low input lag for unrivaled competitive precision.
Enable flawless picture quality by synchronising new generations of NVIDIA graphics cards* with this G-SYNC Compatible monitor. *Please refer to NVIDIA website for the complete list of GPUs working with G-SYNC Compatible monitors

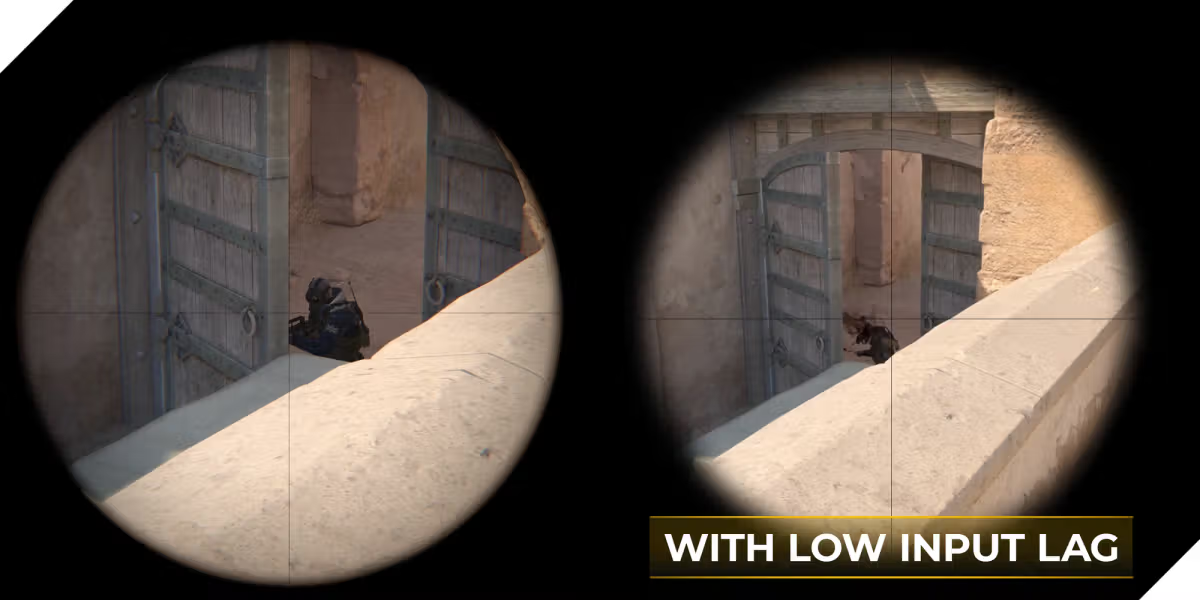

	Unleash your reflexes by switching to the AOC Low Input Lag mode. Forget graphical frills: this mode rewires the monitor in favour of raw response time, giving the ultimate edge in hair trigger stand offs.
Even the lowest level of High Dynamic Range (HDR) feature poses a significant upgrade to common monitors. The peak luminance of 400 cd/m² enables your display to hone the picture quality with a manifold colour spectrum and more diverse contrast. The VESA-certificate ensures richness of detail and realistic portrayals of game and film worlds.

Монитор AOC CS24A, 24.1" (61.21 cm) TN панел, 610Hz, Full HD, 0.3ms, 80 000 000:1, 300 cd/m2, DisplayPort, HDMI, USB
