IIYAMA TF2234MC-B7X
| Design | Open Frame |
| Diagonal | 21.5", 54.6cm |

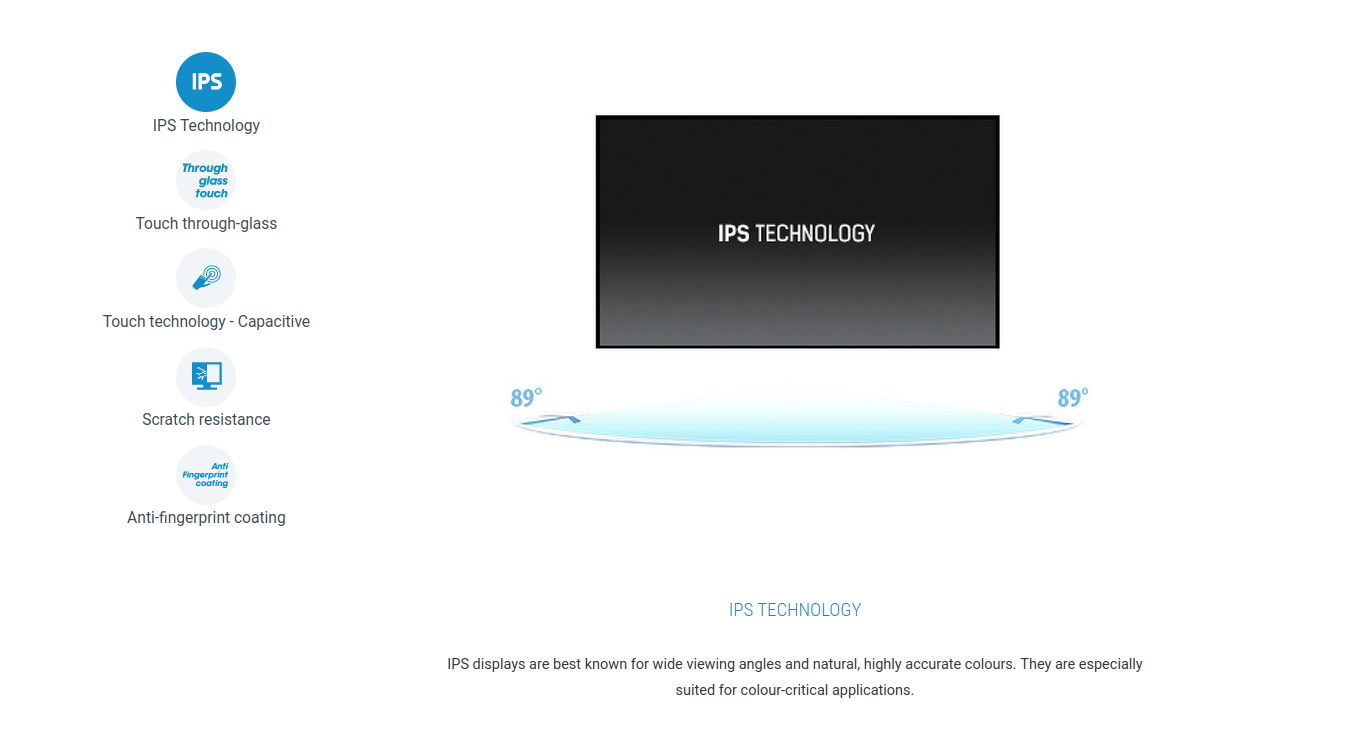

| Panel | IPS LED |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 350 cd/m² typical |
| Brightness | 305 cd/m² with touch |
| Static contrast | 1 000:1 with touch |
| Light transmittance | 87% |
| Response time (GTG) | 8ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln |
| Horizontal Sync | 30 - 84kHz |
| Viewable area W x H | 476.0 x 267.7mm, 18.7 x 10.5" |
| Pixel pitch | 0.247mm |
| Bezel colour and finish | black, matte |
| Touch technology | projective capacitive |
| Touch points | 10 (HID, only with supported OS) |
| Touch method | stylus, finger, glove (latex) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through-Glass | 6mm |
| Palm rejection | yes |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| HDCP | yes |
| Extra | anti-fingerprint coating, touch through-glass |
| Glass thickness | 1.5mm |
| Glass hardness | 7H |
| Water and dust protection | IP65 (front) |
GENERAL
| OSD languages | EN, DE, FR, ES, IT, RU, JP, CZ, PL |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Plug&Play | DDC2B |
MECHANICAL
| Orientation | landscape, portrait, face-up |
| VESA mounting | 100 x 100mm |
