OVERVIEW
This popular PSU series is now extended by new models featuring cable management. With many awards granted, these PSUs are perfectly suited for cost aware users, who pay attention to both good price and high efficiency.
TECHNICAL DATA

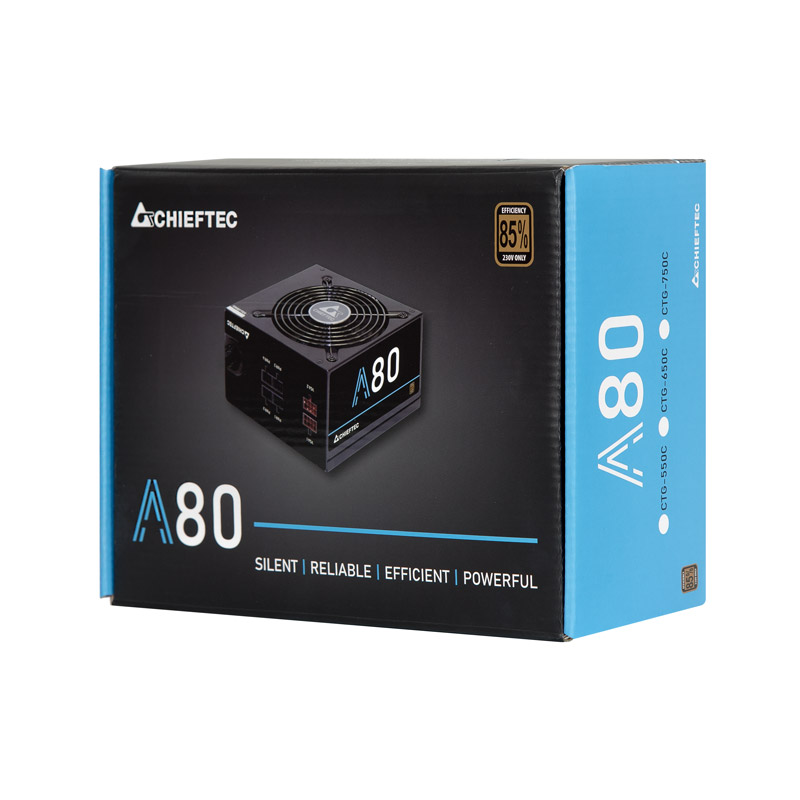

Model: A80 650W
Weight (Net/Gross): 2.15kg / 2.53kg
AC Input : 230V / 6A
Frequency: 50 Hz
+5V: 22A
+3,3V: 22A
+5V & +3,3V combined: 120W
+12V1: 26A
+12V2: 26A
+12V1, +12V2 combined: 585W
P.F.: >0,9
-12V: 0,3A / 3,6W
+5VSB: 2,5A / 12,5W
Maximum Power: 650W
Connectors
20+4 PIN ATX: 1
8 PIN EPS(4+4): 1
8 PIN PCIe (6+2): -
Cable length (mm)
20+4 PIN ATX: 450
8 PIN EPS(4+4): 550
8 PIN PCIe (6+2): 2x550
SATA: 2x 450/150/150
MOLEX/FLOPPY: 2x 450/150/150
Features
ATX12V Version: ATX 12V 2.3
Efficiency: >85%
Dimension (DxWxH): 140 mm x 150 mm x 86 mm
PFC Active: PFC (0,9)
Fan: 120mm silent fan
Security
AFC (Automatic Fan speed Control)
OPP (Over Power Protection)
OVP (Over Voltage Protection)
SCP (Short Circuit Protection)
SIP (Surge & Inrush Protection)
UVP (Under Voltage Protection)
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри Chieftec
Виж всички Захранвания Настолни компютри в категорията
Документация
ctg-650c_psu-datasheet-en.pdfТехнически характеристики
| Изходна мощност: | 650 W |
|---|---|
| Модулен блок: | Полу-модулно |
| Форм фактор: | ATX |
