Name: Суич TP-Link Omada SX3832MPP, 10000 Mbps, 32 порта, 24x 10/100/1000/10000Mbps RJ-45 PoE++, 8x 100/1000/10000 SFP+
Brand: TP-Link
SKU: NTLHTPLINKSX3832MPP
Price: 2504.30 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

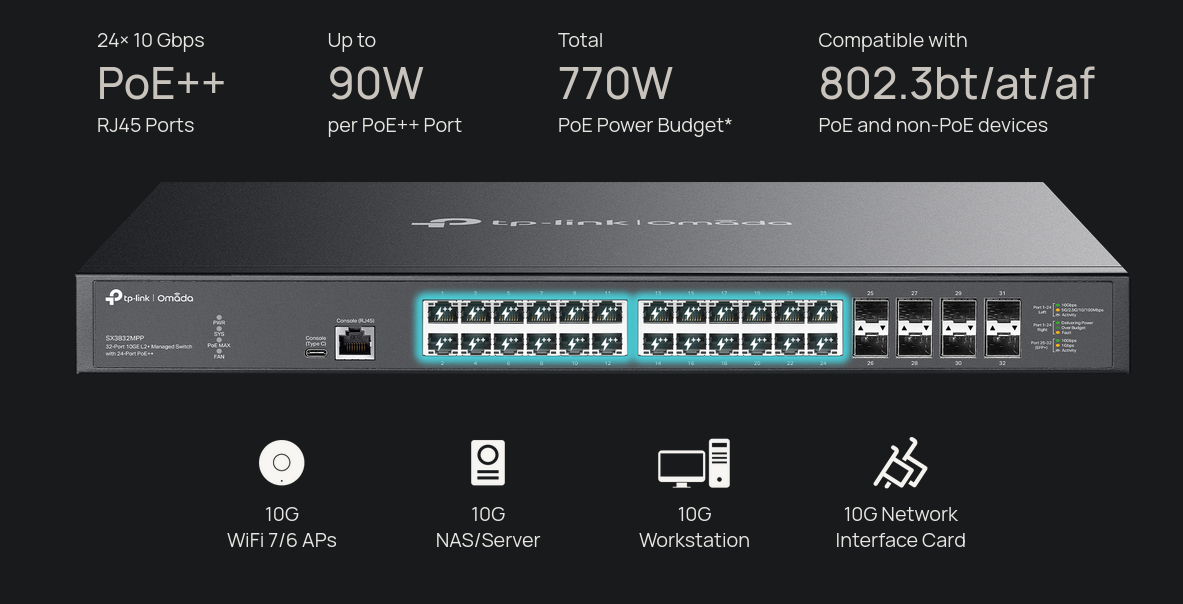

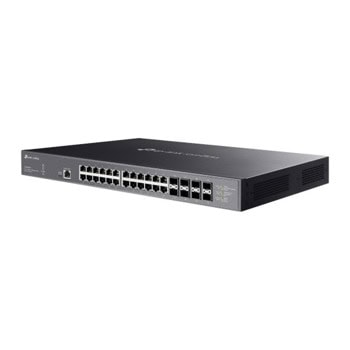

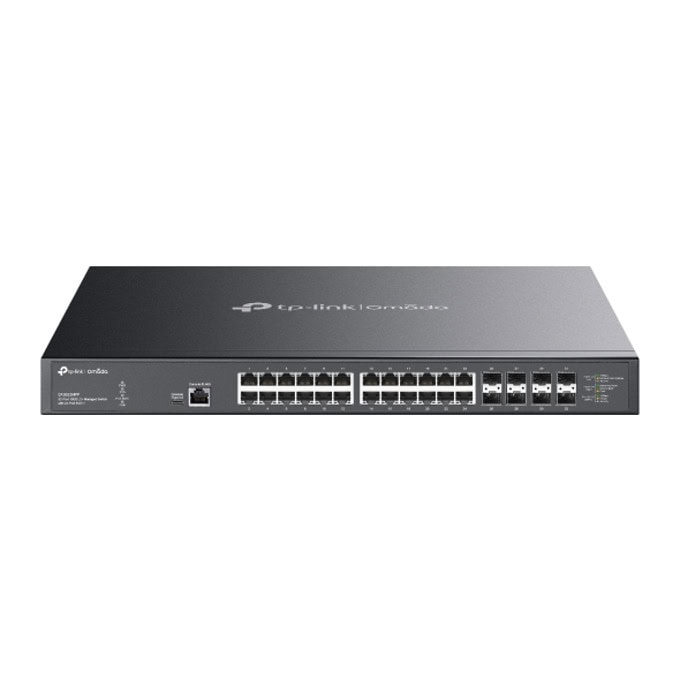

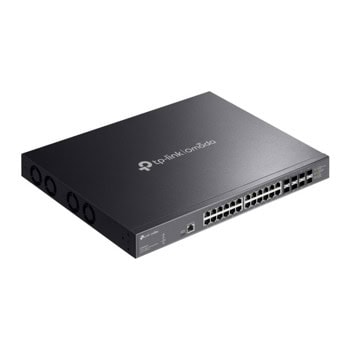

TP-Link SX3832MPP

Omada 32-Port 10GE L2+ Managed Switch with 24-Port PoE++

24× 1/2.5/5/10 Gbps RJ45 PoE++ ports
8× 1/10 Gbps SFP+ slots
770 W total PoE budget*, up to 90 W PoE out per port**
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal casing and rack-mountable design

Feature	Specification
Interface	24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX), 8× 1/10G SFP+ Slots, 1× RJ45 Console Port, 1× USB Type C Console Port
Fan Quantity	4
Physical Security Lock	√
Power Supply	100-240 V AC~50/60 Hz
PoE Ports (RJ45)	Standard: 802.3bt/at/af compliant; PoE++ Ports (802.3bt/at/af PoE): 24 Ports, up to 90 W per port; Power Budget: 770 W
Dimensions (W × D × H)	17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting	Rack Mountable
Max. Power Consumption	1,010.2 W (110V/60Hz with 770 W PD connected); 953.7 W (220V/50Hz with 770 W PD connected)
Max. Heat Dissipation	3,444.7 BTU/hr (110V/60Hz with 770 W PD connected); 3,252.2 BTU/hr (220V/50Hz with 770 W PD connected)
Switching Capacity	640 Gbps
Packet Forwarding Rate	240 Mpps
MAC Address Table	32 K
Packet Buffer Memory	24 Mbit
Jumbo Frame	9 KB
Quality of Service	8 priority queues; 802.1p CoS/DSCP priority; Queue scheduling: SP, WRR, SP+WRR; Bandwidth Control: Port/Flow-based Rating Limiting; Smoother Performance; QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	128 IP Interfaces (IPv4/IPv6); Static Routing: 48 IPv4/IPv6 Static Routes; Static ARP: 128 static entries; 510 ARP Entries; Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay (Interface & VLAN); DHCP L2 Relay; Link Aggregation; Spanning Tree Protocol; Loopback Detection; 802.3x Flow Control; Mirroring
L2 Multicast	Supports 4,000 IGMP groups; IGMP Snooping; IGMP Authentication; Multicast VLAN Registration (MVR); MLD Snooping; Multicast Filtering: 256 profiles, 16 entries per profile
Advanced Features	Automatic Device Discovery; Batch Configuration; Batch Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule
ISP Features	L2PT (Layer 2 Protocol Tunneling); Device Link Detect Protocol (DLDP); PPPoE ID Insertion; ERPS; 802.3ah Ethernet Link OAM; DDM
VLAN	VLAN Group: Max 4K VLAN Groups; 802.1q Tagged VLAN; MAC VLAN: 256 Entries; Protocol VLAN: Template 16, Protocol VLAN 12; Private VLAN; GVRP; VLAN VPN: VLAN Mapping, VLAN Replace; Voice VLAN
Access Control List	Time-based ACL; MAC ACL: Source/Destination MAC, VLAN ID, User Priority, Ether Type; IP ACL: Source/Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS; Combined ACL; Packet Content ACL; IPv6 ACL; Policies: Mirroring, Redirect, Rate Limit, QoS Remark; ACL applies to Port/VLAN
Security	IP-MAC-Port Binding (512 Entries); DHCP Snooping; ARP Inspection; IPv4 Source Guard: 96 Entries; IPv6-MAC-Port Binding (512 Entries); DHCPv6 Snooping; ND Detection & Snooping; IPv6 Source Guard: 95 Entries; DoS Defend; DHCP Filter; Static/Dynamic Port Security: Up to 64 MAC per port; Broadcast/Multicast/Unicast Storm Control; 802.1X (Port/MAC Authentication, VLAN Assignment, MAB, Guest VLAN, Radius); AAA (TACACS+); Port Isolation; Secure web/CLI management (HTTPS/SSH)
IPv6	Dual IPv4/IPv6; MLD Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 Neighbor Discovery; MTU discovery; ICMPv6; TCPv6/UDPv6; DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP
MIBs	MIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting & Authentication Client MIB (RFC2620/2618); Remote Ping/Traceroute MIB (RFC2925); TP-Link Private MIB
Omada App	Yes (requires Omada Hardware/Cloud/Software Controller)
Centralized Management	Omada Cloud-Based Controller; Omada Hardware Controller; Omada Software Controller
Cloud Access	Yes (requires Omada Hardware/Cloud/Software Controller)
Zero-Touch Provisioning	Yes (requires Omada Cloud-Based Controller)
Management Features	Web-based GUI; CLI via console/telnet; SNMP v1/v2c/v3 (Trap/Inform, RMON 1/2/3/9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image, Dual Configuration; CPU Monitoring; Cable Diagnostics; IEEE 802.3az EEE; Password Recovery; SNTP; System Log
