Name: PoE инжектор Cudy POE200, 1000 Mbps, 1x LAN (RJ-45), 1x LAN PoE, 54VDC, 30W
Brand: Cudy
SKU: NTLACUDYPOE200
Price: 13.21 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

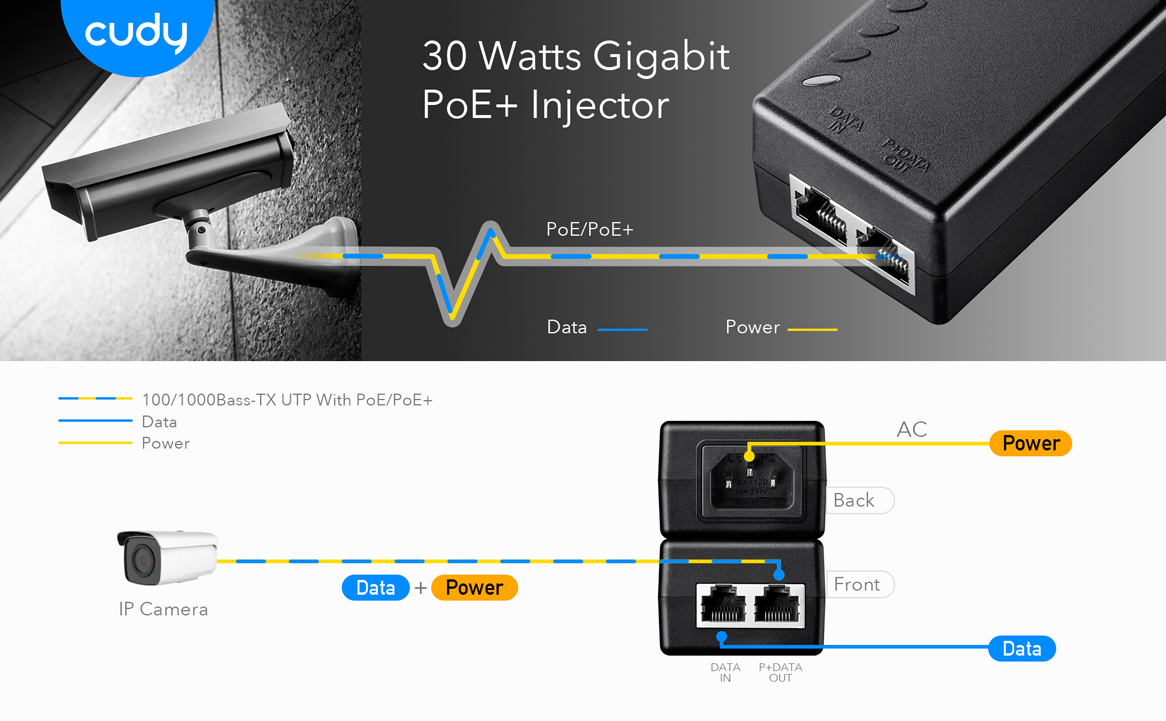

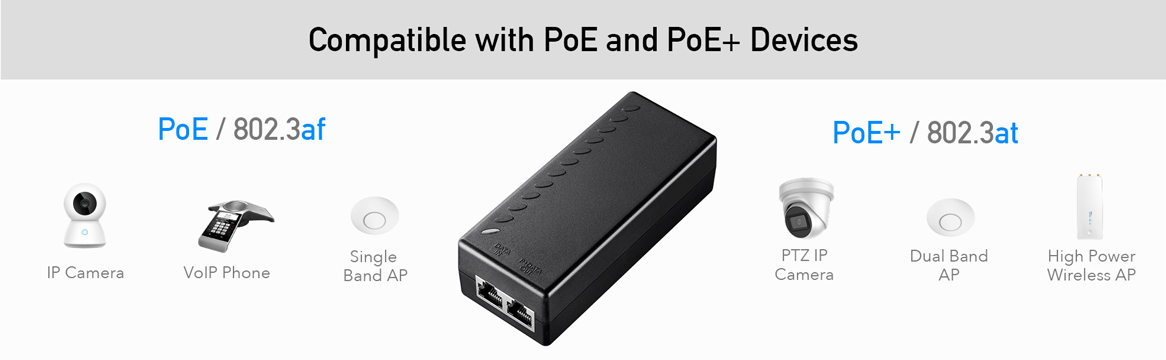

Cudy POE200

Speciﬁcation:

Model	POE200
No. of channels	1
Pass Through Data Ratesi	10/100/1000Mbps
Power over Ethernet Output	Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
	Output Power Voltage: 54VDC
	User Port Power: 30W max
Input Power Requirements	AC Input Voltage: 100 to 240 VAC
	AC Input Current: 0.5A 100-240 VAC
	AC Frequency: 50 to 60 Hz
Dimensions	121mm x 50mm x 36mm
Indicators	System Indicator: AC Power
Indicators	User Indicator: Channel Power
Connectors	Shielded RJ-45, EIA 568A and 568B
Protection	Over current protection
	Over load protection
	Over voltage protection
	Anti-interference protection
Environmental Conditions	Operating Ambient Temperature:-40 to 40℃
	Operating Humidity: Maximum 85%, Non-condensing
	Storage Temperature:-40 to 50℃
	Storage Humidity: Maximum 90%, Non-condensing
