Суич Ubiquiti UniFi Switch Pro Max 48 PoE, 52 порта, 24x 10/100/1000Mbps RJ45 PoE+, 8x 10/100/1000Mbps RJ45 PoE++, 8x 100/1000/2500Mbps RJ45 PoE+, 8x 100/1000/2500Mbps RJ45 PoE++, 4x 10G SFP+

Комутатор Ubiquiti UniFi Switch Pro Max 48 PoE

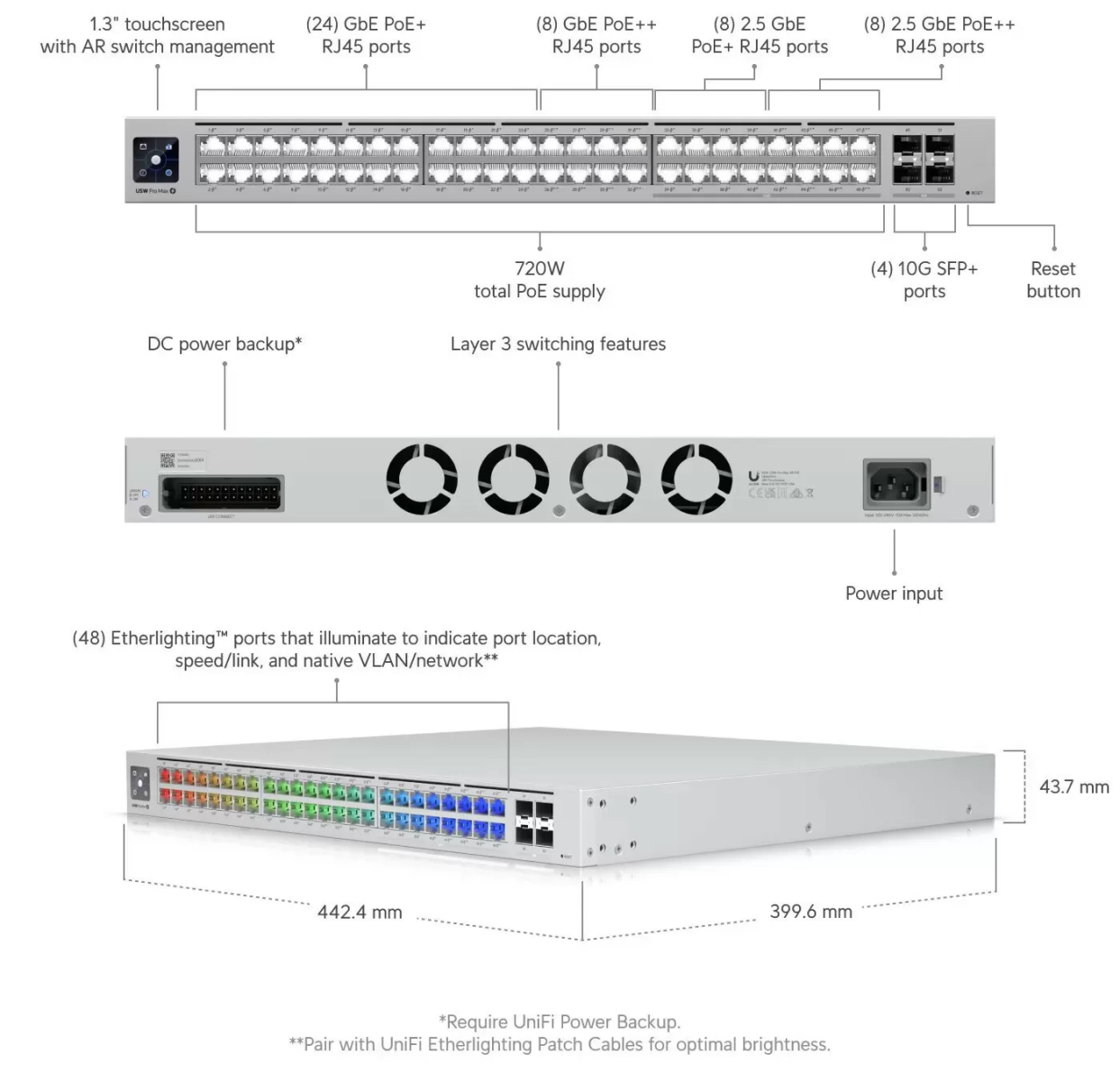

The Ubiquiti USW-Pro-Max-48-POE is a high-capacity, Layer 3 managed switch designed for advanced networking setups requiring robust power delivery and high-speed data transfer capabilities. The switch is equipped with 48 ports, including sixteen 2.5 GbE PoE++ ports (8 PoE+ and 8 PoE++), 32 GbE ports (24 PoE+ and 8 PoE++), and four 10G SFP+ ports for high-speed uplink connections and featuring the exceptional bandwidth and versatility.

A standout feature of the USW-Pro-Max-48-POE is its Etherlighting™ ports, which illuminate to facilitate easy identification of port locations, speeds/links, and native VLAN/network settings, especially when paired with UniFi Etherlighting Patch Cables. This visual aid is designed to simplify network management and troubleshooting.

The switch is equipped with an internal 820W AC/DC power supply, supporting a wide voltage range (100—240V AC) and providing a total PoE budget of 720W. The maximum power consumption of the switch itself is 100W, excluding PoE output. PoE standards supported include 15.4W for PoE, 30W for PoE+, and 60W for PoE++, allowing for flexible power options for connected devices.

The physical build includes an SGCC steel enclosure, with dimensions of 442.4 x 400 x 44 mm and a weight of approximately 6.2 kg without mounting brackets. The device also includes a 1.3" touchscreen LCM display for on-device management and status checks, and supports operating temperatures from -5 to 40°C.

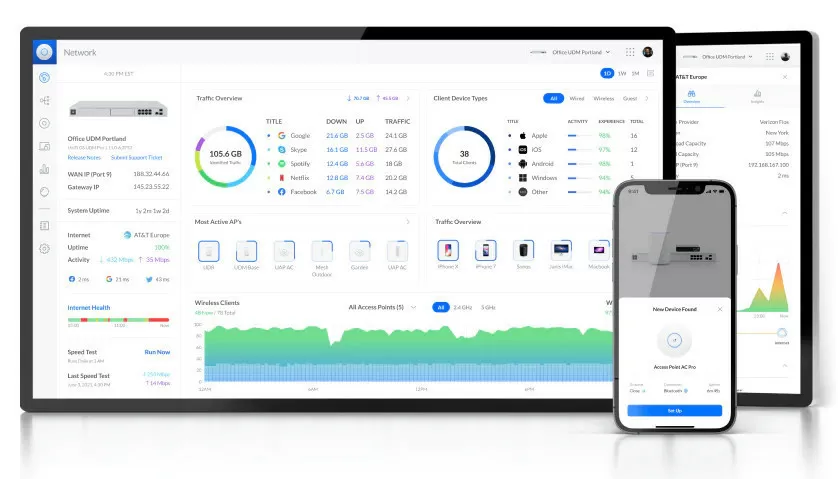

This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app. The UniFi Network Application is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller

In summary, the USW-Pro-Max-48-POE from Ubiquiti is engineered for professional networking environments requiring extensive PoE capabilities and high-speed data throughput. Its Etherlighting™ ports and comprehensive management features offer a sophisticated, user-friendly experience for advanced network configurations

Technical Specifications

• Dimensions: 442.4 x 400 x 44 mm
• Weight:
  • Without mounting brackets: 6.2 kg
• Enclosure Material: SGCC steel
• Network Interfaces:
  • (16) 2.5 GbE PoE++ ports
  • (32) GbE ports
  • (4) 10G SFP+ ports
• PoE Interfaces:
  • (8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
  • (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
• Total PoE Power: 720W
• Power Supply: Internal AC/DC, 100—240V AC
• Maximum PoE Power per Port:
  • PoE: 15.4W
  • PoE+: 30W
  • PoE++: 60W
• LCM Display: 1.3" touchscreen
• Operating Temperature: -5 to 40°C
• Operating Humidity: 10 to 90% non-condensing
• Certifications: CE, FCC, IC
