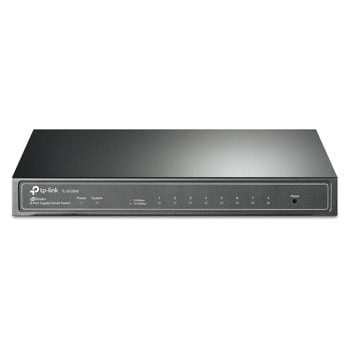

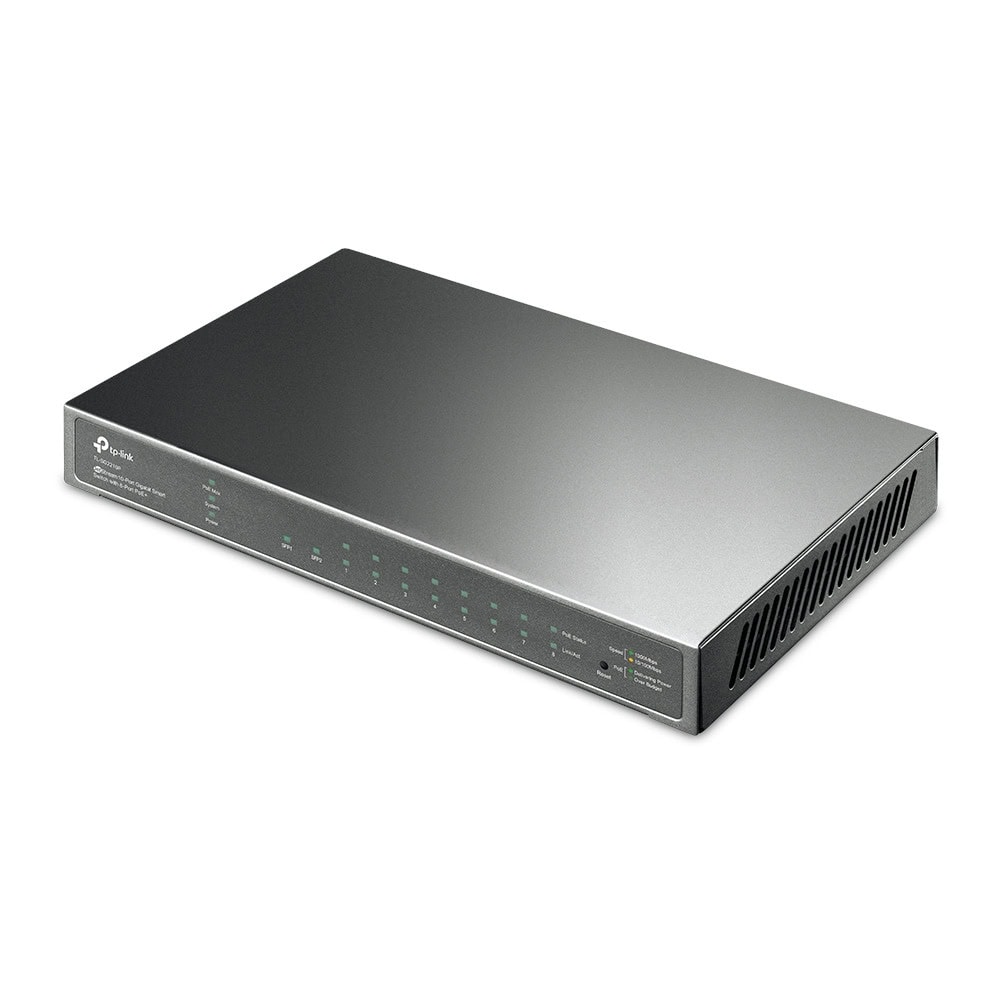

TP-Link SG2008
8-Port Gigabit Smart Switch
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 65% of power consumption
TP-LINK Gigabit Smart Switch TL-SG2008 is equipped with 8 gigabit RJ45 ports. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK’s 8-Port Gigabit Smart Switch TL-SG2008 is especially designed for the small and medium business networks that require efficient network management. TL-SG2008 comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 Features
For more application of layer 2 switches, TL-SG2008 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP; Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SG2008 is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
Категория | Спецификация |
---|---|
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
Стандарти и протоколи | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |

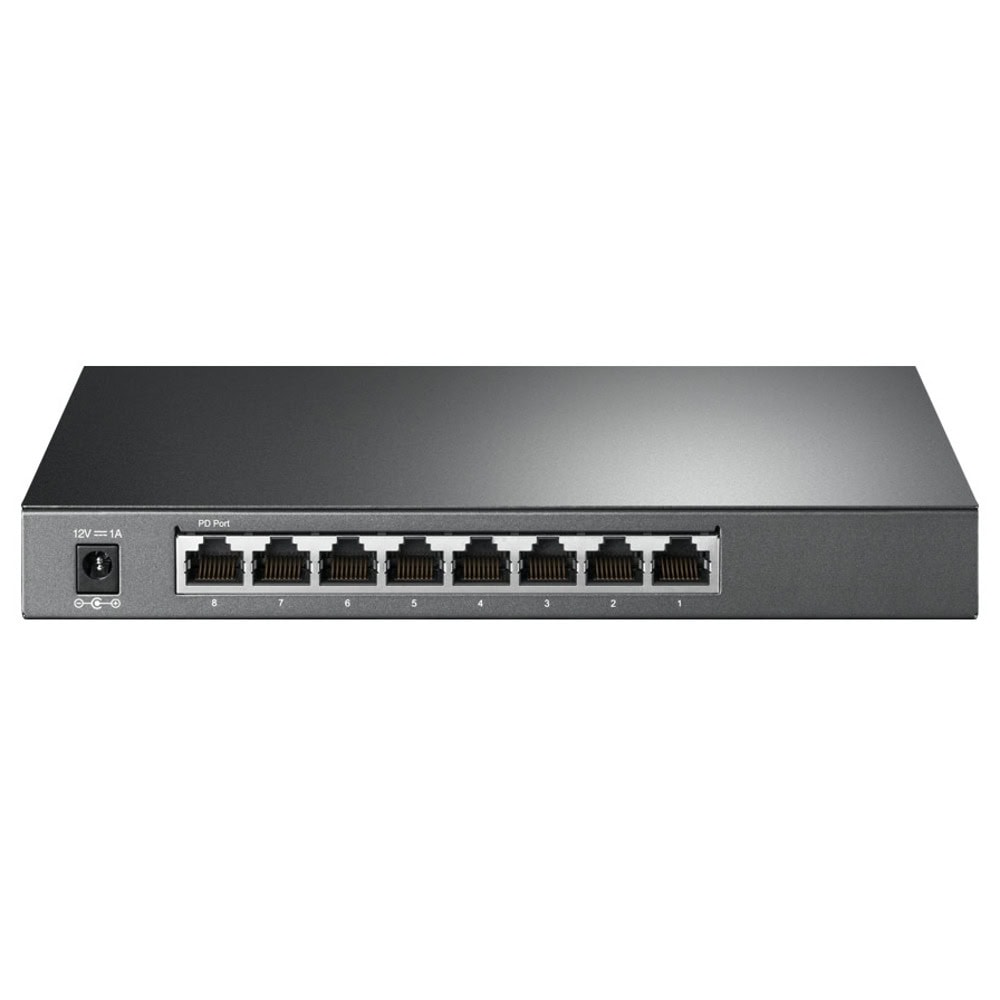

Интерфейс | 8 × 10/100/1000Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) |
Мрежова медия | 10BASE-T: UTP категория 3, 4, 5 кабел (макс. 100 м); 100BASE-TX/1000Base-T: UTP категория 5, 5e или по-висока (макс. 100 м) |
Брой вентилатори | Fanless |
Захранване | 100~240VAC, 50/60Hz; външен адаптер: 12VDC/1A |
Консумирана енергия | Максимум: 6.42W (220V/50Hz) |
Размери (Ш x Д x В) | 8.2 × 4.9 × 1.0 in. (209 × 126 × 26 mm) |
ПРОИЗВОДИТЕЛНОСТ | |
Bandwidth/Backplane | 16 Gbps |
Скорост на предаване | 11.9 Mpps |
Таблица на МАС адресите | 8k |
Jumbo кадър | 9216 Bytes |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ | |
Качество на услугата | Поддръжка на 802.1p CoS/DSCP priority; 4 опашки с приоритет; SP, WRR, SP+WRR; Ограничение на скорост по порт/поток; Voice VLAN |
L2 характеристики | IGMP Snooping V1/V2/V3; 802.3ad LACP (до 6 групи, 4 порта на група); STP/RSTP/MSTP; BPDU Filtering/Guard; TC/Root Protect; Loop back detection; 802.3x Flow Control |
VLAN | Поддръжка на до 512 VLAN едновременно (от 4K VLAN IDs) |
Access Control List | Филтриране L2–L4 по MAC, IP, TCP/UDP портове, 802.1p, DSCP, протокол и VLAN ID; Time Range Based |
Защита | SSH v1/v2; SSL v2/v3/TLSv1; Port Security; Storm Control; 802.1x и Radius Authentication; IP-MAC-Port-VID Binding; ARP Inspection; DHCP Snooping; DoS Defend |
Управление | Web GUI и CLI; SNMP v1/v2c/v3; RMON (1,2,3,9 групи); CPU Monitoring; Port Mirroring; SNTP; Firmware Upgrade (TFTP & Web); System Diagnose (VCT); SYSLOG |
ДРУГИ | |
Сертификати | CE, FCC, RoHS |
Системни изисквания | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7; MAC OS; NetWare; UNIX; Linux |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Брой портове: | 8 |
---|---|
Максимална скорост: | 1 Gbit/s |
Стандарт: | 802.3x |
