Name: Защитна стена Ubiquiti UniFi Express 7, 1x 10/100/1000/2500 LAN, 1x 10/100/1000/10000 WAN
Brand: Ubiquiti
SKU: NTFUBIQUITILCUX7
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Ubiquiti UniFi Express 7

Category	Specification

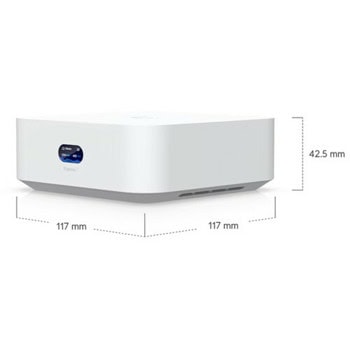

Dimensions	117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67")
Form Factor	Compact desktop
Weight	422 g (14.9 oz)
Enclosure Material	Polycarbonate
LCM Display	0.96" status display
Coverage Area	160 m² (1,750 ft²)
Managed UniFi Devices	30+
Simultaneous Users	300+
Port Configuration
- Max. WAN Port Count	1
- Default WAN Port	(1) 10 GbE RJ45
- LAN Ports	1 × 2.5 GbE RJ45 (2.5G/1G/100M/10M) 1 × 10 GbE RJ45 (10G/5G/2.5G/1G/100M)
Performance
- IDS/IPS Throughput	2.3 Gbps
- Max. Power Consumption	22W
Power
- Method	USB Type-C (5V DC/5A)
- Supply	USB Type-C Adapter Included
- Supported Voltage Range	100—240V AC
Processor	Quad-core ARM Cortex-A53 @ 1.5 GHz
System Memory	3 GB
Network & Security Features
- UniFi Application Suite	Network
- Stateful Firewall	✓
- Application-Aware Firewall	✓
- DPI & Traffic Identification	✓
- Zone-Based Firewall	✓
- Content Filtering	✓
- Intrusion Prevention (IPS/IDS)	✓
- IDS/IPS Signatures	20,000+ with CyberSecure
- Ad Blocking	✓
- VLAN/Subnet Segmentation	✓
- License-Free SD-WAN	✓
VPN Support
- Site-to-Site VPN (Site Magic)	✓
- IPsec	✓
- OpenVPN (Server & Client)	✓
- WireGuard (Server & Client)	✓
- L2TP	✓
- Teleport	✓
- Identity Endpoint One-Click	✓
Routing & Network Services
- Dynamic Routing (OSPF)	✓
- Advanced QoS	✓
- mDNS	✓
- Advanced NAT	✓
- Integrated RADIUS Server	✓
- RadSec	✓
- UniFi LTE Backup	✓
- Internet Quality Monitoring	✓
- Policy-based Routing (WAN/VPN)	✓
- Custom DHCP Server	✓
- IPv6 ISP Support	✓
- IGMP Proxy	✓
WiFi Specifications
- Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7)
- Max Throughput	6 GHz: 5.7 Gbps 5 GHz: 4.3 Gbps 2.4 GHz: 688 Mbps
- MIMO	2×2 (DL/UL MU-MIMO) for all bands
- Antenna Gain	6 GHz: 6 dBi 5 GHz: 7 dBi 2.4 GHz: 4 dBi
- Max TX Power	6 GHz: 24 dBm 5 GHz: 26 dBm 2.4 GHz: 23 dBm
- Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- Max BSSIDs	4 per radio (Gateway & AP Mode)
- Supported Data Rates	Detailed per 802.11a/b/g/n/ac/ax/be
Management & Interface
- Interfaces	Ethernet, Bluetooth
- LED Indicators	Ethernet LED
- Button	Factory Reset
Environmental
- ESD/EMP Protection	Air: ±8kV, Contact: ±4kV
- Operating Temperature	-10 to 40°C (14 to 104°F)
- Operating Humidity	5 to 95% noncondensing
Compliance
- NDAA Compliant	✓
- Certifications	CE, FCC, IC
VLAN Features
- VLAN	802.1Q
- Guest Traffic Isolation	✓
Software Requirement	UniFi Network version 9.0.108 or later
