Рутер Ubiquiti UniFi UXG-Max, 1x WAN 100/1000/2500, 4x LAN 100/1000/2500, 2GB RAM, USB-C

Ubiquiti UniFi UXG-Max

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.

Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server

Up to 1.5 Gbps routing with IDS/IPS

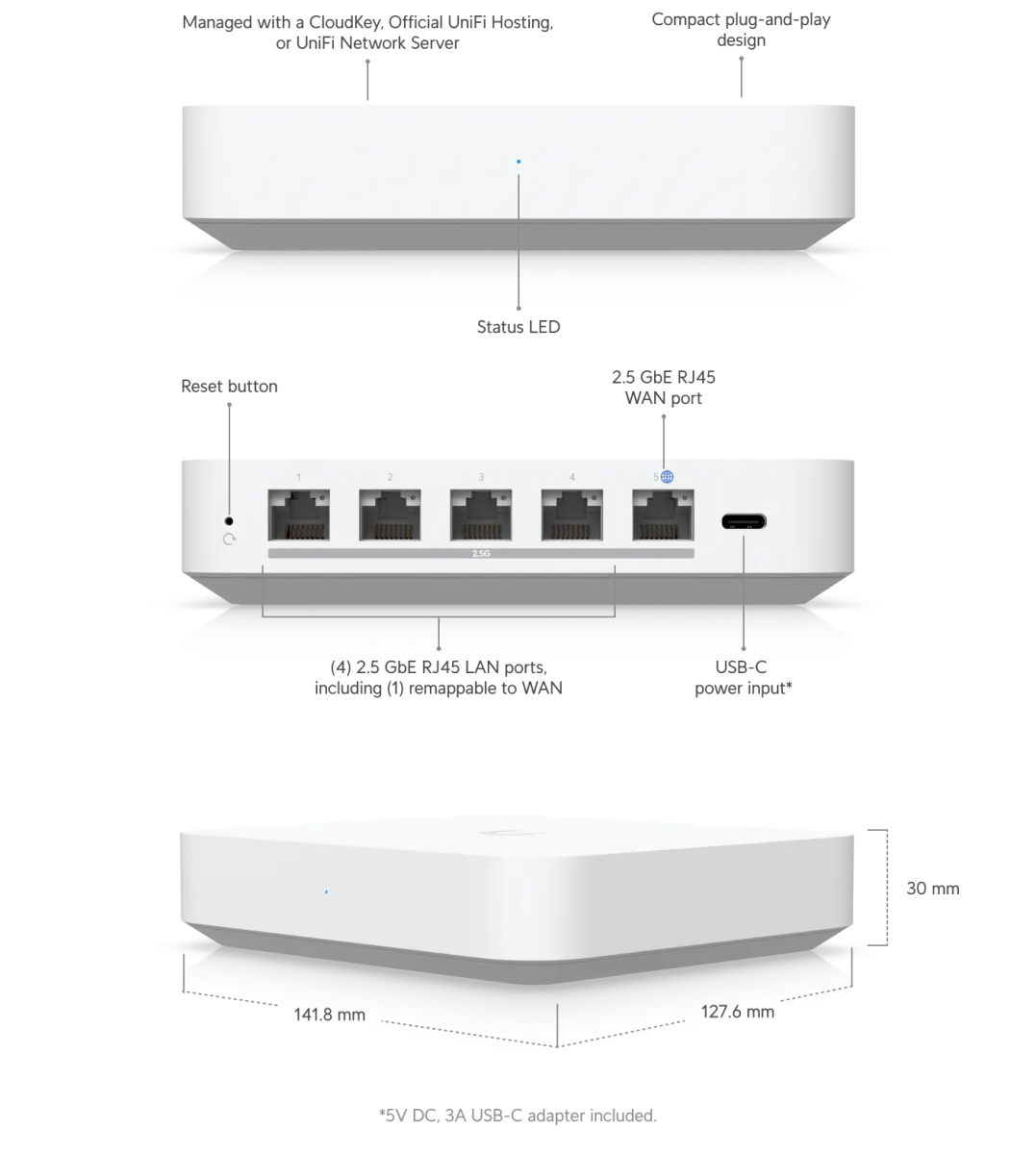

(1) 2.5 GbE WAN port
(4) 2.5 GbE LAN ports, including (1) remappable to WAN
USB-C powered (adapter included)
Managed with UniFi Network 8.1.113 and later


Mechanical:

• Dimensions: 141.8 x 127.6 x 30 mm
• Weight: 520 g
• Enclosure material: Polycarbonate
• Resistance: IK04

Hardware:

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
• Memory: 2 GB DDR4
• Management interface: Ethernet, Bluetooth

Networking interface:

• LAN: (4) 2.5 GbE RJ45 ports
• WAN: (1) 2.5 GbE RJ45 port
• IDS/IPS throughput: 1.5 Gbps (measured with iPerf3 on DHCP WAN; performance may be reduced with PPPoE depending on ISP implementation)

Power:

• Power method: USB Type-C (5V/3A)
• Supported voltage range: 100–240V
• Max power consumption: 9.6W

LED indicator:

• Ethernet: White (link/activity)

Button:

• Factory reset button (1)

Operating conditions:

• Ambient temperature: -10 to 40°C (14 to 104°F)
• Ambient humidity: 5 to 95% noncondensing

Certifications:

• CE, FCC, IC

Gateway features:

• Performance: WiFi QoS with UniFi APs, application, domain, and country-based QoS, application and device type identification, internet quality and outage reporting
• Next-generation security: Application-aware firewall rules, signature-based IPS/IDS threat detection, content, country, domain, and ad filtering, VLAN/subnet-based traffic segmentation, full stateful firewall
• Advanced networking: License-free SD-WAN, WireGuard, L2TP, and OpenVPN server, OpenVPN client, OpenVPN and IPsec site-to-site VPN, one-click Teleport and Identity Enterprise VPN, policy-based WAN and VPN routing, DHCP relay, customizable DHCP server, IPv6 ISP support
