Tenda TEG5328F

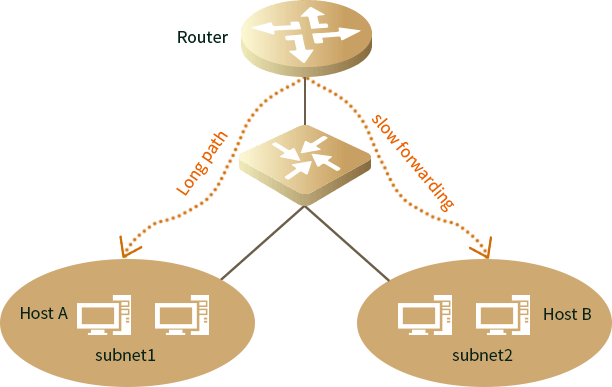

Layer-3 Routing Engine，High-Efficiency Fast Forwarding
Supports Layer 3 www routing protocols, supports Layer 3 forwarding of up to 400+ terminals, easily meets Layer 3 routing and forwarding across network segments, and truly achieves Layer 2 network isolation and Layer 3 network interworking. Compared with using a Layer 2 switch for transmission, there is no need to go through a router, and the forwarding speed is faster!

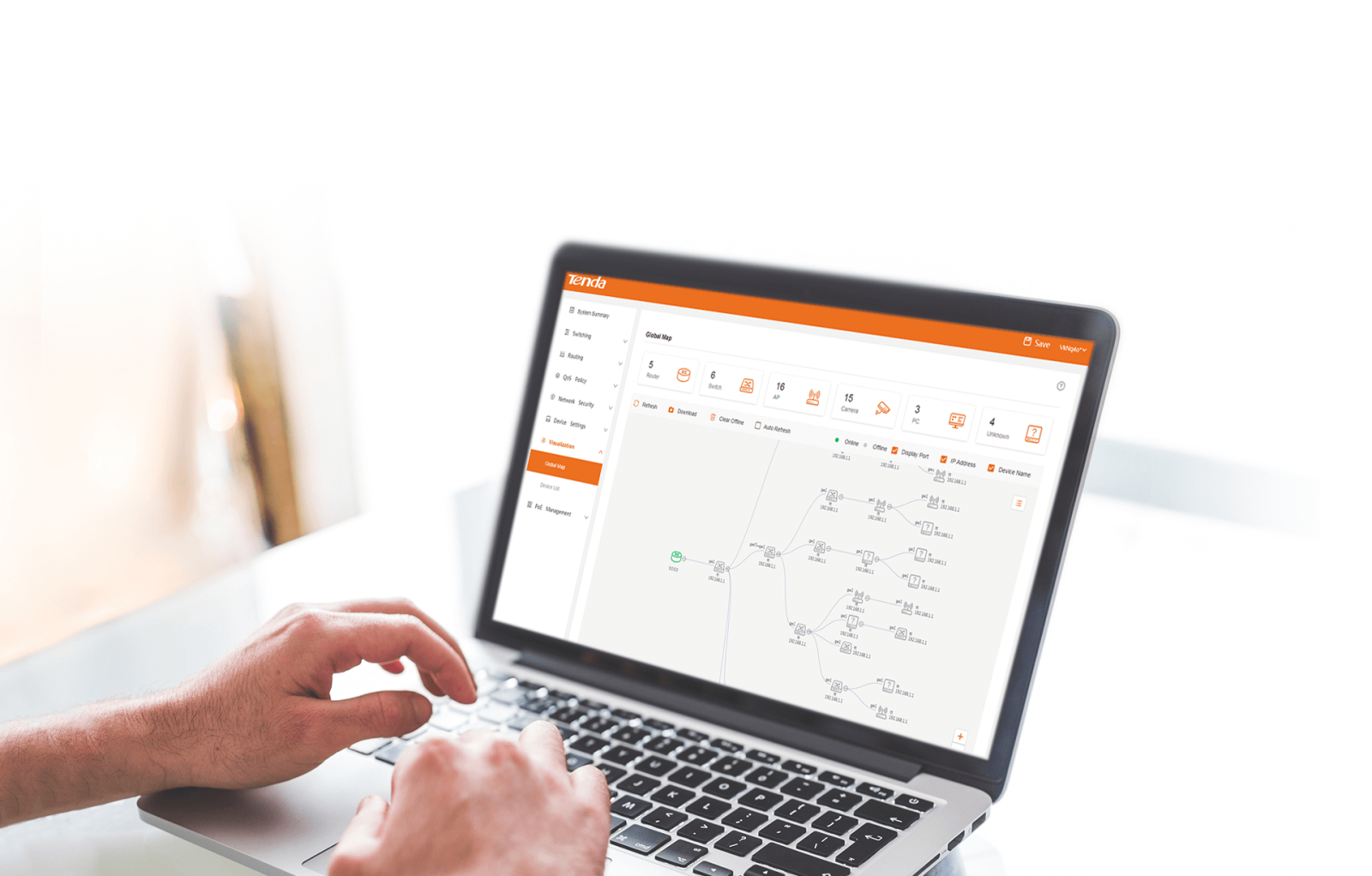

Map Visualization
It supports auto discovery of ONVIF based IP camera and access point, and also supports automatically topology generate.

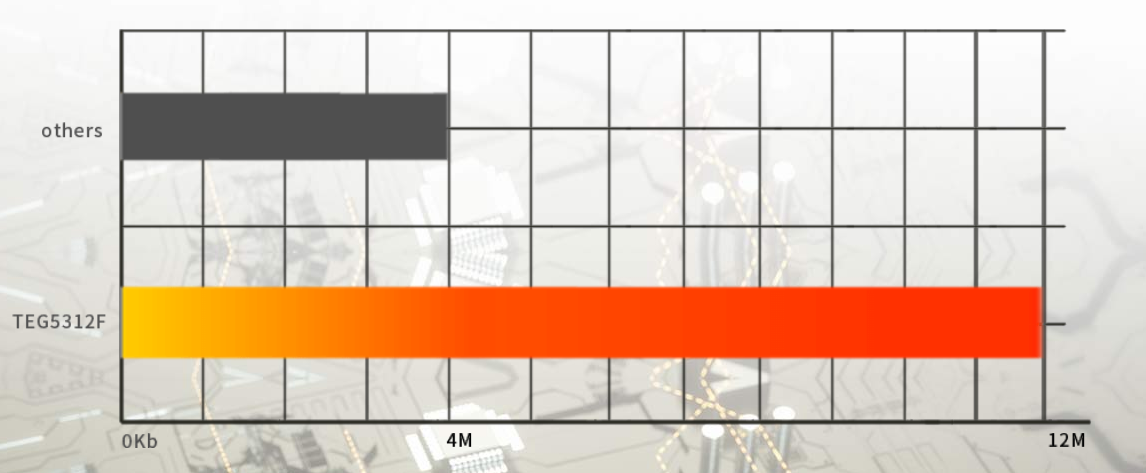

12M Large Buffer, No Fear of Burst Traffic
12M large buffer design, which is three times than other brands in the same gear.

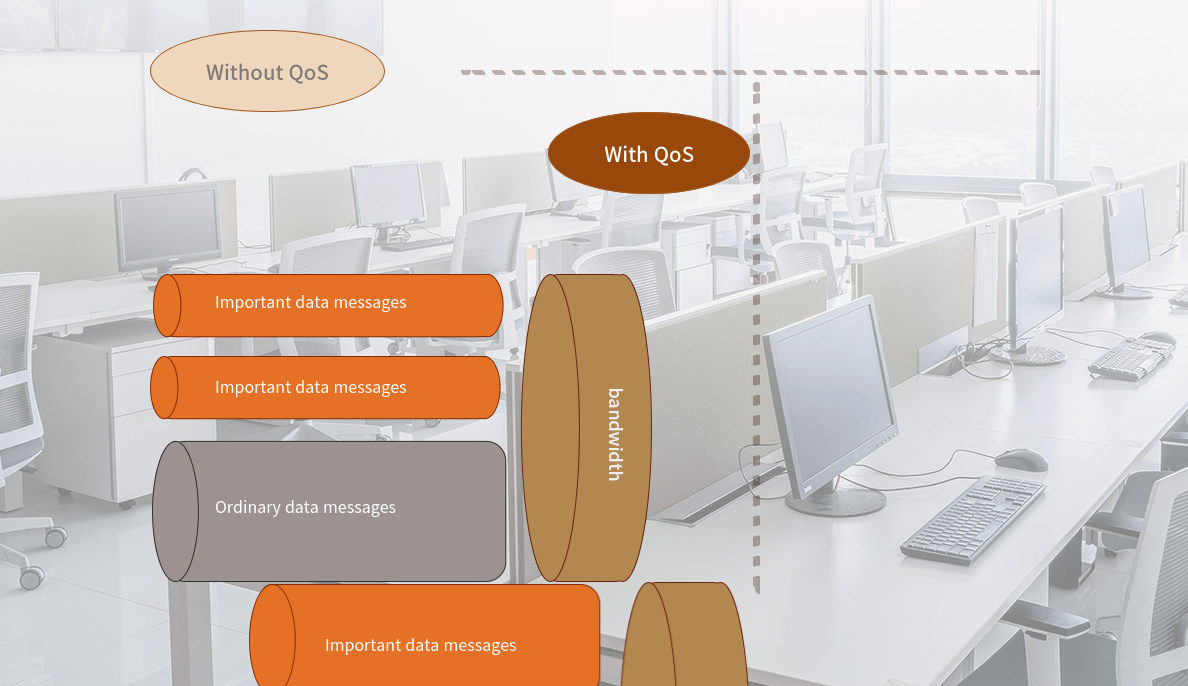

Flexible QoS, Precise Traffic Control
The TEG5312F supports three QoS scheduling modes (SP, SWRR, WRR) for more accurate traffic control. After the QoS function is enabled, the traffic in the network will be precisely controlled according to the priority of the label. It will prioritize important traffic and reduce the proportion of data flows that occupy a large amount of insignificant traffic in the condition of limited bandwidth，in order to better meet the current transmission needs.
Specifications:
| Network standards | IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3ad、 IEEE802.3z、 IEEE802.3x、IEEE802.1p、 IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s |
| LED Indicator | 1*Link/Act LED indicator 1*Power LED indicator 1*SYS LED indicator |
| Interfaces | 10*10/100/1000 Base-T Ethernet ports 2*1000 Base-X SFP ports |
| Transmission media | Recommended: CAT5/5e UTP or better |
| Fan quantity | N/A |
| Level of protection | Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV |
| Forwarding mode | Store-and-forward |
| Switch capacity | 24Gbps |
| Packet forwarding rate | 17.90Mpps |
| Buffer | 12Mb |
| MAC address table | 16K |
| Jumbo frame | 10K |
| PoE power supply management | N/A |
| PoE budget | N/A |
| Input voltage | 100-240V AC 50/60Hz |
| Power consumption | Full load: ＜19W Empty load: ＜9W |
| Dimension | 294.0mmx179.6mmx44.0mm |
| Mounting | Desktop mounting: support Wall mounting: support Rack mounting:non-support |
| Energy Efficient | Support |
| Environment | Operating temperature: 0°C - 45℃ Storage temperature: -40°C - 70°C Operating humidity: (10% - 90%) RH, non-condensing Storage humidity: (5% - 90%) RH, non-condensing |
| Certification | FCC、CE、RoHS |
| L3 Features | VLAN-based routing IPv4 static routing adding Supports static ARP adding/deleting Supports ARP aging time configuration |
| PoE power supply management | N/A |
| Security features | ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication Radius security authentication |
| VLAN | IEEE 802.1Q VLAN VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid |
| DHCP Server | DHCP Server DHCP Relay DHCP Snooping Supports Option 82 policy configuration |
| Port aggregation | Static aggregation LACP dynamic aggregation |
| Spanning tree | IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics |
| Multicast | IGMP Snooping V1/V2/V3 Supports port fast leave |
| Port Mirroring | Supports N: 1 port mirroring |
| Quality of Service | SP (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8-queue service quality mapping |
| ACL | Supports MAC ACL and IP ACL |
| Loading and upgrade | Supports FTP/TFTP/HTTP upgrade Supports configuration import and export |
| Management and maintenance | Supports Telnet Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert/Connection Detection CPU Monitoring and memory monitoring Local visualization management |
Виж още Суич Tenda
Виж всички Суич в категорията
Технически характеристики
| Брой портове: | 12 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | IEEE 802.1s |
| Управляем: | Да |
