Захранване FSP Hydro GT PRO, 850W, Active PFC, 80 Plus Gold, 120mm вентилатор

FSP Hydro GT PRO



Superb Electrical Performance

The LLC topology  allows for zero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.

Excellent Component Quality

450V, 105°C Japanese main capacitors have premium quality, protecting your equipment from the infamous capacitor leakage problem and also increasing the life-span of your equipment.

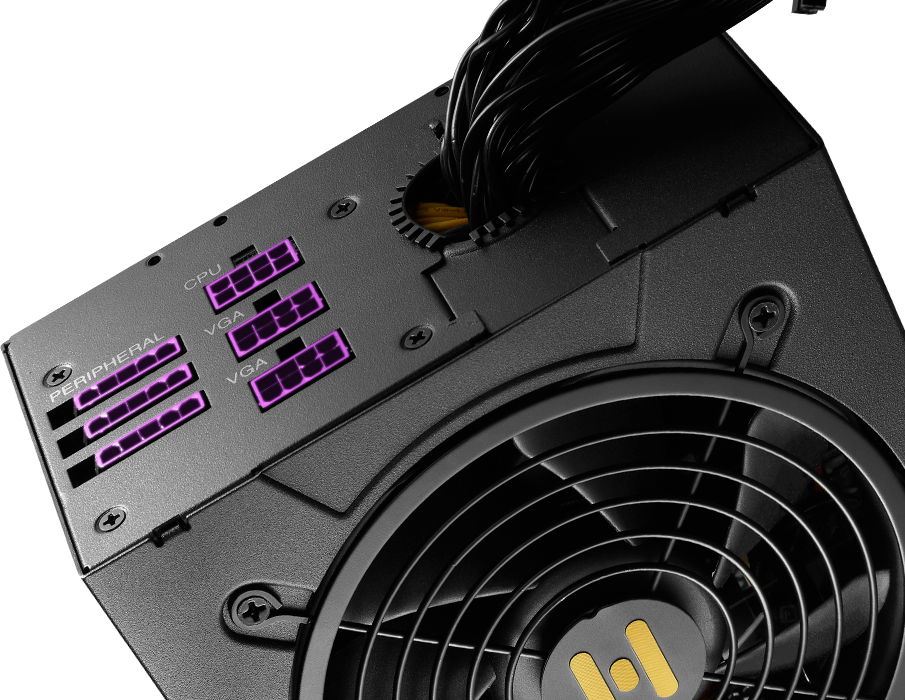

Semi-Modular Design

Hydro GT PRO series is designed semi-modular that not just saves user’s time for installation, but also provides your system a neat and tidy look for cable management.

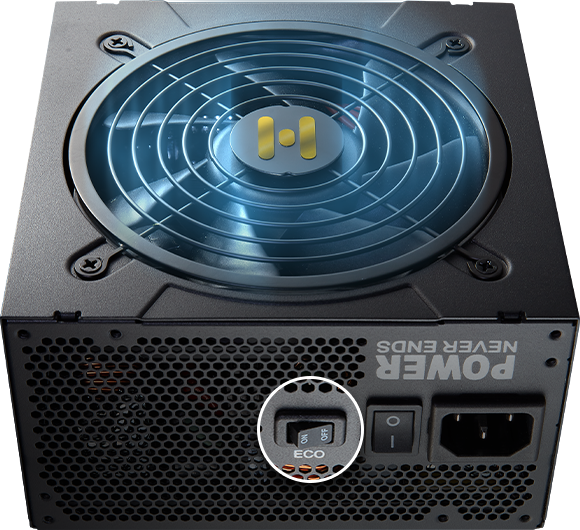

ECO Switch, Quieter and Longer Lasting Fan

The Hydro GT PRO series offers an Eco Switch that allows the PSU to operate quieter uses up less power consumption. When the power supply is equal to or less than 30% load, the power supply enters a silent state and the fan is turned off.



Specifications:

Model	HGT-850
Rated Output Power	850W
Form Factor	ATX
80 PLUS Certification	Gold
Input Voltage	100-240V ; 200-240V
Input Current	11-5.5A ; 5.5A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	90%
Fan Type	FDB fan, 120mm
Dimensions(L x W x H)	150 × 150 × 86 mm
Operation Temp.	100,000 Hrs
Protection	OCP, OVP, OPP, SCP, OTP

AC Input	100-240Vac~  11-5.5A  50-60Hz (Not for China)
	200-240Vac~  5.5A        50-60Hz (Only for China)
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	70.83A	0.3A	2.5A
Max Combined Power	120W		850W	3.6W	12.5W
Total Power	850W

	ATX 24	4+4 PIN	PCI-E 6+2	SATA	Molex (PERIPHERAL)
Connectors	1	2	6	10	2
Cable Length	600mm	700mm	500mm	500mm	500mm
