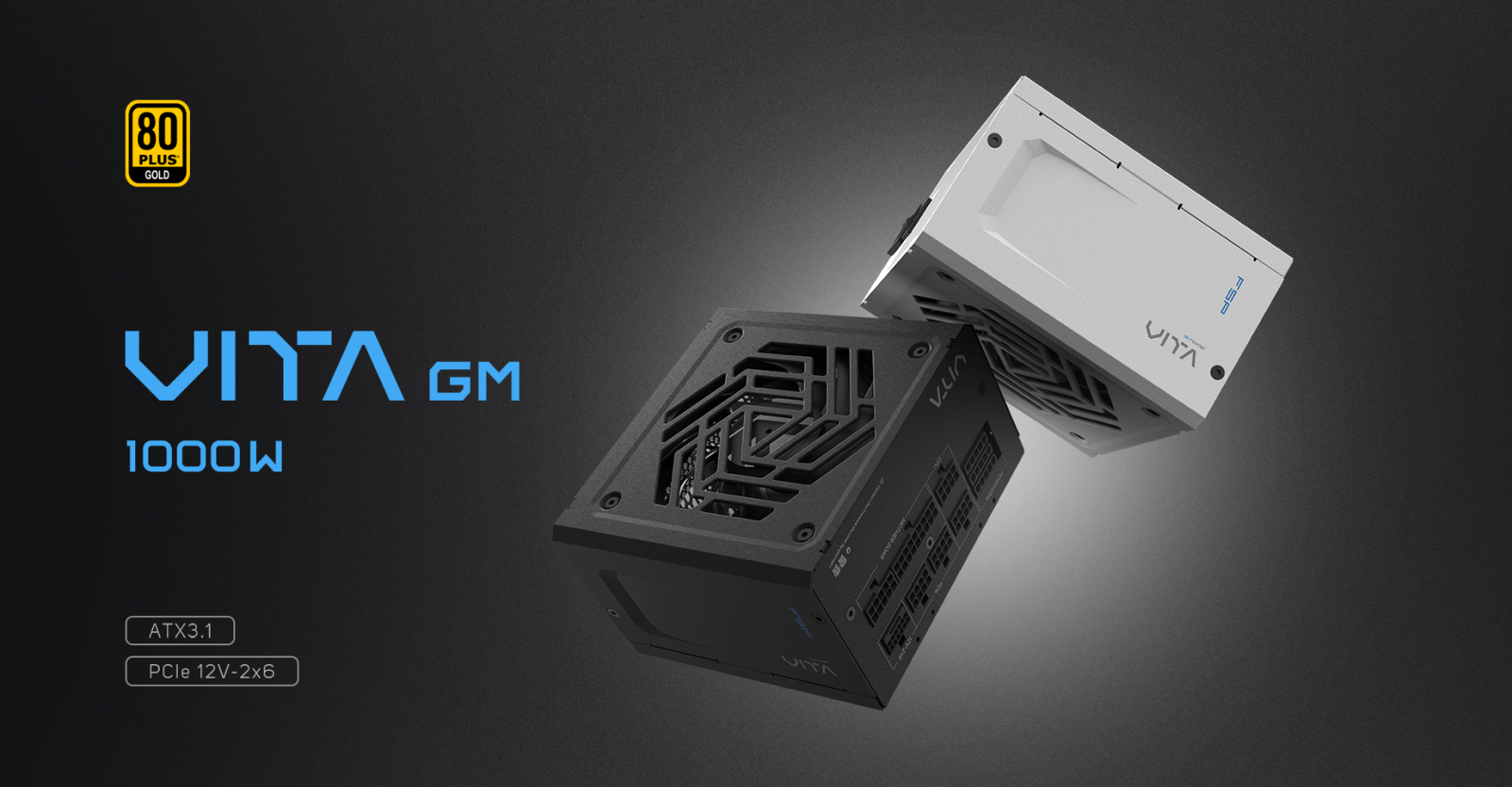

FSP VITA GM 1000W
Complies with Intel Power Design Guide ATX 3.1
Built for the demanding power requirements of tomorrow, these PSUs offer maximum total power excursion support as per ATX 3.1 and PCIe Gen 5.1 specifications, ensuring peak performance with future hardware upgrades.
We Follow ATX 3.1 Recommended Level
Some changes in the new spec. from ATX3.0 to ATX3.1, FSP follows Intel recommended criteria to keep it on the latest version and focus on user benefits.
High Efficiency in Gold-certified
Certified by world-class organizations 80 PLUS gold certifications and reach platinum efficiency at typical load for lower power loss, less heat, and quieter operation.
120 mm hydraulic bearing (HYB) fan
Quality bearing keeps fan noise to a minimum while providing maximum cooling performance.
| MB 20+4 PIN | CPU 4+4 PIN | PCIe 12V-2x6 | PCIe 6+2 PIN | SATA | MOLEX |
|---|---|---|---|---|---|
| Connectors | 1 | 2 | 1 | 4 | 8 |
AC/DC
| AC Input | 100-240V~ 12-6A 50-60Hz (Not for China) | ||||
| 200-240V~ 6A 50-60Hz (Only for China) | |||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 20A | 83.33A | 0.3A | 3A |
| Max Combined Power | 100W | 1000W | 3.6W | 15W | |
| Total Power | 1000W |
Specifications
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри FSP
Виж всички Захранвания Настолни компютри в категорията
| Изходна мощност: | 1000 W |
|---|---|
| Модулен блок: | Да |
| Форм фактор: | ATX |
