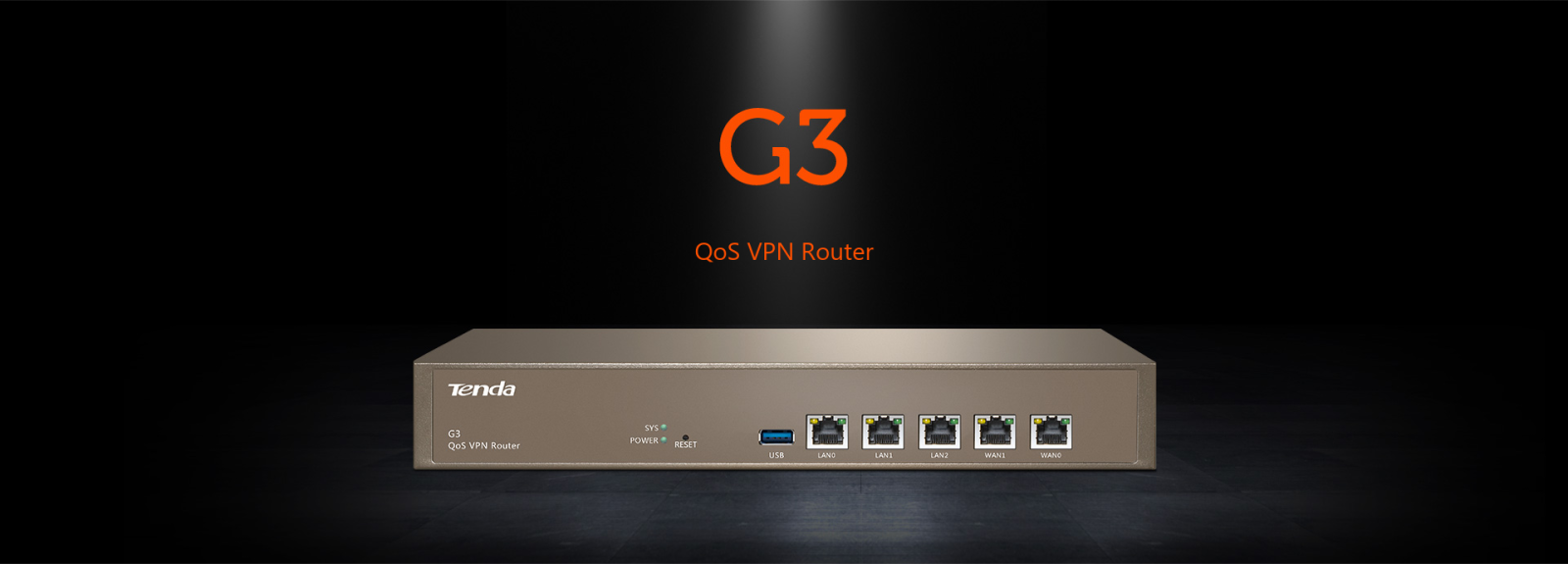

Tenda G3
Tenda G3 equips with high performance CPU with maximum frequency up to 800MHz and 4 WAN ports which provides multiple functions of load balance, traffic control and user authentication. With ac and multiple modes of router mode and bridge mode, G3 can manage 8 access points and provide capacity for 120 concurrent network devices. Through convenient network deployment and convenient setting, G3 provides the best wireless coverage solutions for small businesses, restaurants , cafes and so on.
>> Multi-WAN Ports.
>> Portal Authentication.
>> AP Management.
>> QoS Bandwidth Management .
>> PPTP/L2TP/IPSec VPN.

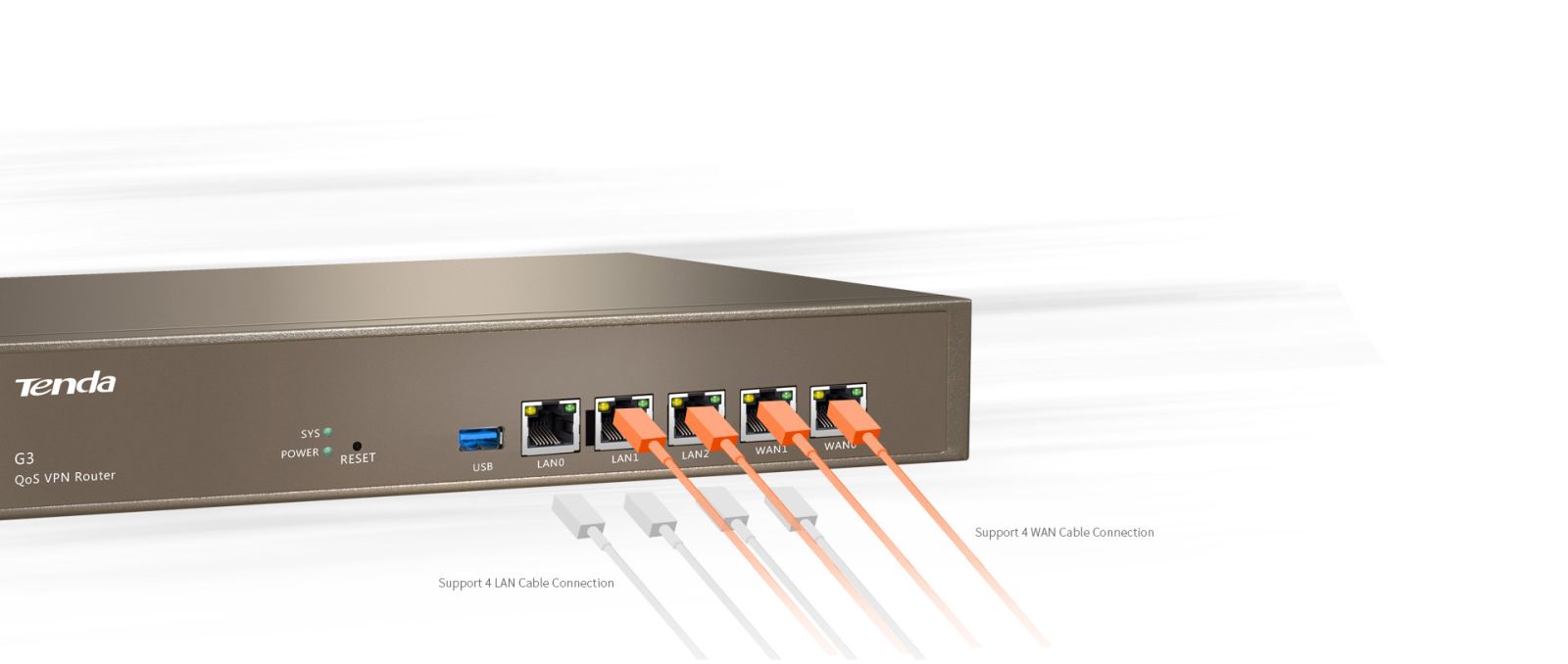

Multi-WAN Ports
Equipped with 3 bandwidth balancing modes based on session, IP and intelligent load balancing, and supports average bandwidth allocation and bandwidth expansion of 4 ports.

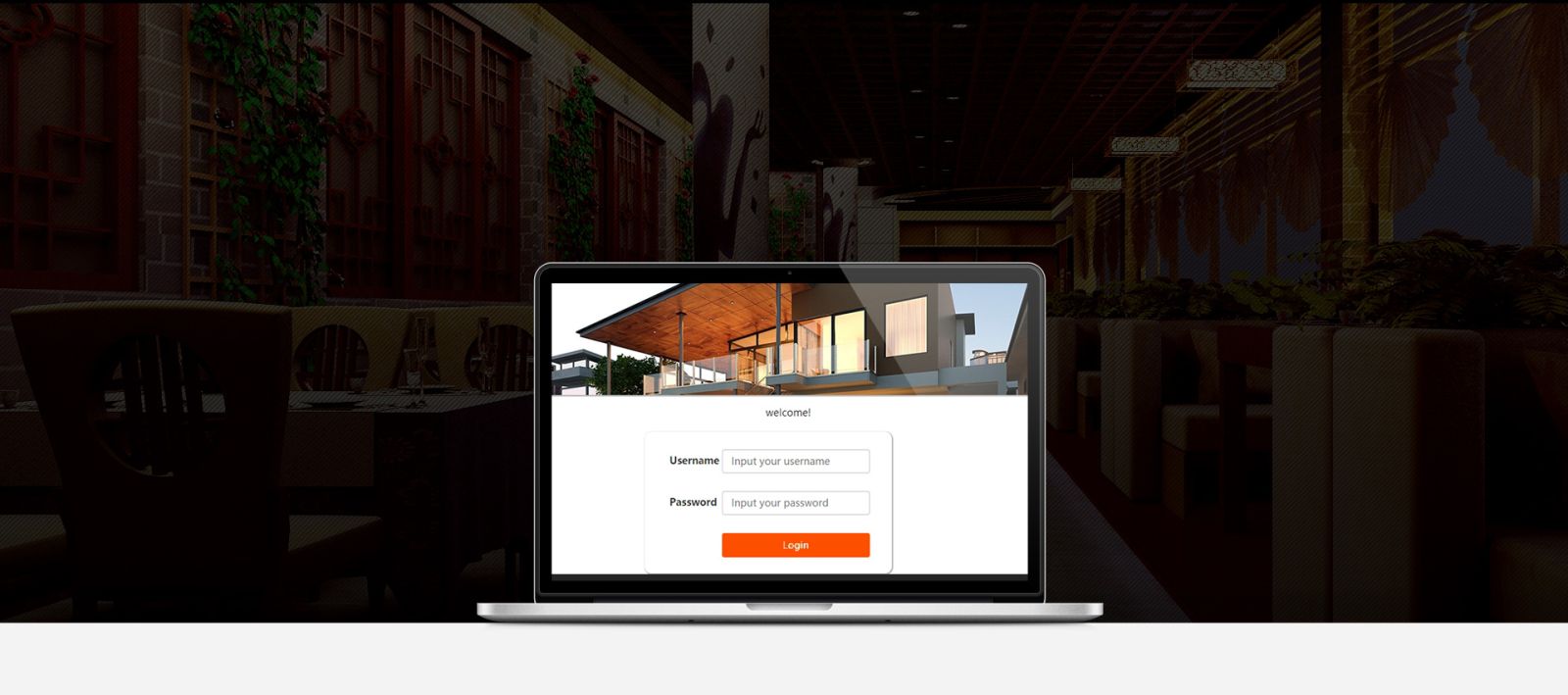

Portal Authentication
Smart authentication customize with internet access time setting and Ad push to promote brand or products.

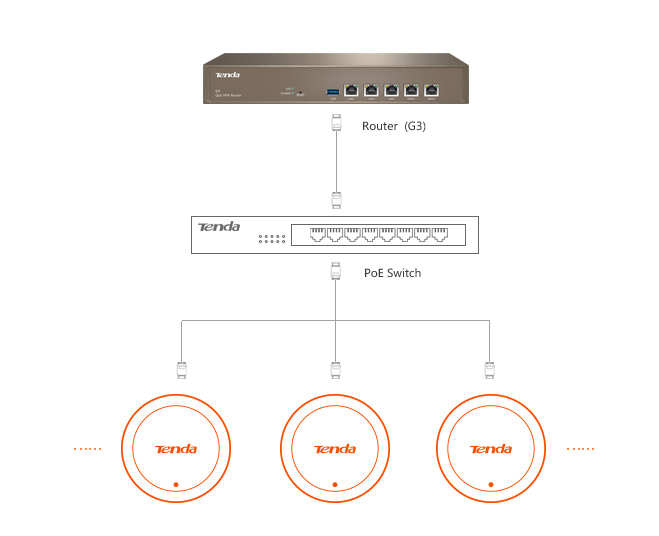

AP Management
G3 can manage and monitor all the Tenda APs. The networking administrator can modify the description, SSID, channel, security for APs and monitor the APs and clients online status through G3.
Specifications:
Installation | Desktop, rack installation |
Dimensions (L*W*H) | 294*178*44mm |
Application Scenario | Office,Home,School,Retail,CCTV,etc. |
Operation Mode | Router Mode |
Max. Client Capacity | 300 |
Recommended Client Capacity | 200 |
Recommended Broadband | 1000Mbps |
Max. New Sessions | 3990 |
Max. Concurrent Sessions | 57000 |
NAT (Static IP) | 947.5Mbps/947.3Mbps |
NAT(DHCP) | 947.1Mbps/947.6Mbps |
NAT(PPPoE) | 918.6Mbps/916.4Mbps |
AP Management | 100 |
VLAN | 4 |
CPU | Dual Core,1GHz |
RAM | 512MB |
FLASH | 16MB+128MB |
Ports | 5*GE (Max. 4 WAN, Max. 4 LAN) |
Button | Reset Button |
USB | 1*USB |
Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, DDNS |
Power Supply | Build-in power |
AP Management | 100 |
DHCP Server | DHCP Server(User/AP) |
Wireless Policy | SSID Policy,RF Policy,Vlan Policy, |
Fast Roaming | 802.11k,v,r |
ACL | IP/MAC/URL/PORT |
Bandwidth Control | smart bandwidth control |
VPN | IPSec, PPTP, L2TP |
Virtual Server | DMZ, DDNS, DNS Hijacking,IP Hijacking,UPNP,Port Mirroring,Port Mapping,DNS Cache |
WAN Load Balancing | Intelligent Load Balancing,Customize |
Routing | Static Routing,Policy Routing |
Security | IP-MAC binding, Block Ping from WAN |
System Tools | NTP |
System Log | system log |
System Account | Local,Online |
Upgrade | Local,Online |
Maintenance | Restore,Backup,Remote WEB Management |
Management | http |
Environment | Operating Temperature: -10℃-45°C Operating Humidity:10%-90% RH, non-condensing Storage Temperature: -40°C-70°C Storage Humidity: 5%-90% RH, non-condensing |
Виж още Рутери Жични Tenda
Виж всички Рутери Жични в категорията
Технически характеристики
Максимална скорост: | 1000 Mbps |
---|
