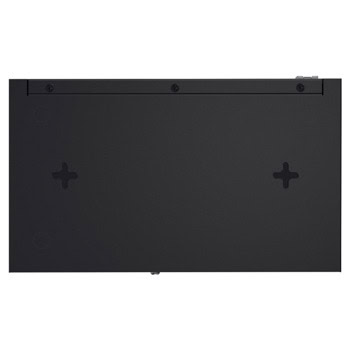

Name: Суич TP-Link Omada ES210XPP-M2, 2500Mbps, 10 порта, 8x 10/100/1000/2500Mbps RJ45 PoE++, 1x 00/1000/10000Mbps RJ45, 1x SFP+
Brand: TP-Link
SKU: NTLHTPLINKES210XPPM2
Price: 240.73 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

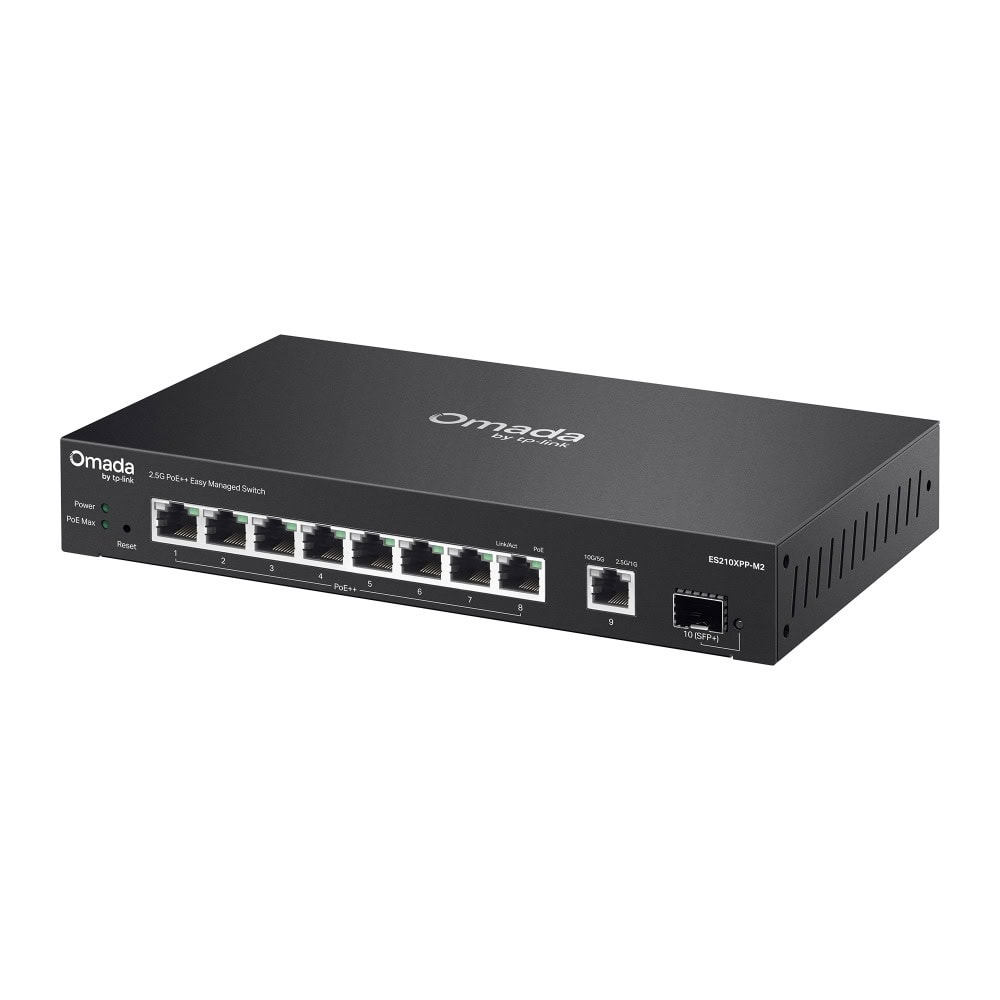

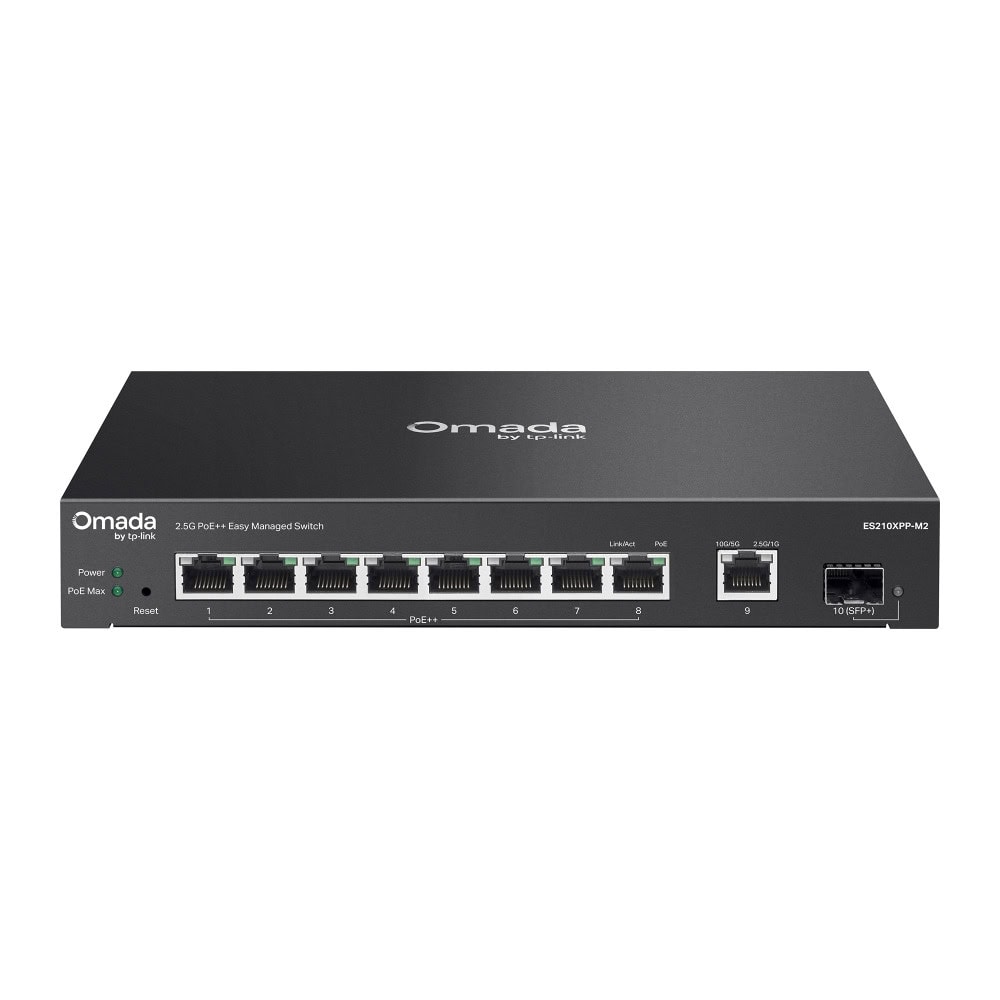

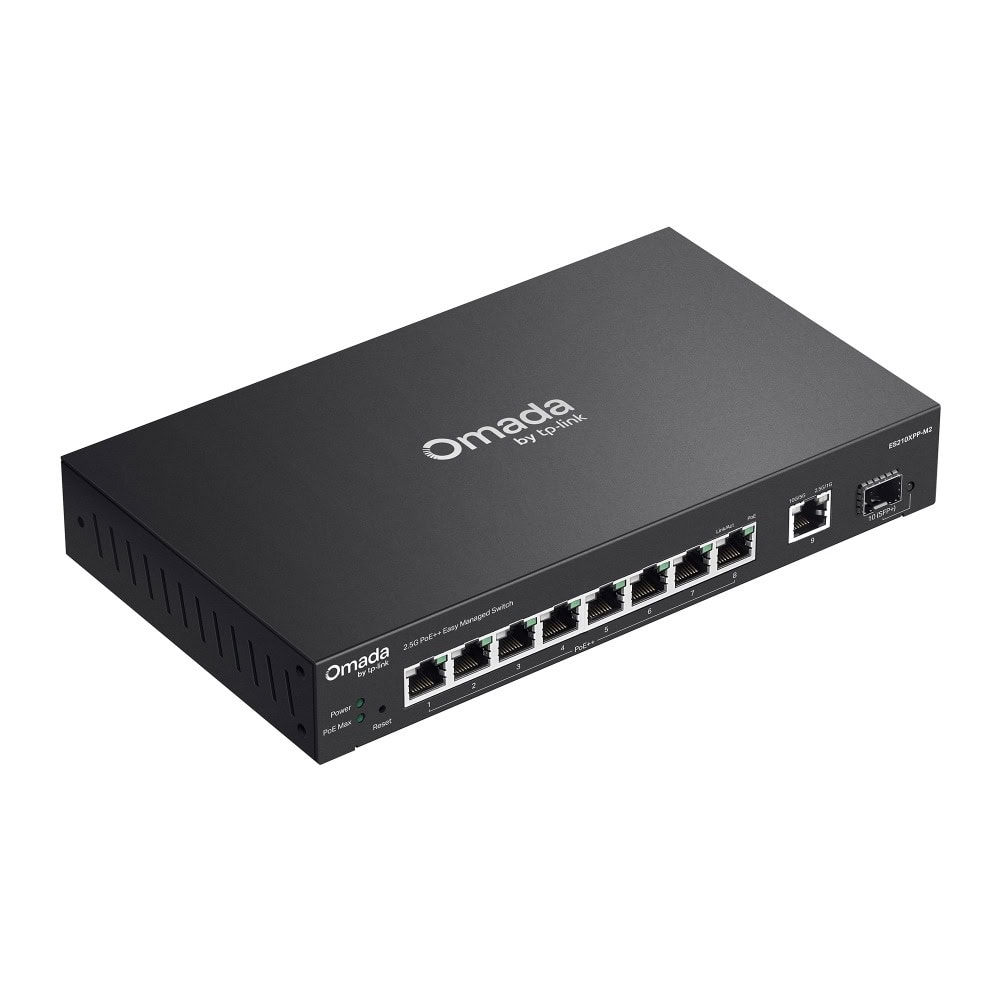

TP-Link ES210XPP-M2

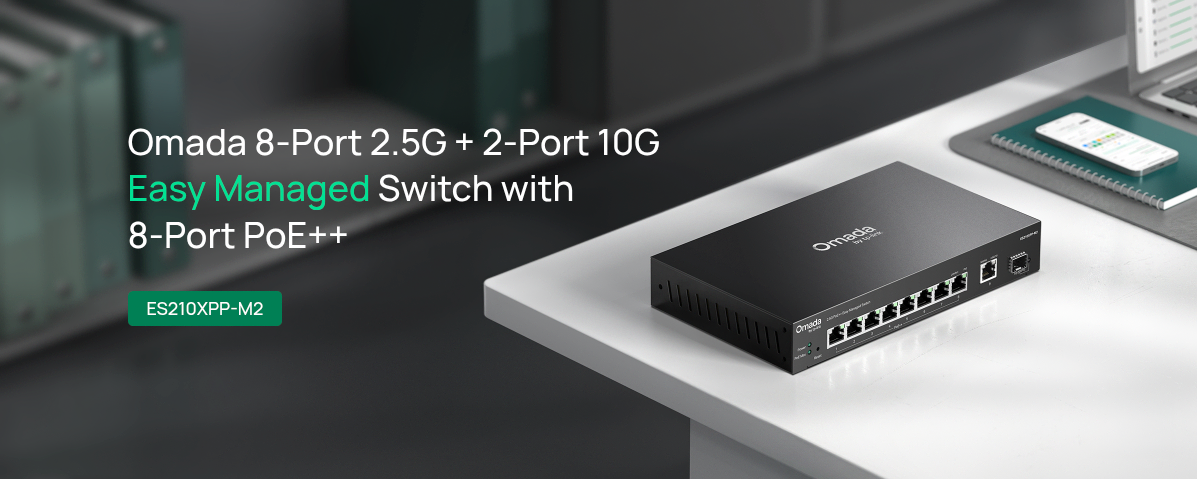

Omada 8-Port 2.5G + 2-Port 10G Easy Managed Switch with 8-Port PoE++

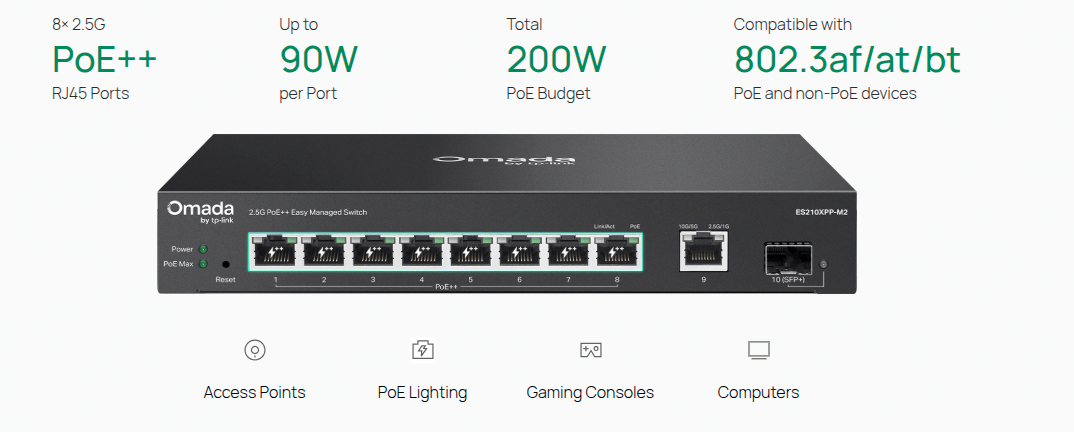

8× 2.5 Gbps RJ45 ports (8× 802.3af/at/bt-compliant PoE++)
1× 10 Gbps RJ45 Port, 1× 10 Gbps SFP+ Slot
200W PoE budget, with up to 90W for each PoE port
Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
Centralized Cloud Management via the web or the Omada app
Automatic Loop Prevention, VLAN, Port Isolation, QoS△, and IGMP Snooping
Fanless design for silent operation
Durable metal casing and desktop/wall mounting design

Power over Ethernet, Flexible Network Deployment

Transmit both data and power via a single cable to other PoE++ devices, without the hassle and cost of installing power cabling. Automatically detect and supply the required power to PoE-enabled devices.

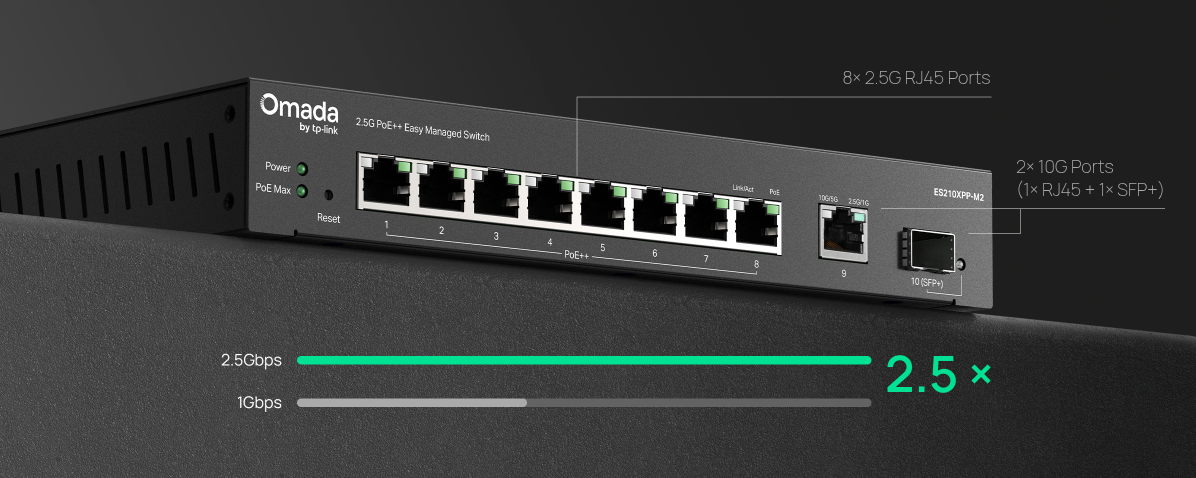

Unlock the Highest Performance of 2.5G
Multi-Gig Bandwidth and Devices

ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
Интерфейс	• 8× 2.5 Gbps RJ45 Ports (8× 802.3af/at/bt-compliant PoE++) • 1× 10 Gbps RJ45 Port • 1× 10 Gbps SFP+ Slot • Auto-Negotiation/Auto MDI/MDIX
Брой вентилатори	Fanless

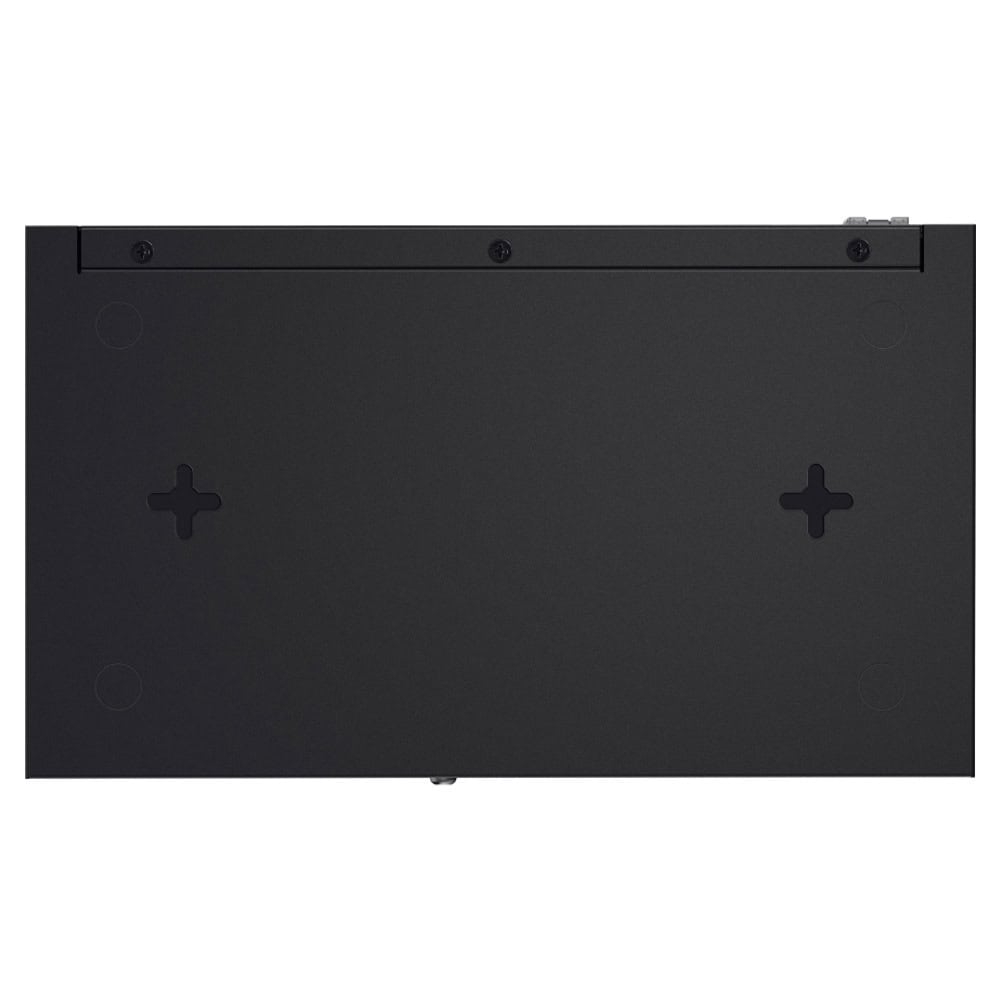

Инсталация	• Desktop • Wall Mount
Защита с физическо заключване	√

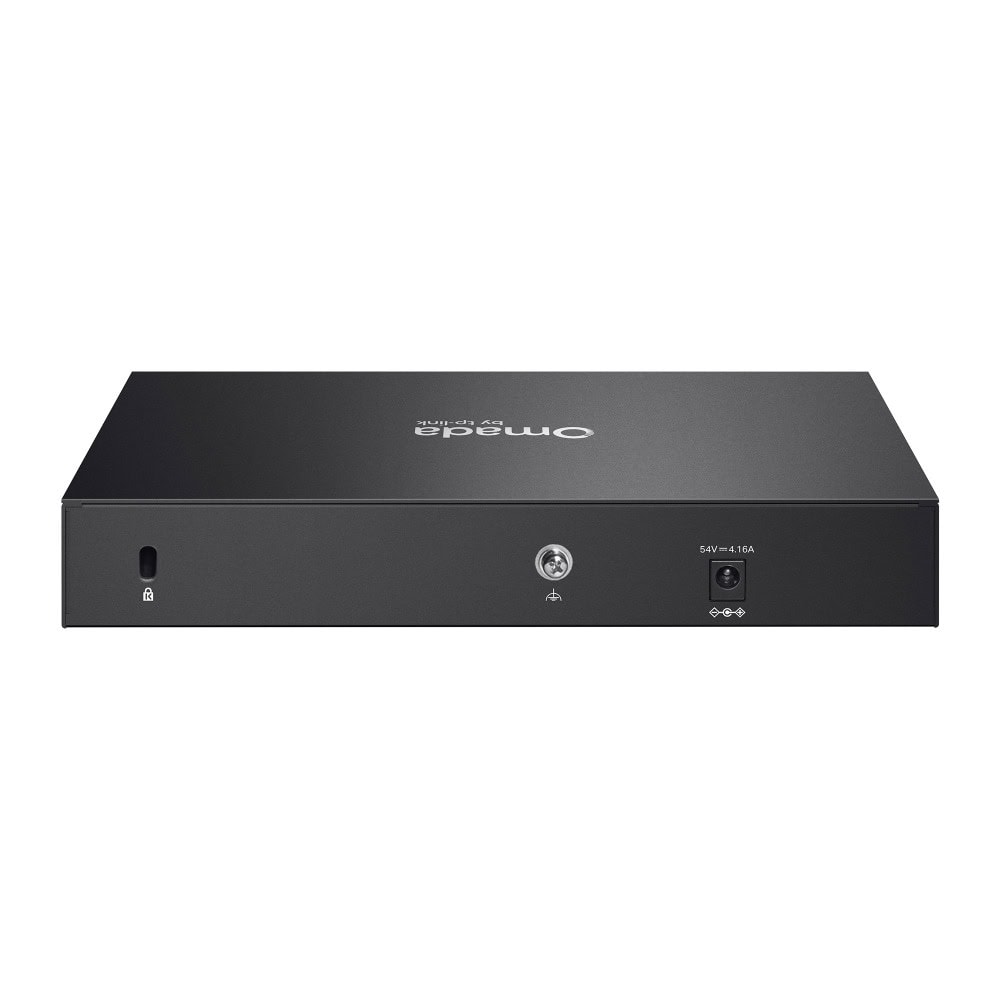

Захранване	AC/DC Adapter (Input: 100-240V AC; Output: 54V DC/4.16A)
PoE портове (RJ45)	• Standard: 802.3af/at/bt PoE++ compliant • PoE Ports: 8 Ports • PoE Budget: 200W available for all PoE++ ports, 90W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡
Размери (Ш x Д x В )	8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)
Surge Protection	±6 kV

ПРОИЗВОДИТЕЛНОСТ
Packet Buffer Memory	5 Mbit
Jumbo кадър	10 KB
Комутационен капацитет	80 Gbps
Скорост на предаване на пакети данни	59.52 Mpps
Таблица на МАС адресите	16K

СОФТУЕРНИ ХАРАКТЕРИСТИКИ
Качество на услугата	• Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△
L2 характеристики	• Link Aggregation - Static Link Aggregation - Up to 6 aggregation groups and up to 4 ports per group • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward

Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later) • Omada Hardware Controller (Requires built-in version 5.15.20 or later) • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
