Name: Supermicro AOC-SG-I2, 2x 1000Mbs, PCI-E x4, ниско-профилна
Brand: Supermicro
SKU: NTLCSUPERMICROAOCSGI2
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

AOC-SG-I2

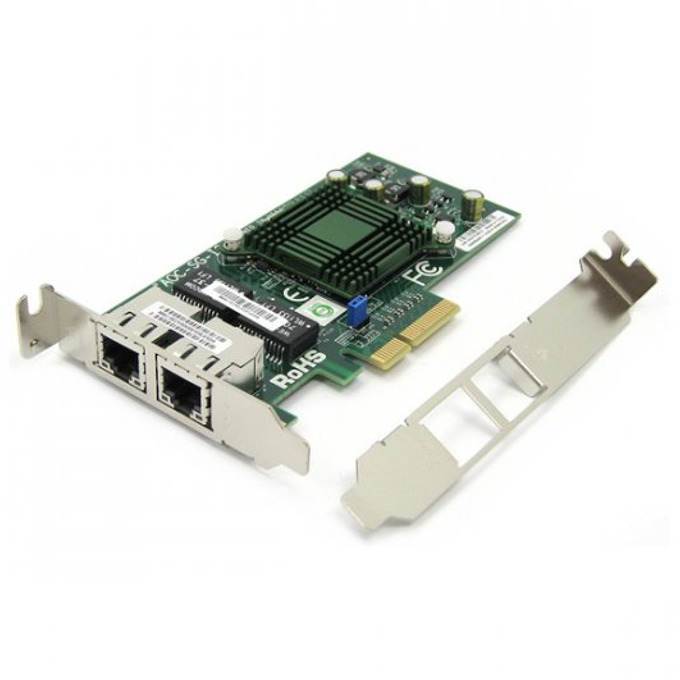

Supermicro Standard Low-Profile 2-port Gigabit Ethernet LAN card

AOC-SG-I2 provides industry best performance per cost ratio through its high-performing, PCI Express 10/100/1000 Ethernet connection. A compact design controller that also improves flexibility and performance in a virtualized environment in multi-core systems by lowering interrupt overhead and providing sorted multiple data queue paths.

- PCI Express 2.0 (2.5Gbps)
- Intel I/O Acceleration Technology (I/O AT)
- Jumbo Frames support up to 9.5KB packets
- VMDq for Virtualized Environments
- Low-latency interrupts
- Wake On LAN (WOL)
- Pre-boot Execution Environment (PXE)
- Direct Cache Access (DCA)
- iSCSI Boot

Specifications

Intel 82575EB dual-port Gigabit Ethernet controller
Dual RJ45 connectors
PCI-e x4
Low-profile standard form factor
Intel I/O AT to improve CPU utilization
MSI-X support to minimize the overhead of interrupts and allow load balancing of interrupt handling between different CPUs/cores
Low-latency interrups
Support caches up to 64 packets descriptors per queue
Support for transmission and reception of packets up to 9.5KBs (Jumbo Frames)
IEEE 802.3 auto-negotiation
IEEE 802.3 compliant flow-control support
VMDq for virtualized environments
Direct Cache Access (DCA)
Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPV6) capabilities
Tx TCP segmentation offloading (IPv4, IPv6)
Wake on LAN (WOL) support
iSCSI boot
Supported cable length is more than 100 meters
Supported OS: Windows, Linux, VMWare, FreeBSD, Netware

http://www.supermicro.com/products/accessories/addon/AOC-SG-I2.cfm
