Мрежови адаптер Mercusys MA210E, от PCI-E x1 към 1x x10/100/1000/1000 RJ-45

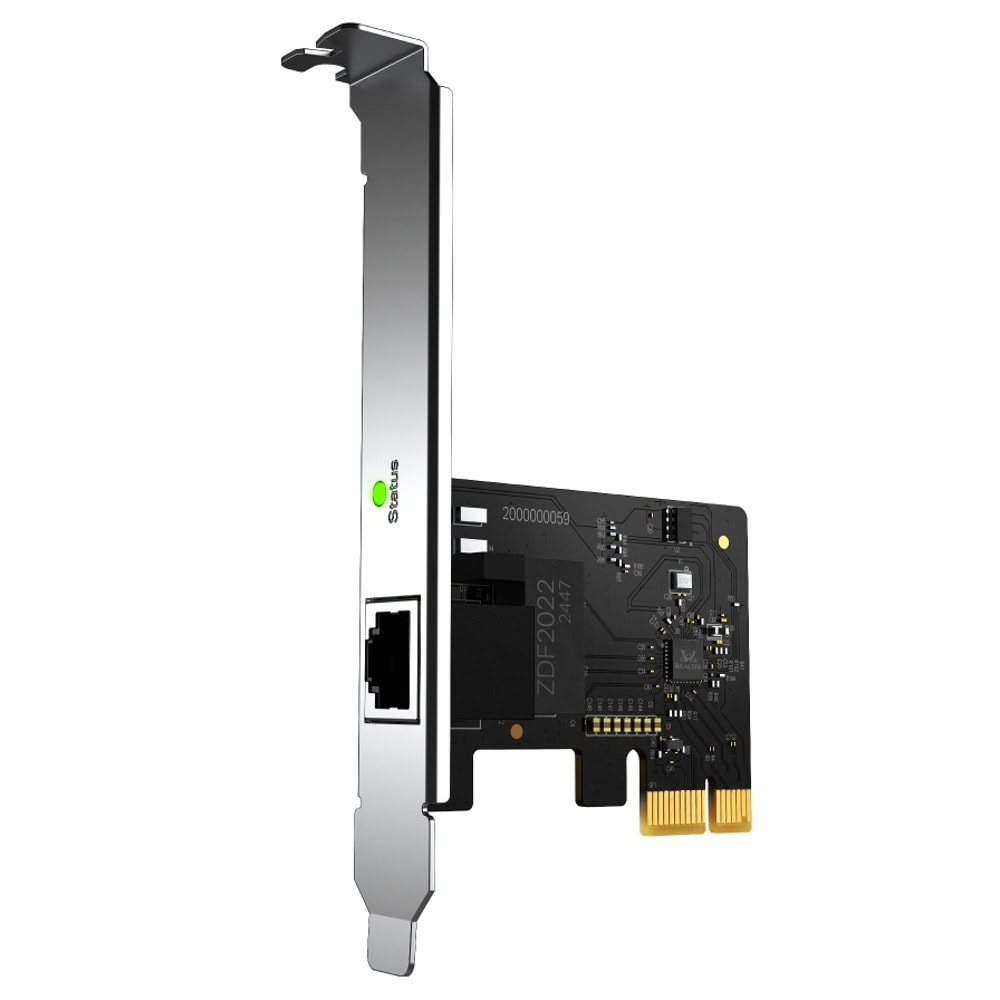

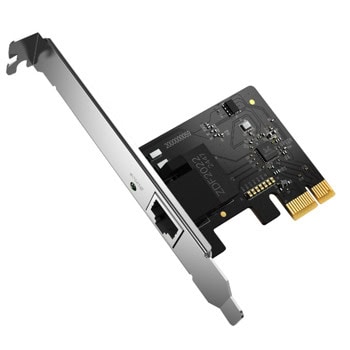

Mercusys MA210E

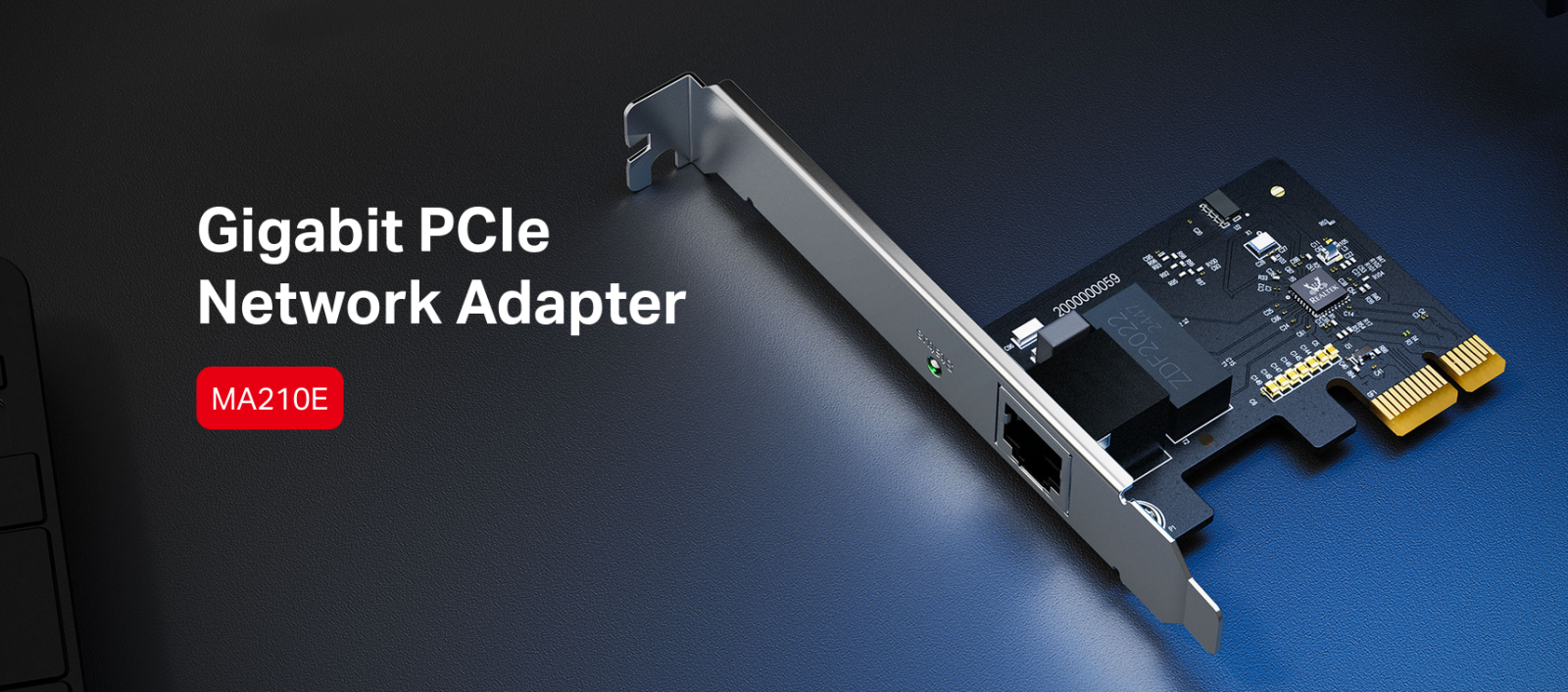

Gigabit PCle Network Adapter

Stable Gigabit Networking — MA210E delivers high speeds of up to 1 Gbps. guaranteeing smooth data transfers for both internet access and local data transmissions.

Multi-Speed Compatible — Automatically negotiates between higher and lower speed connections to ensure smooth data transmission for all your bandwidth-intensive tasks.

Share Files in Seconds — MA210E fully utilizes your gigabit internet access and can seamlessly connect to NAS devices for high-speed local data transmission.

Flow Control — Through the point-to-point dynamic credit management mechanism, high-speed data transmission with zero packet loss is ensured,achieving a low-latency multi-gig transmission experience.

Wake-on-LAN — Remotely power on/off your PC via a dedicated network signal, making it the ultimate companion for remote work.

Energy-Efficient Ethernet (EEE) — Equipped with EEE technology, MA210E can slash energy use, trim your carbon footprint, and guarantee flawless performance.

Flexible Installation — Includes both standard and low-profile brackets for compatibility with various board designs.

System Compatibility — Supported operating systems include Windows 11/10/8.1/8/7, Windows XP, and Windows Vista. No driver needed on Windows 11/10/8.1/8. Drivers for other systems are available on the official MERCUSYS website.

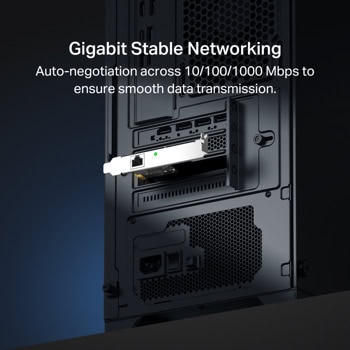

Stable Gigabit Networking

Reduce connection problems caused by interference and signal attenuation. Ensure reliable, high-performance connectivity with 10/100/1000 Mbps auto-negotiation for demanding tasks

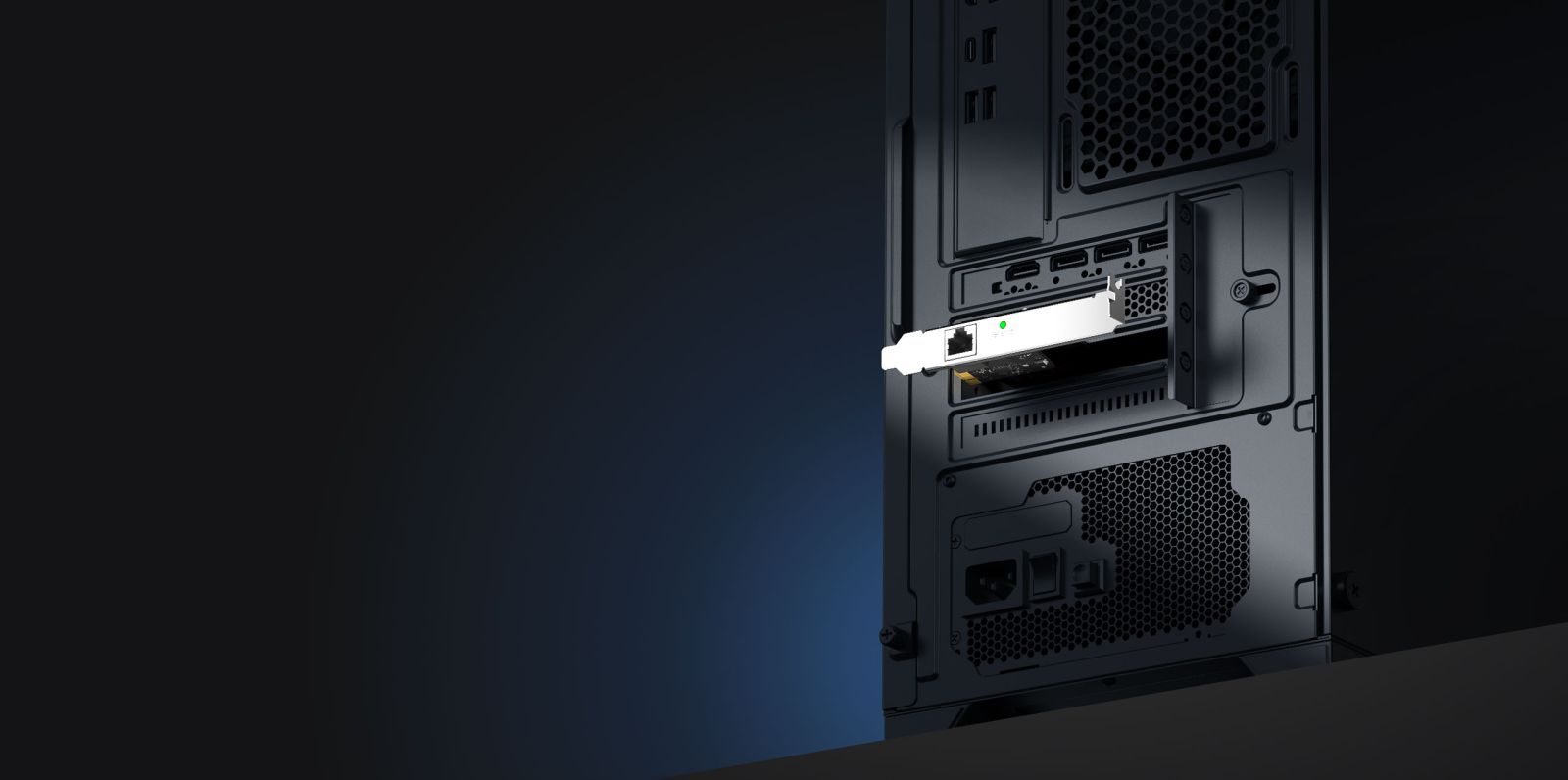

Wider Application Range

MA210E maximizes 1 Gbps internet access, seamlessly connecting to NAS devices for high-speed data transmission or linking to a host server for enhanced hardware performance.

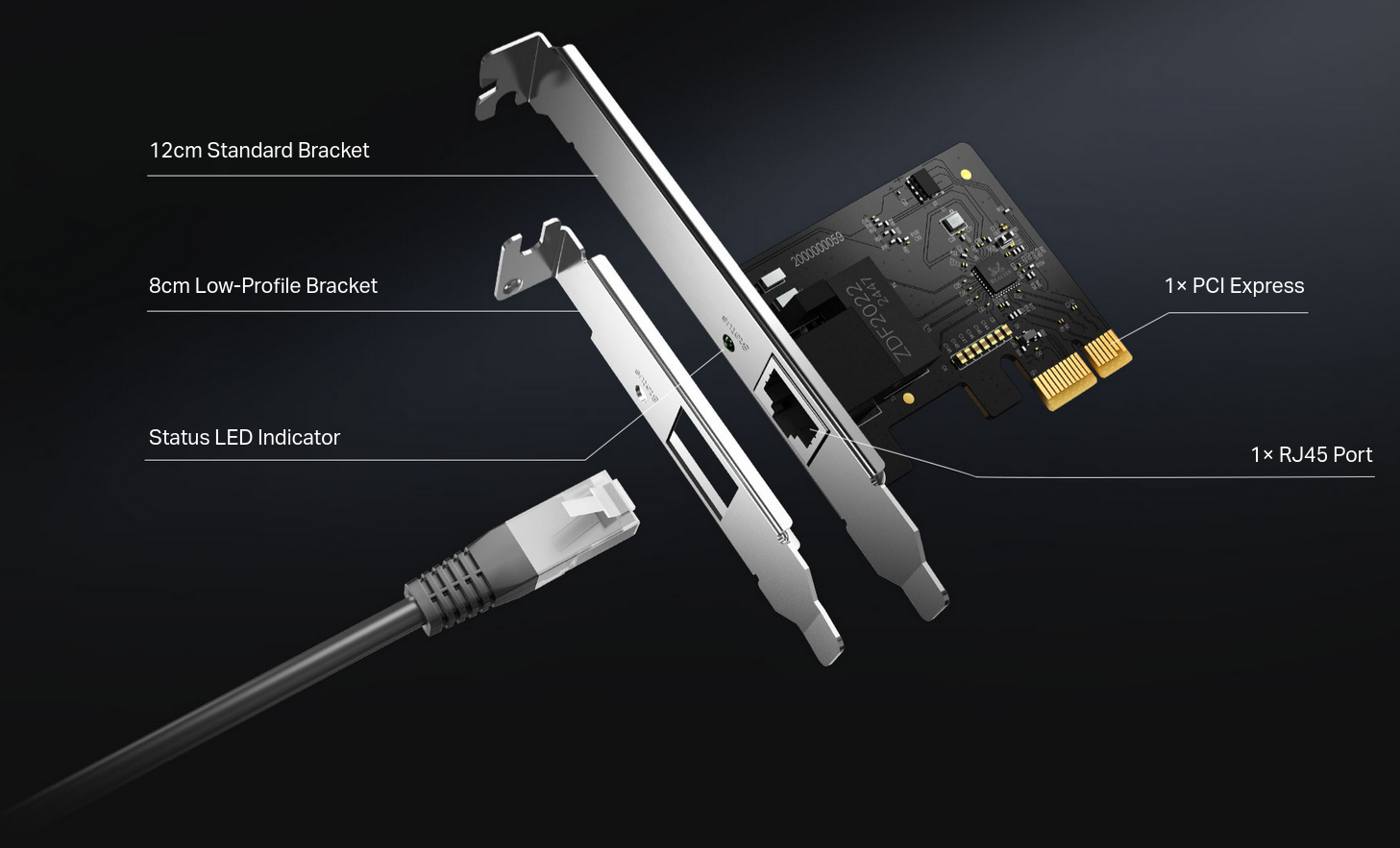

Precision-Crafted for Unmatched Quality

Includes both standard and low-profile brackets for compatibility with various board designs. The LED indicator lets you effortlessly know the speed of your network connection, ensuring your experience exceeds expectations at every touchpoint.

Hardware

Размери (ШxДxВ)

78.1 × 120.8 × 21.5 mm

(3.1 × 4.8 × 0.8 in)

Интерфейси

1× PCI Express, 1× RJ45 Port

Network Media

1000BASE-T/100BASE-TX

Стандарти и протоколи

• 802.3x Flow Control
• 802.3az Power Saving
• 802.3i 10BASE-T
• 802.3u 100BASE-T
• 802.3ab 1000BASE-T

Скорост на предаване на данни

Auto negotiation between 10 Mbps, 100 Mbps, and 1 Gbps

LED

Status

Others

Сертификати

CE, RoHS

Съдържание на пакета

Gigabit PCIe Network Adapter (MA210E)
Standard/Low-Profile Brackets
Quick Installation Guide

Заобикаляща среда

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

System Requirements

Supported operating systems include Windows 11/10/8.1/8/7, Windows XP, and Windows Vista
