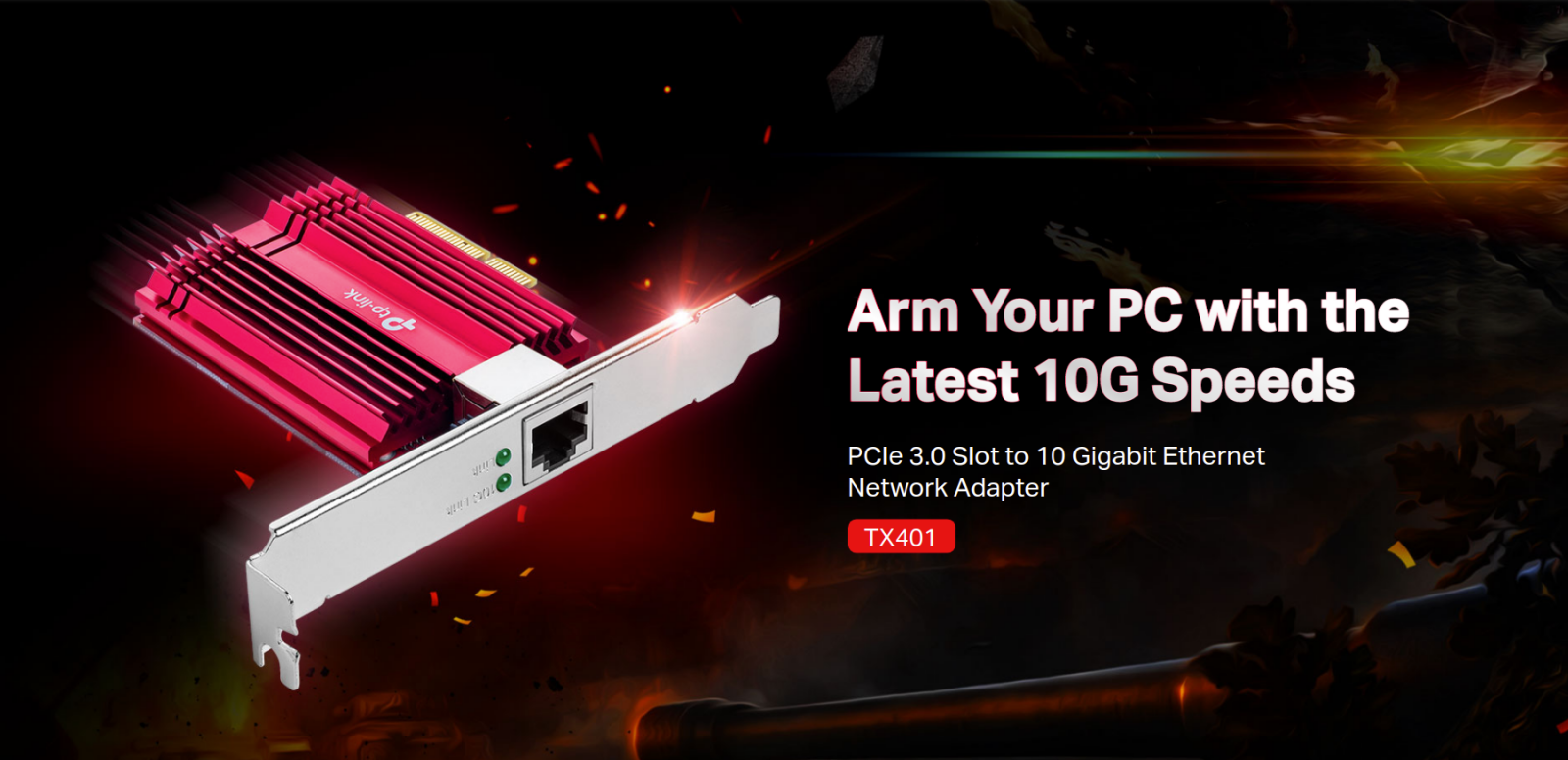

Мрежови адаптер TP-Link TX401, 10 Gbps, от PCI Express 3.0 x4 към 1x 100/1000/10000 RJ-45, червен

TX401 New

10 Gigabit PCI Express Network Adapter

• 10 Gbps Networking - Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.†

• Versatile Compatibility - With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

• CAT6A Ethernet Cable - To maximize TX401's performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.

• Low-Profile and Full-Height Brackets - In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.

• Comprehensive System Support - Fully compatible with Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, and Linux to meet your diverse operating system needs

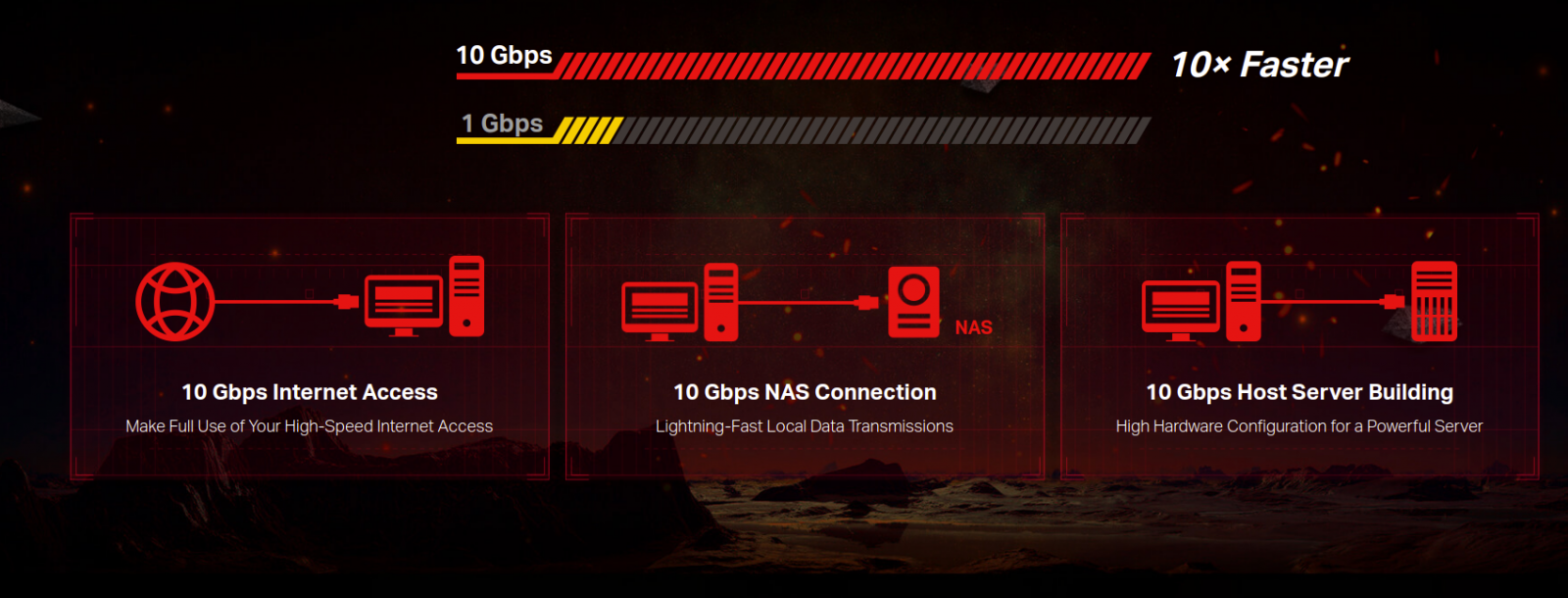

Upgrade to 10G Networking

10 Gigabit Ethernet reaches blazing-fast data rates up to 10 billion bits per second—10× faster than standard Gigabit Ethernet. It’s a brand-new era for all your bandwidth-intensive tasks from local data transfers to internet access.

Local Data Transmissions in Seconds

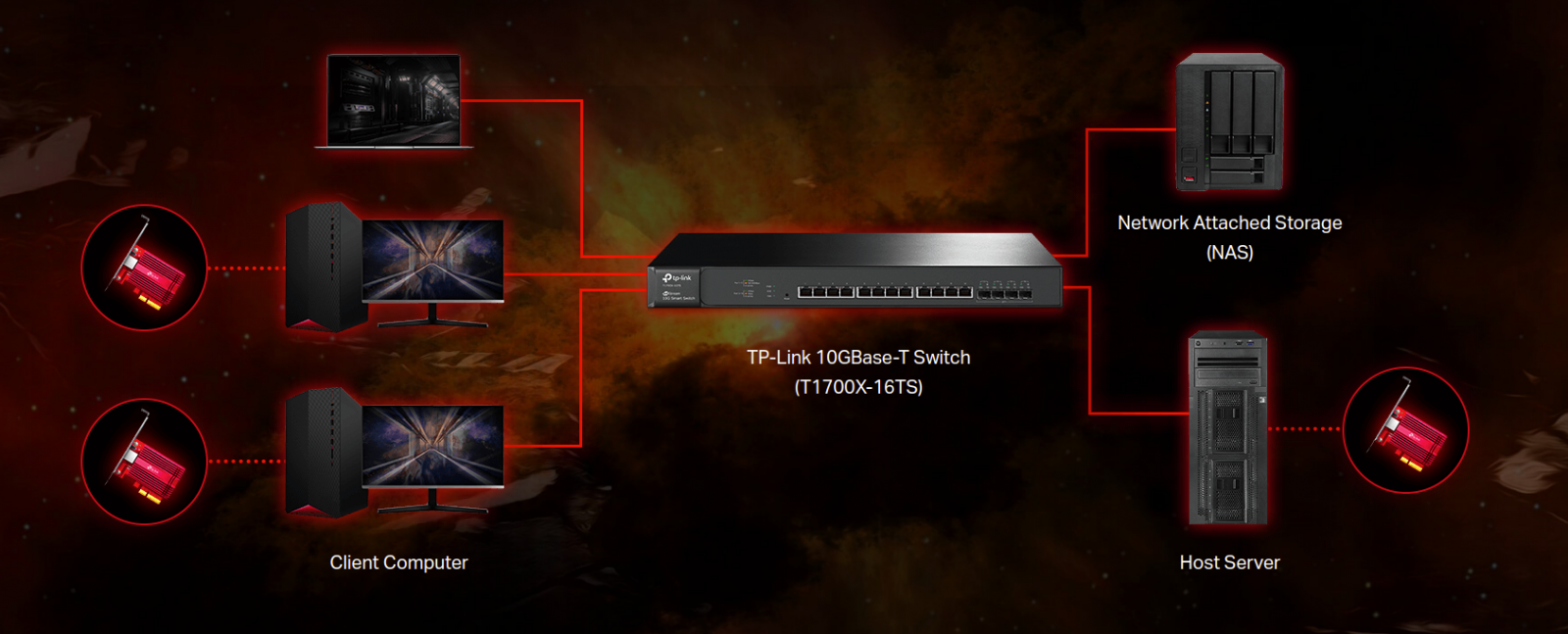

For local connections, a 10G PCIe adapter helps build a lightning fast transport channel between a central server and other working machines in your local network. Local data transmissions will be a breeze for you as you handle bandwidth-intensive tasks easily at your home or office.

Specifications

HARDWARE FEATURES

Standards and Protocols:  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE802.3an, IEEE802.3az, IEEE 802.3x

Interface:  1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port

Network Media:  10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX

LED:  10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act

Data Rates:
100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode,
200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode

Dimensions:  120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)

Flow Control:  802.3x

OTHERS

Certification:  FCC, CE, RoHS

System Requirements:  Windows 10/8.1/8/7, Windows Servers 2019/2016/2012 R2, Linux

Environment:
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
