A Display Optimized for Compatibility

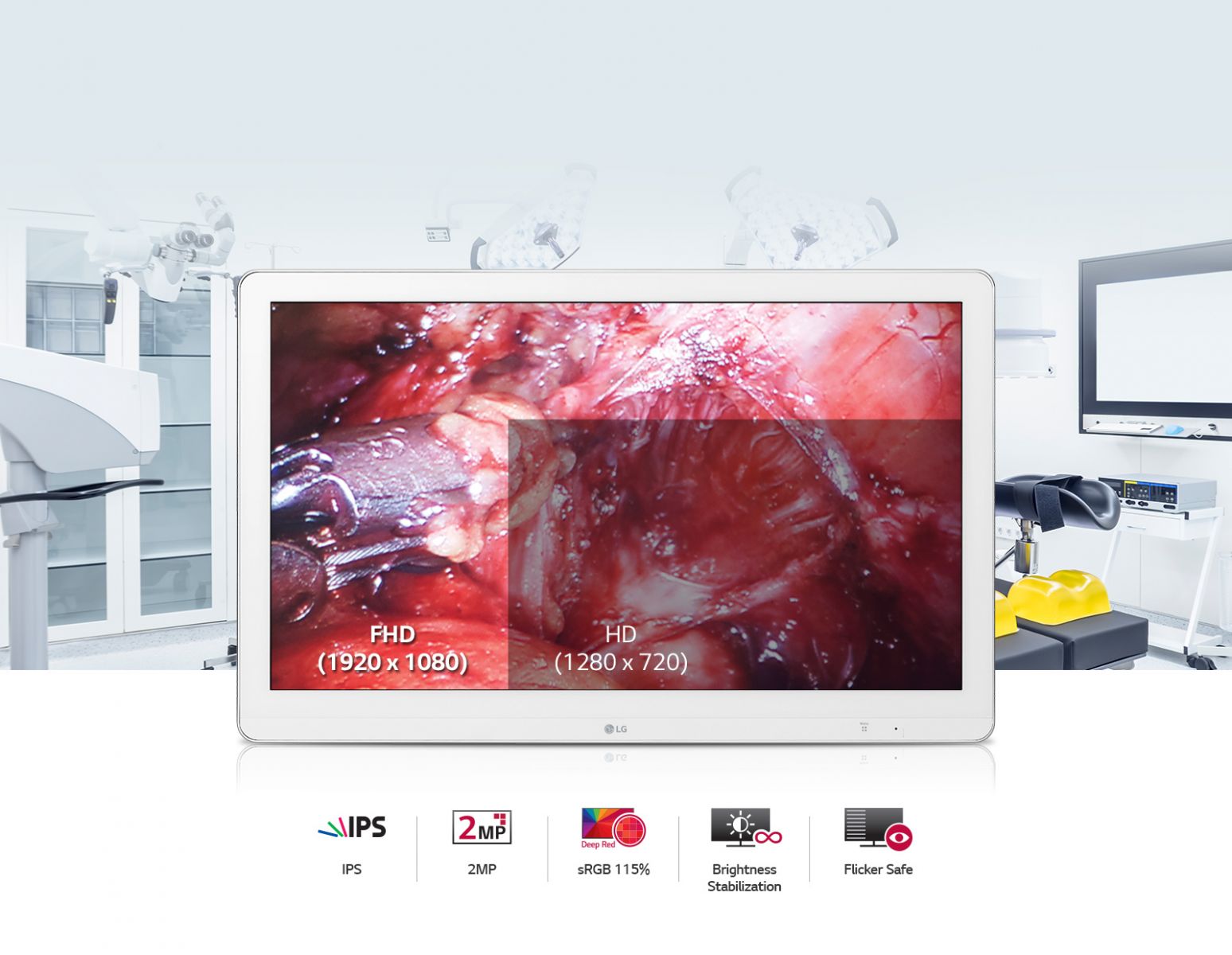

The detailed picture quality of the LG surgical monitor meets operating room requirements. With its 27-inch Full HD IPS Display, the LG surgical monitor improves work efficiency.

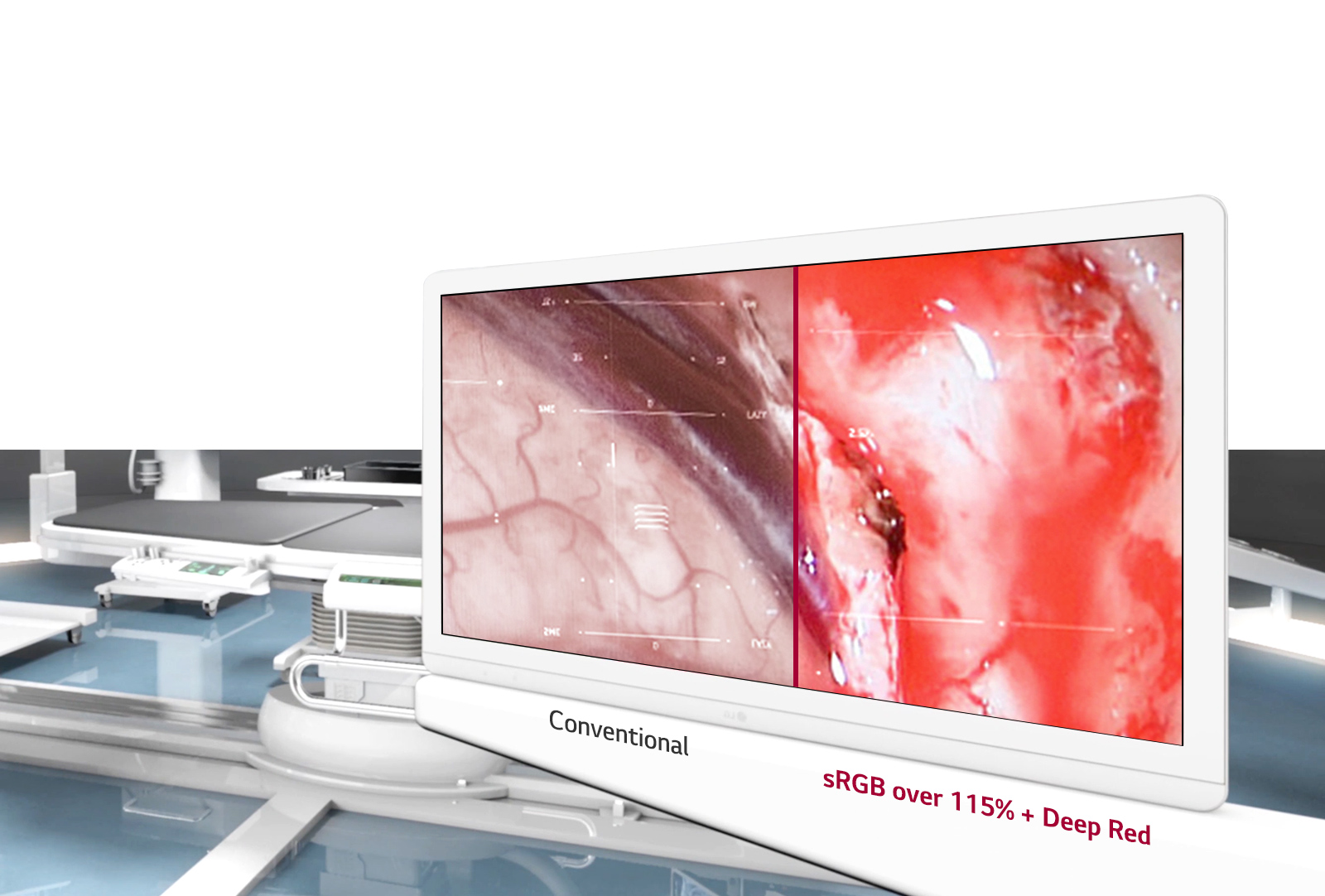

Full HD IPS

Optimal Image Quality

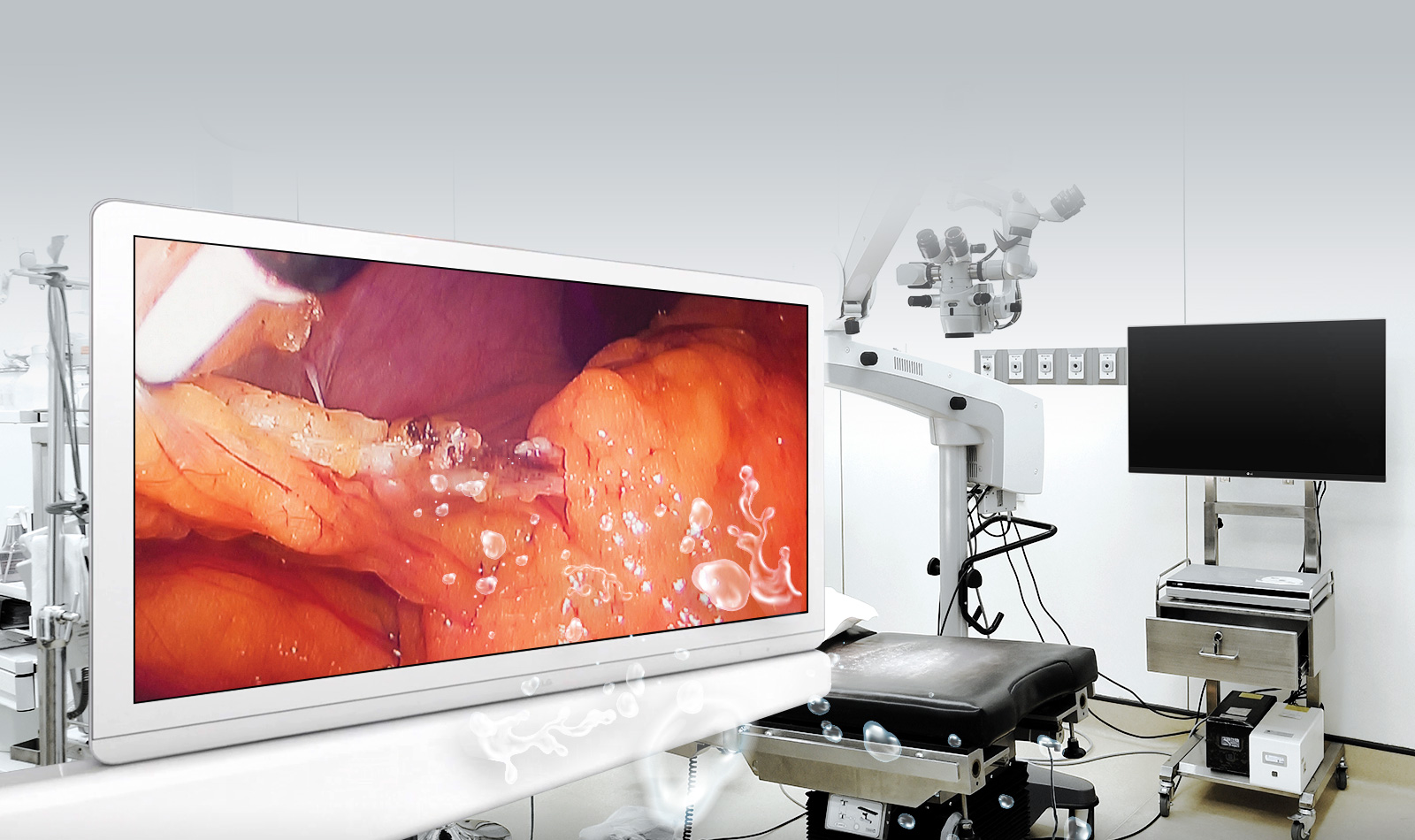

Designed for the Operating Room

SPECS

PANEL
Type: IPS + Glass
Size: 27 ”(16: 9)
Native Resolution: 1920 x 1080
Pixel Pitch: 0.1554 mm x 0.1554 mm
Display Colors: 10bit / sRGB 115% (Deep Red)
Viewing Angles: 178/178
Brightness: 1000cd / m2 (Typ.)
Surface Treatment: Protection Glass
Contrast Ratio: 1000: 1 (Typ.)
Response Time: 14ms (Typ.)

VIDEO SIGNALS
Input Terminals: HDMI (1.4) x 1, S-Video x 1, Composite x 1, 3G-SDI x 1, DVI-I x 1 (Compatible with D-sub & Component via adapter)
Output Terminals: 3G-SDI x 1, DVI-I x 1
Digital Scanning Frequency (H / V): HDMI, DVI-D: 30 ~ 83kHz / 56 ~ 61Hz, D-sub: 30 ~ 83kHz / 56 ~ 61Hz
Sync Formats: Dynamic Sync Mode (Thru Mode)

USB
Function: 1 upstream, 1 downstream (For Calibration)
Standard: USB 3.0

POWER
Power Requirements: 100-240Vac, 50 / 60Hz
Maximum Power Consumption: 120W
Power Management: 0.3W

SENSOR
Sensor: Brightness Stabilization

RESISTANCE RATING
Resistance Rating: IP35 / IP32 (Front / Back), 8H Glass

GAMMA
Gamma: Gamma 1.8 / Gamma 2.0 / Gamma 2.2 Gamma 2.4 / Gamma 2.6 DICOM Gamma curve

CERTIFICATIONS & STANDARDS
Certifications & Standards: IEC (IEC60601-1 / IEC60601-1-2, FCC (FCC part 15 Class A), CB, ANSI / AAMI ES 60601-1, CSA CAN / CSA-C22.2 NO. 60601-1, RoHS , REACH, WEEE, CE MDD (Class 1)
