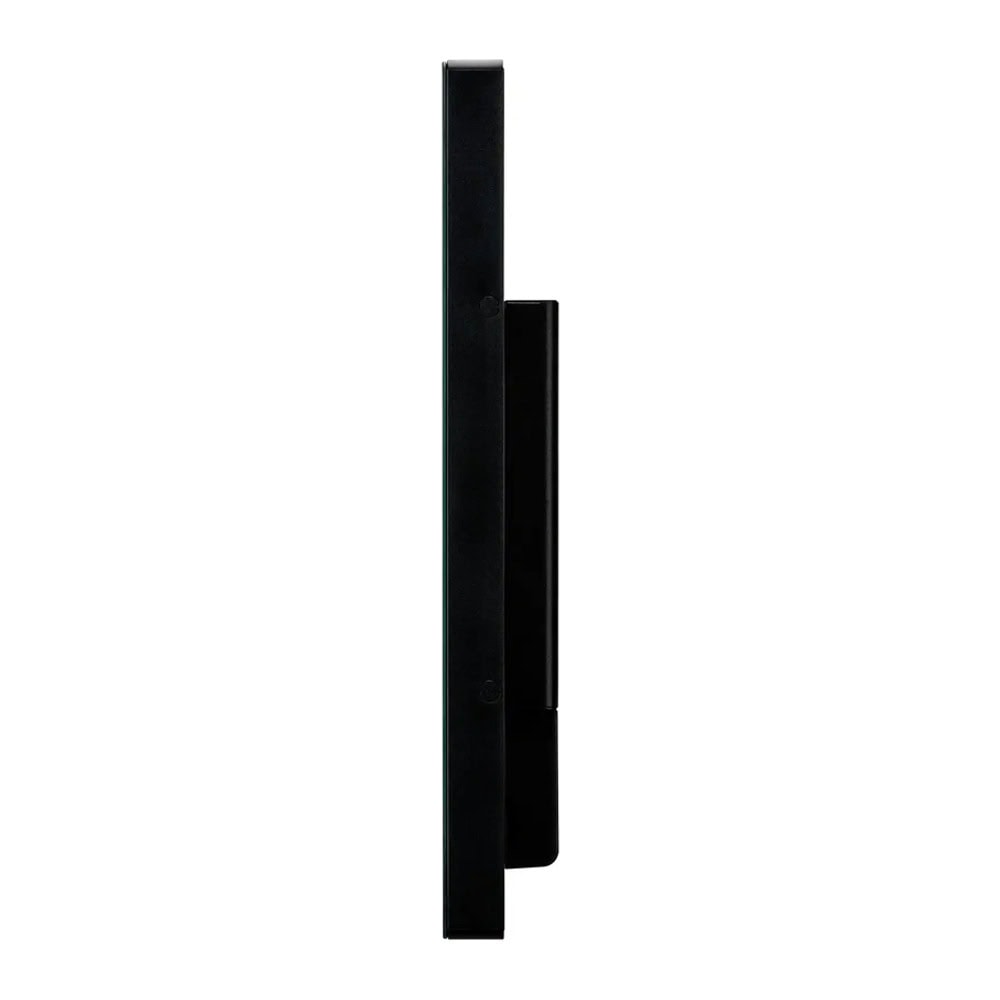

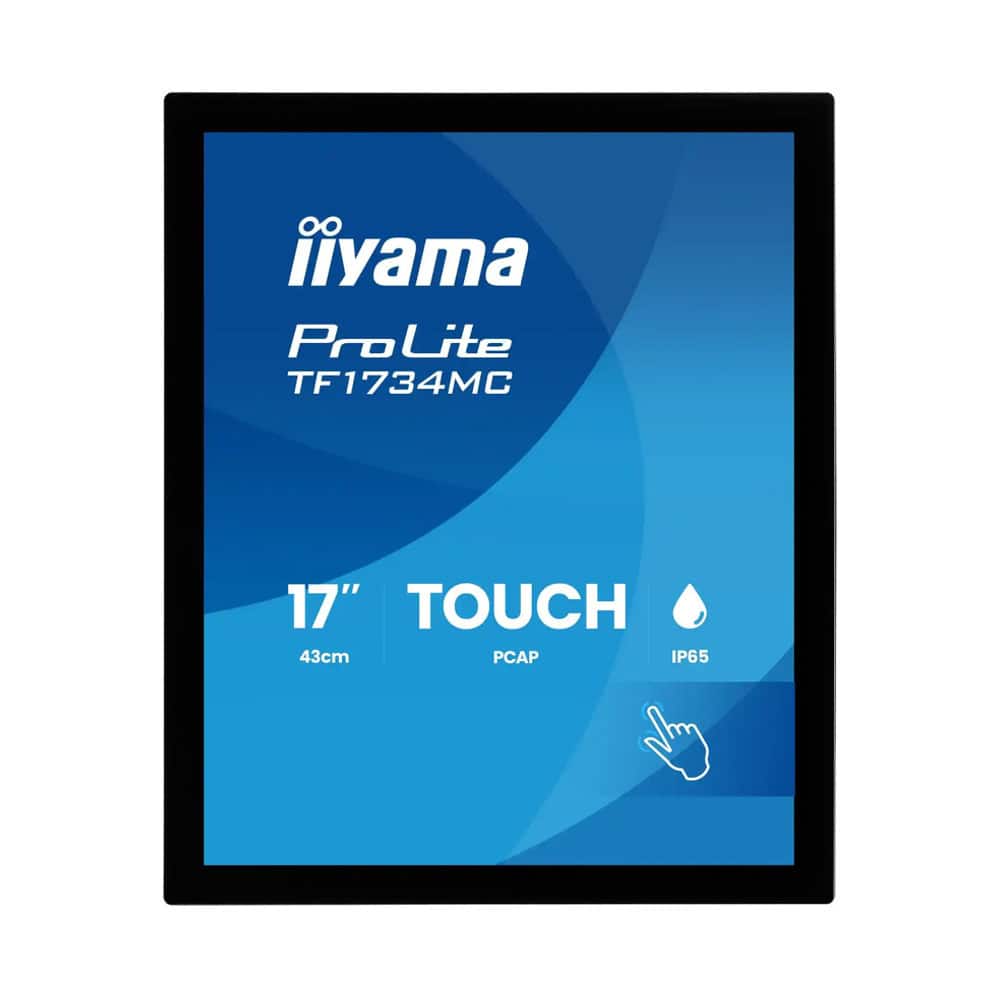

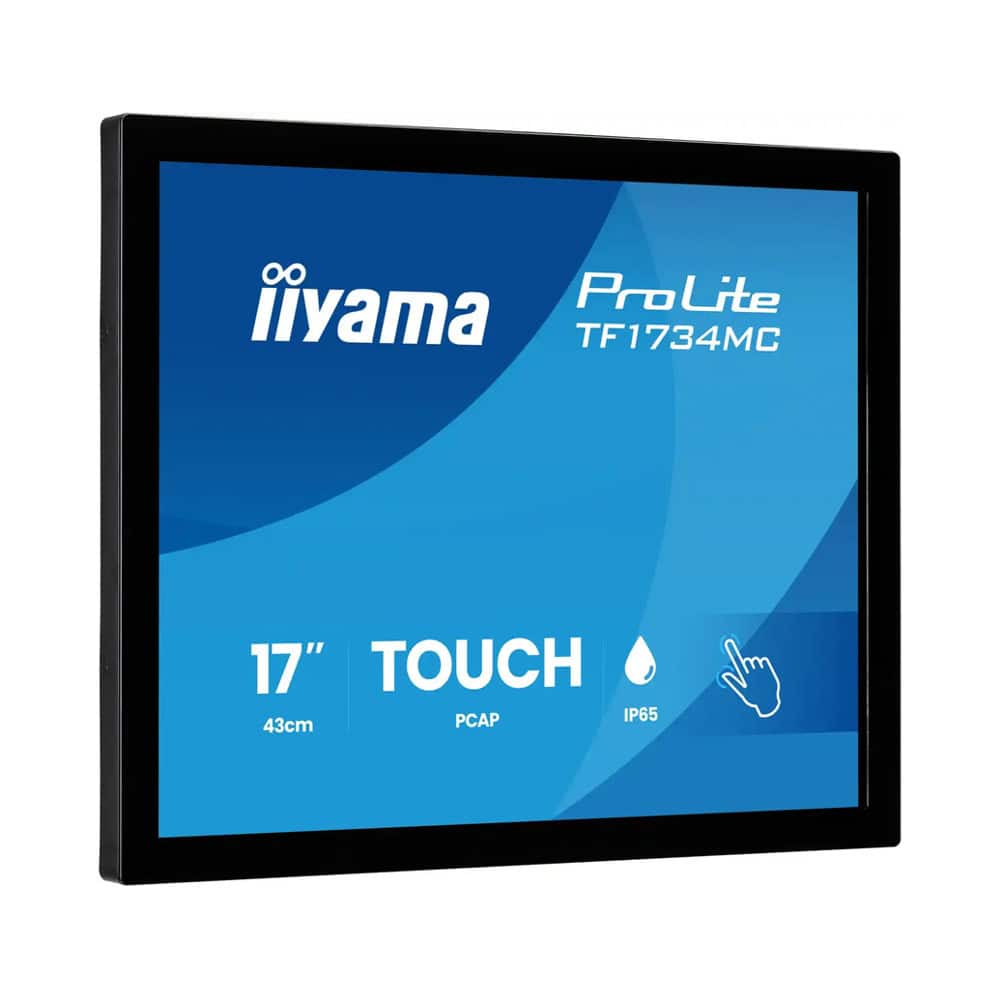

Name: Монитор IIYAMA ProLite TF1734MC-B8X, 17 (43.18 cm) TN Touch панел, 75Hz, SXGA, 5ms, 300 cd/m2, DisplayPort, HDMI, VGA, USB
Brand: Iiyama
SKU: MNLCIIYAMATF1734MCB8X
Price: 565.86 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

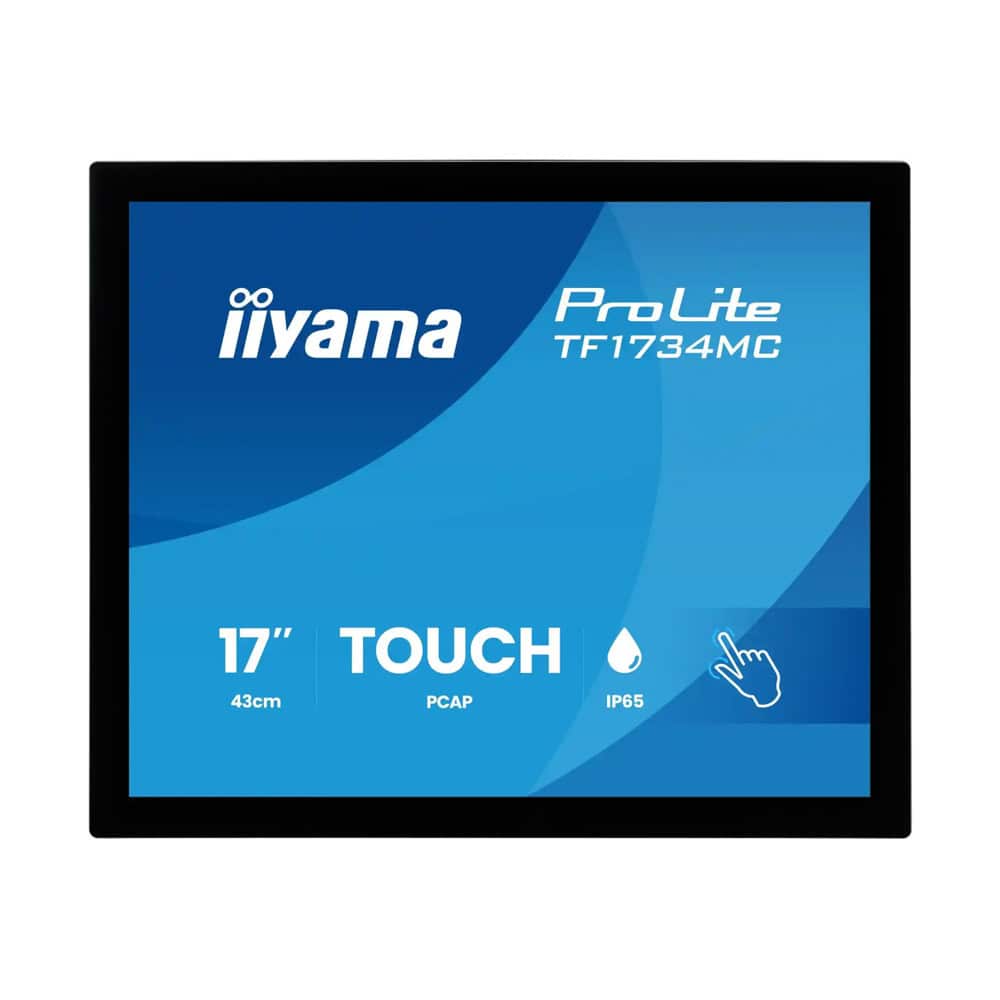

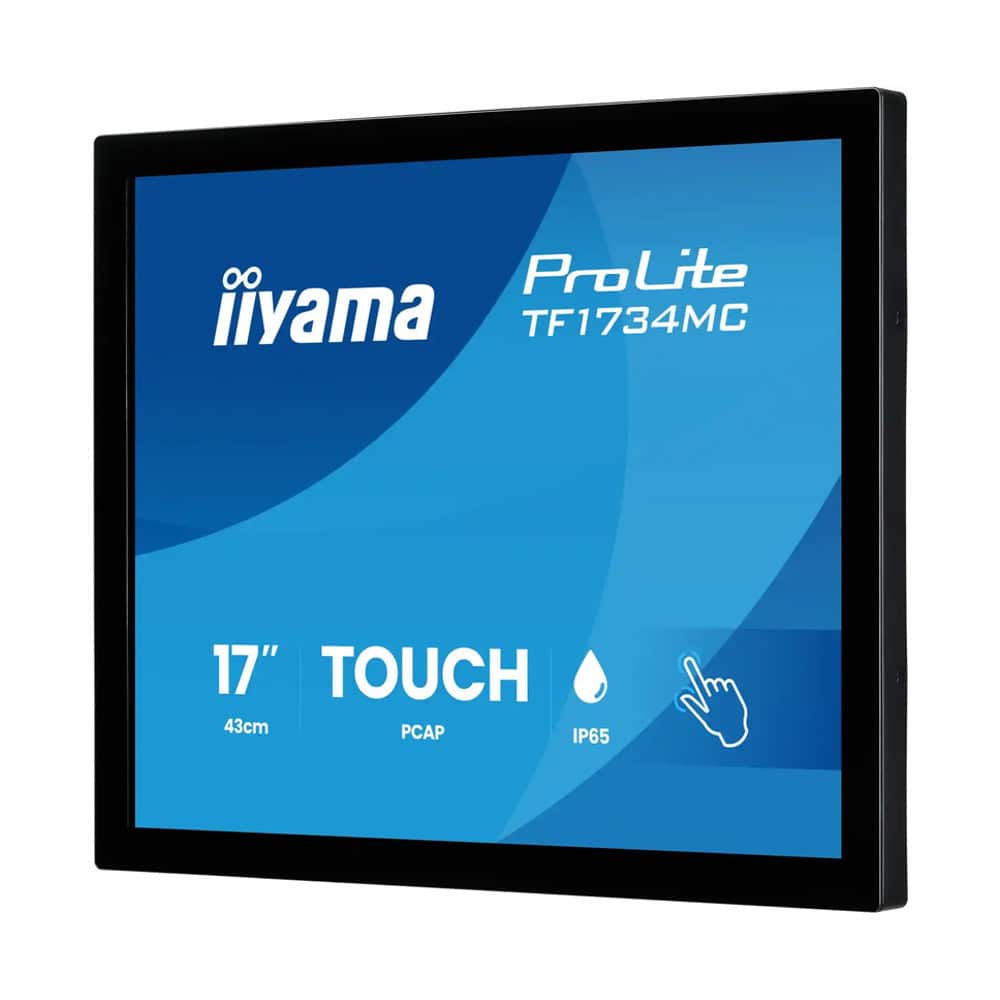

IIYAMA ProLite TF1734MC-B8X

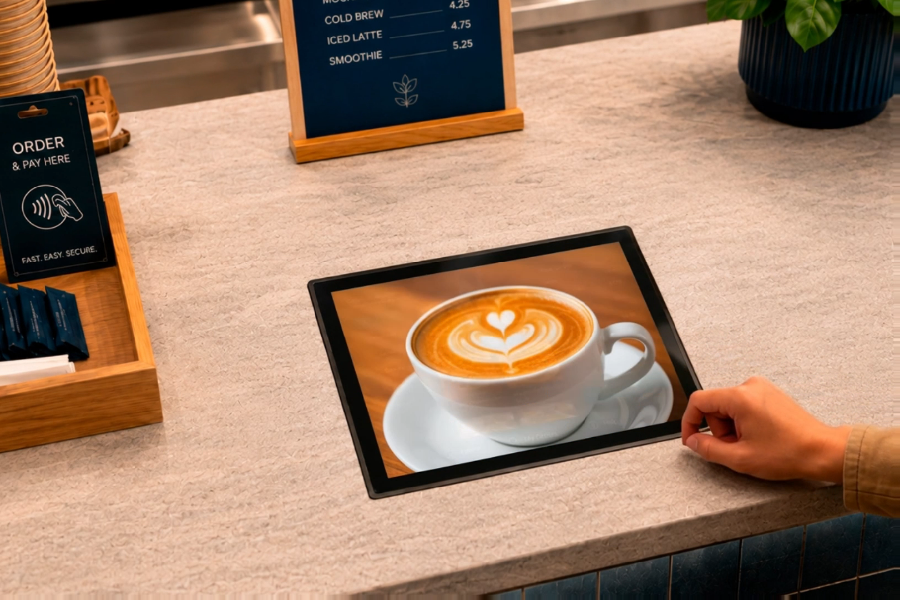

Touch works. Glass protects.

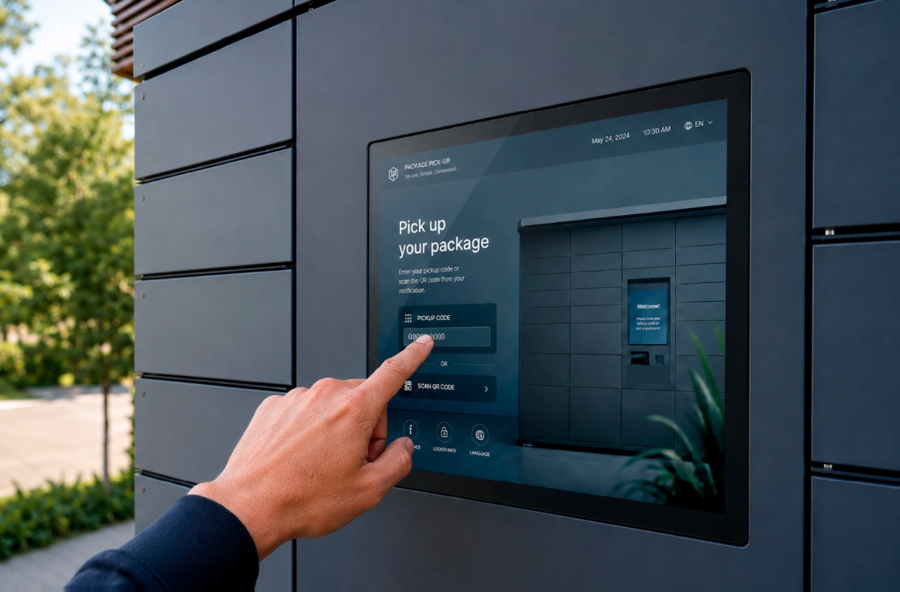

The display remains fully touch-responsive even when installed behind a protective glass layer. Ideal for kiosks, parcel lockers, self-service terminals and other public-facing installations where durability matters.

Reliable where conditions get tough

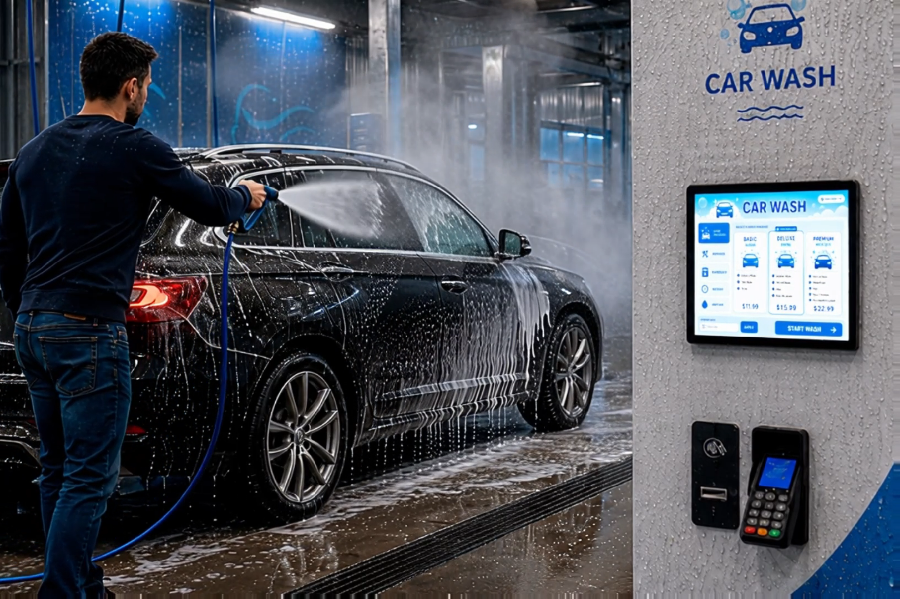

IP65 protection helps the monitor withstand dusty conditions and splashing water from any direction, making it suitable for more demanding environments.

Versatile by design

From wall-mounted interfaces to counter-based interaction, the monitor supports landscape, portrait and face-up installation, giving integrators more freedom to create intuitive touch solutions.

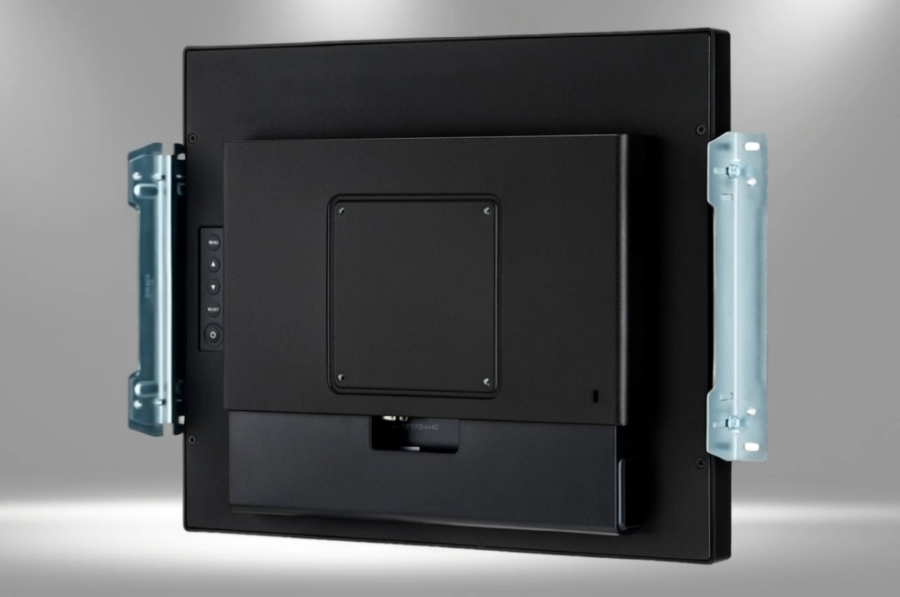

Open frame brackets

For ease of integration, the monitor can be equipped with optional external mounting brackets.

Display characteristics

Design	Edge to edge glass, Open Frame
Diagonal	17", 43cm
Panel	TN
Native resolution	1280 x 1024 @75Hz (1.3 megapixel) SXGA
Aspect ratio	5:4
Panel brightness	350 cd/m²
Brightness	300 cd/m² with touch
Light transmittance	85%
Static contrast	1000:1 with touch
Response time (BTB)	5ms
Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
Colour support	16.7mln
Horizontal Sync	31 - 80kHz
Viewable area W x H	338 x 270mm, 13.3 x 10.6"
Pixel pitch	0.264mm
Bezel colour and finish	black, matte

Touch

Touch technology	Projective capacitive
Touch points	10 (HID, only with supported OS)
Touch accuracy	+- 2mm
Touch method	Stylus, finger, glove (latex)
Touch interface	USB
Through-Glass	6mm
Palm rejection	yes

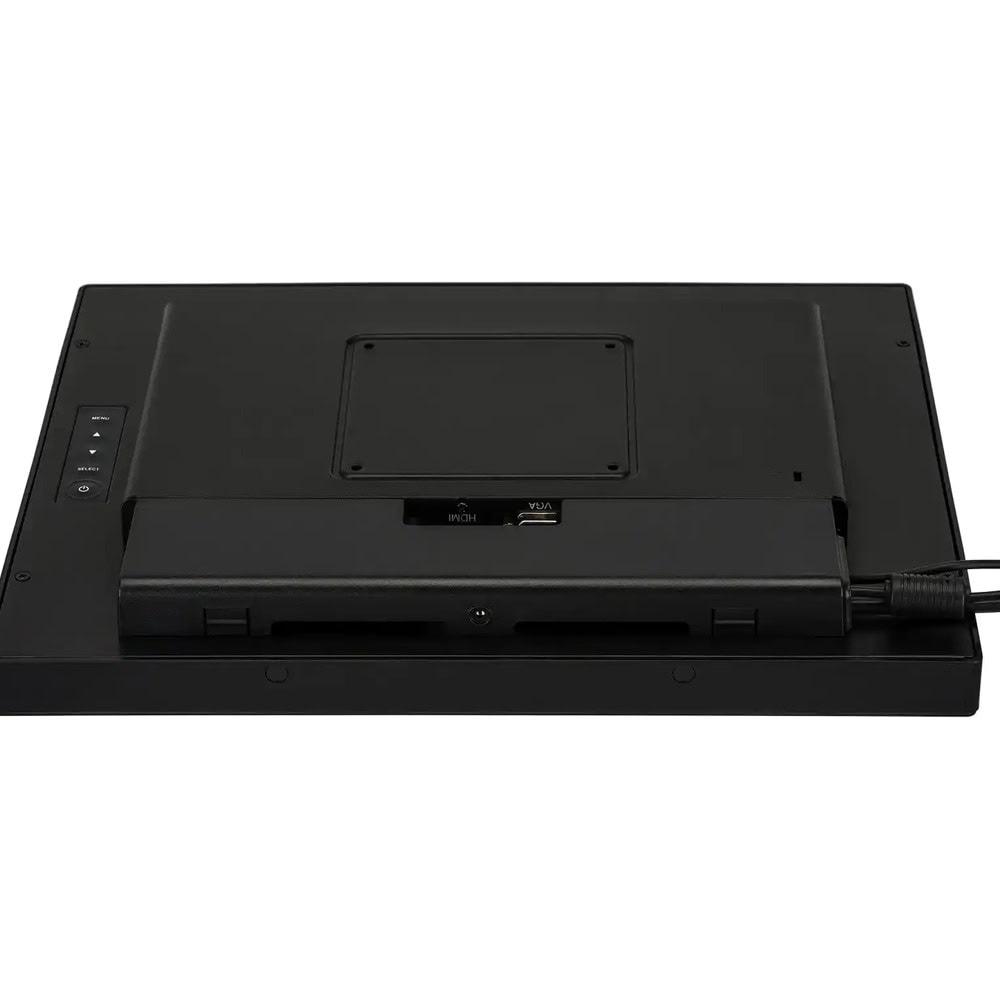

Interfaces / Connectors / Controls

Analog signal input	VGA x1
Digital signal input	HDMI x1 DisplayPort x1

Features

Extra	anti-fingerprint coating, touch through-glass
Glass thickness	3mm
60950 Ball drop test	yes
Water and dust protection	IP65 (front)
OSD key lock	yes

General

OSD languages	EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control buttons	Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
User controls	picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory)
Plug&Play	DDC2B

Mechanical

Orientation	landscape, portrait, face-up

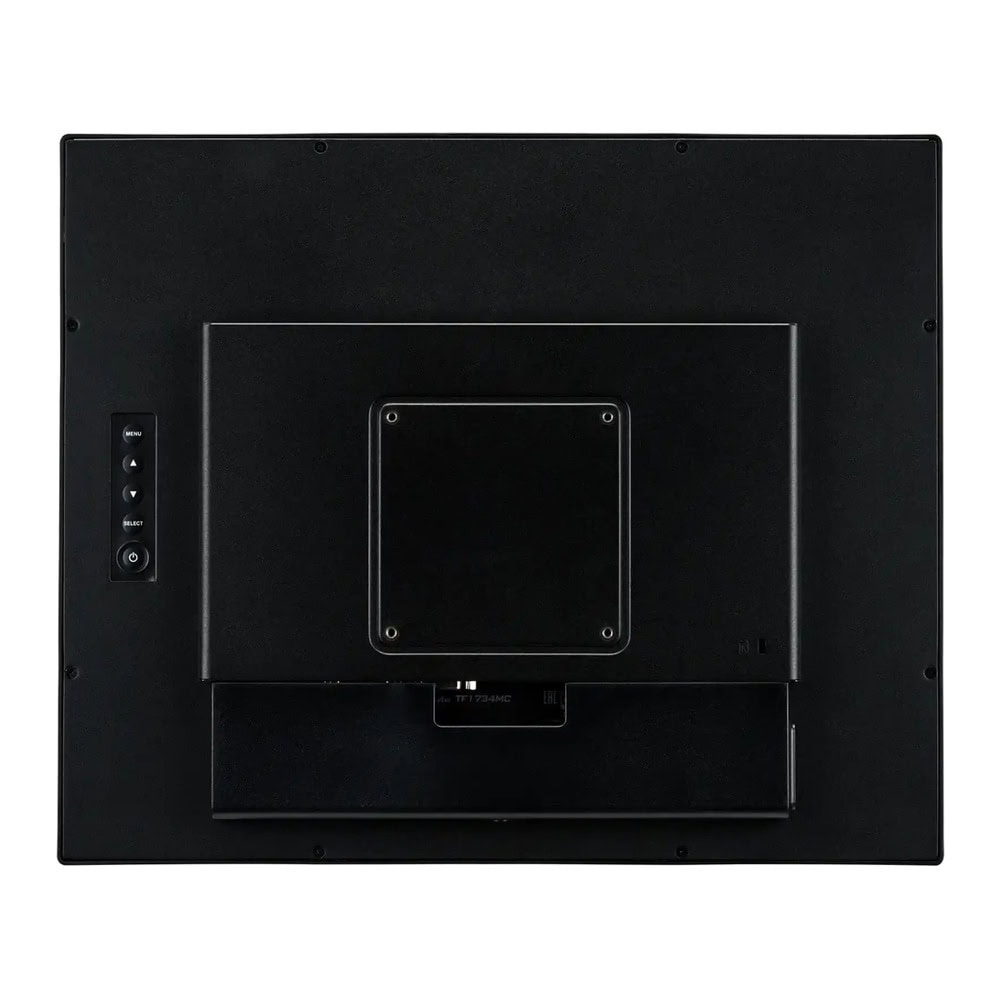

VESA mounting	100 x 100mm

Power management

Power supply unit	External
Power supply	DC 12 V
Power usage	13W typical, 1.5W stand by, 0.3W off mode

Sustainability

Regulations	CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, UKCA

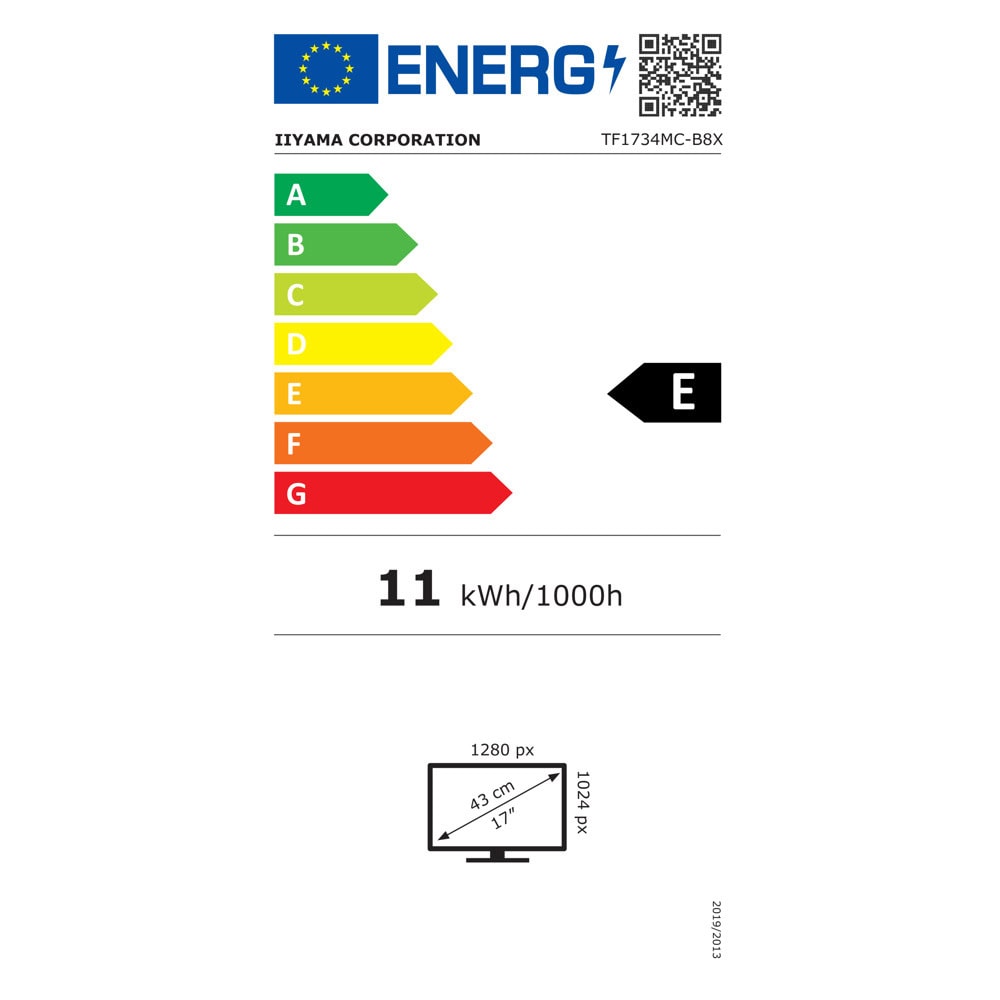

Energy efficiency class (Regulation (EU) 2017/1369)	E
REACH SVHC	above 0.1%: Lead, Lead monoxide, Boric acid

Dimensions & Weight

Product dimensions WxHxD	369 x 307 x 47.5mm
Weight	3.6kg

Виж още Монитори Iiyama
Виж всички Монитори в категорията

Технически характеристики

Портове
HDMI:	Да
DisplayPort:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Не
USB Type-А:	Да
VGA (D-Sub):	Да

Екран размер:	17" (43.18 cm)
Разделителна способност (max):	1280 x 1024
Тип матрица:	TN
Аспект изображение:	5:4
Честота на опресняване:	75 Hz
Време за реакция:	5 ms
Яркост:	300 cd/m²
TV Тунер:	Не
Тъчскрийн:	Да
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Classic
Извит:	Не
Преносим:	Не
