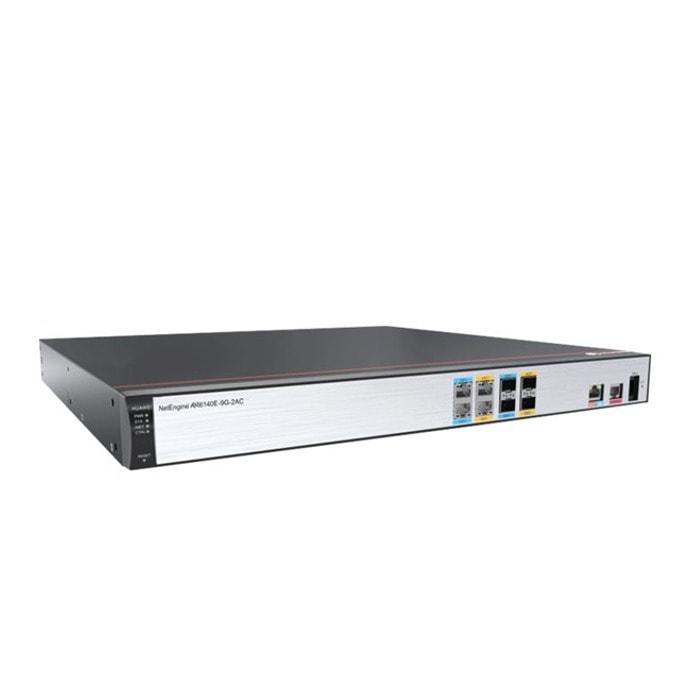

Рутер HUAWEI AR6140E-9G-2AC, WAN 2x 10/100/1000, 2x 1000Base-X - LC/PC, 3x LAN 10/100/1000, 2x 10/100/1000, 4GB RAM, 1GB Flash Memory, 1x USB

HUAWEI AR6140E-9G-2AC AC host 5xGE RJ45 4xGE SFP USB 3.0 4xSIC

General
Device Type: Router
Enclosure Type: Rack-mountable - 1U
Connectivity Technology: Wired
Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
Network / Transport Protocol: L2TP, PPPoE, PPPoA, DNS, L2TPv3, DHCPv6
Routing Protocol: OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, OSPFv3, MSDP, RIPng, MLD, IS-ISv6, BGP-4+, MBGP
Remote Management Protocol: SNMP 1, SNMP 2, RMON, SNMP 3, NETCONF, NTP, ICMP, YANG
Features: NAT support, VPN support, ARP support, IPv6 support, URL filtering, Spanning Tree Protocol (STP) support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Unicast Reverse Path Forwarding (URPF), DHCP relay, CAPWAP support, DHCP client, 802.1x authentication, Generic Routing Encapsulation (GRE), DiffServ Code Point (DSCP) support, Virtual Extensible LAN (VXLAN), MAC address authentication, Authentication, Authorization and Accounting (AAA), VLAN management, ISATAP tunnel support, Smart Application Control (SAC), IP Security (IPSec) support, DSVPN, PPPoA client, PPPoE server, PPPoE client, CPCAR, PPPoA server, L2TP support
Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.1p
Processor: 1.4 GHz
RAM: 4 GB
Flash Memory: 1 GB
Status Indicators: Power, system, active, iNET

Expansion / Connectivity
Interfaces
WAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45
LAN: 2 x 1000Base-X - LC/PC
USB 3.0: 1 x 9 pin USB Type A
Console: 1 x RJ-45
WAN: 2 x 1000Base-X - LC/PC
Expansion Slots: 4 (total) / 4 (free) x Smart Interface Card (SIC)

Power
Power Device: Internal power supply
Installed Qty: 2
Voltage Required: AC 100-240 V (50/60 Hz)
Electric Current Required: 2 A
Power Consumption Operational: 70 Watt

Dimensions & Weight
Width: 44.2 cm
Depth: 43.12 cm
Height: 4.44 cm
Weight: 5.35 kg
