Name: Интерактивен дисплей Hikvision DS-D5F10CB/BH, 10.1 (25.65 cm) WXGA 10-точков сензорен дисплей, USB, Bluetooth, LAN
Brand: Hikvision
SKU: MNSPHIKVISIONDSD5F10CBBH
Price: 1533.11 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Hikvision DS-D5F10CB/BH

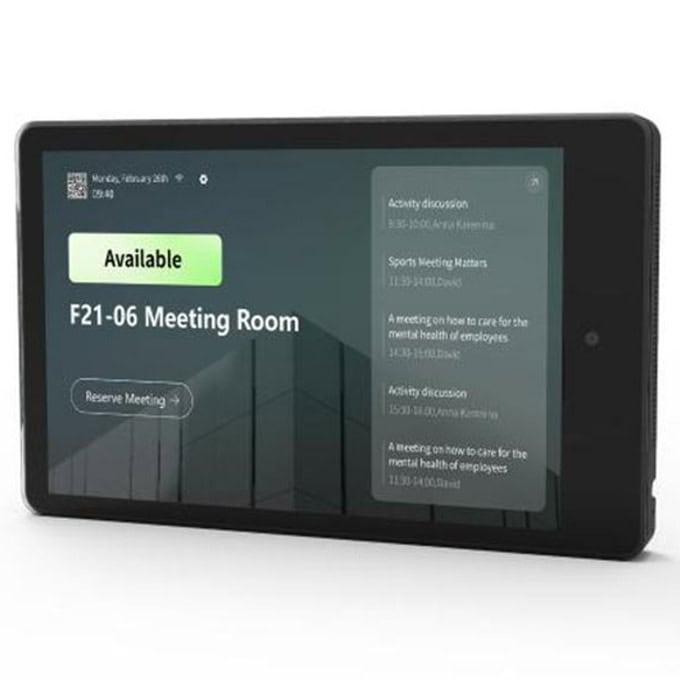

Meeting information display: Meeting topic, meeting room information, host, time and other information according to the meeting status;
Face and swipe card sign-in authentication: During the meeting time, through automatic identification and swipe card authentication, participants are signed in and reported to the platform;
Access control linkage control: According to the result of personnel sign-in authentication, trigger the electric signal, directly linkage electromagnetic lock to open the door;
System compatibility: support for AD domain functions and access to exchange server
Meeting management system: Hispire SMM Platform

Category	Specification	Details
Display	Screen Size	10.1 inch
	Physical Resolution	1280 × 800
	Brightness	250 cd/m²
	Viewing Angle	170° (H) / 170° (V)
Touch	Touch Points	10-point touch
Built-in System	Processor	Quad-core ARM Cortex-A55
	Memory (RAM)	2 GB
	Built-in Storage	16 GB
	Operating System	Android 11.0
	Camera	2 MP WDR Camera
	Card Reader	NFC 13.56 MHz (ISO14443A / ISO14443B / ISO15693 / MIFARE Classic / Sony Felica)
	Microphone	Built-in
Internal Function	Loudspeaker	8 Ω, 2 W × 2
Interface	USB Interfaces	Micro USB OTG × 1, USB 3.0 × 1
	Audio Interface	3.5 mm Audio × 1
	Access Control Interface	Access control linkage interface × 1
	Network Interface	RJ45, 1000M LAN (IEEE 802.3at, PoE 56–57 V, Class 4, 25.5 W)
	Bluetooth	Bluetooth 4.1
	Indicator	LED
General	Power Supply	12 V DC, 1.5 A
	Power Consumption	18 W
	Mounting Type	Wall mounting
	Product Dimensions	275 × 170 × 25 mm
	Net Weight	1.5 kg
	Package Dimensions	390 × 220 × 68 mm
	Gross Weight	3.7 kg
	Packing List	Power adapter ×1, Access control linkage line ×1, Quick start guide ×1, Screw kit ×1, Micro USB cable ×1, Compliance manual ×1
Working Environment	Operating Temperature	0 ℃ ~ 40 ℃
	Storage Temperature	−40 ℃ ~ 85 ℃
	Operating Humidity	0% ~ 95%
