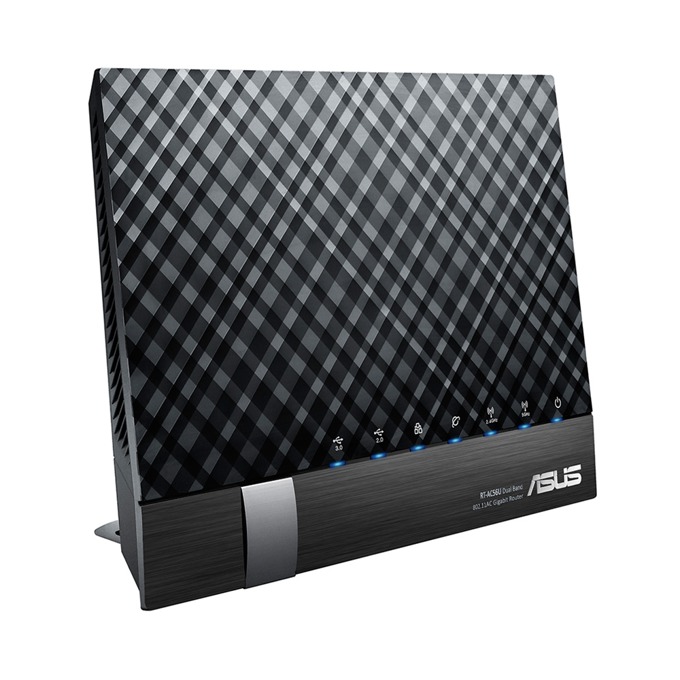

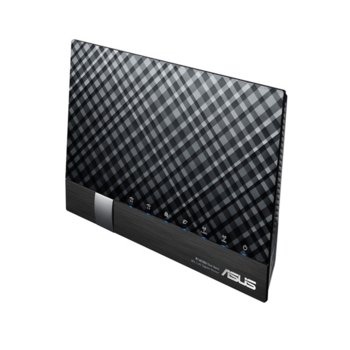

Asus RT-AC56U, Wireless AC Router, 300+867Mbps, 4x Port 1000Mbps, USB 3.0

802.11ac Dual-Band Wireless-AC1200 Gigabit Router


- 5th generation 802.11ac chipset gives you concurrent dual-band 2.4GHz/5GHz at up to super-fast 1167Mbps
- ASUS AiCloud app included! Sync, share, and stream your files on the go
- AiRadar optimizes signal strength in any direction with 150% greater coverage
- USB 3.0 plus USB 2.0 ports for file, 3G/4G, and printer sharing
- ASUSWRT dashboard UI enables 30-sec easy setup with sleek network monitoring and control


Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11d, IEEE 802.3, IEEE 802.3u, IEEE 802.11i, IEEE 802.11e, IPv4, IPv6

Product Segment
AC1200 enhanced AC performance; 300+867Mbps

Data Rate
802.11a : 6,9,12,18,24,36,48,54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 300Mbps
802.11ac: up to 867Mbps

Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control

Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support

Firewall & Access Control
Firewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter

Management
UPnP, DLNA, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Virtual Server, DMZ, Universal Repeater, System Event Log

VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
WAN Connection Type

Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support

Utilities
．Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
．Media server:
Image: JPEG
Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
．QoS:
WMM
User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
ACK/SYN/FIN/RST/ICMP with Highest priority
．Guest Network
2.4GHz guest network x 3, 5GHz guest network x 3
．Printer Server: multifunctional printer support(Windows nly), LPR protocol support
．File server: Samba and FTP server with account management
．PPTP VPN server
．Network map
．Traffic monitor

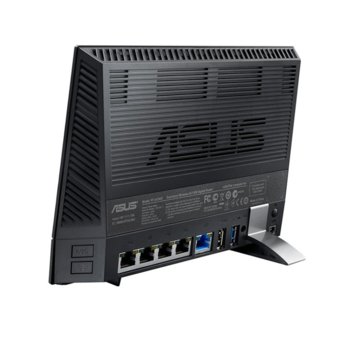

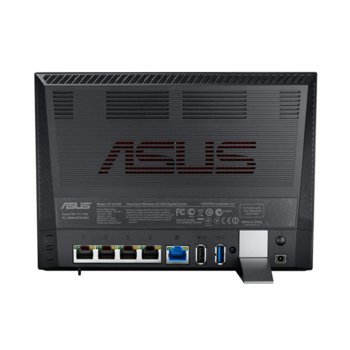

Ports
1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN, 4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN
USB 2.0 x 1
USB 3.0 x 1

Button
WPS Button, Reset Button, Power Switch, Wireless on/off Button


LED Indicator
PWR x 1
LAN x 1
WAN x 1
USB x 2
Wi-Fi x 2

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

OS Support
Windows® 8
Windows® 7
Windows® Vista
Windows® 2000
Windows® ME
Windows® XP
Windows® Server 2003
Windows® Server 2008
Mac OS X
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Kernel (Support Ubuntu only)
Linux

Dimensions
147 x 205 x 66 mm (WxHxD)

Weight
406 g
