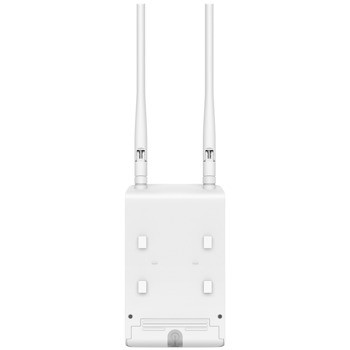

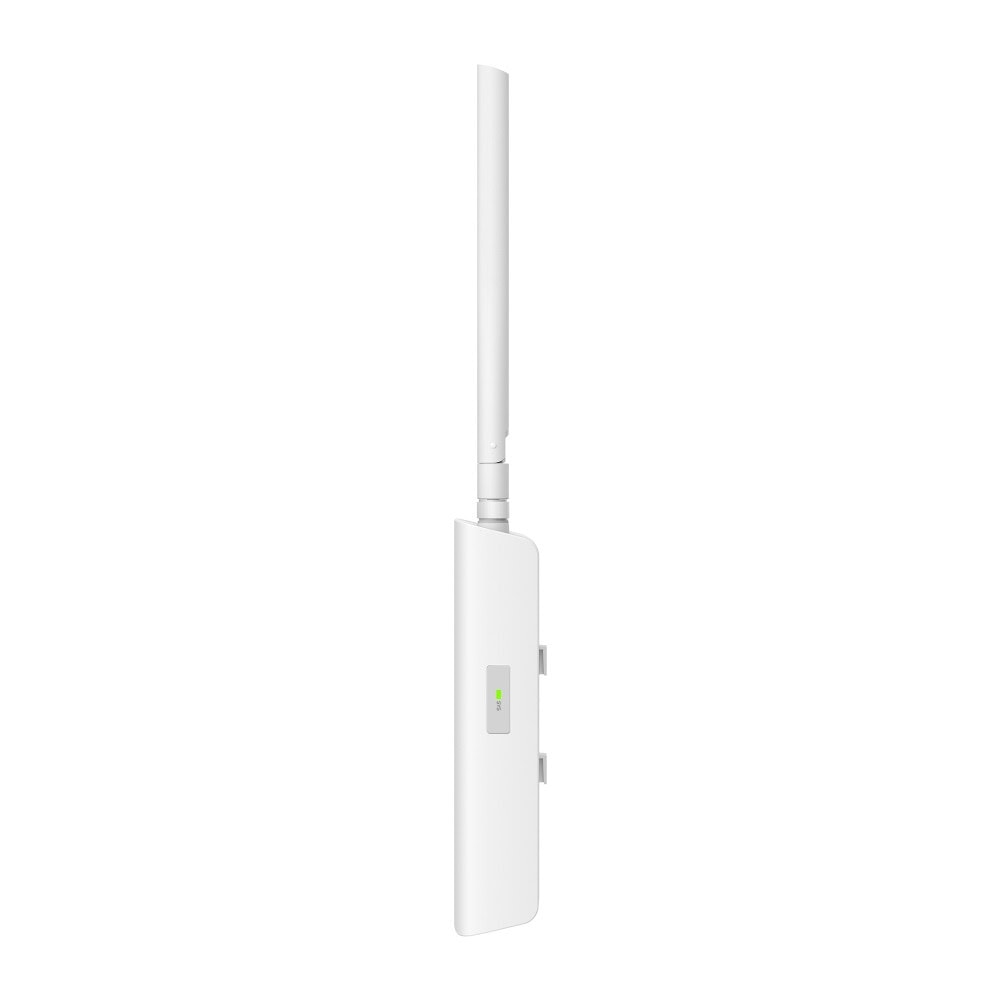

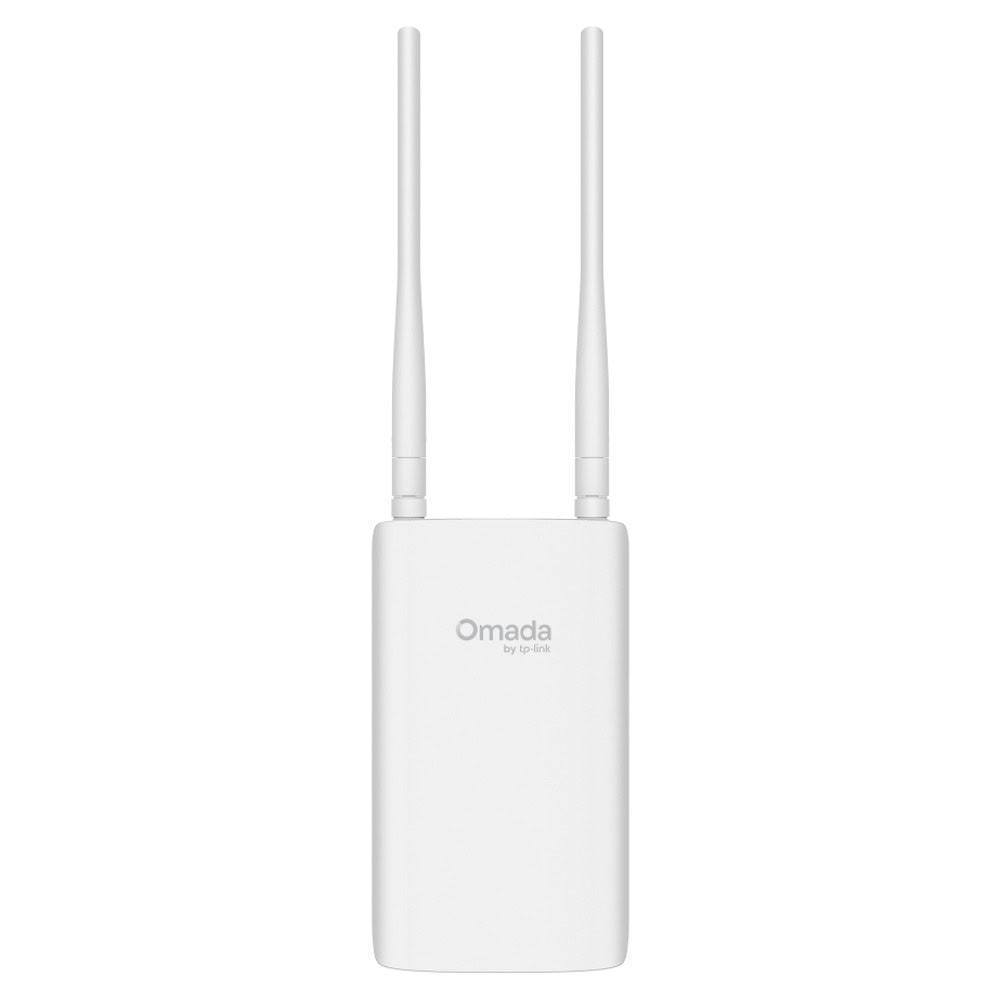

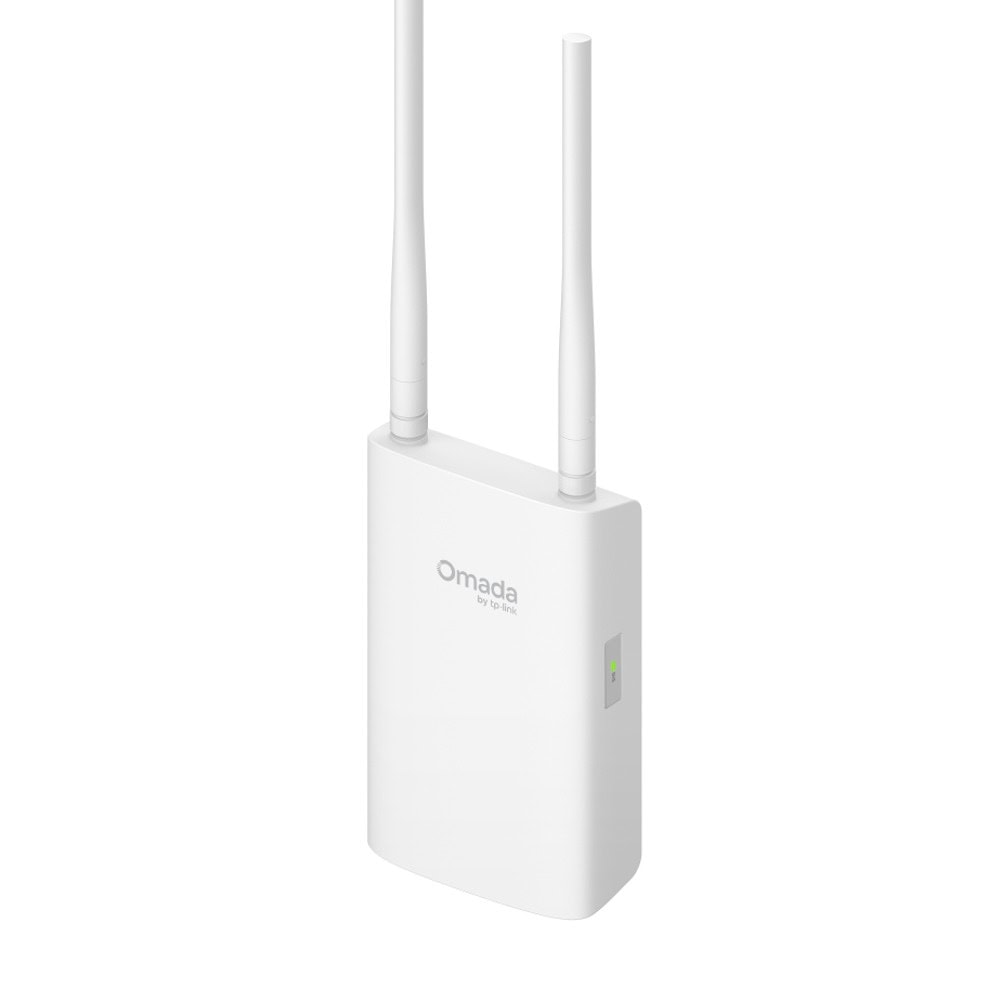

Name: Точка за достъп TP-Link Omada EAP603-Outdoor, 2.4GHz (574Mbps)/5GHz(1201Mbps), 1x 10/100/1000Mbps RJ45 PoE, 2 външни антени
Brand: TP-Link
SKU: NTWBTPLINKEAP603OUTDOOR
Price: 245.20 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

EAP603-Outdoor

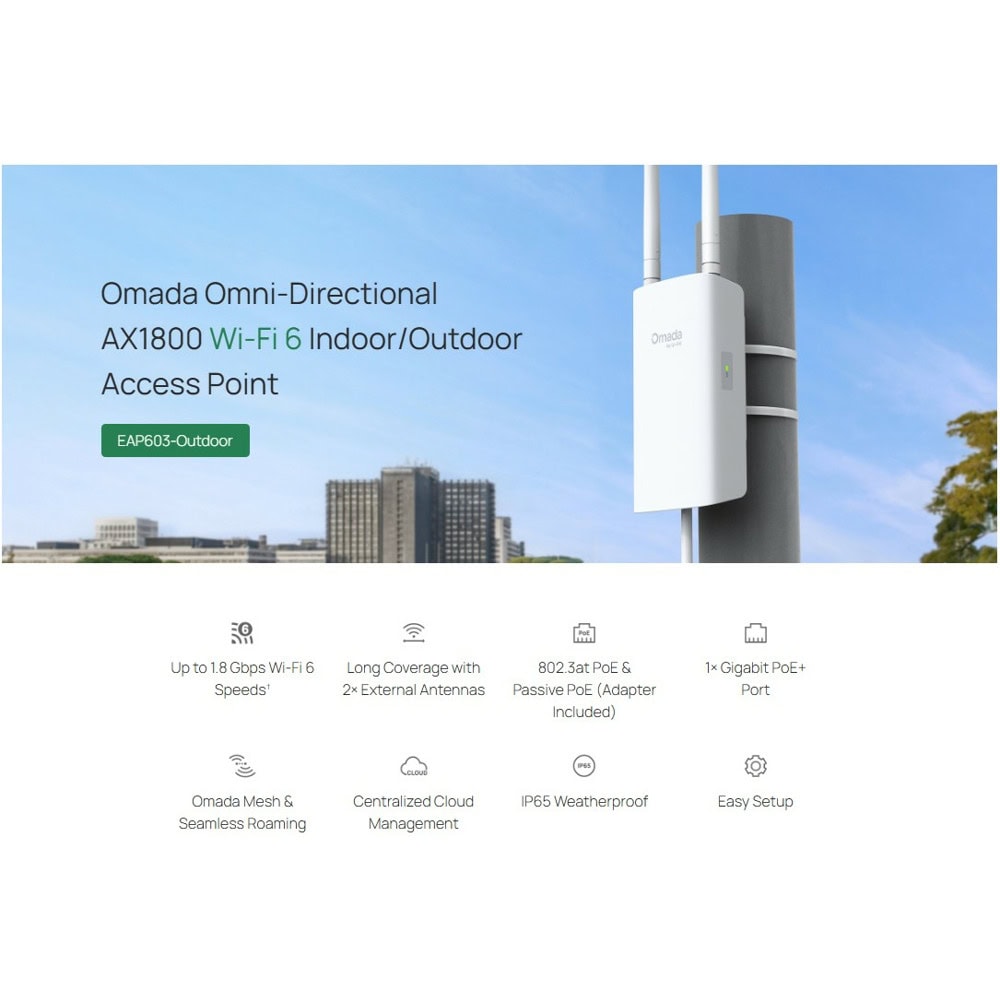

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

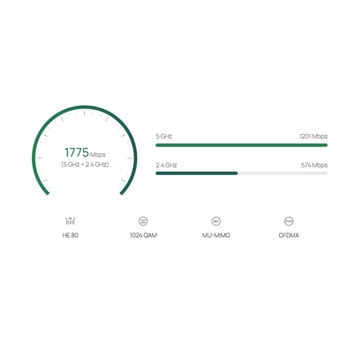

Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.
Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.
PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).
Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.

Perfect for Outdoor Wi-Fi Coverage

Long-Range Omni-directional Coverage

2× external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.

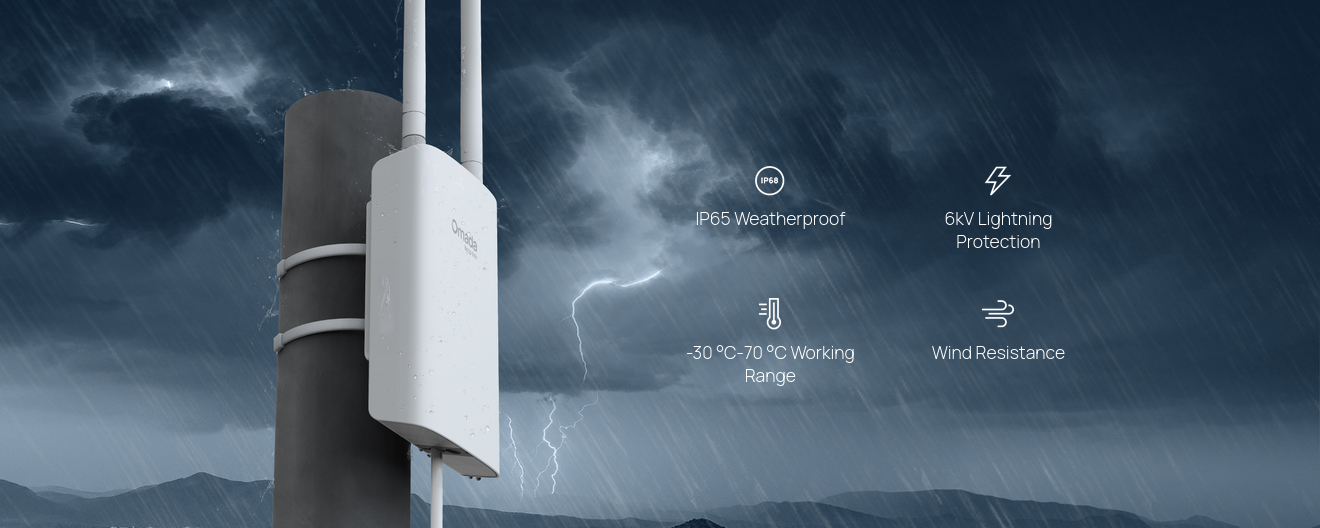

Designed for Outdoors

The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.Designed for Outdoors

The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.

Specification	Details

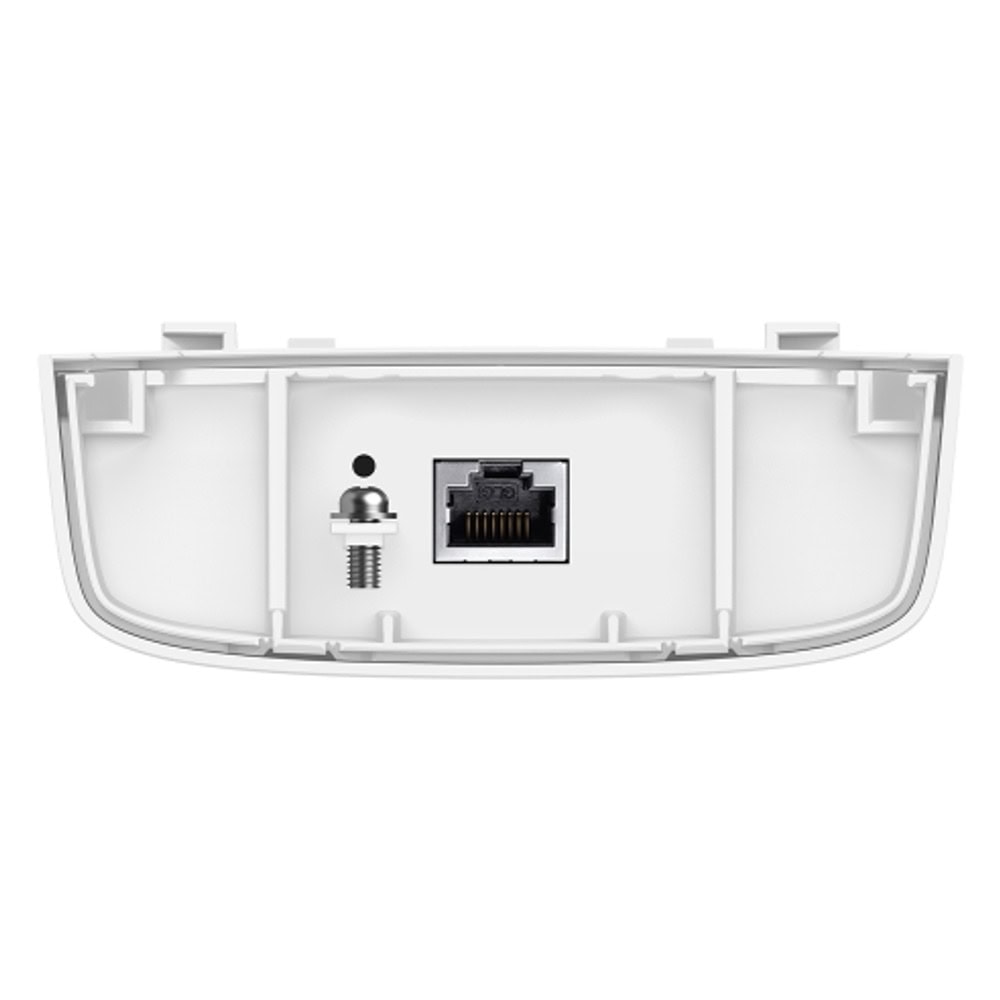

Interface	• 1× 10/100/1000 Mbps Gigabit Ethernet Port (RJ45), PoE in• 1× Grounding Terminal
Button	1× Reset button (press >5 seconds to restore factory settings)
Power Supply	Input: 802.3at PoE+ (42.5–57 V, 0.36 A)
Max. Power Consumption	• 15.8 W (802.3at PoE+, 2.4 GHz radio 2×2, 5 GHz radio 2×2, wired link up to 1 Gbps)• Idle mode: 4.8 W (PoE)

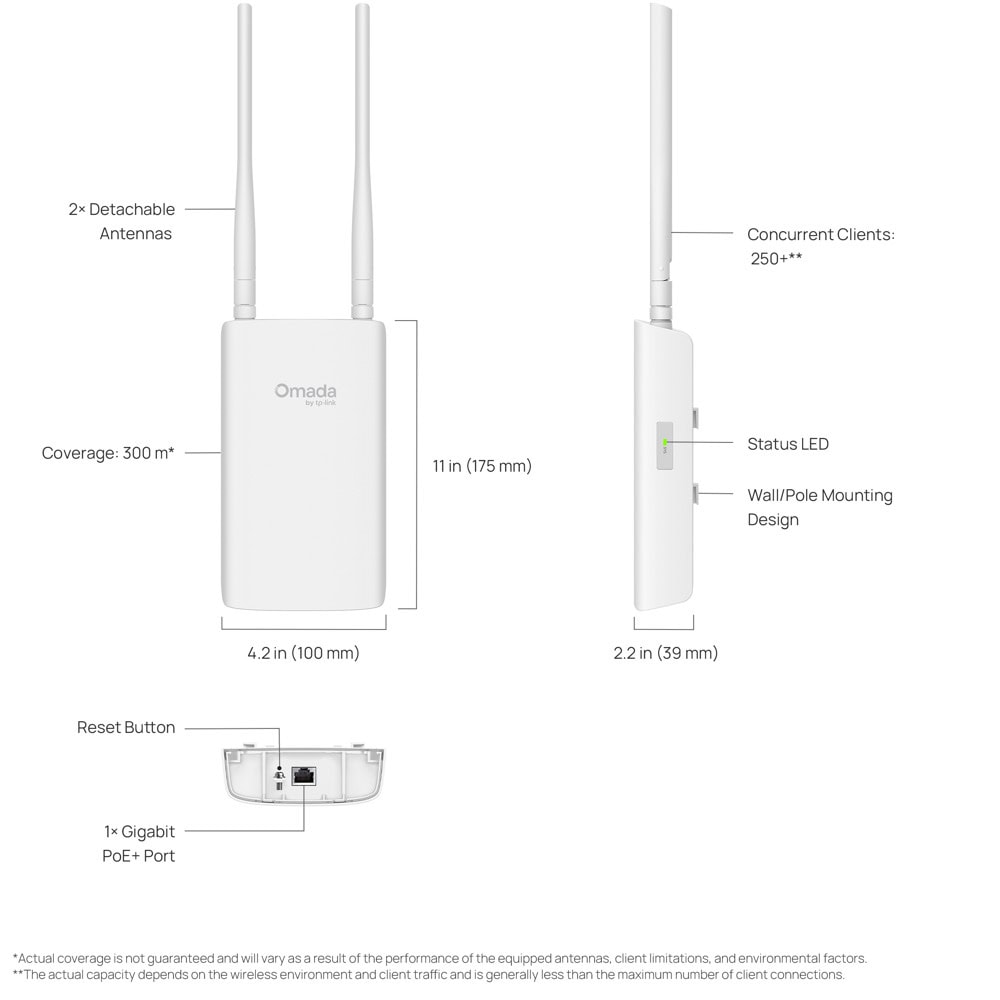

Dimensions (W × D × H)	• Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in.)• Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in.)
Antenna (Wi-Fi)	• 2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional• 5 GHz: 2 × 5 dBi (peak gain), external omnidirectionalSingle-antenna peak gains
Antenna (IoT / Bluetooth)	• Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectional
Bluetooth	Yes
Weatherproof Enclosure	• IP66 (Wall Mount)• IP65 (Pole Mount)

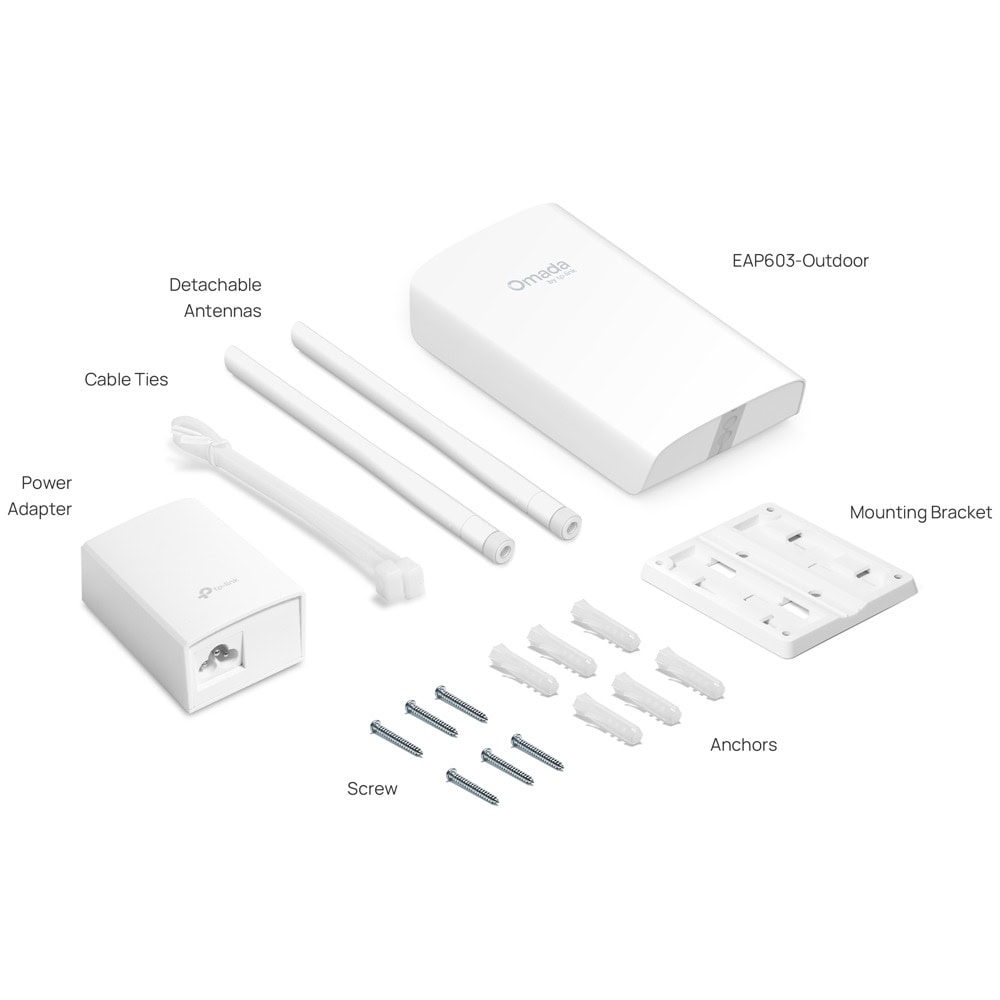

Mounting	• Pole Mount (kits included)• Wall Mount (kits included)

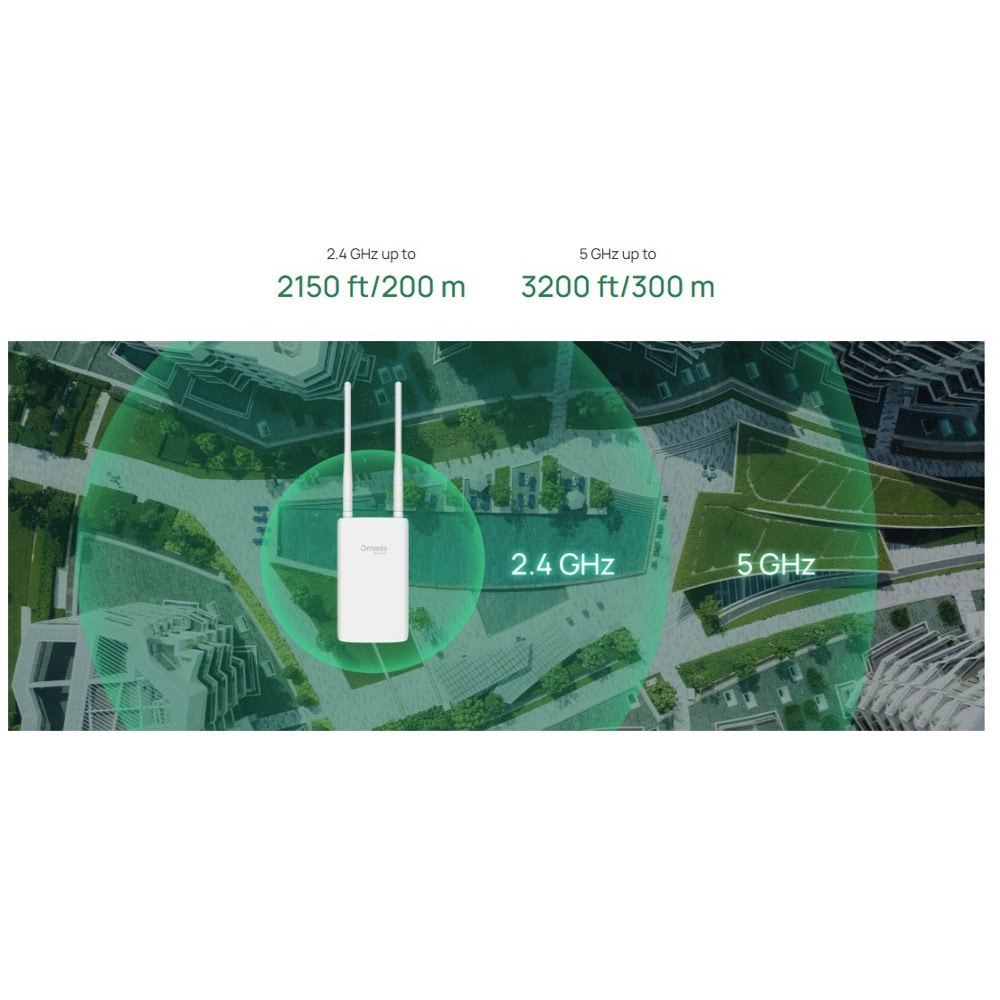

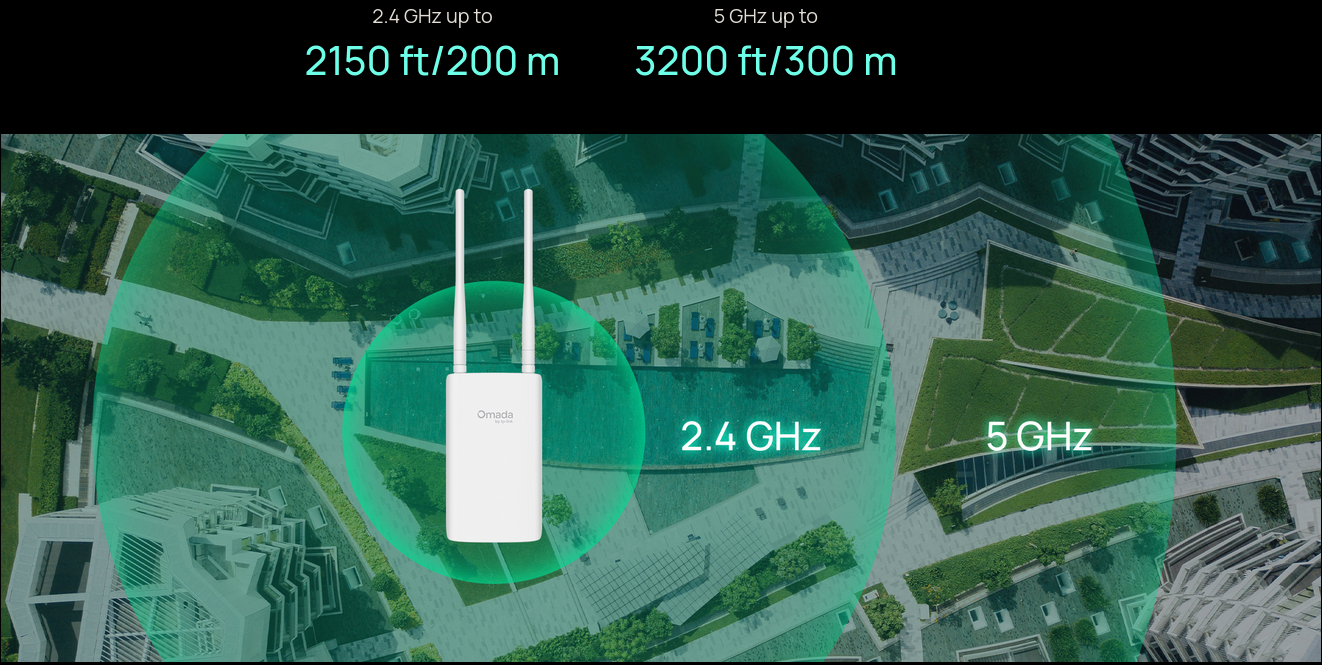

Wireless Coverage	• 2.4 GHz: up to 200 m (2,150 ft)• 5 GHz: up to 300 m (3,200 ft)
Wireless Standards	• 5 GHz: IEEE 802.11a/n/ac/ax• 2.4 GHz: IEEE 802.11b/g/n/ax
Operating Frequency	• 2.4 GHz• 5 GHz
Signal Rate	• 2.4 GHz: up to 573 Mbps• 5 GHz: up to 1201 MbpsCountry-specific restrictions apply
Wireless Capacity & Functions	• Max BSSIDs: 16 (8 per band)• Max associated STAs: 250+• Guest Network, ACS, Airtime Fairness, Band Steering• Rate Control, Rogue AP Detection, URL Filtering• WLAN Optimization, Lock to AP• SSID/Client Rate Limit, Load Balance• Seamless Roaming (802.11k/v/r, Non-Stick, Ping-Pong Suppression, AI Roaming)• Multicast/Broadcast Management (conversion, filtering, rate limit)• QoS
Wireless Security	• ACL, MAC Filter• 802.1X, MAC-based authentication• WPA / WPA2 / WPA3 (Personal & Enterprise), Enhanced Open, None• RADIUS Accounting• PPSK (with & without RADIUS)• Captive Portal (voucher, SMS, RADIUS, LDAP, external portal, etc.)• EAP Types: TLS, TTLS, PEAP, CHAP, SIM, AKA, GTC, FAST, MD5, MSCHAPv2, PEAPv0/v1
Transmit Power (Maximum)	CE (EIRP):• 2.4 GHz: 20 dBm• 5 GHz: 23 dBm (U-NII-1/2A), 29 dBm (U-NII-2C)FCC (Conducted):• 2.4 GHz: 25 dBm• 5 GHz: 27 dBm (U-NII-1/3), 24 dBm (U-NII-2A/2C)
Transmit Power (Minimum)	CE (EIRP):• 2.4 GHz: 7 dBm• 5 GHz: 6 dBm (all U-NII bands)FCC (Conducted):• 2.4 GHz: 4 dBm• 5 GHz: 4 dBm (all U-NII bands)
Power Adjustment	Adjustable in 1 dBm increments
Management App	Omada App supported
Restore & Backup	Yes
Firmware Upgrade	Via Web
NTP Support	Yes
Centralized Management	• Omada Hardware Controller• Omada Software Controller• Omada Central (Cloud)• Omada App
Cloud Access	Yes (requires Omada controller)
Email Alerts	Yes
LED Control	On / Off
Management MAC ACL	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web Management	Yes

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За външен монтаж
Безжична скорост:	1800 Mbps
Wi-Fi Стандарт:	Wi-Fi 6 (802.11ax)
Честота:	2.4 & 5 GHz
Антени:	2 Външни
dBi на антена/и:	5
PoE:	In
Интерфейс:	1x 1000
Други:	Няма
