Name: Точка за достъп TP-Link Omada EAP772-Outdoor, 2.4GHz(300Mbps)/5GHz(2402Mbps)/6GHz(5765Mbps), 1x 10/100/1000/2500Mbps RJ45 PoE, 2x вътрешни антени
Brand: TP-Link
SKU: NTWBTPLINKEAP772OUTDOOR
Price: 272.89 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация Вземи на изплащане

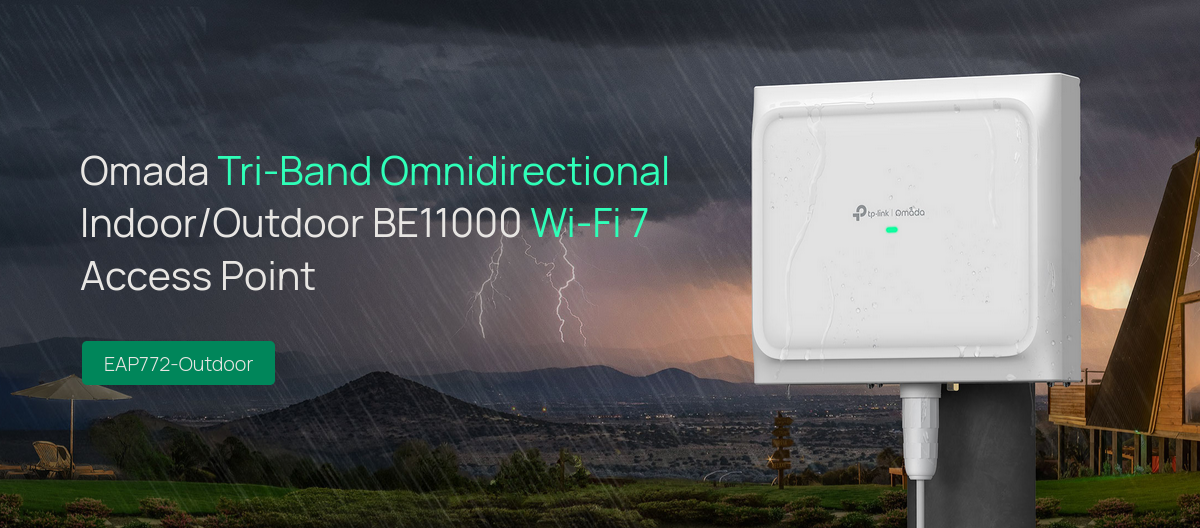

TP-Link Omada EAP772-Outdoor

Tri-Band Omnidirectional BE11000 Indoor/Outdoor WiFi 7 Access Point

•Tri-Band Six-Stream Outdoor WiFi 7: Up to 11 Gbps.

•6 GHz Band Unlocked by AFC: AFC enables 6 GHz band outdoor uses.

•True Tri-Band Omnidirectional Coverage: 300m2 (3,200ft2) recommended coverage

•Professional Hardware Design: Industry-Leading IP68-Rated, 1× 2.5G PoE+ port, 2.4 GHz dual-polarized antennas.

•Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup

•Advanced Features: Centralized management, mesh, and seamless roaming.

Tri-Band Omnidirectional Coverage,
6 GHz Unlocked by AFC

Unlock the cleaner 6 GHz outdoors—powered by AFC , the EAP772-Outdoor eliminates congestion and delivers tri-band omnidirectional coverage (2.4 GHz, 5 GHz, and 6 GHz). 300m2 (3,200ft2) recommended coverage brings silky-smooth outdoor networking.

Industry-Leading IP68 Weatherproof Design

The fully sealed EAP772-Outdoor is completely dustproof and can be submerged in water over 1.5 meters deep for over 30 minutes,surpassing IP67. It withstands most harsh outdoor environments.

HARDWARE FEATURES
Interface	1× 2.5G Ethernet (RJ-45) Port (Support 802.3at PoE)
Button	Reset
Power Supply	• 802.3at PoE
Max. Power Consumption	• EU: 21.5W (for PoE) • US: 23W (for PoE)
Dimensions ( W x D x H )	9.1× 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)
Antenna	• 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 6 dBi • 6 GHz: 2× 6 dBi
GNSS	L1 (1575.42 MHz) receiver, supporting GPS, Galileo, GLONASS, and BeiDou signals Receive sensitivity: -164dBm (tracking) GPS antennas: Integrated 3dBi omnidirectional antennas
Bluetooth	BLE 5.2
Weatherproof Enclosure	IP68
Mounting	Pole/Wall Mounting (Kits included)

WIRELESS FEATURES
Coverage	300m2 (3,200ft2) Recommended Omnidirectional Coverage
Concurrent Clients	250+6
Wireless Standards	IEEE 802.11be/ax/ac/n/g/b/a
Frequency	2.4 GHz, 5 GHz, 6 GHz
Signal Rate	• 802.11be: 8.6 Mbps to 5765 Mbps (MCS0-MCS13, NSS = 1 to 2 HE20/40/80/160/240/320) • 802.11ax: 8.6 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160) • 802.11ac: 6.5 Mbps to 2166.7 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80/160) • 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40) • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps • 802.11b: 1, 2, 5.5, 11 Mbps • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions	• 4k-QAM • Multiple SSlDs • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS (WMM) • MU-MIMO • MLO • 320MHz • Omada Mesh3 • Seamless Roaming(802.11k/v/r)3 • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • Static IP/Dynamic lP
Wireless Security	• Captive Portal Authentication3 • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm (2.4 GHz, EIRP), <28 dBm(5 GHz, band 3, EIRP) • FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz), <25 dBm(6 GHz)

Management Features
Omada App	Yes
Centralized Management	Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes, through • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Email Alerts	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c
System Logging Local/Remote Syslog	Yes
SSH	Yes
Web-based Management	Yes
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Документация

Технически характеристики

Тип на суичовете:	Аксес пойнт
Монтаж:	За външен монтаж
Безжична скорост:	9300 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
Честота:	2.4 & 5 & 6 GHz
Антени:	2 Вътрешни
dBi на антена/и:	6
PoE:	In
Интерфейс:	1x 2500
Други:	Няма
