Name: Точка за достъп Cudy AP1300D, 1200Mbps, 2.4GHz (300Mbps)/ 5GHz (867Mbps), Wireless AC, 1x RJ-45 10/100/1000 (ц), 4x вътрешни антени
Brand: Cudy
SKU: NTWBCUDYAP1300D
Price: 32.78 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Cudy AP1300D

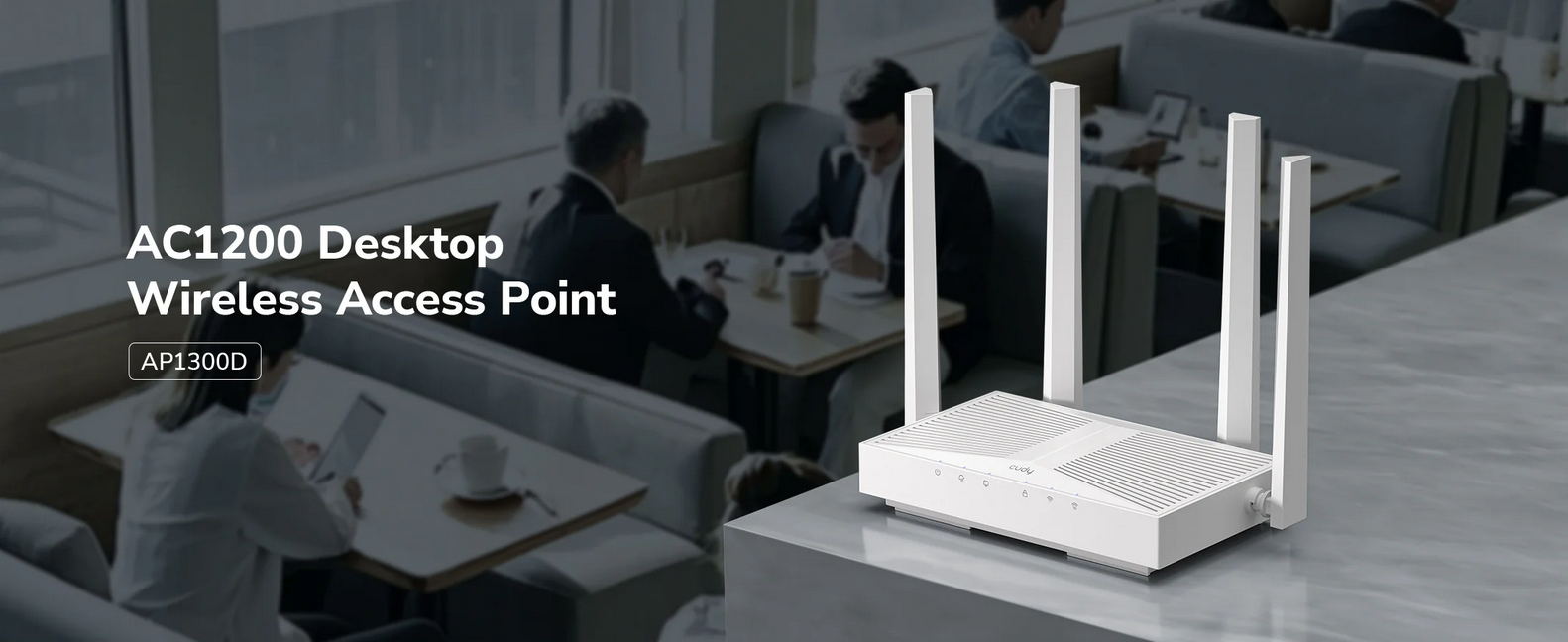

A desktop/wall-mounted WiFi AP for offices, hotels, and studios.

4-Stream Dual-Band Wi-Fi 5
867 Mbps + 300 Mbps Wi-Fi 1
1× Gigabit Ethernet Port (PoE In)
802.3at/af, Passive PoE, DC
4× High-Gain Antennas
Multi-SSID

Captive Portal Marketing

Captive portal allows you to improve brand awareness by displaying a customized login page for new clients.

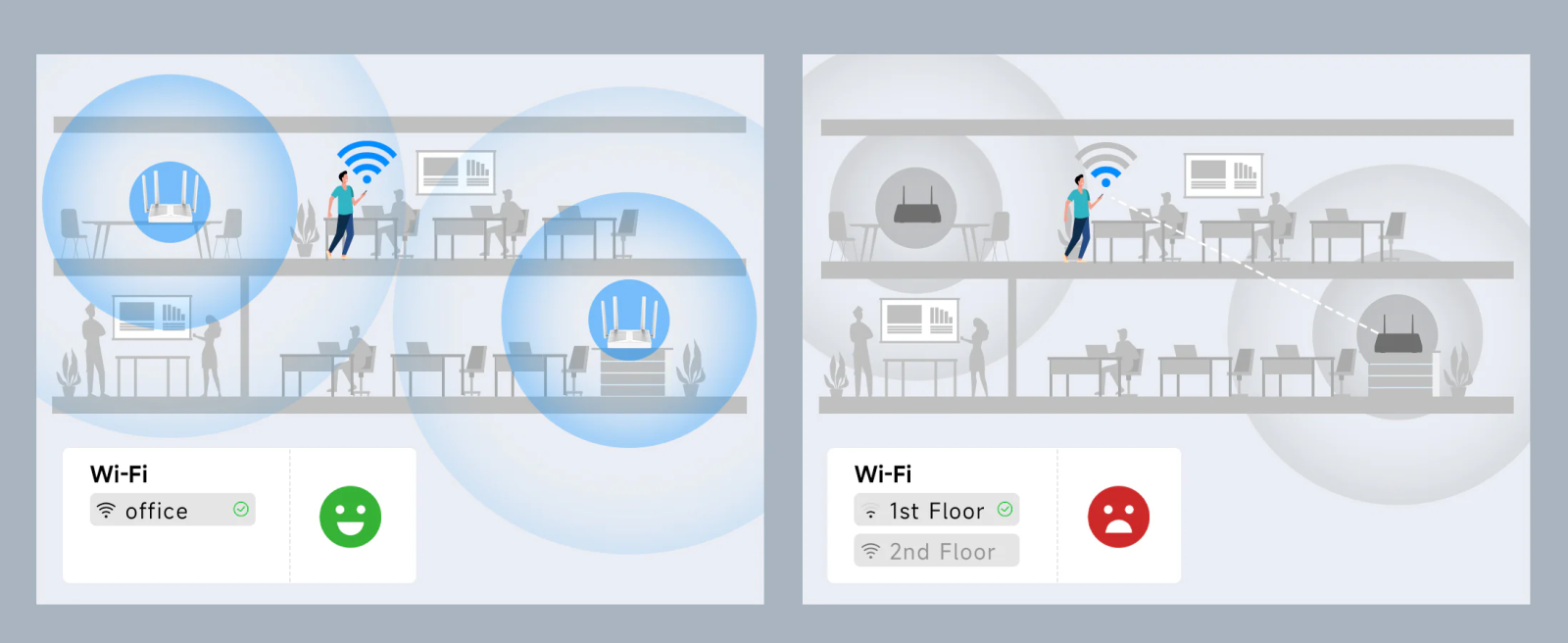

Seamless Coverage with Cudy Mesh

Mesh support (802.11k/v) allows clients to switch between access points seamlessly, ensuring uninterrupted Wi-Fi calling or live streaming when moving around. This feature requires a Cudy Wi-Fi router/VPN router/access point controller as a gateway with firmware newer than 15.28.

Category	Specification
Model Version	AP1300D 1.0
CPU	880 MHz Dual-Core
Flash/ROM	16 MB (128 Mbit) NOR
DDR/RAM	128 MB (1 Gbit) DDR3
5 GHz Wi-Fi Speed	867 Mbps
2.4 GHz Wi-Fi Speed	300 Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	4× Fixed
5 GHz Antenna Gain	Max 5.3 dBi
2.4 GHz Antenna Gain	Max 5.2 dBi
FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
Beamforming	True
Max Range Performance	170 m (558 ft)
Wall Performance	2× wooden walls (<10 cm), 1× concrete wall (<20 cm)
Gigabit RJ45 Ports	1
Ethernet Notes	Accepts PoE powering
LED Indicators	5 GHz Wi-Fi, 2.4 GHz Wi-Fi, WPS, LAN, Internet, Power
Physical Buttons	Reset, Power On/Off
Power Input Options	DC Jack, PoE via Ethernet
Power Methods	DC, Passive PoE, 802.3at/af PoE
DC Power Spec	12V 1A
Passive PoE Range	12 ~ 57V
Power Adapter	Input: 100 ~ 240 V AC, 50/60 HzOutput: 12V 1A DC
Max Power Consumption	Max (PoE): 11 WMax (DC): 8.5 W
ESD Protection	Contact: 4kV; Air: 8kV
Operating Temp.	-10 ℃ ~ 65 ℃ (14 ℉ ~ 149 ℉)
Storage Temp.	-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity	10% ~ 90% non-condensing
Storage Humidity	5% ~ 90% non-condensing
Certifications	FCC, CE
Installation Options	Desktop, Wall-mount
Device Dimensions	183.3×109×38 mm7.22×4.29×1.5 inches
Antenna Length	175 mm6.89 inches
Product Weight	265.2 g (9.35 oz.)
Retail Package Weight	EU: 672.4 g (23.72 oz.)
Retail Dimensions	330×256×60 mm12.99×10.08×2.36 inches
Units per Carton	10
Carton Net Weight	EU: 6.7 kg (14.77 lbs)
Carton Gross Weight	EU: 7.5 kg (16.53 lbs)

Виж още Аксеспойнт/Репитер Безжични Cudy
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	1200 Mbps
Wi-Fi Стандарт:	Wi-Fi 5 (802.11ac)
Честота:	2.4 & 5 GHz
Антени:	4 Вътрешни
dBi на антена/и:	Не е указано
PoE:	In
Интерфейс:	1x 1000
Други:	Няма
