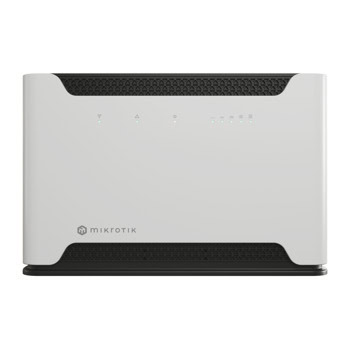

Рутер Mikrotik Chateau D53G-5HacD2HnD-TC&R11e-LTE7, LTE, 1200Mbps, 2.4GHz (300 Mbps), 5GHz (867Mbps), Wireless AC, 5x 10/100/1000 Mbps, 1х MicroSIM, 1x USB

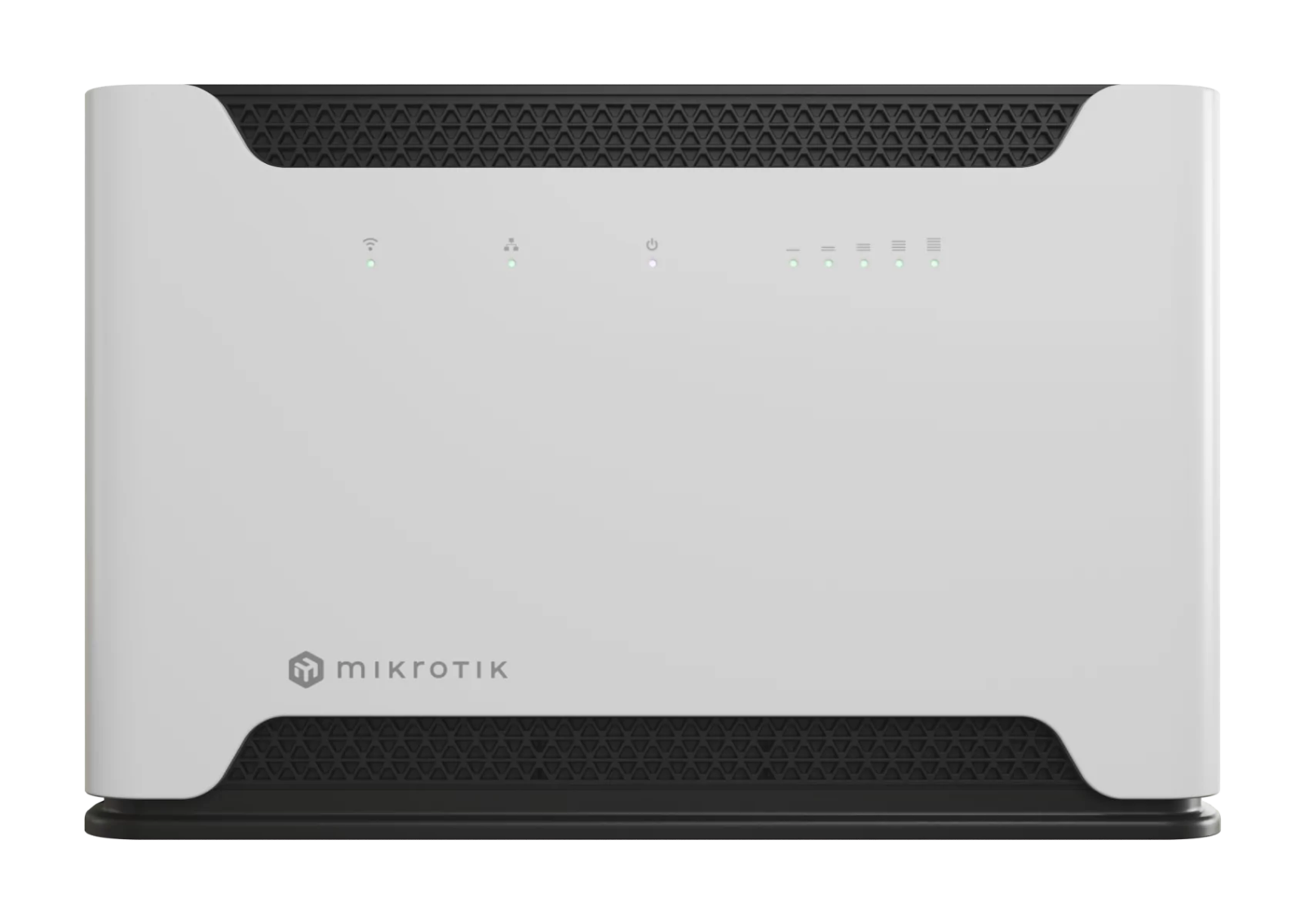

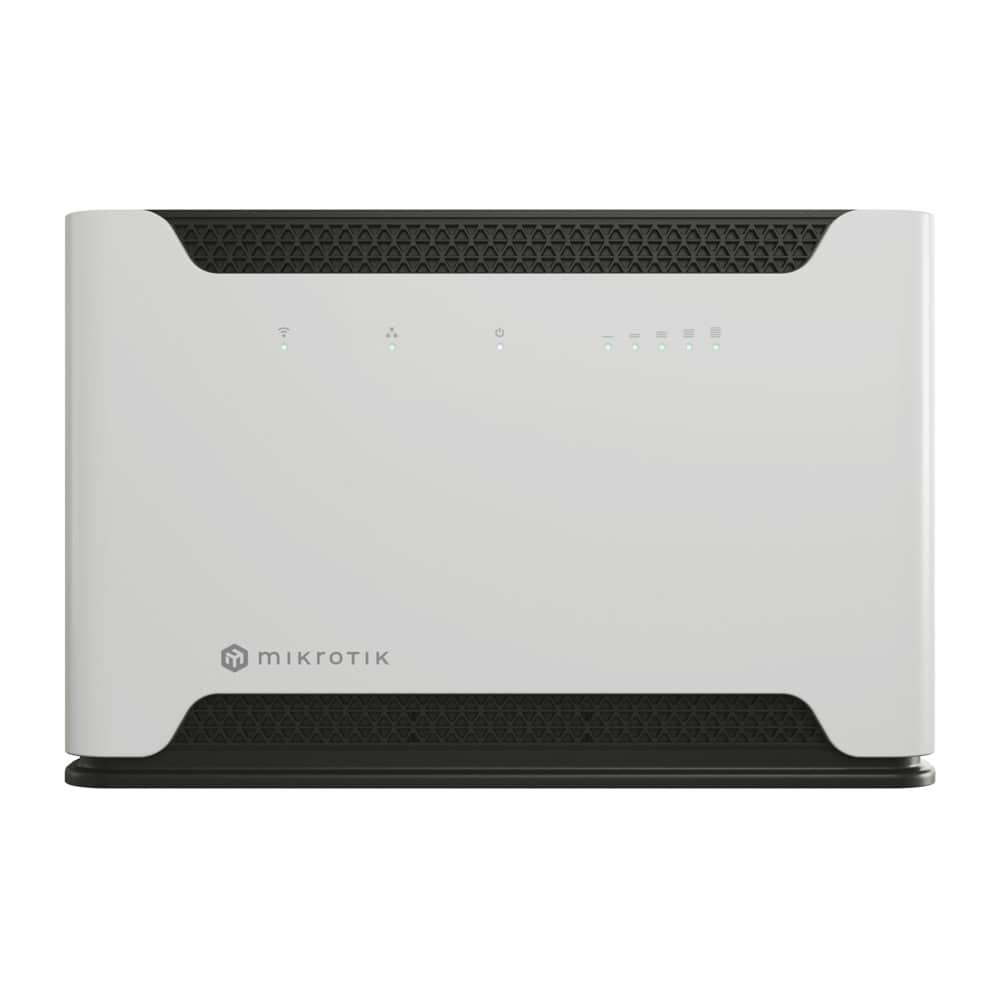

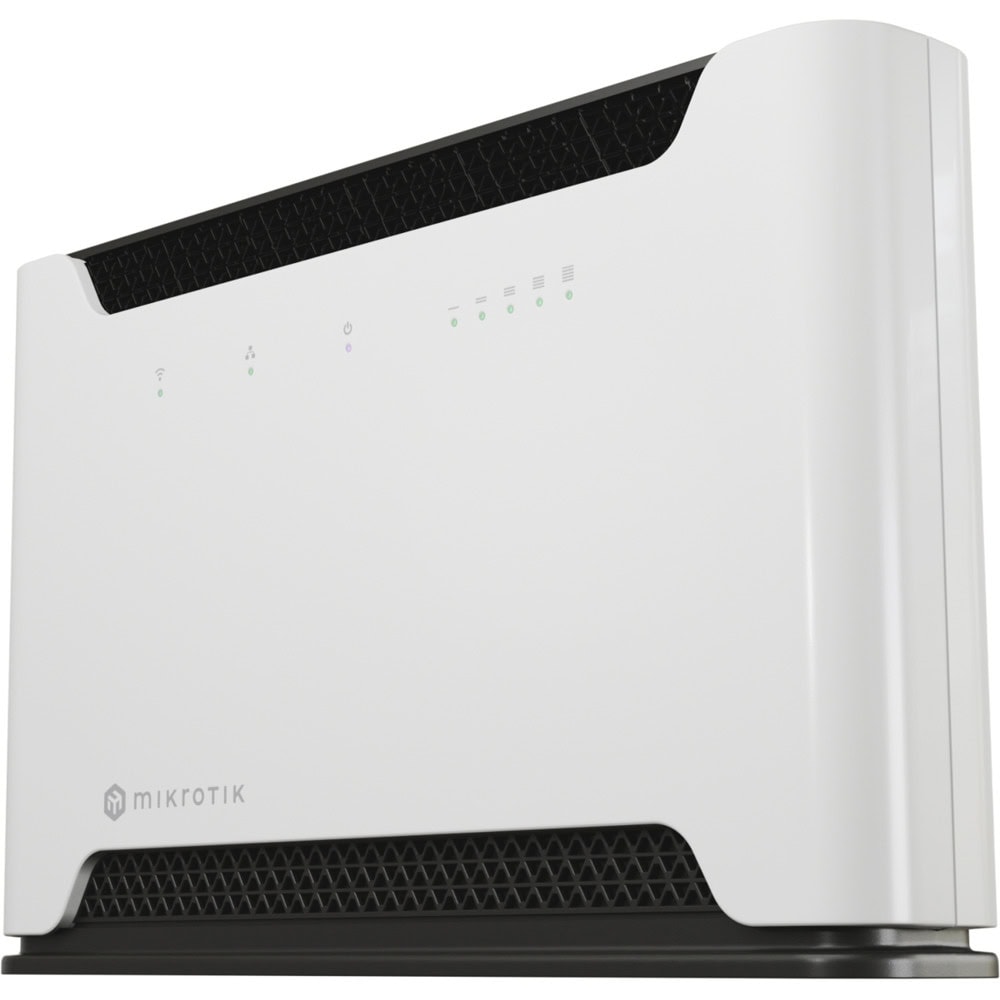

Chateau LTE7

Our most versatile home router, featuring the new CAT7 modem and a speedy quad-core CPU for all your household network security and management tasks. Dual-band, dual-chain Wi-Fi, 5x Gigabit ports, and full RouterOS v7 features – all at a significantly lower price than the previous LTE6 version.Perfect for secure VPN work, home offices, or small business networks that care about both function and aesthetics.

Chateau LTE7 keeps the same elegant design, powerful hardware, and flexible RouterOS features that made the Chateau series a global favorite – now upgraded with a faster LTE Category 7 modem, expanded frequency support, and a lower price than the previous LTE6 model.

One router for home, office, and everything in-between

Chateau LTE7 was designed to replace the weak, feature-limited contact routers often supplied by service providers.

It features a purposeful balance of performance, flexibility, and clean design that fits naturally into modern homes and offices – without looking like a piece of industrial equipment.

5× Gigabit Ethernet ports for wired devices, NAS, TVs, or PCs

Use LTE as:

your main internet connection;

or a reliable backup to wired ISP services

dual-band, dual-chain Wi-Fi for reliable everyday wireless coverage even in large homes or offices.

Whether LTE is your primary connection or a fallback link – Chateau adapts to your setup.

Powerful when you need it. Simple when you don’t.

At the heart of Chateau LTE7 is a powerful quad-core ARM CPU, paired with full RouterOS v7 functionality.

That means you can:

• Run secure VPNs for remote work

• Configure advanced firewall rule

• Set up VLANs and traffic prioritization

• Monitor usage and automate notifications

Or… you can simply plug it in and forget it exists. Chateau is built to scale with your knowledge and lifestyle – equally useful to network professionals, researchers, homelab enthusiasts, as well as regular households with limited IT skills.

Powered by RouterOS v7 – automate, adapt, and configure anything to your liking!

Firewalling, VPNs, VLANs, DHCP, routing policies, advanced notifications, GPS data processing, custom scripts – RouterOS v7 gives you full control. No paywalls, no subscriptions, only pure functionality… forever! We have been making our own software since 1996. With each new version our priority remained the same: to provide users with the freedom to explore different setups and always have the right tools for the job.

Remove the bottleneck in your LTE setup

Chateau supports 2×2 MIMO DL and carrier aggregation. That means it can use multiple LTE bands simultaneously. That’s a huge advantage when there are a lot of mobile users in the area. It offers better responsiveness in a crowded environment. And higher efficiency for weaker signal situations in the countryside. Win-win! We have seen Internet speed doubling in rural areas after enabling carrier aggregation.

You don’t have to wait for cable network expansion to have fast and steady Internet at home. Mobile networks are great. If you’re using a Chateau.

Specifications

• Architecture ARM 32bit
• CPU IPQ-4019
• CPU core count 4
• CPU nominal frequency 448-896 (auto) MHz
• CPU Threads count 4
• Switch chip model IPQ-4019
• RouterOS license 4
• Operating System RouterOS v7
• Size of RAM 256 MB
• Storage size 16 MB
• Storage type FLASH
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 1 (DC jack)
• DC jack input Voltage 12-28 V
• Max power consumption 20 W
• Max power consumption without attachments 14.1 W
• Cooling type Passive

Mobile

• 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands 1 (2100 MHz)
  5 (850 MHz)
  8 (900 MHz)
  3 (1800 MHz)

• LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
• MIMO DL 2x2
• MIMO UL 1x1
• LTE FDD bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)

• LTE TDD bands 38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)

• TAC 35312597

Wireless specifications

• Wireless 2.4 GHz Max data rate 300 Mbit/s
• Wireless 2.4 GHz Number of chains 2
• Wireless 2.4 GHz standards 802.11b/g/n
• Antenna gain dBi for 2.4 GHz 2
• Wireless 2.4 GHz chip model IPQ-4019
• Wireless 2.4 GHz generation Wi-Fi 4
• Wireless 5 GHz Max data rate 867 Mbit/s
• Wireless 5 GHz Number of chains 2
• Wireless 5 GHz standards 802.11a/n/ac
• Antenna gain dBi for 5 GHz 4
• Wireless 5 GHz chip model IPQ-4019
• Wireless 5 GHz generation Wi-Fi 5

Ethernet

• 10/100/1000 Ethernet ports 5

Peripherals

• Number of SIM slots 1 Modem (Micro SIM)
• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1

Other

• Mode button Yes
