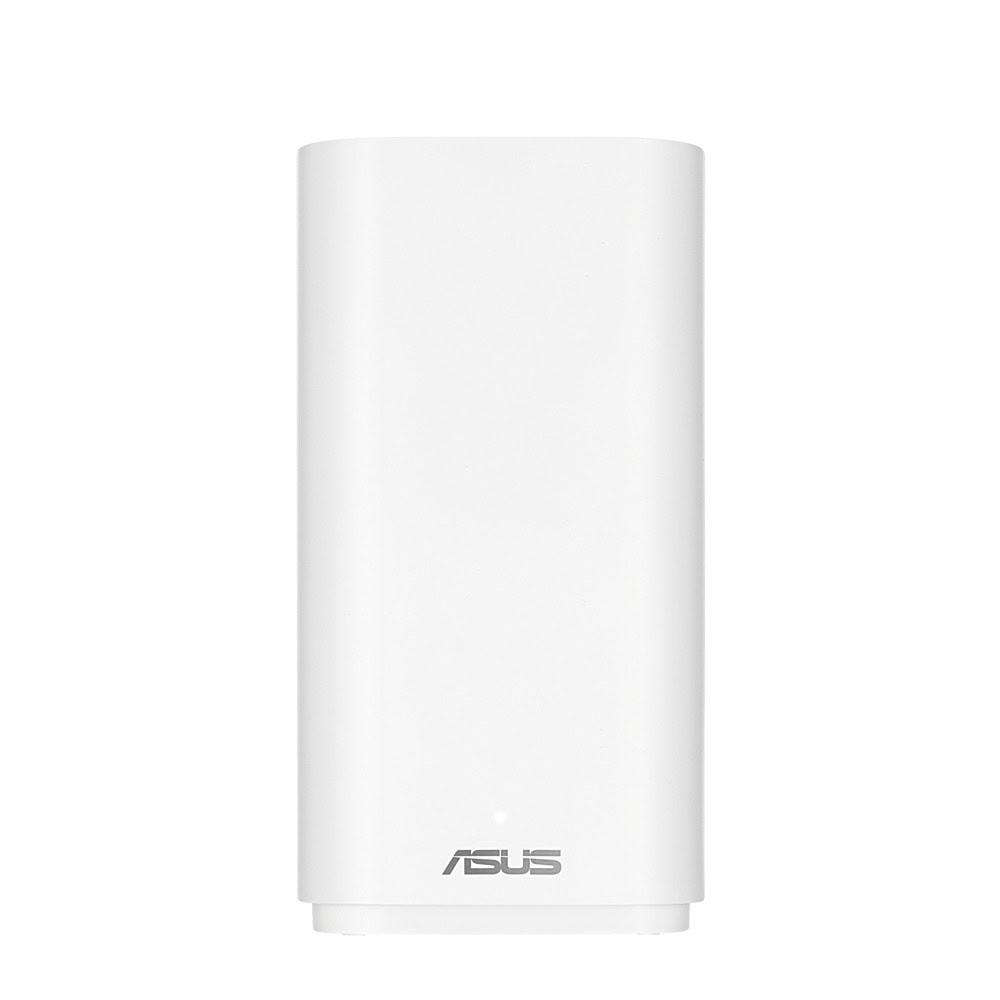

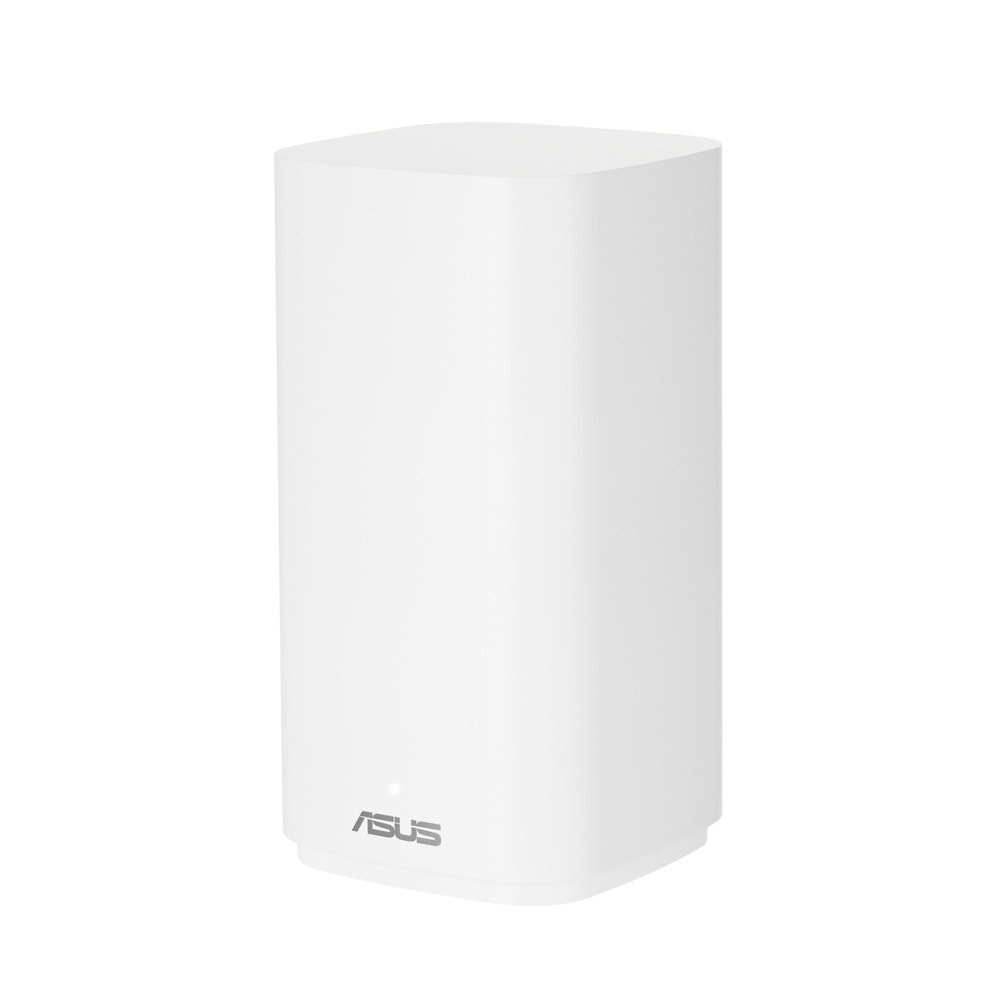

Мрежеста система Asus ZenWiFi BD4 Outdoor, 3600Mbps, 2.4GHz (688Mbps)/5GHz (2882Mbps), Wireless BE, 2x 100/1000/2500Mbps LAN/WAN, 2x вътрешни антени

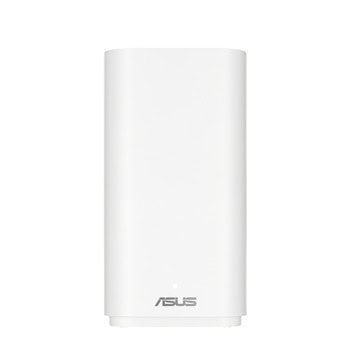

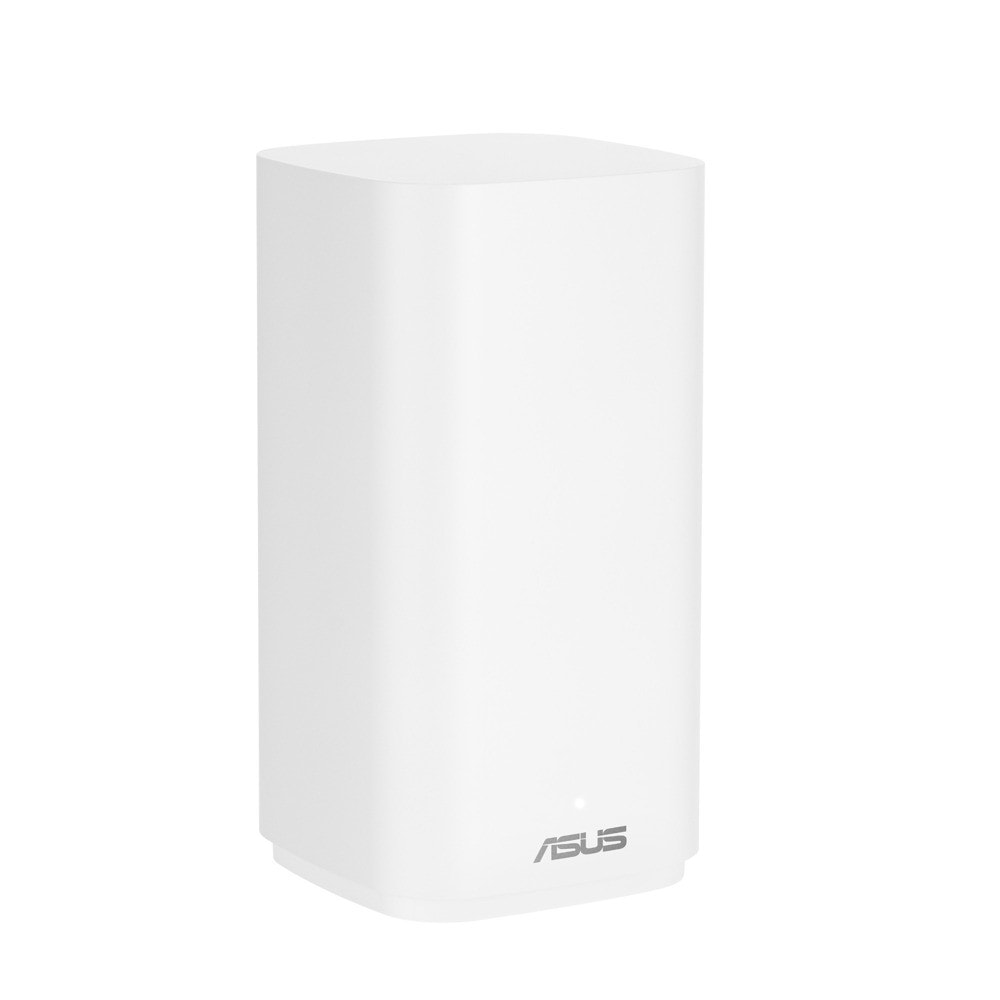

ASUS ZenWiFi BD4 Outdoor

Worry-Free WiFi, Indoors and Out

Powered by WiFi 7 and next-gen AiMesh technology, the ASUS ZenWiFi BD4 Outdoor router delivers blazing-fast speeds up to 3600 Mbps, helping ensure seamless and reliable WiFi from your backyard to every corner of your home. IP65 water-resistance and flexible mounting options make it ideal for outdoor installation in a variety of settings. Dual 2.5G PoE ports further streamline setup by eliminating the need for an electrical outlet. In addition, a suite of advanced network security features and Smart Home Master SSIDs deliver premium protection and effortless control for your connected devices.

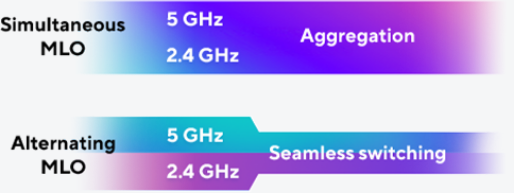

Comprehensive MLO Support Multi-Link Operation (MLO) can eliminate the need for network buffers by intelligently combining and switching between the 2.4 GHz and 5 GHz bands. The ZenWiFi BD4 Outdoor is built for use with all WiFi 7 devices, regardless of the MLO mode they use*. *Supported MLO modes and bands may vary by device. Please refer to device specifications for details.

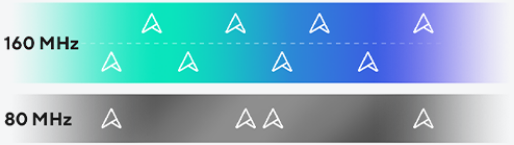

Advanced 160 MHz Channels The BD4 Outdoor supports ultrawide 160 MHz channels, delivering ultrafast data transfer rates, reduced latency, and enhanced performance for a smoother network experience.

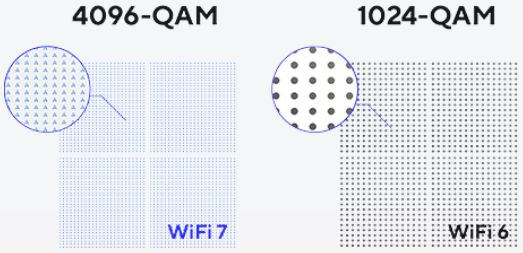

Efficient 4K-QAM Transmission Compared to 1024-QAM with WiFi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission*. *Compared to WiFi 6/6E
Values Beyond Extension AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security, and smart home features across your entire network.

DESIGN

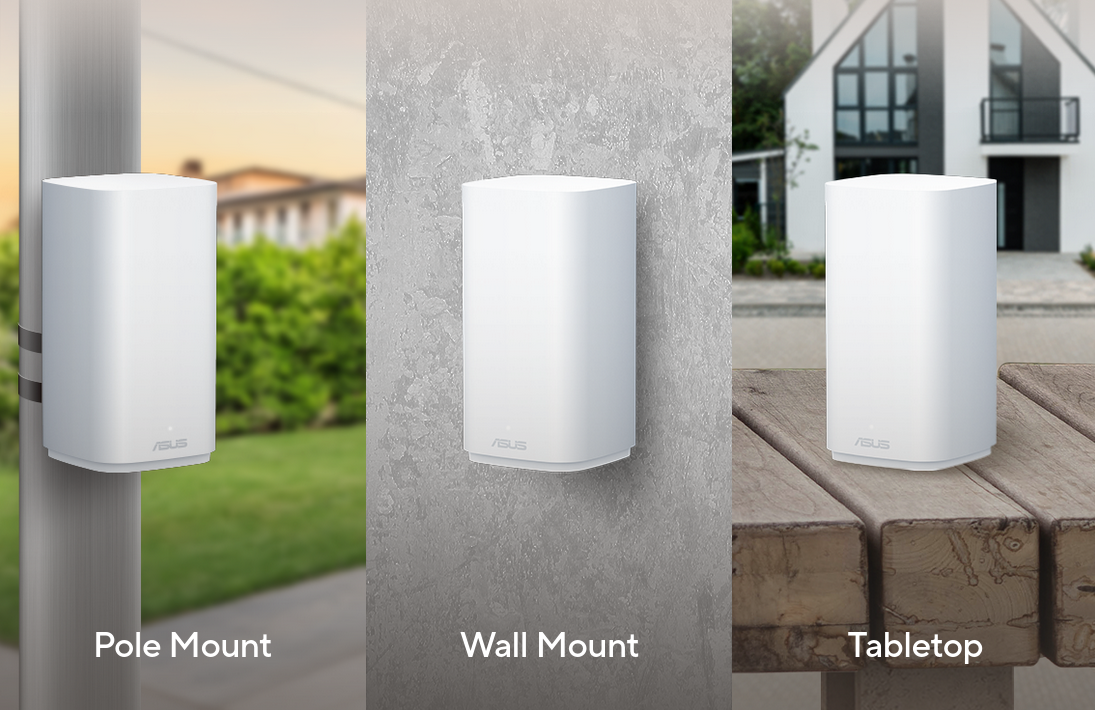

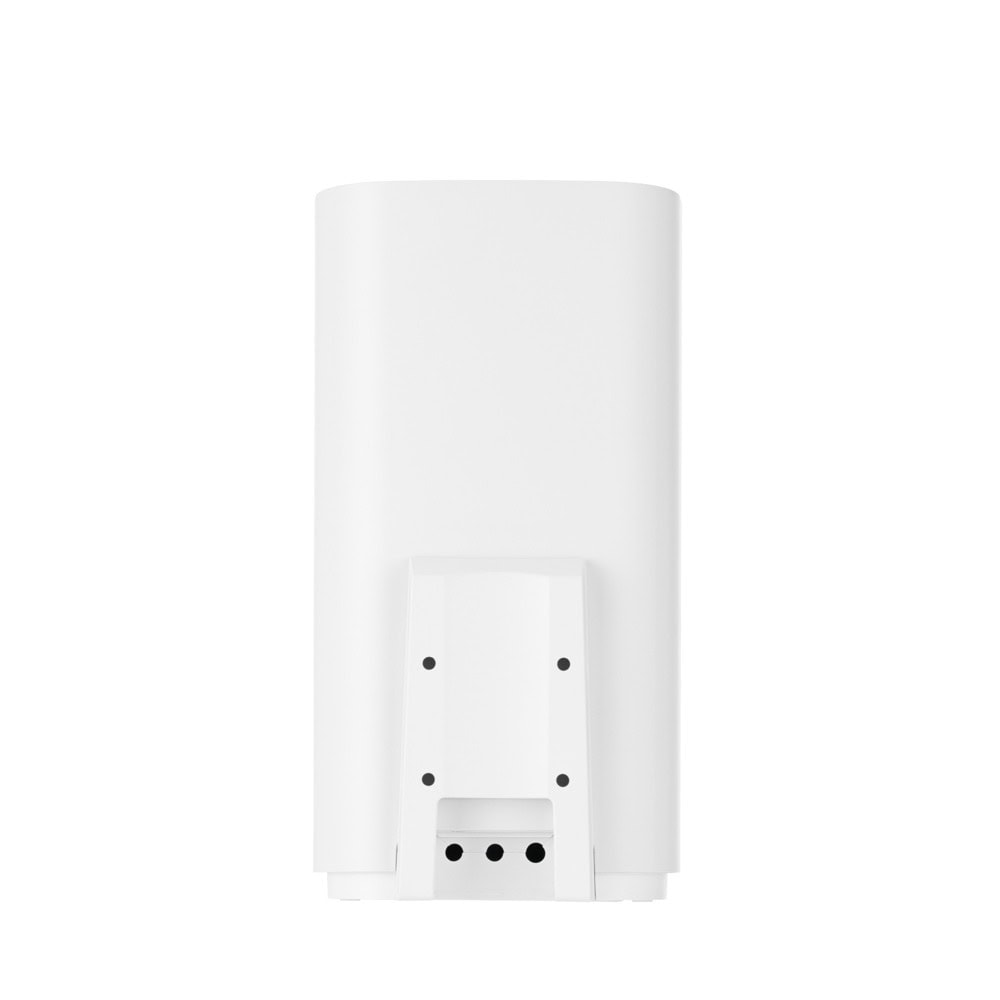

Versatile Installation Options

The BD4 Outdoor provides versatile mounting solutions and hassle-free installation with its included mounting kits. This enables easy deployment, efficient space utilization and greater flexibility for various types of outdoor scenarios.

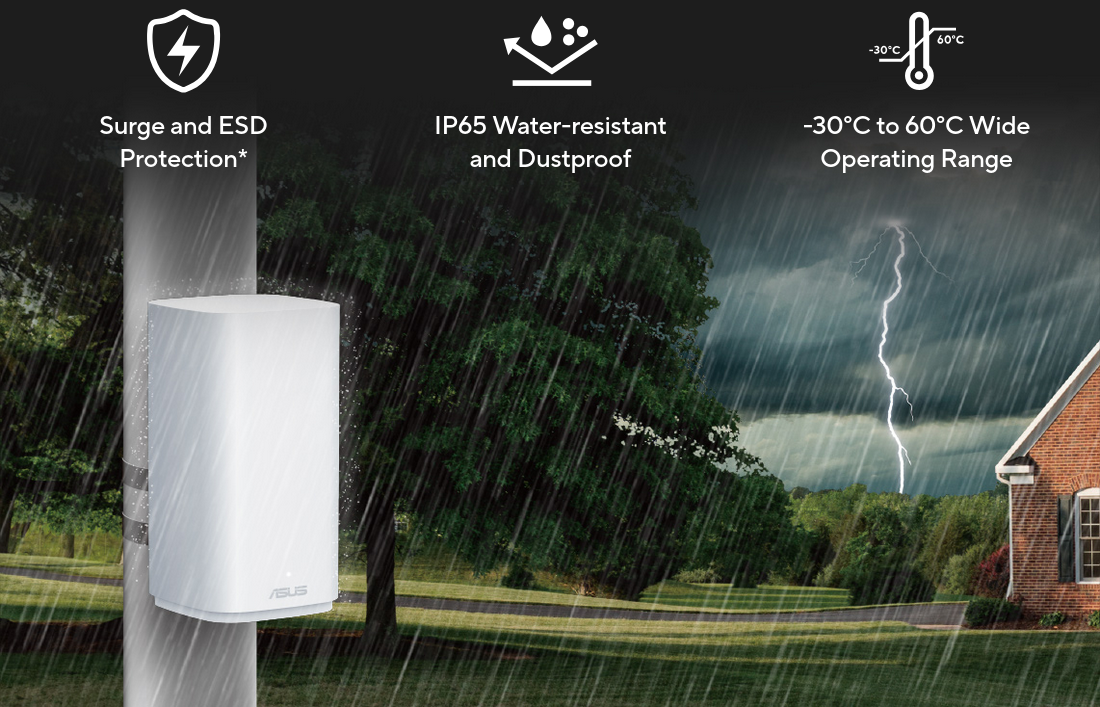

DURABILITY

Robust Design for Outdoor Scenarios

With ESD and surge protection, the BD4 Outdoor is designed to resist damage from electrostatic discharge*, promoting the longevity and reliability of sensitive electronic components. The IP65 rating certifies resistance against dust and water ingress, making it ideal for use in harsh environments, whether indoor or outdoor.

Network Security

Safeguard Everyone and Every Connected Device

In a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats and help ensure seamless protection for all your connected device and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection and secure connections.

IoT Network Set up and manage all your IoT devices under one secure SSID to provide enhanced security with commercial-grade protection.
Kid’s Network Create a dedicated SSID just for the kids to easily manage their screen time without needing to configure each device individually.
VPN Network Connect to your preferred VPN service with a single click through a dedicated subnetwork.

Tech Specs

Network Standard

IPv6

IPv4

WiFi 7 (802.11be)

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Antenna

Internal antennas x 2

Transmit / Receive

5GHz 2x2

2.4GHz 2x2

Processor

1.5GHz quad-core processor

Memory

RAM 512MB , Flash 128MB

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency

5 GHz

2.4 GHz

Operating Mode

Repeater Mode

Access Point Mode

AiMesh Node Mode

Wireless Router Mode

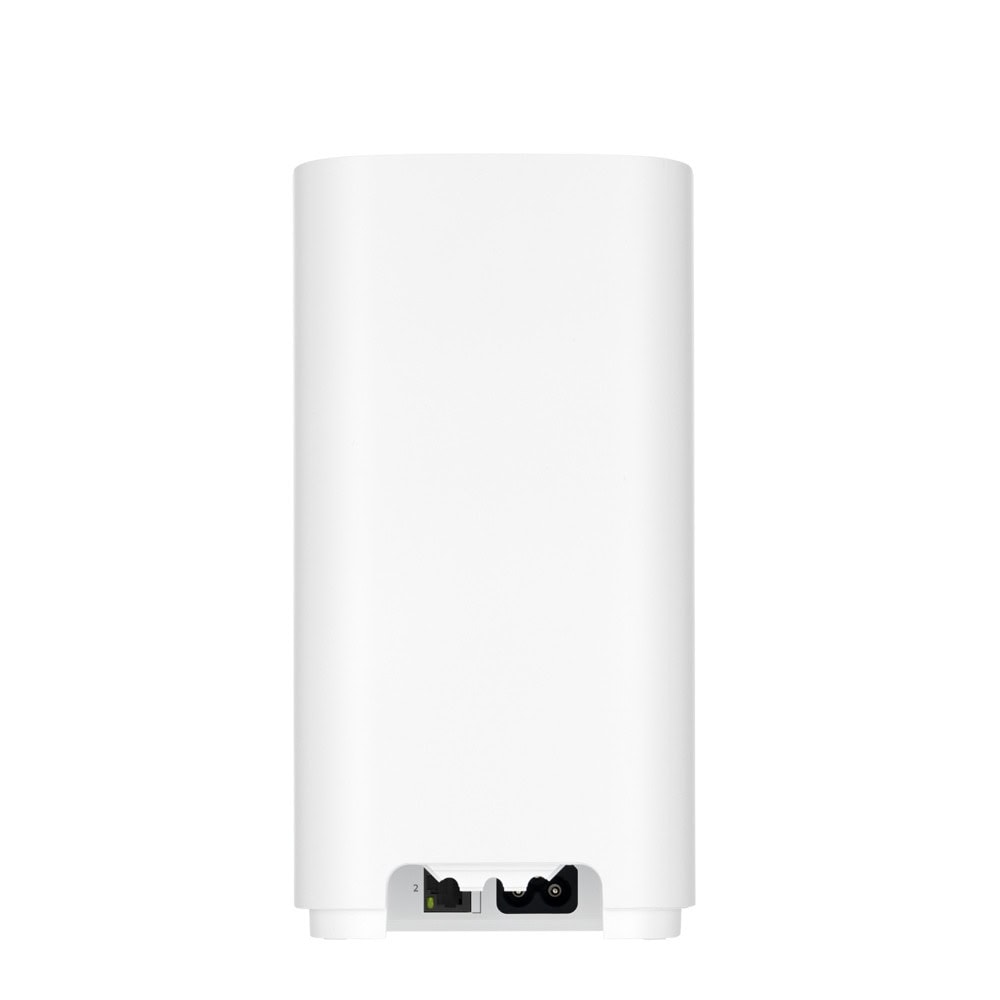

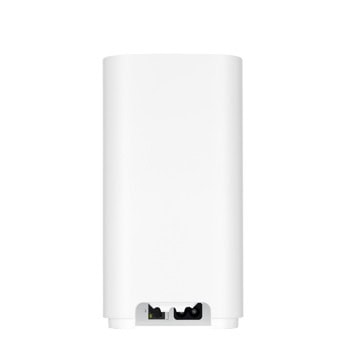

I/O Ports

2.5G x 2 (WAN/LAN auto detecting)

Buttons

Reset button

LED Indicator

Power x 1

Power Supply

AC Input : 100V~240V(50~60Hz), 2A

Product Weight (g)

1040

Product Dimensions

106 x 106 x 200

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Parental Control

"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Customized Internet Schedule

Router APP

APP: ASUS Router APP

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network

Security

AiProtection, VPN, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, Security Scan, Firewall

AiProtection

AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, Traditional QoS, Traffic Monitor, Traffic Analyzer, • Website History

WAN

Port Forwarding, Port Triggering, DMZ, DDNS

LAN

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Administration

Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Smart Home

Support Google Assistant
