Рутер MikroTik Chateau LTE7 ax, 1800Mbps, 4G/LTE, 2.4GHz(574Mbps) / 5GHz(1201Mbps), Wireless AX, 4x 10/100/1000Mbps, 1x 100/1000/2500Mbps, 1x microSIM слот, 1x USB-A, 2x външни антени

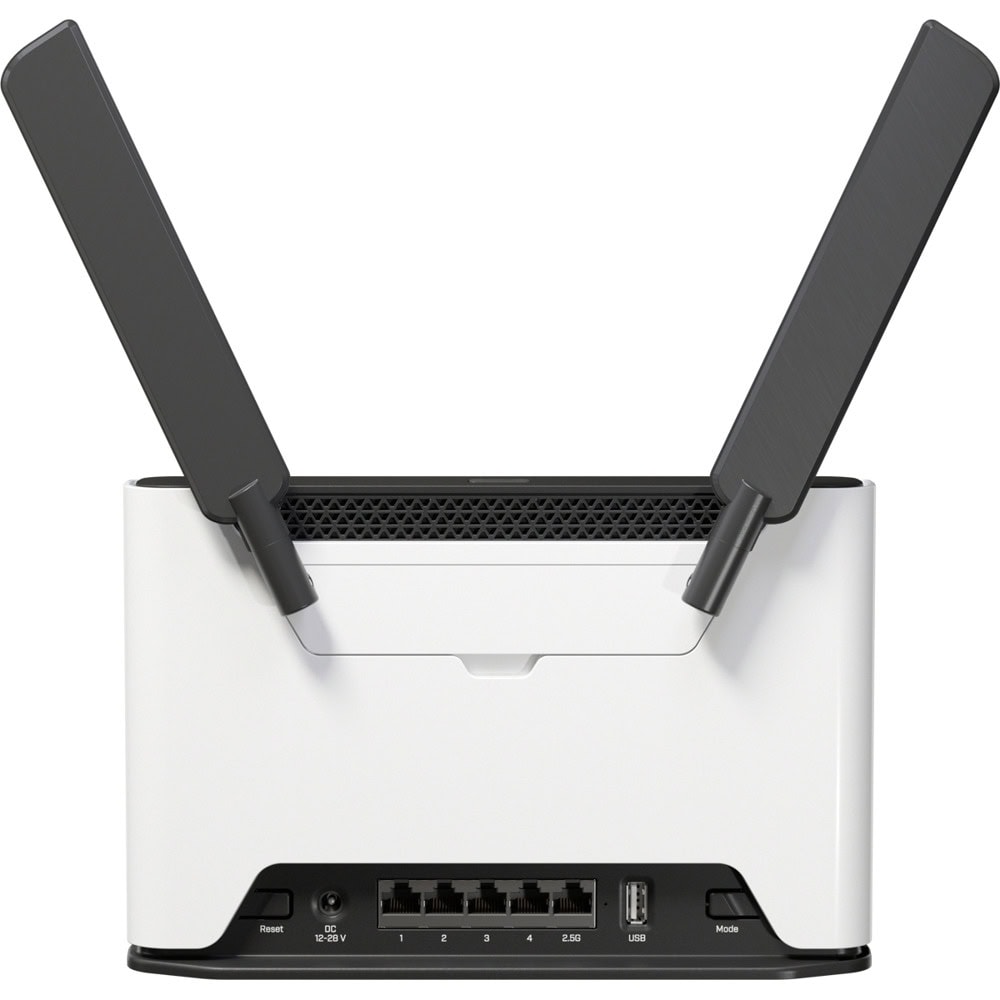

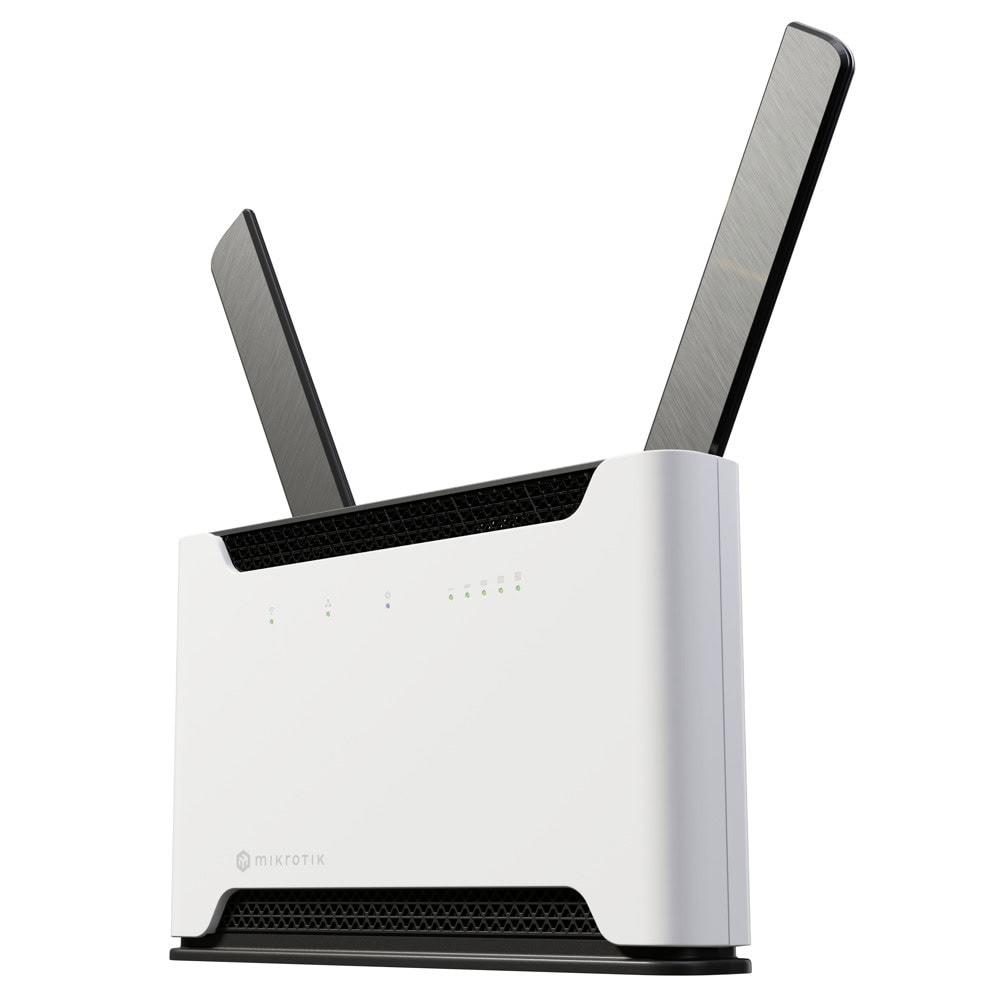

Chateau LTE7 ax

Your favorite high-performance home and office LTE router just got a major upgrade. Chateau LTE7 ax keeps the same powerful hardware, sleek design, and Wi-Fi 6 performance – but now features an LTE Category 7 modem, expanded frequency support, and a significantly lower price than the previous LTE6 ax version.

Are you tired of those suspicious, low-quality default routers from your service providers? So many households are switching to mobile internet, but those default routers can really ruin the experience. That’s why we decided to take everything we’ve learned over the last 20 years of networking excellence and create a single device that will make most households happy: the MikroTik Chateau.

Perfect for home offices, businesses, and ISPs

With five Ethernet ports (including a 2.5G port!), 2×2 MIMO LTE and full RouterOS v7 functionality, Chateau LTE7 ax fits a wide range of use cases:

Specification

• Architecture ARM 64bit
• CPU IPQ-6010
• CPU core count 4
• CPU nominal frequency auto MHz
• CPU Threads count 4
• Switch chip model IPQ-6010
• RouterOS license 4
• Operating System RouterOS v7
• Size of RAM 1 GB
• Storage size 128 MB
• Storage type NAND
• MTBF Approximately 200'000 hours at 25C
• Tested ambient temperature -40°C to 70°C

Powering

• Number of DC inputs 1 (DC jack)
• DC jack input Voltage 12-28 V
• Max power consumption 21.5 W
• Max power consumption without attachments 15.5 W
• Cooling type Passive

Mobile

• 3G Category R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
• 3G bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  8 (900 MHz)

• LTE Category 7 (DL: 300 Mbps; UL: 100 Mbps)
• MIMO DL 2x2
• MIMO UL 1x1
• LTE FDD bands 1 (2100 MHz)
  3 (1800 MHz)
  5 (850 MHz)
  7 (2600 MHz)
  8 (900 MHz)
  20 (800 MHz)
  28 (700 MHz)
  32 (1500 MHz)

• LTE TDD bands 38 (2600 MHz)
  40 (2300 MHz)
  41 (2500 MHz)

• TAC 35312597

Wireless specifications

• Wireless 2.4 GHz Max data rate 574 Mbit/s
• Wireless 2.4 GHz Number of chains 2
• Wireless 2.4 GHz standards 802.11b/g/n/ax
• Antenna gain dBi for 2.4 GHz 3
• Wireless 2.4 GHz chip model QCN-5022
• Wireless 2.4 GHz generation Wi-Fi 6
• Wireless 5 GHz Max data rate 1200 Mbit/s
• Wireless 5 GHz Number of chains 2
• Wireless 5 GHz standards 802.11a/n/ac/ax
• Antenna gain dBi for 5 GHz 6
• Wireless 5 GHz chip model QCN-5052
• Wireless 5 GHz generation Wi-Fi 6

Ethernet

• 10/100/1000 Ethernet ports 4
• Number of 2.5G Ethernet ports 1

Peripherals

• Number of SIM slots 1 Modem (Micro SIM)
• Number of USB ports 1
• USB Power Reset Yes
• USB slot type USB type A
• Max USB current (A) 1

Other

• CPU temperature monitor Yes
• PCB temperature monitor Yes
• Voltage Monitor Yes
• Mode button Yes

Certification & Approvals

• Certification CE, EAC, ROHS
• IP 20
