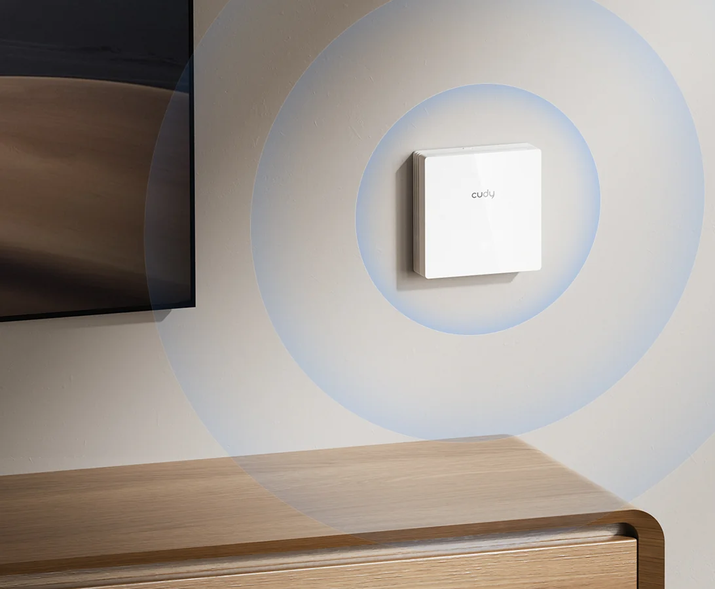

![]() ![]() | AC1200 Dual-Band Fast, Reliable Wi-Fi in Every Room Dual-band WiFi allows newer devices to stream on the less congested 5 GHz band, ensuring smooth video calls, 4K playback and gaming, while IoT and legacy devices stay reliably connected on 2.4 GHz band. |
Built for Modern Spaces

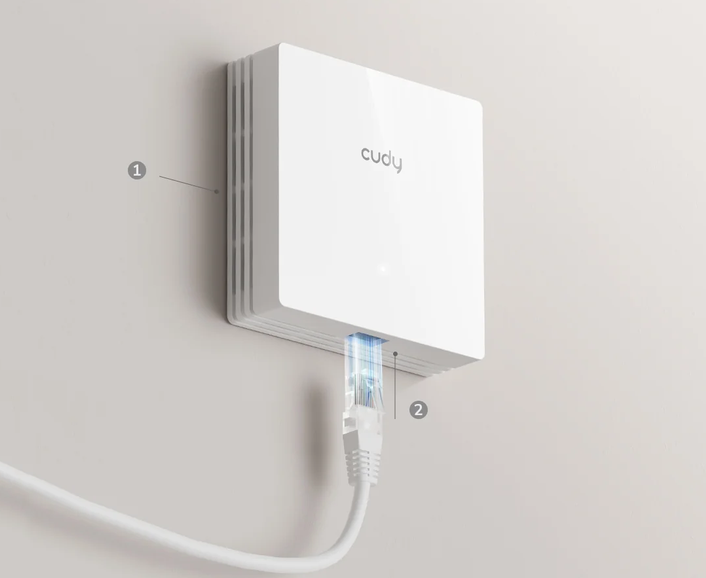

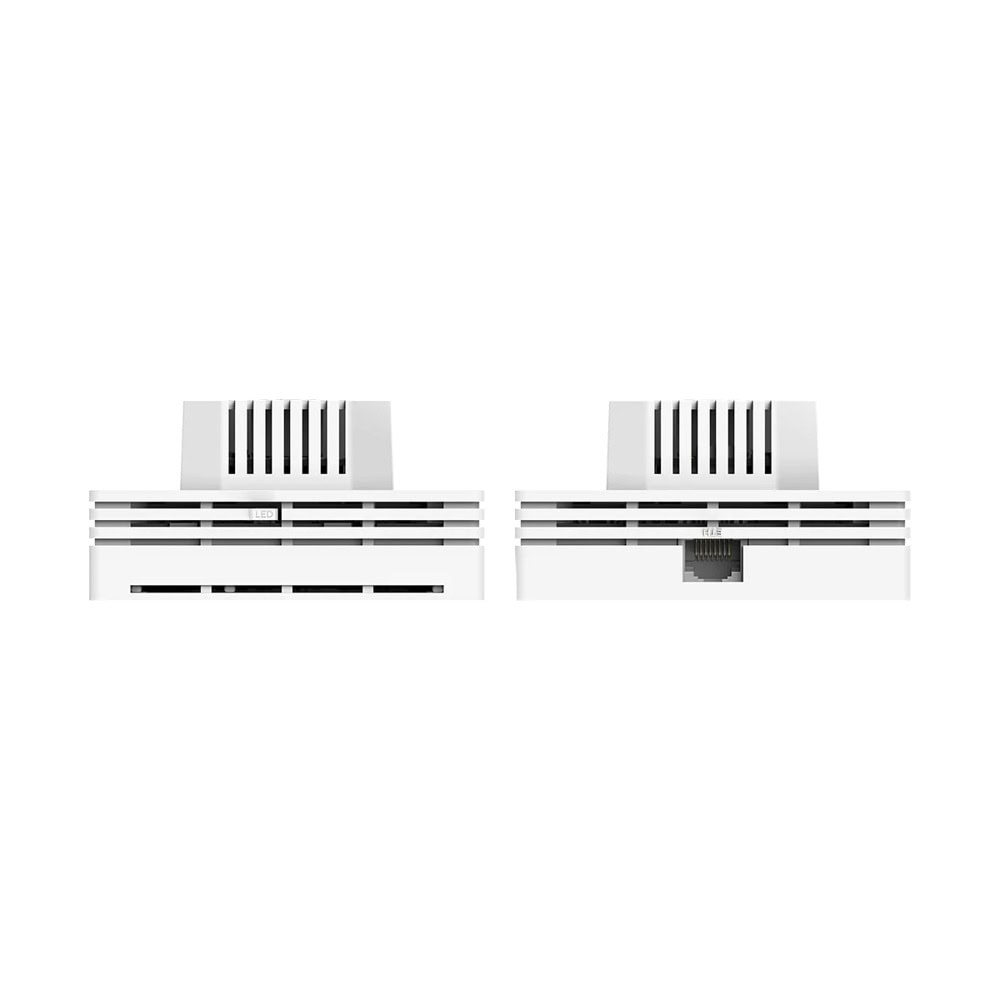

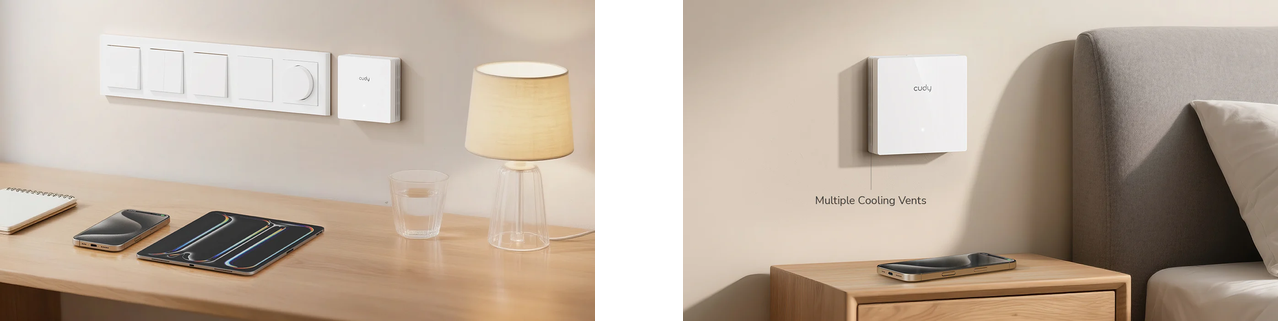

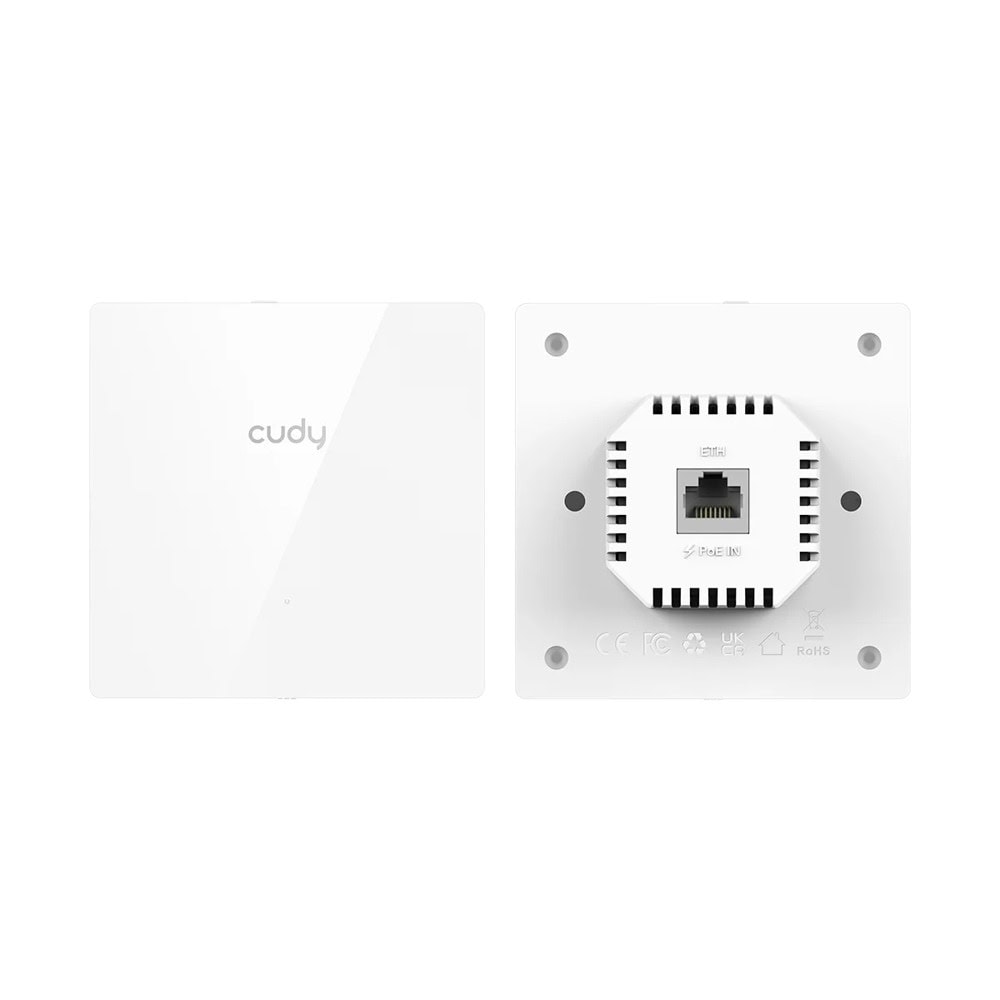

Effortlessly integrates into any Interior With its sleek, minimalist design, the device fits naturally into any room without disrupting your décor, delivering high-performance Wi-Fi while staying visually unobtrusive. | Efficient Heat Dissipation Equipped with multiple cooling vents, the AP1300E Wall prevents overheating to maintain proper temperature and stable performance, even under heavy workloads. |
Seamless Experiences in Multiple Scenarios

Apartment Enjoy dedicated, high-speed Wi-Fi in every unit with zero signal overlap. Its sleek, low-profile design blends seamlessly into modern interiors. | Dormitory Provide secure, high-speed access for each user without cross-room interference or weak zones. Designed to handle multiple users across closely packed rooms. | Hotel Covers up to 50 m² (540 ft²), delivering fast, secure Wi-Fi in every guest room. Sleek design and easy integration with VoIP, IPTV, and other devices. | Office Ensure reliable connectivity for each workspace or meeting room. Perfect for flexible, room-based deployments in modern offices. |

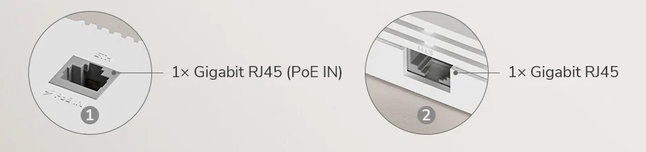

![]() ![]() | Gigabit Wired Connection Equipped with two Gigabit Ethernet ports——including one that supports PoE IN, AP1300 Wall allows your VoIP phones, IPTV, or other wired devices to stay reliably connected to the network for smooth calls and streaming. |
Features
4-Stream Dual-Band Wi-Fi 5

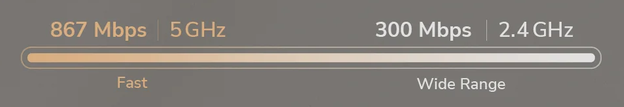

867 Mbps + 300 Mbps Wi-Fi 1
1× GbE PoE In, 1× GbE
802.3at/af, Passive PoE
Watchdog, Schedule Reboot
Covers 50 m² (540 ft²) 2
40 Connected Devices 3
Multi-AP Management
Specifications
Hardware Specs
| CPU | CPU Details | 880 MHz Dual-Core CPU |
|---|---|---|
| Memory/Storage | Flash/ROM | 16 MB (128 Mbit) NOR |
| DDR/RAM | 128 MB (1 Gbit) DDR3 | |
| Wireless | 5 GHz Wi-Fi Speed | 867 Mbps |
| 2.4 GHz Wi-Fi Speed | 300 Mbps | |
| 5 GHz Wi-Fi Streams | 2 Spatial Streams | |
| 2.4 GHz Wi-Fi Streams | 2 Spatial Streams | |
| Wi-Fi Antennas | 4× Internal | |
| FEM or PA/LNA |
| |
| Beamforming | Yes | |
| Range Performance | Max: 80 m (262 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') | |
| Interfaces | Gigabit RJ45 Ports | 2 |
| Ethernet Notes | ETH0 accepts PoE powering | |
| LED | System | |
| Physical Buttons |
| |
| Power | Power Input Type | PoE via Ethernet Port |
| Power Methods |
| |
| Power Input |
| |
| Max Power Consumption (W) | Max (PoE) : 10 W Max (DC): NA | |
| Idle Power Consumption (W) | 4 W | |
| Reliability | Advanced | Hardware Watchdog |
| EMC | ESD: Contact: 4kV; Air: 8kV | |
| Environment | Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing | |
| Certifications | FCC, CE | |
| Mechanical | Installation | Wall-mount |
| Dimension | 86×86×43 mm 3.39×3.39×1.69 inches | |
| Product Weight | 145.0 g (5.11 oz.) | |
| Compatibility | Compatible Products | C200P 1.0, C500P 1.0 |
| Compatible Accessories | POE200 2.0, POE300 2.0, POE400H 1.0, POE400 2.0, POE350 2.0, POE200H 1.0, POE400X 2.0, POE350 3.0, POE400 3.0, POE300 3.0, POE52-30W 1.0, POE48-18W 1.0 | |
Software Specs
| Wireless | Wi-Fi Standards | Wi-Fi 5 |
|---|---|---|
| Max Wi-Fi Modulation | 256-QAM | |
| Wi-Fi Efficiency | MU-MIMO | |
| Wi-Fi Efficiency Note | MU-MIMO available on 5 GHz | |
| Max Capacity | 128 | |
| Recommended Client Upper Limit | 40 | |
| Wi-Fi Channel Width | Auto/20/40/80 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Multi-SSID (Max Number) | 8 SSIDs (Up to 4 SSIDs on each band), VLAN Support | |
| General | Operation Modes | Access Point |
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | Yes | |
| Management | Multi-AP Management | Via Cudy AP Controller |
| All Devices Management | Wi-Fi Time Schedule | |
| Network | DHCP | Server |
| IP Versions | IPv4 | |
| IGMP | IGMP Snooping | |
| Utilities | Wake on LAN | Yes |
| System | LED Control | Yes |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel |
|
| Charts |
|
Виж още Аксеспойнт/Репитер Безжични Cudy
Виж всички Аксеспойнт/Репитер Безжични в категорията
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 1200 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 5 (802.11ac) |
| Честота: | 2.4 & 5 GHz |
| Антени: | 4 Вътрешни |
| dBi на антена/и: | Не е указано |
| PoE: | In |
| Интерфейс: | 2x 1000 |
| Други: | Няма |
