Name: Захранване Seasonic Prime PX-1000, 1000W, Active PFC, 80 Plus Platinum, 135mm вентилатор
Brand: Seasonic
SKU: PWRPCSEASONICSSR1000PD
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Seasonic Prime PX-1000

80 PLUS Platinum

The PRIME Platinum Series achieves 80 PLUS Platinum certification with its 92 % efficiency at 50 % system load.

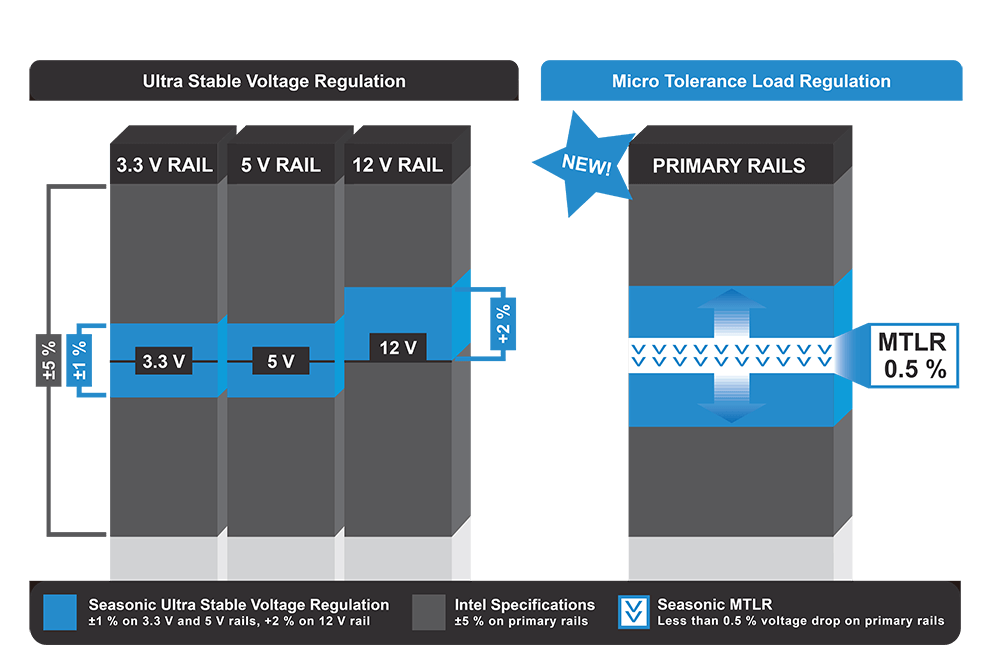

Micro Tolerance Load Regulation

Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

Tech specs

Power Output
AC Input	Voltage: 100 V - 240 V
	Current: 13 - 6.5 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	83 A	0.3 A	3 A
	Maximum Power	125 W		996 W	3.6 W	12.5 W
	Total continuous power	1000 W

Technical Specifications
80PLUS		Platinum
Cybenetics Efficiency Level		ETA A
Cybenetics Noise Level		LAMBDA A-
Form Factor		Intel ATX 12 V
Dimensions		170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Information	Fan Size	135 mm
	Fan Control	Premium Hybrid Fan Control
	Fan Bearing	Fluid Dynamic Bearing
	Life Expectancy	50,000 hours at 40 °C, 15 % - 65 % RH
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C)
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
