TL-POE10E
Fast Ethernet PoE+ Extender
- Extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment
- Compliance with 802.3af/at devices and supports the maximum output power of 20W
- 2 * 10/100Mbps Ports ensure faster transmission
- Plug-and-Play, requires no configuration
The Fast Ethernet PoE+ Extender TL-POE10E extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. TL-POE10E expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.
| Category | Specification |
|---|---|
| NETWORK | |
| Standards and Protocols | IEEE802.3i, IEEE802.3u |
| GENERAL | |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
| Material | Plastics Casing |
| PACKAGE CONTENTS | |
| Package Contents | • Fast Ethernet PoE+ Extender TL-POE10E • Installation Guide |
| HARDWARE FEATURES | |
| Network Media | UTP/STP of Cat.5E or above (based on the standards that the connected devices comply with) |

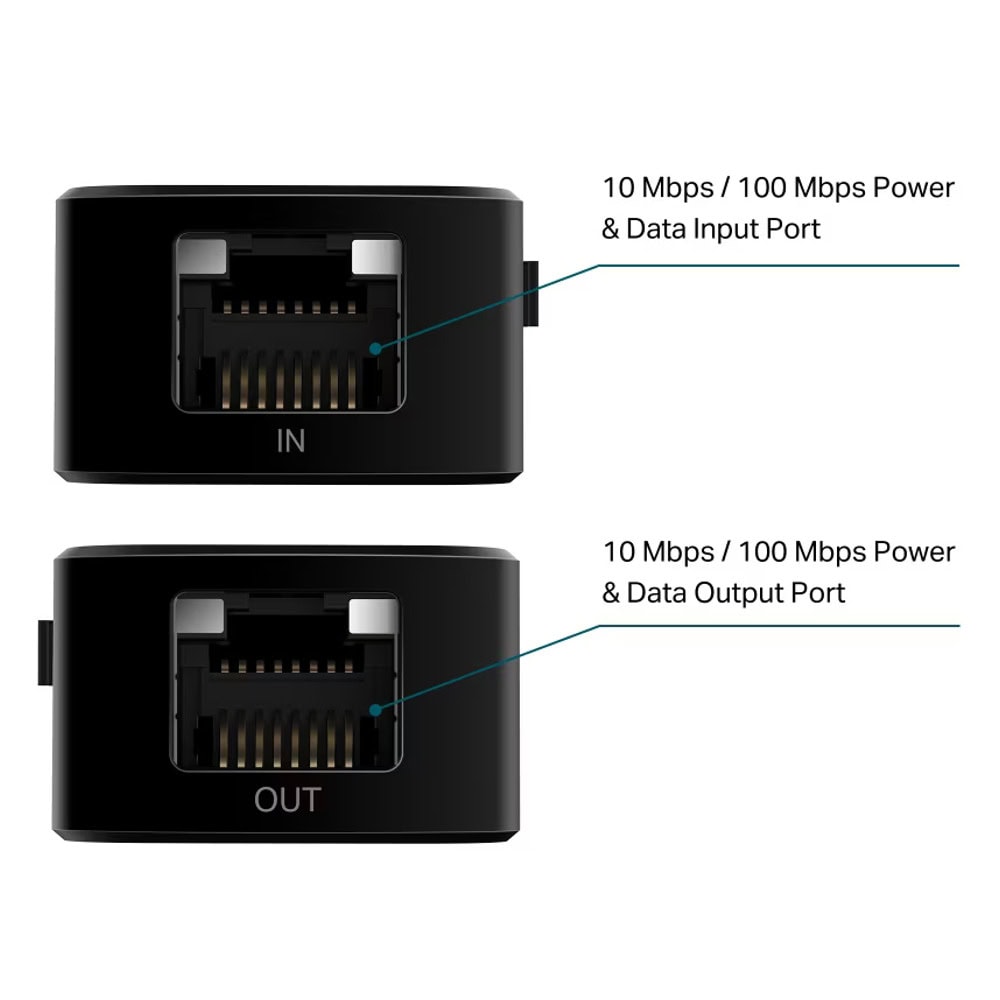

| Ports | • 1 10 Mbps /100 Mbps RJ45 PoE IN Port • 1 10 Mbps /100 Mbps RJ45 PoE OUT Port |
| Basic Function | • 1 10/100Mbps RJ45 PoE IN port • 1 10/100Mbps RJ45 PoE OUT port, supplies up to 20 W • Up to 250 m data and power transmitting range under 10Mbps mode • Plug-and-Play |
| Dimensions (W x D x H) | 2.33 × 0.85 × 0.52 in (71 × 26 × 16 mm) |
Виж още Жични мрежи аксесоари TP-Link
Виж всички Жични мрежи аксесоари в категорията
Технически характеристики
| Тип: | PoE Extender |
|---|
