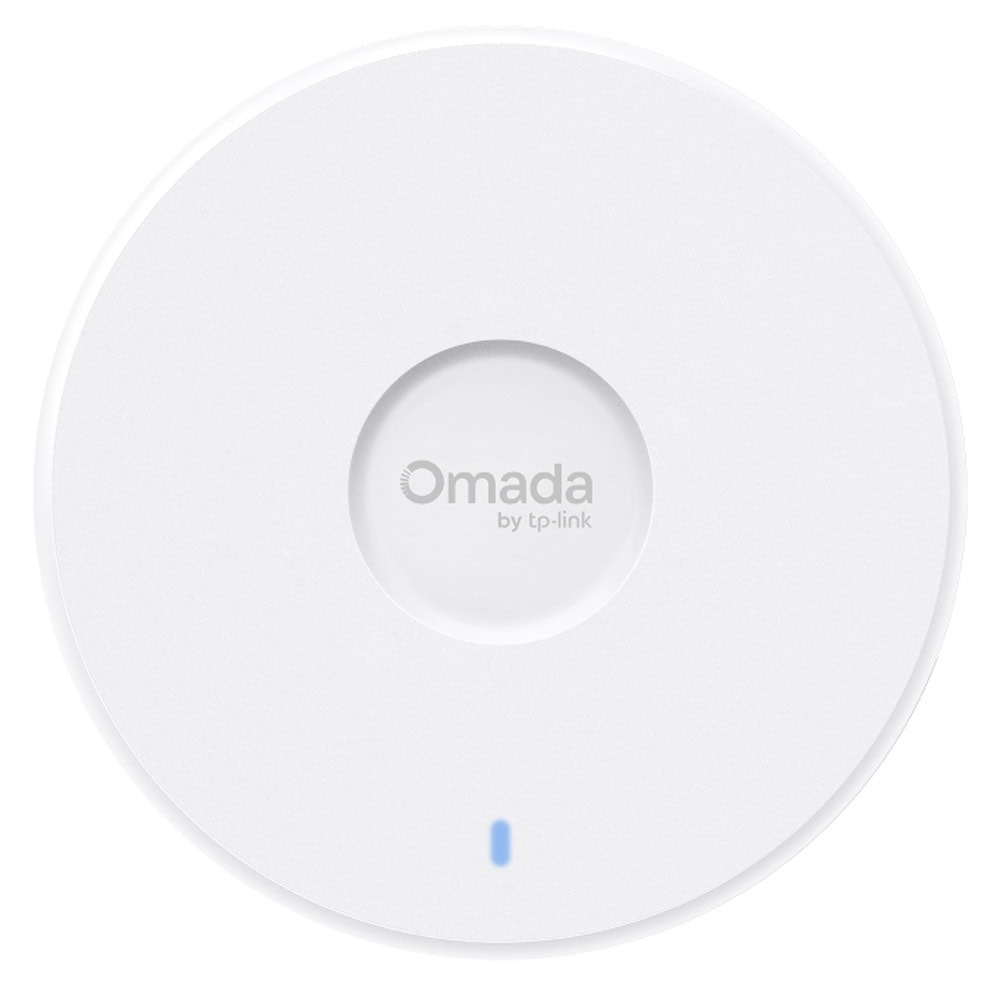

TP-Link Omada EAP727
Omada 7 UR - BE5000 5-Stream Ceiling Mount Dual-Band Wi-Fi 7 Access Point
- 5-Stream Wi-Fi 7: 4,324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz.†
- 1× 2.5G PoE+ Port: Ensures high-speed connectivity throughout the network.
- Low Latency and Interference: 160 MHz bandwidth, Multi-Link Operation, Multi-Rus, and 4K-QAM ensure high performance for your connectivity.‡
- Flexible Deployment and Easy Setup: Supports 802.3at PoE or DC power supply for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management, PPSK, multiple portals, mesh, and seamless roaming. §
- More Connections and Wider Coverage: Supports 510+ concurrent connections** and covers up to 2,000 ft² (185 m²)* for reliable and extensive wireless connectivity.

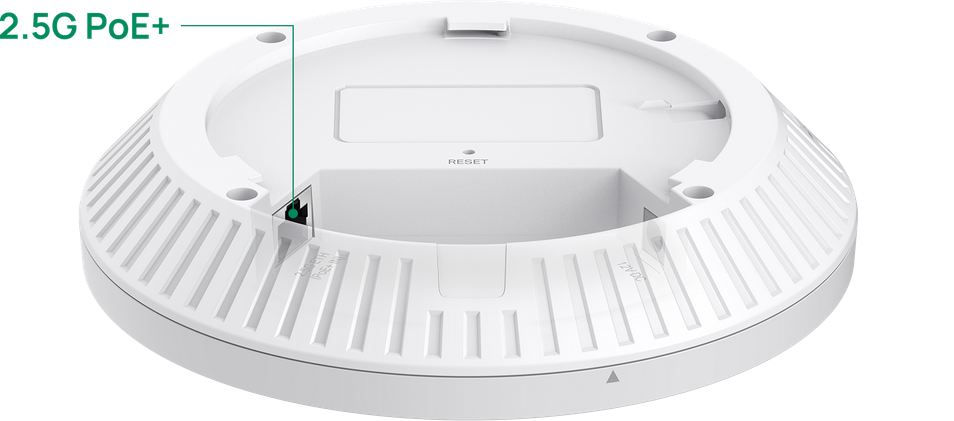

Optimized Wired Performance with 2.5G PoE+ Port
With a 2.5 Gigabit Ethernet Port, EAP727 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.

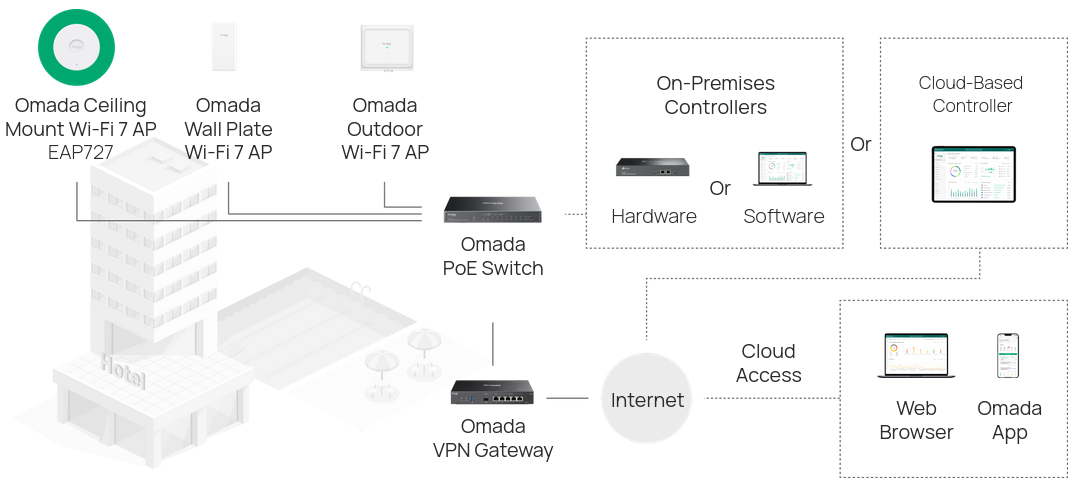

Seamless Integration
into Omada SDN
| Specification | Value |
|---|---|

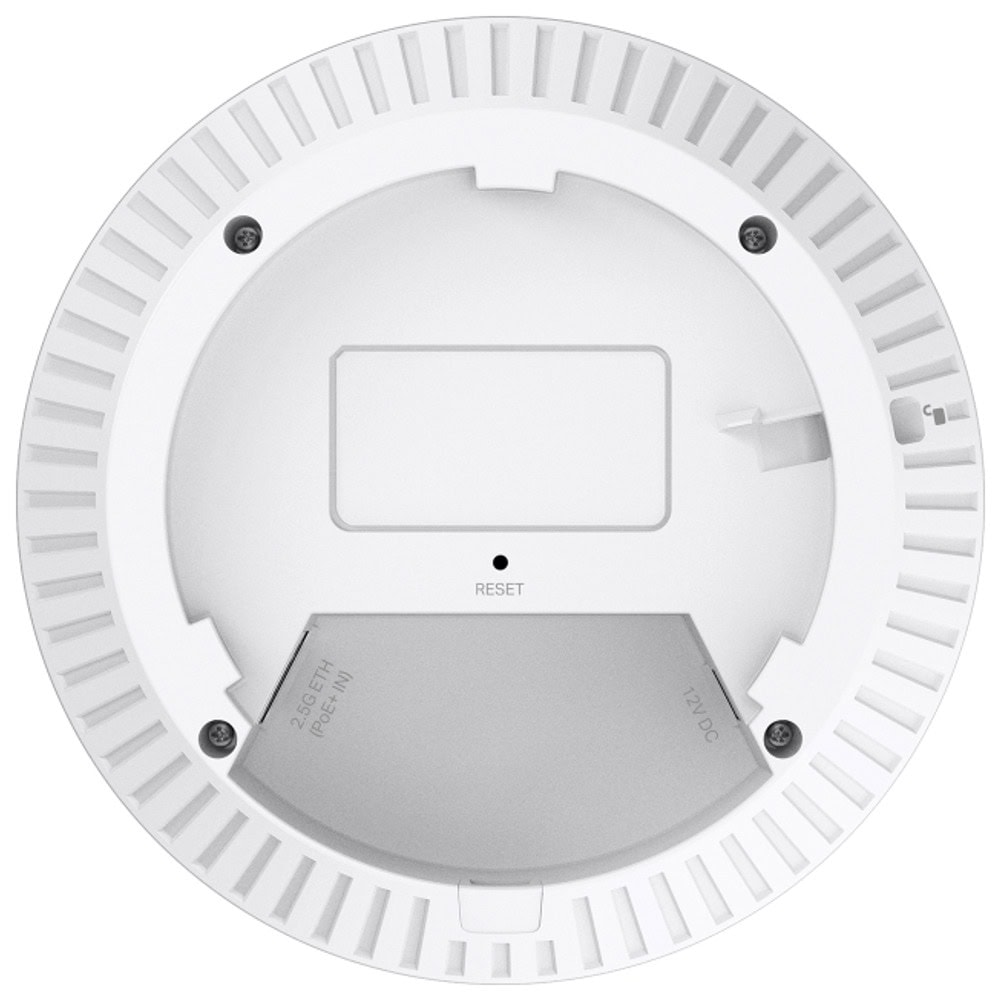

| Interface | 1× 2.5 Gbps Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3at PoE• 12V/1.5A DCNote: DC Power adapter is not included. DC power interface: 12V, accepts 2.1 mm / 5.5 mm center-positive circular plug with 9 mm length. |
| Weight | 0.47 kg (1.04 lb) |

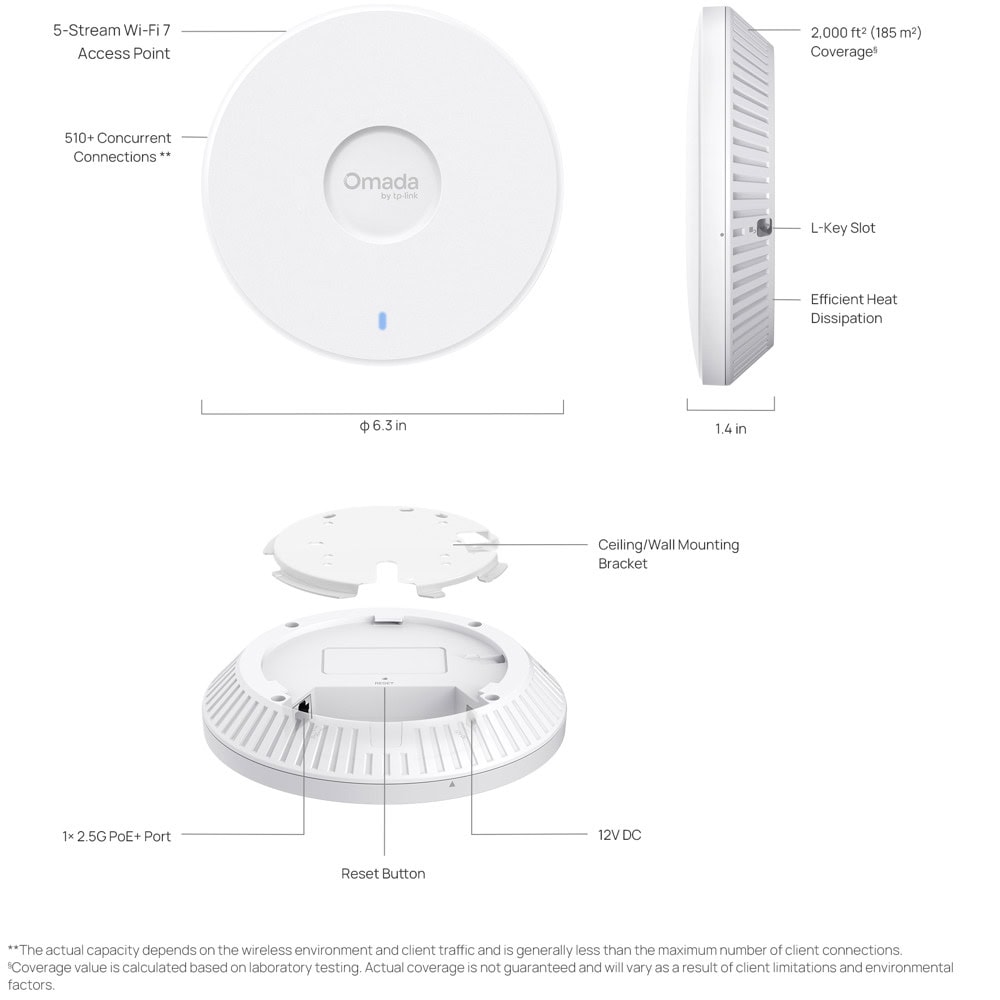

| Dimensions (W x D x H) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna | • 2.4 GHz: 2 × 4 dBi• 5 GHz: 3 × 6 dBi |
| Bluetooth | 1 × 4 dBi (peak gain), internal antenna |

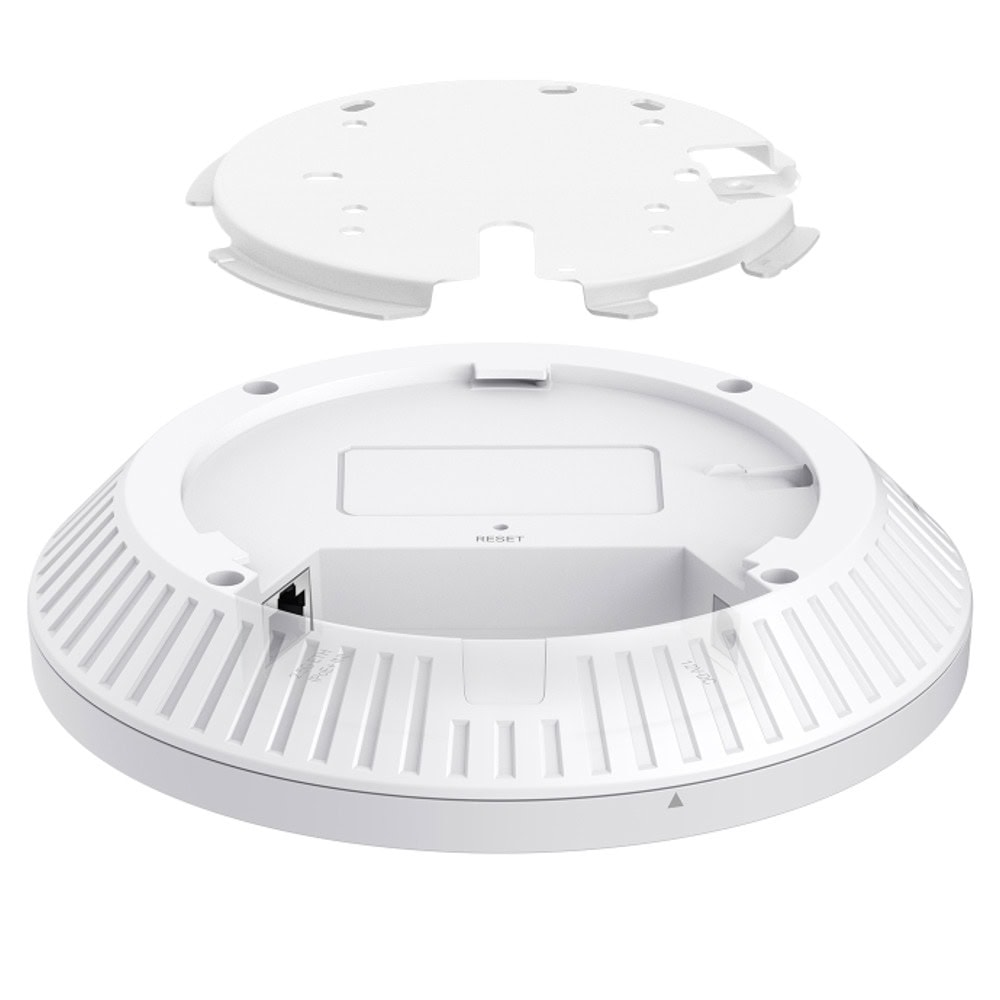

| Mounting | • Ceiling/Wall/Junction Box Mounting (Kits included)• T-Bar Mounting (Kits included) |
| Max. Power Consumption | • 17.5 W (PoE)• 15.8 W (DC) |
| Omada App | Yes (Omada App V5.0 and above) |
| Centralized Management | • Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller |
| Cloud Access | Yes. Require the use of Omada Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging (Local/Remote Syslog) | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| Coverage | 2,000 ft² (185 m²)* |
| Concurrent Clients | 510+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Wireless Functions | • MLO‡• 4K-QAM‡• Seamless Roaming• 160 MHz Bandwidth‡• Mesh§• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDs: 16 (8 on each band)• Wireless Schedule• Reboot Schedule• QoS (WMM)• Rate Limit• Static IP/Dynamic IP• Radius Accounting• MAC Authentication |
| Wireless Security | • Captive Portal Authentication§• Access Control• MAC Filter• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise• WPA2-Personal/Enterprise• WPA3-Personal/Enterprise |
| Transmission Power | • 4–26 dBm (2.4 GHz)• 6–27 dBm (5 GHz, U-NII-1 & U-NII-2A & U-NII-2C & U-NII-3) |
| Certification | FCC/CE/VCCI/JRF/ICES |

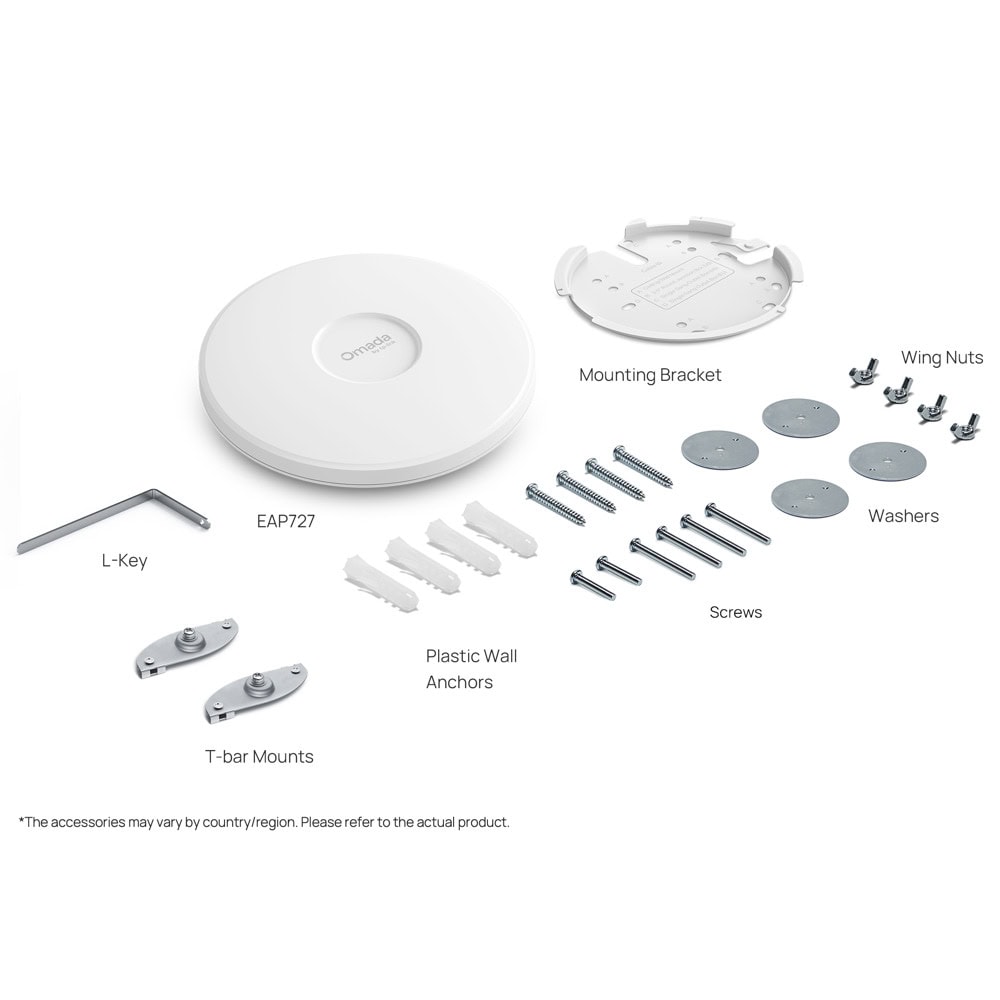

| Package Content | • EAP727• Installation Guide• Mounting Kit |
| Environment | • Operating Temperature: 0℃ to +40℃ (32℉ to +104℉)• Storage Temperature: -40℃ to +70℃ (-40℉ to +158℉)• Operating Humidity: 10% to 90% (non-condensing)• Storage Humidity: 5% to 90% (non-condensing)• Storage Altitude: up to +2000 m (6561 feet)• Operating Altitude: up to +2000 m (6561 feet) |
Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 5000 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 7 (802.11be) |
| Честота: | 2.4 & 5 GHz |
| Антени: | 5 Вътрешни |
| dBi на антена/и: | 6 |
| PoE: | In & Out |
| Интерфейс: | 1x 1000 |
| Други: | Няма |
